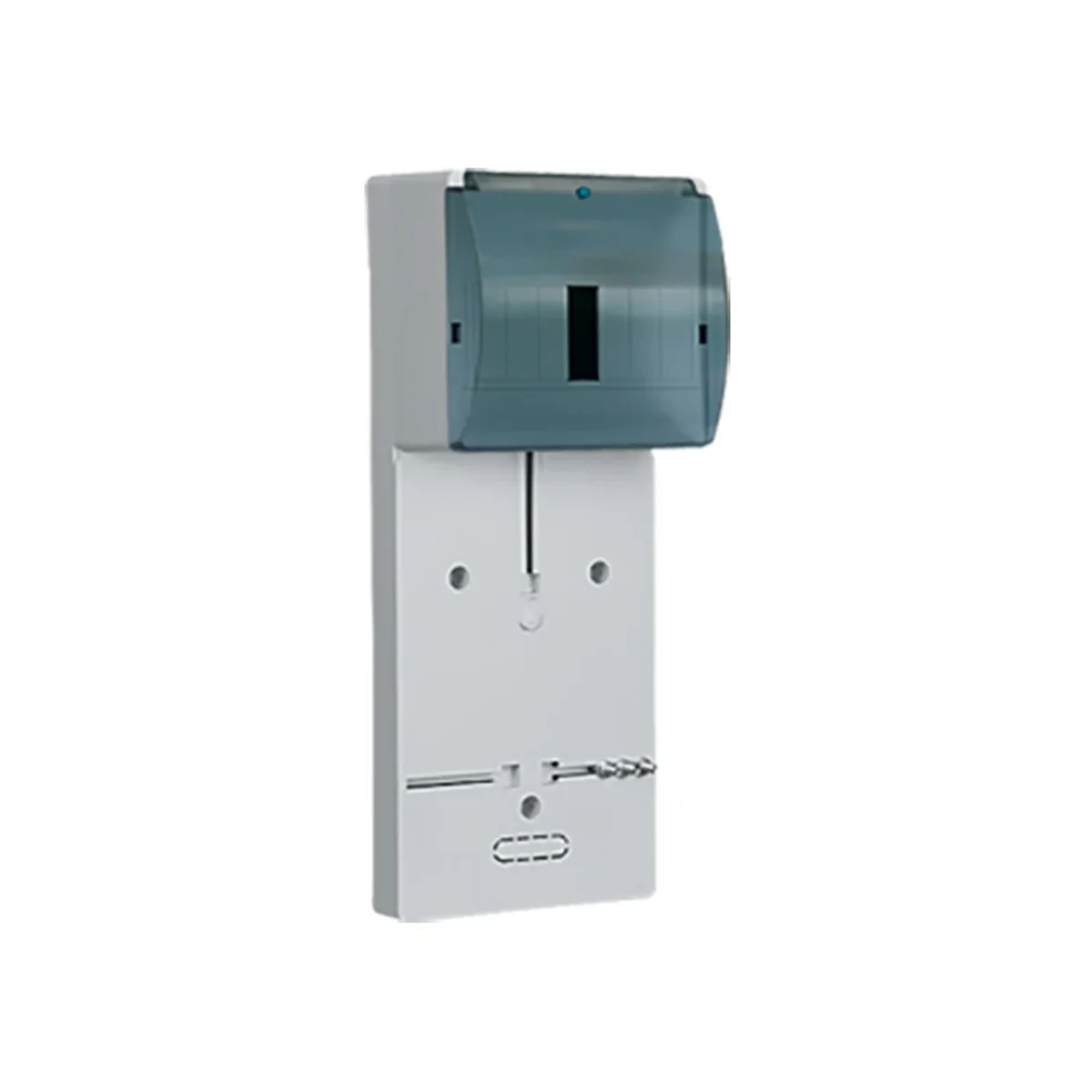

Counter board TLR-1F (N+PE) with glass 10.2A

local index:
RRR020ELOP
Catalog No:
10.2A
EAN code:
5905548280653
Number of modules: 9
Color: Gray
Width [mm]: 152
Price:
7,34 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 38 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

In the Counter Boards of the "TLR" type, weakenings have been prepared for electrical apparatus from 1 to 9 modules. These boards are equipped with TH 35 brackets that allow for quick assembly of various devices adapted to be mounted on EURO-SZYNA brackets and strips with flat bars for connecting wires in N and PE tracks

Technical data

  • Number of modules
    9
  • Width [mm]
    152
  • Number of modules
    9
  • PKWIU
    27.12.31.0
  • Color
    Gray
  • Height [mm]
    380
  • Accurate color
    Gray

Other technical data

  • Height
    380 mm
  • Extension piece
    No
  • RAL-number
    7035
  • Width
    152 mm
  • Colour
    Grey
  • Protection
    Miniature circuit breaker (MCB)
