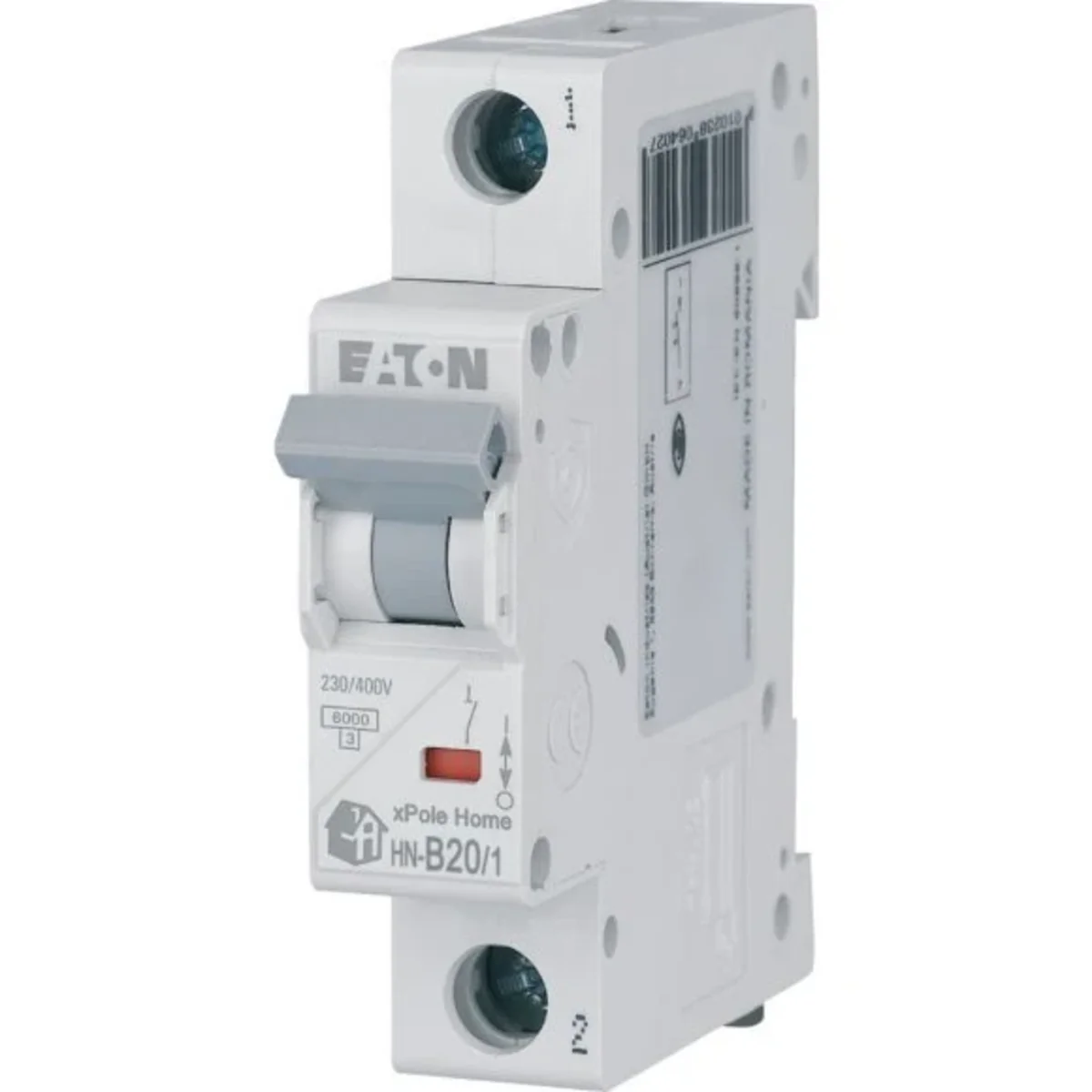

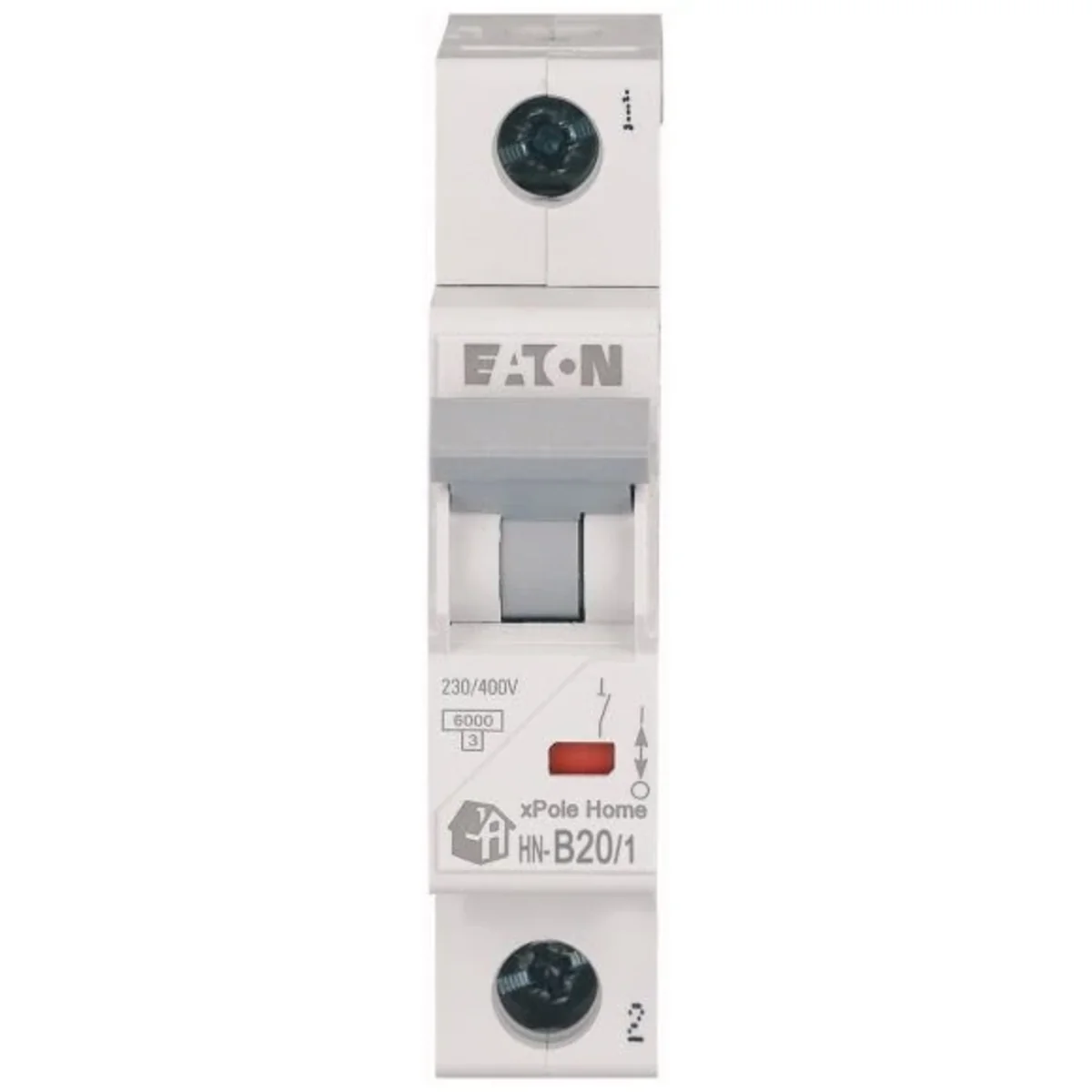

Circuit breaker HN-B20/1 20A 1P 6kA B 230V IP20 type AC 194822

local index:
ABB051MOEL
Catalog No:
194822
EAN code:
9010238063068
Manufacturer: EATON
Characteristic: b
Depth [mm]: 45
Overvoltage category: 3
Price:
3,10 €
gross / pcs.
(including VAT 23%)
Base price: 9,10 € gross -66%
Delivery in 3h
Accessible 327 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The new xPole Home product series, comprising the entire range of HN, HNB combined and HNC residual current circuit breakers, has been developed with maximum design safety and efficiency in mind. This series is characterized by a simplified design, reliability and full compliance with the relevant standards. In addition, xPole Home devices are easily accessible and easy to install. xPole Home circuit breakers for residential applications are easily identified by the gray house pictogram on each product in this series, which means increased safety. Simplified design, and at the same time resistance and resistance to aggressive environments are the main advantages of EATON products. All xPole Home circuit breakers have a wide range of proven features that further enhance operational safety and ease of use. The new EATON modular switchgear can be equipped with accessories: auxiliary contacts, shunt release, undervoltage release, reclosing device, connecting bars, padlock lock.

Technical data

  • Characteristic
    b
  • Overvoltage category
    3
  • Number of poles
    1
  • Installation
    On the TH-35 rail
  • Rated insulation voltage [V]
    440
  • Level of security
    IP20
  • Width [number of modules]
    1
  • Height [mm]
    80
  • Mechanical durability (number of cycles)
    >20000
  • Rated switching capacity [kA]
    6
  • Voltage type
    AC
  • Maximum fuse [A]
    100
  • Depth [mm]
    45
  • Energy limitation class
    3
  • Fixing
    Clip
  • Rated voltage [V]
    230/400
  • Rated current [A]
    20
  • Degree of contamination
    3
  • Width [mm]
    17.5
  • Electrical endurance (number of cycles)
    >10000
  • Clamps
    Elevator Rail
  • Rated impulse voltage [kV]
    4
  • Terminal cross-section [mm²]
    1-25
  • PKWIU
    27.12.22.0

Other technical data

  • Built-in depth
    44 mm
  • Number of poles (total)
    2
  • Rated current
    20 A
  • Rated insulation voltage Ui
    440 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    10 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    15 kA
  • Current limiting class
    3
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    3
  • Width in number of modular spacings
    2
  • Ambient temperature during operating
    -25 ... 75 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²
  • Release characteristic
    D
  • Number of protected poles
    1
  • Rated voltage
    230 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Voltage type
    AC
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    15 kA
  • Frequency
    50 ... 60 Hz
  • Flush-mounted installation
    Yes
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Explosion-proof
    No

Manufacturer details

  • Manufacturer
    EATON Electric Sp. z o.o.
  • Address
    80-299 Gdańsk ul. Galaktyczna 30
  • Tax identification number
    5841022327
  • GLN
    5900009970944

Bulk packaging

A kind of package Skrzynia Karton Karton
Quantity 1 pcs. 1 pcs. 12 pcs. 120 pcs.
Weight (kg) 0,120 0,137 1,640 16,400
Volume (m3) 0,000 0,000 0,001 0,016
Width (m) 0,018 0,020 0,218 0,180
Length (m) 0,085 0,087 0,086 0,385
Depth (m) 0,073 0,075 0,075 0,230
