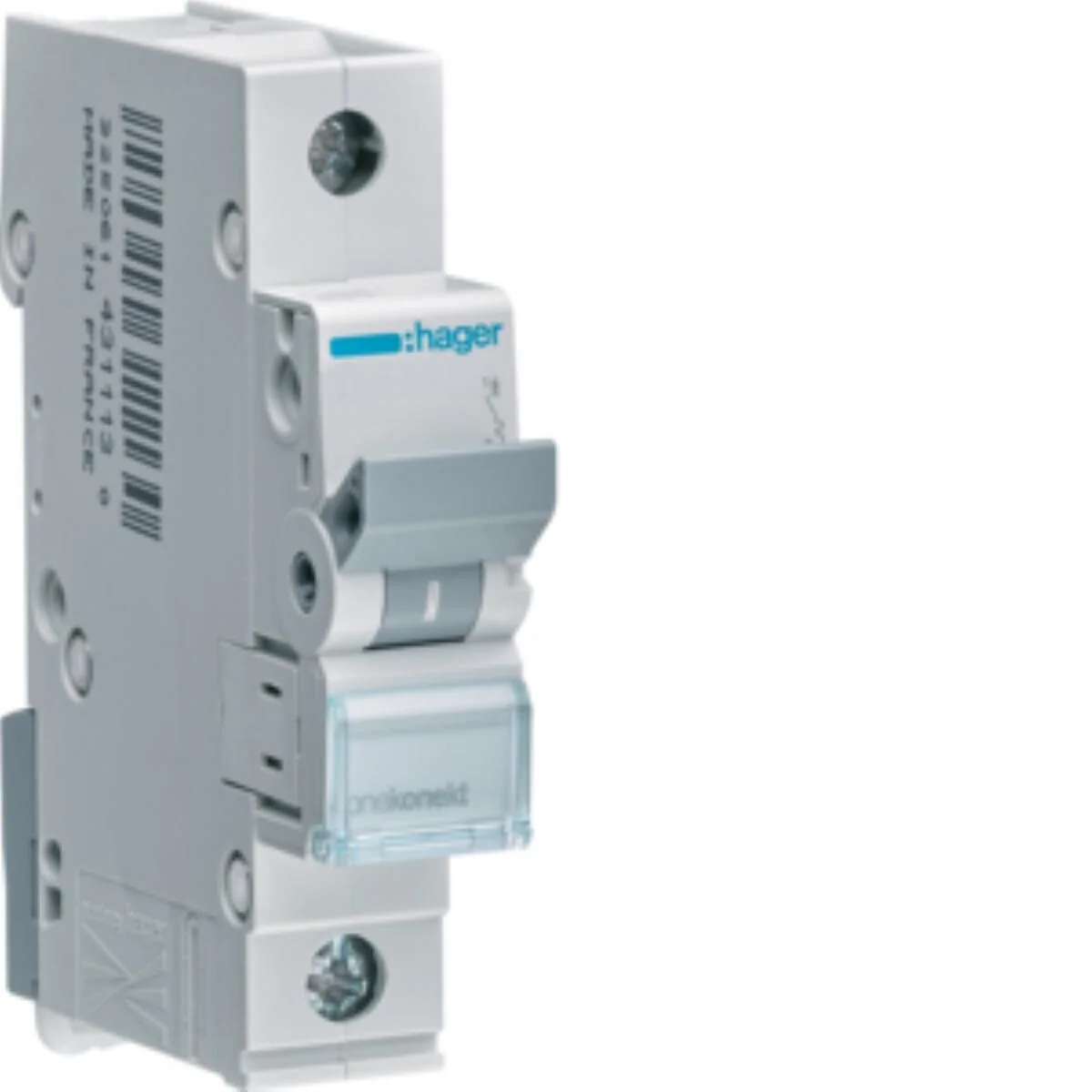

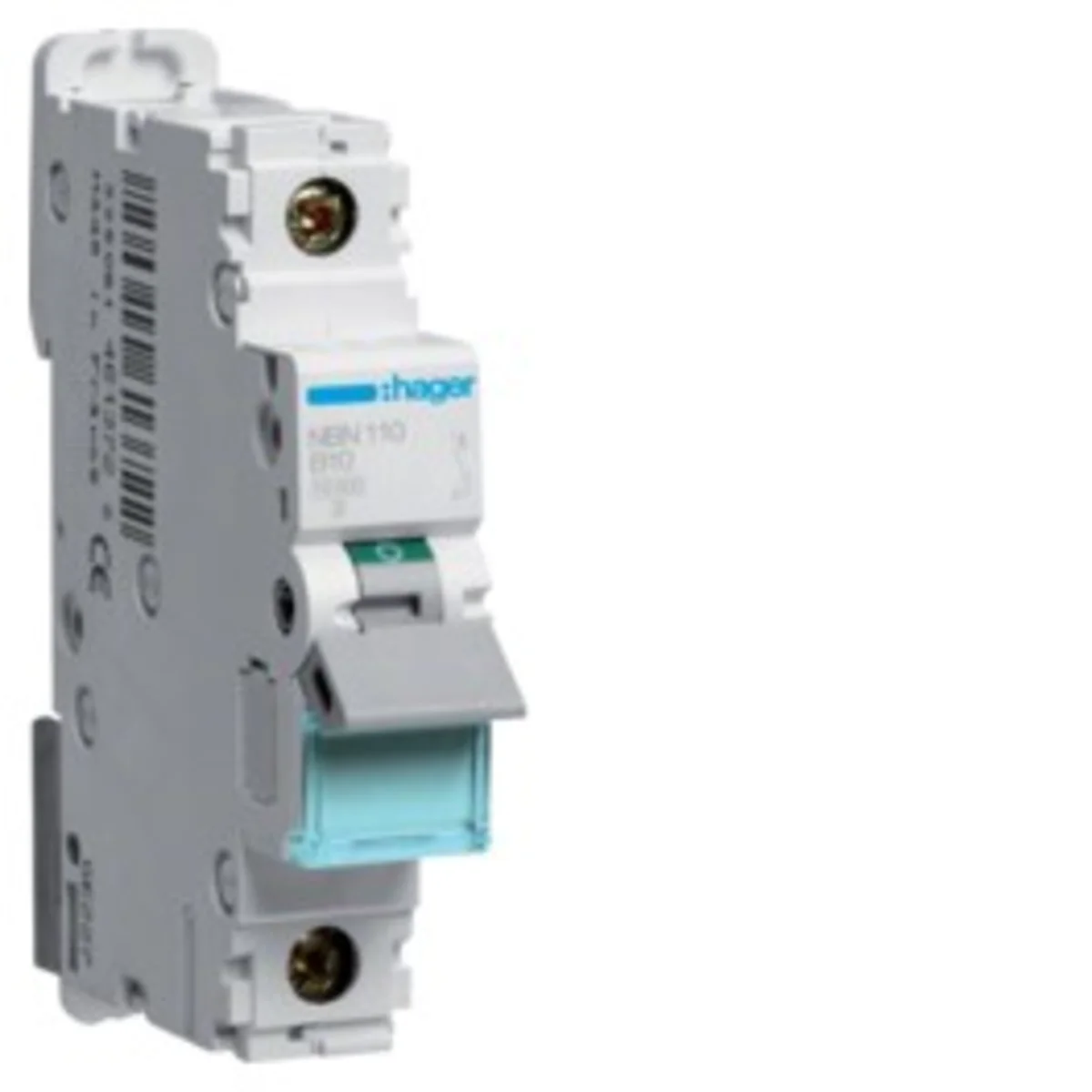

Circuit breaker B10 1P 6kA MBN110E

Indeks lokalny:
ABB109HAGE
Nr katalogowy:
MBN110E
Kod EAN:
3250614312748
Producent: HAGER
Characteristic: b
Energy limitation class: 3
Rated insulation voltage [V]: 500
Bestsellery
Cena:
3,58 €
gross / szt.
(w tym VAT 23%)
Najniższa cena z 30 dni przed obniżką: 7,74 € gross -4,16 €
Dostawa do 3h
Dostępne 748 szt.
Odbiór za 1h
Ilość szt.
(wielokrotność:
1
)
Dodaj do schowka
Drukuj

Opis produktu


  • Current circuit breakers 0, 5 - 63 A. Type B and C

  • Rated operational voltage:

      < li>230/400 V AC - single pole breaker

      • 400 VAC - omnipolar breaker,





  • Can be used in DC circuits,

  • Wide range of accessories,
  • Can be connected using vertical and horizontal comb busbars,

  • Description field with a safety flap,

  • Protection level: IP2X for terminals, IP40 for the device built into the switchgear.

Dane techniczne

  • Characteristic
    b
  • Rated insulation voltage [V]
    500
  • Power dissipation [W]
    1.9
  • Compliance with standards
    EN 60898-1
  • Breakdown voltage [V]
    500
  • Energy limitation class
    3
  • Level of security
    IP40
  • Clamps
    Wire up to 25mm, rope up to 16mm
  • Short-circuit switching capacity [kA]
    6
  • PKWIU
    27.12.22.0

Pozostałe dane techniczne

  • Built-in depth
    70 mm
  • Number of poles (total)
    1
  • Rated current
    10 A
  • Rated insulation voltage Ui
    500 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    6 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    6 kA
  • Current limiting class
    3
  • Over voltage category
    3
  • Additional equipment possible
    No
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Release characteristic
    B
  • Number of protected poles
    1
  • Rated voltage
    400 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Voltage type
    AC
  • Frequency
    50 ... 60 Hz
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    2
  • Width in number of modular spacings
    1
  • Ambient temperature during operating
    -25 ... 70 °C
  • Connectable conductor cross section solid-core
    1 ... 35 mm²

Dane producenta

  • Producent
    HAGER POLO Sp. z o. o.
  • Adres
    43-100 Tychy Fabryczna 10
  • NIP
    6460015532

Opakowania zbiorcze

Rodzaj opakowania Karton Pakiet Paleta
Ilość 12 szt. 144 szt. 3456 szt.
Waga (kg) 1,155 14,265 365,360
Szerokość (m) 0,095 0,315 0,800
Długość (m) 0,080 0,235 1,086
Głębokość (m) 0,225 0,365 1,200
