Electrical apparatus
fuses
Circuit breakers with "B" characteristic
Circuit breaker 1-pole B 10A 6kA AC 194819
local index:
ABB036MOEL
Catalog No:
194819
EAN code:
9010238063037

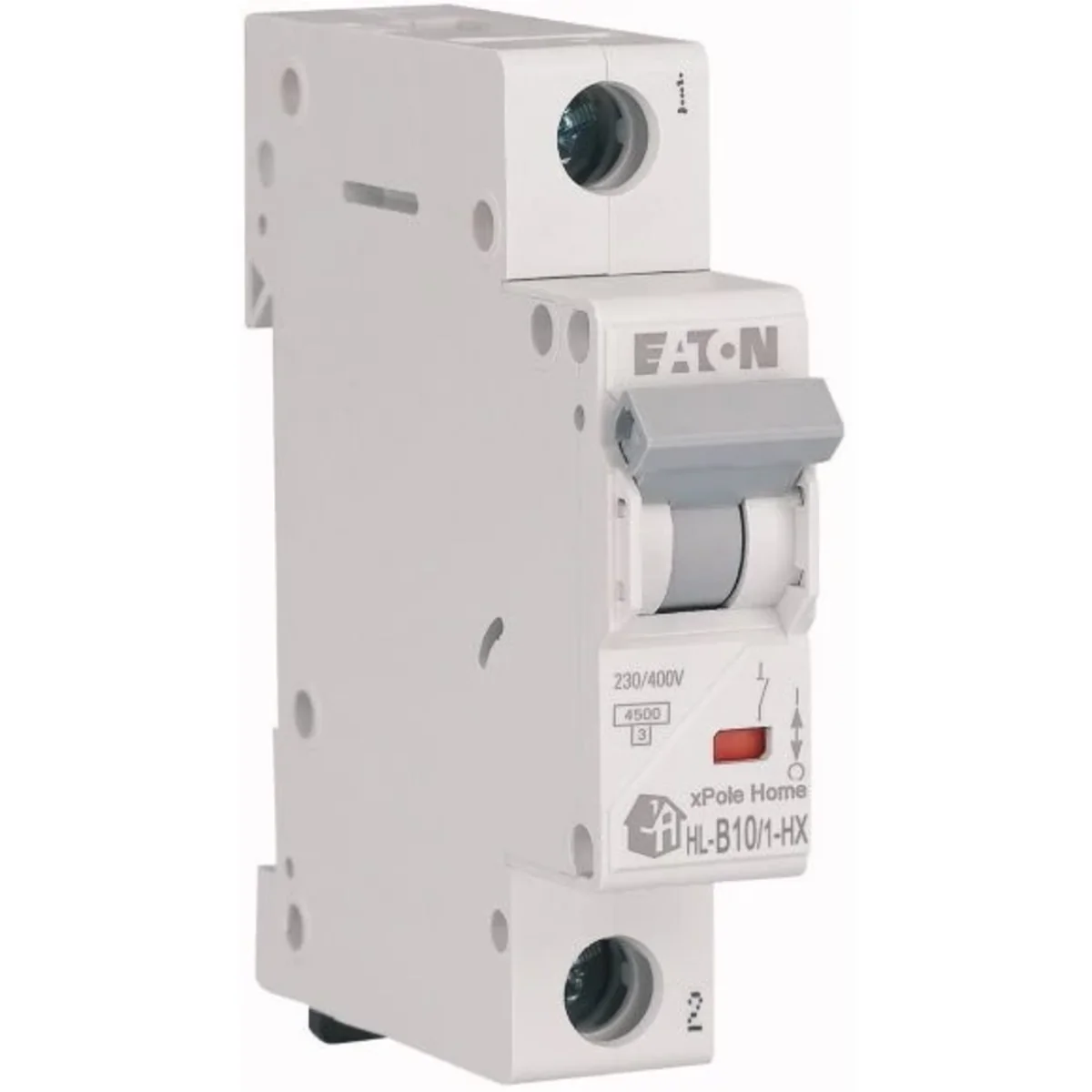

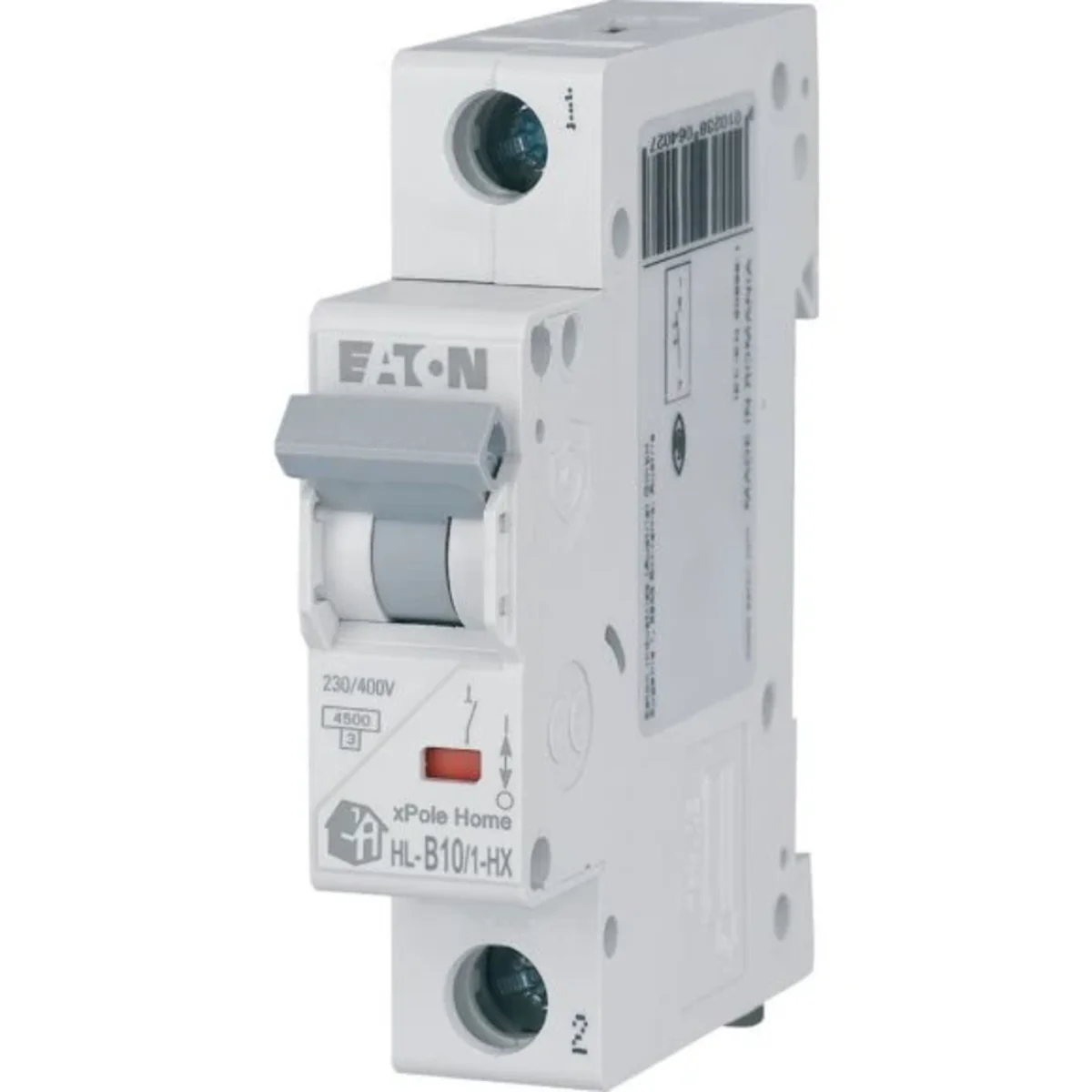

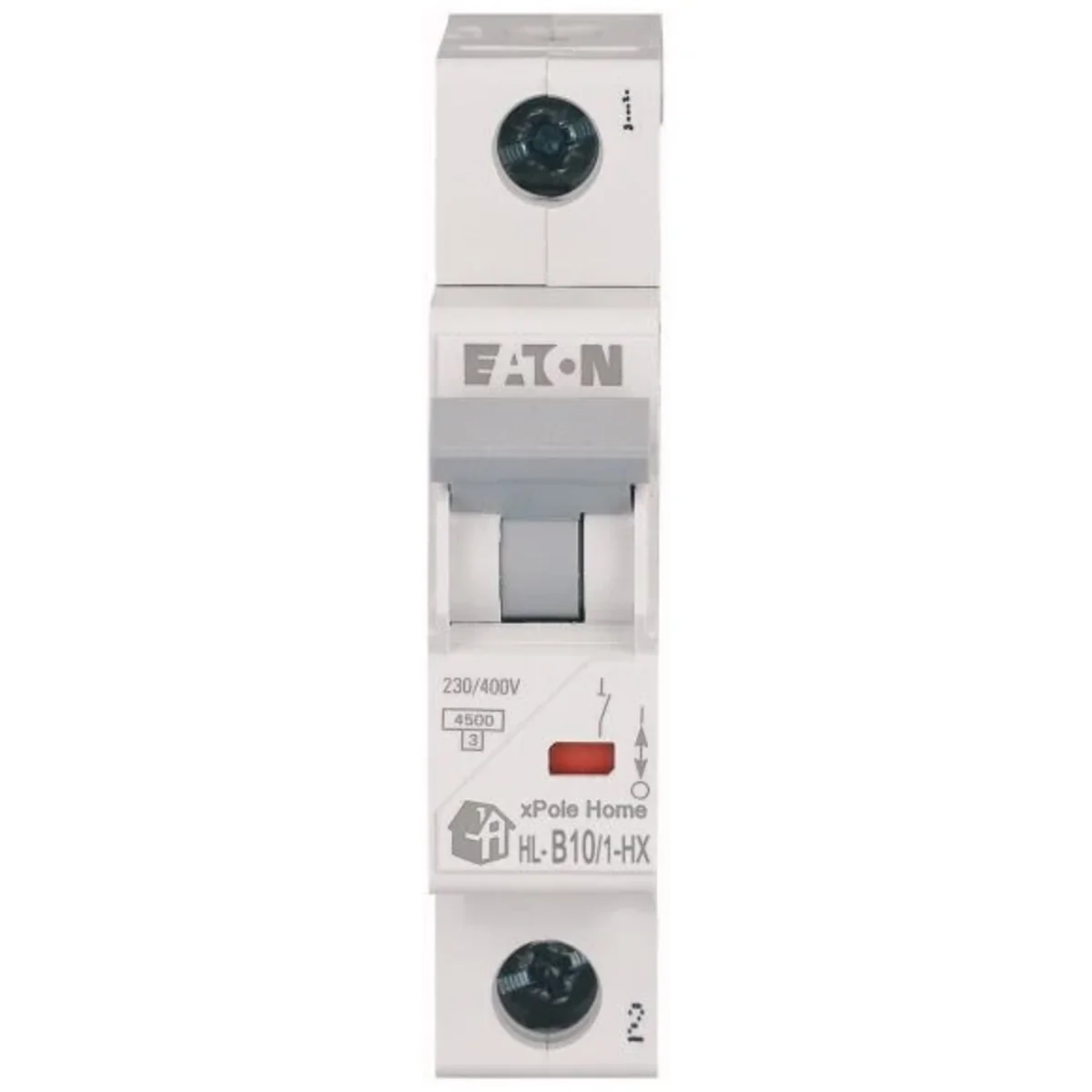

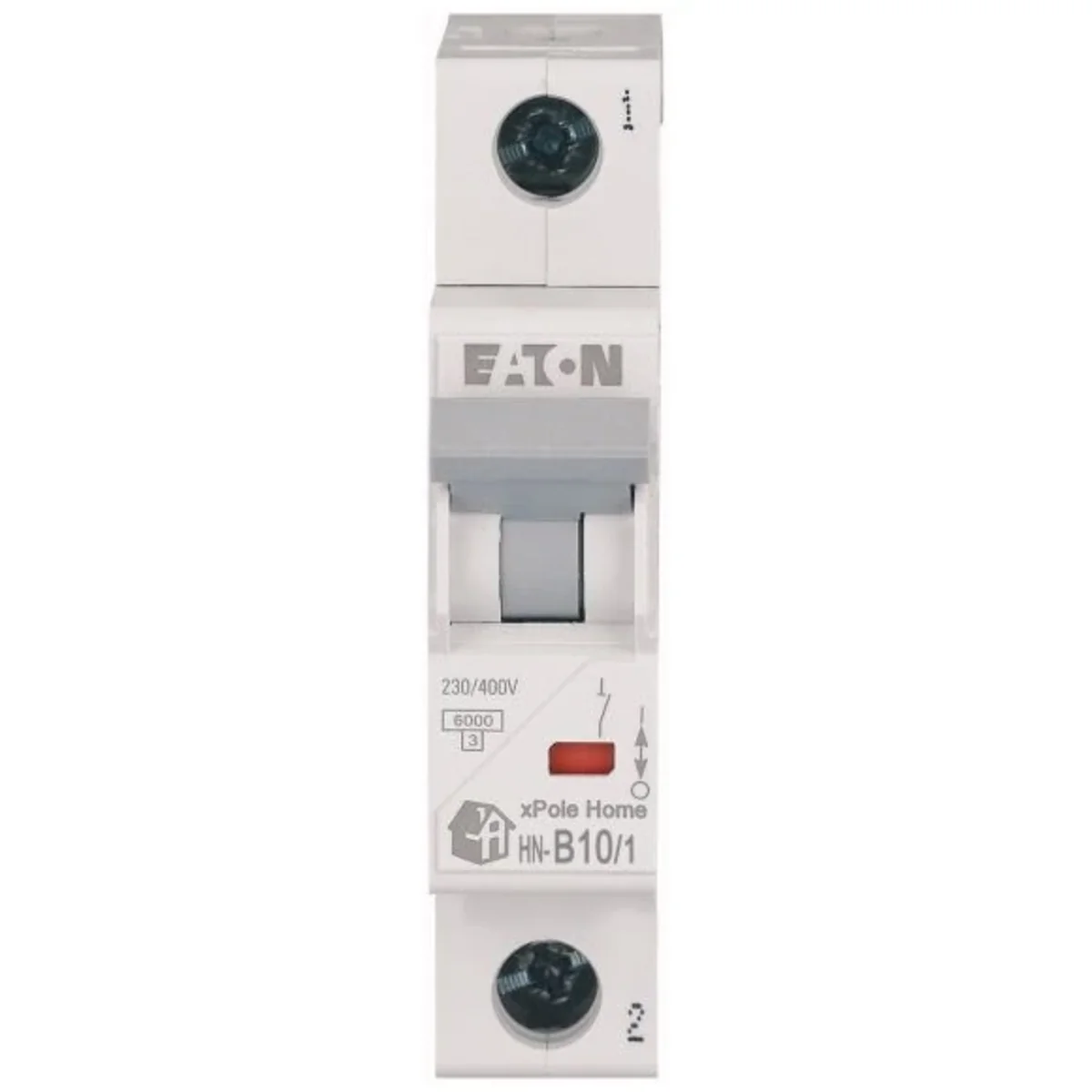

Click on the photo to enlarge
Manufacturer:
EATON
Characteristic:
b
Depth [mm]:
45
Overvoltage category:
3
See full description
Bestsellers
Price:
2,78
2,78 €
gross / pcs.
(including VAT 23%)
The lowest price from 30 days before the reduction:
2,94 € gross
-0,16 €
Price history for this product
1.
2,78 € gross / pcs.
2. The lowest price from 30 days before the reduction:
2,94 €
-0,16 €
3. Base price:
3,03 €
1. How much does this product cost today
2. The lowest price from 30 days before the reduction
3. The base price of the product
Base price:
3,03 € gross
Delivery in 3h
Accessible 1816 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Manufacturer details
Bulk packaging
Product description
Circuit breaker 1-pole B 10A 6kA AC
Expand full description ▼
Technical data
Characteristic
b
Overvoltage category
3
Number of poles
1
Installation
On the TH-35 rail
Rated insulation voltage [V]
440
Level of security
IP20
Width [number of modules]
1
Height [mm]
80
Mechanical durability (number of cycles)
>20000
Rated switching capacity [kA]
6
Voltage type
AC
Maximum fuse [A]
100
Depth [mm]
45
Energy limitation class
3
Fixing
Clip
Rated voltage [V]
230/400
Rated current [A]
10
Degree of contamination
3
Width [mm]
17.5
Electrical endurance (number of cycles)
>10000
Clamps
Elevator Rail
Rated impulse voltage [kV]
4
Terminal cross-section [mm²]
1-25
PKWIU
27.12.22.0
Other technical data
Built-in depth
44 mm
Number of poles (total)
1
Rated current
10 A
Rated insulation voltage Ui
440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
0 kA
Current limiting class
3
Concurrently switching neutral conductor
No
Pollution degree
3
Width in number of modular spacings
1
Ambient temperature during operating
-25 ... 75 °C
Connectable conductor cross section solid-core
1 ... 25 mm²
Release characteristic
B
Number of protected poles
1
Rated voltage
230 V
Rated impulse withstand voltage Uimp
4 kV
Voltage type
AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
0 kA
Frequency
50 ... 60 Hz
Flush-mounted installation
Yes
Over voltage category
3
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
1 ... 25 mm²
Explosion-proof
No
Expand Technical Data ▼
Manufacturer details
Manufacturer
EATON Electric Sp. z o.o.
Address
80-299 Gdańsk ul. Galaktyczna 30
Tax identification number
5841022327
Bulk packaging
A kind of package
Skrzynia
Karton
Karton
Quantity
1 pcs.
12 pcs.
120 pcs.
Weight (kg)
0,137
1,640
16,400
Volume (m3)
0,000
0,001
0,016
Width (m)
0,020
0,218
0,180
Length (m)
0,087
0,086
0,385
Depth (m)
0,075
0,075
0,230
