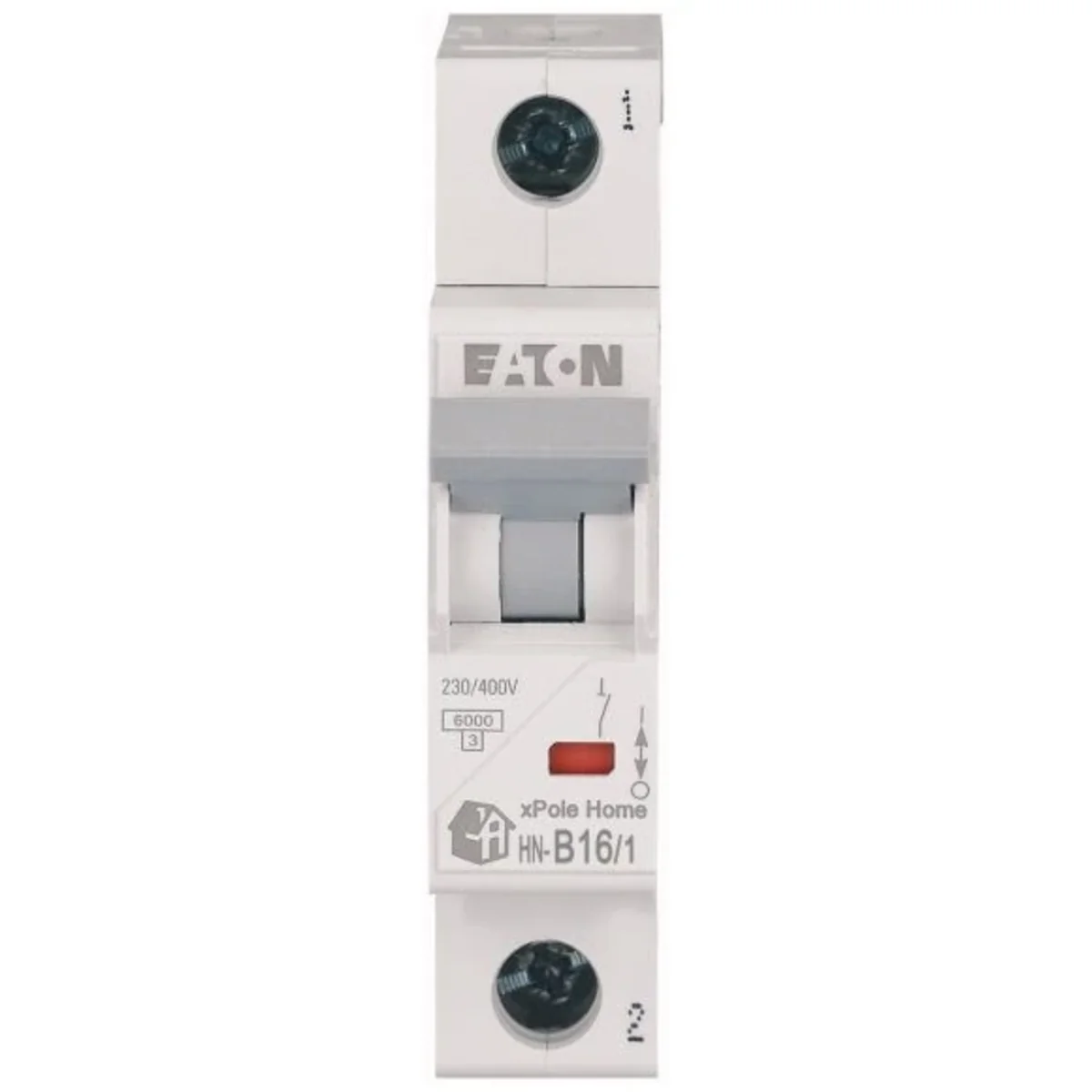

Circuit breaker 1-pole B 16A 6kA AC 194821

Indeks lokalny:
ABB046MOEL
Nr katalogowy:
194821
Kod EAN:
9010238063051
Producent: EATON
Characteristic: b
Depth [mm]: 45
Overvoltage category: 3
Bestsellery
Cena:
2,57 €
gross / szt.
(w tym VAT 23%)
Najniższa cena z 30 dni przed obniżką: 2,72 € gross -0,15 €
Cena bazowa: 2,79 € gross
Dostawa do 3h
Dostępne 3251 szt.
Odbiór za 1h
Ilość szt.
(wielokrotność:
1
)
Dodaj do schowka
Drukuj

Opis produktu

Circuit breaker 1-pole B 16A 6kA AC

Dane techniczne

  • Characteristic
    b
  • Overvoltage category
    3
  • Number of poles
    1
  • Installation
    On the TH-35 rail
  • Rated insulation voltage [V]
    440
  • Level of security
    IP20
  • Width [number of modules]
    1
  • Height [mm]
    80
  • Mechanical durability (number of cycles)
    >20000
  • Rated switching capacity [kA]
    6
  • Voltage type
    AC
  • Maximum fuse [A]
    100
  • Depth [mm]
    45
  • Energy limitation class
    3
  • Fixing
    Clip
  • Rated voltage [V]
    230/400
  • Rated current [A]
    16
  • Degree of contamination
    3
  • Width [mm]
    17.5
  • Electrical endurance (number of cycles)
    >10000
  • Clamps
    Elevator Rail
  • Rated impulse voltage [kV]
    4
  • Terminal cross-section [mm²]
    1-25
  • PKWIU
    27.12.22.0

Pozostałe dane techniczne

  • Built-in depth
    44 mm
  • Number of poles (total)
    1
  • Rated current
    16 A
  • Rated insulation voltage Ui
    440 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    6 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    6 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    0 kA
  • Power loss
    2.3 W
  • Flush-mounted installation
    Yes
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Explosion-proof
    No
  • Release characteristic
    B
  • Number of protected poles
    1
  • Rated voltage
    230 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Voltage type
    AC
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    0 kA
  • Frequency
    50 ... 60 Hz
  • Current limiting class
    3
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    3
  • Width in number of modular spacings
    1
  • Ambient temperature during operating
    -25 ... 75 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²

Dane producenta

  • Producent
    EATON Electric Sp. z o.o.
  • Adres
    80-299 Gdańsk ul. Galaktyczna 30
  • NIP
    5841022327

Opakowania zbiorcze

Rodzaj opakowania Skrzynia Karton Karton
Ilość 1 szt. 12 szt. 120 szt.
Waga (kg) 0,137 1,640 16,400
Objętość (m3) 0,000 0,001 0,016
Szerokość (m) 0,020 0,218 0,180
Długość (m) 0,087 0,086 0,385
Głębokość (m) 0,075 0,075 0,230
