UNIVERS N HC Kit for building modular equipment 8x12PLE 600x500mm UC42MG

local index:
RRR962HAGE
Catalog No:
UC42MG
EAN code:
3250616370234
Manufacturer: HAGER
Depth [mm]: 0.01
Number of rows: 4
Family: UNIVERS NHC
Price:
100,36 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

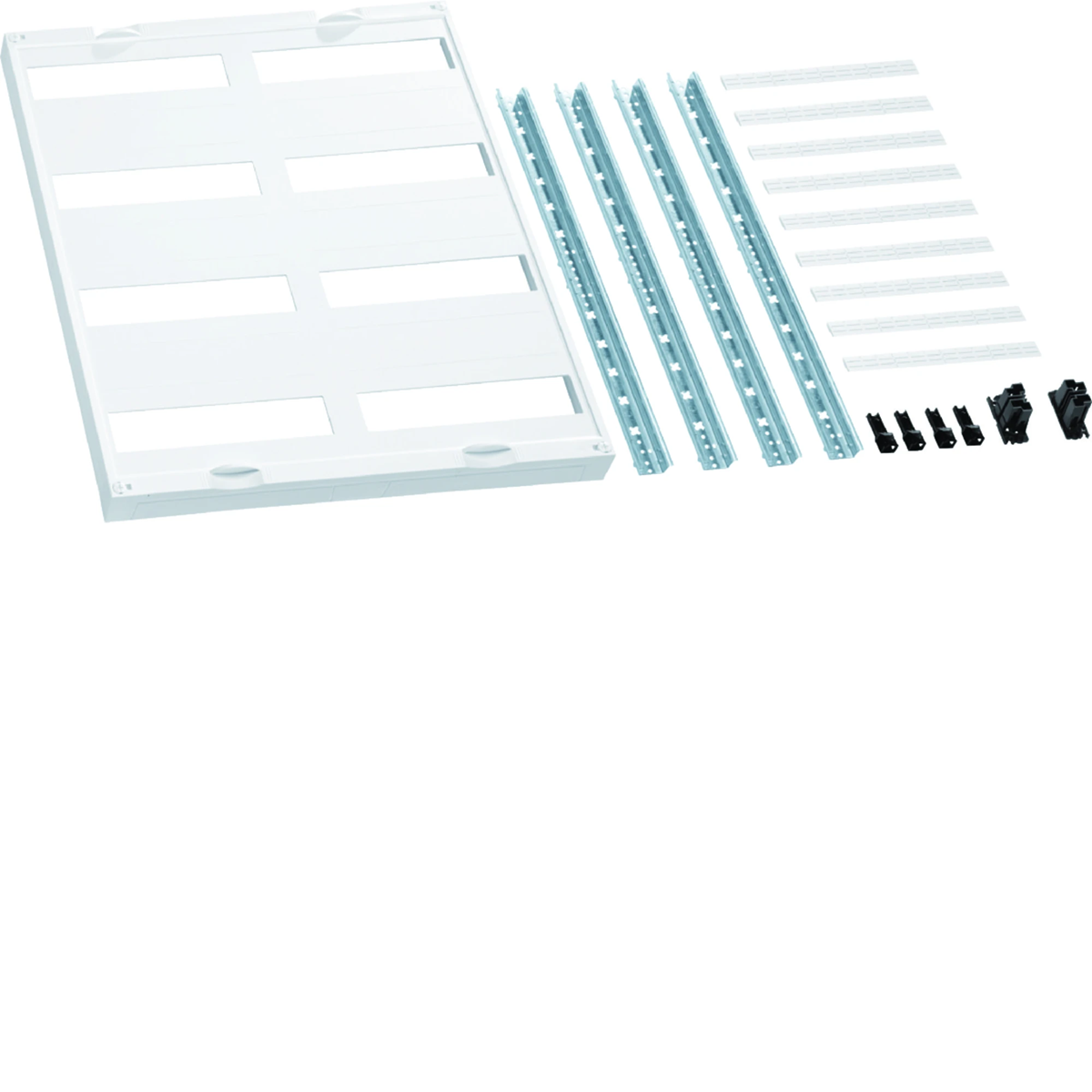

Set with a cover with cut-outs, with TS35 horizontal mounting rails, 150 mm spacing, for installing 8x12PLE modular equipment, univers N HC series, i.e. internal building system.

Technical data

  • Depth [mm]
    0.01
  • Family
    UNIVERS NHC
  • Height [mm]
    600
  • PKWIU
    27.33.13.0
  • Number of rows
    4
  • Width [mm]
    500
  • Number of modules
    96

Other technical data

  • Height
    600 mm
  • Depth
    100 mm
  • Number of modular spacings per DIN-rail
    96
  • Extension possible
    Yes
  • Width
    500 mm
  • Number of DIN-rails
    4
  • Row distance
    150 mm
  • With busbar
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 24 pcs.
Weight (kg) 2,920 2,930 95,320
Width (m) 0,515 0,515 0,800
Length (m) 0,065 0,065 0,920
Depth (m) 0,610 0,610 1,200
