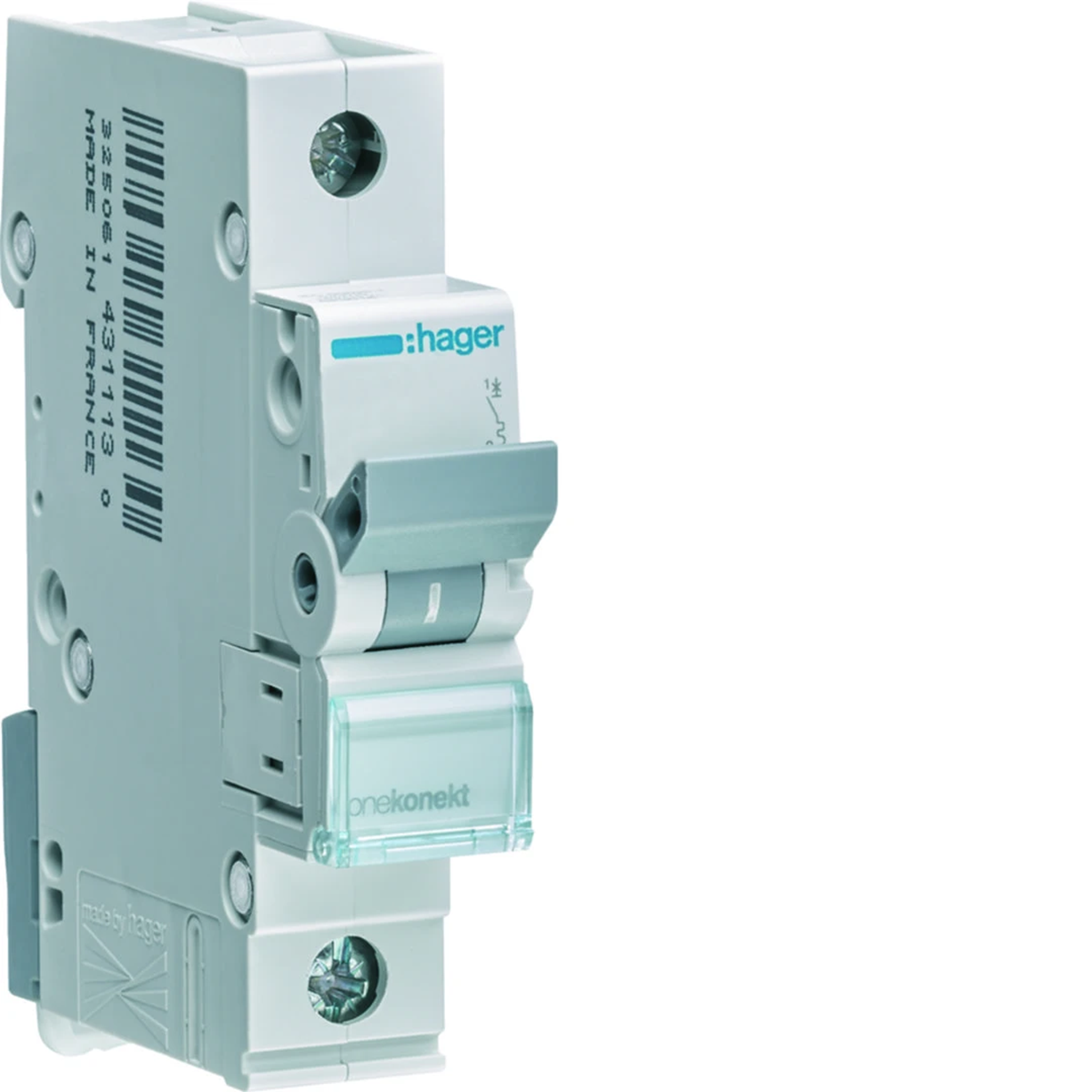

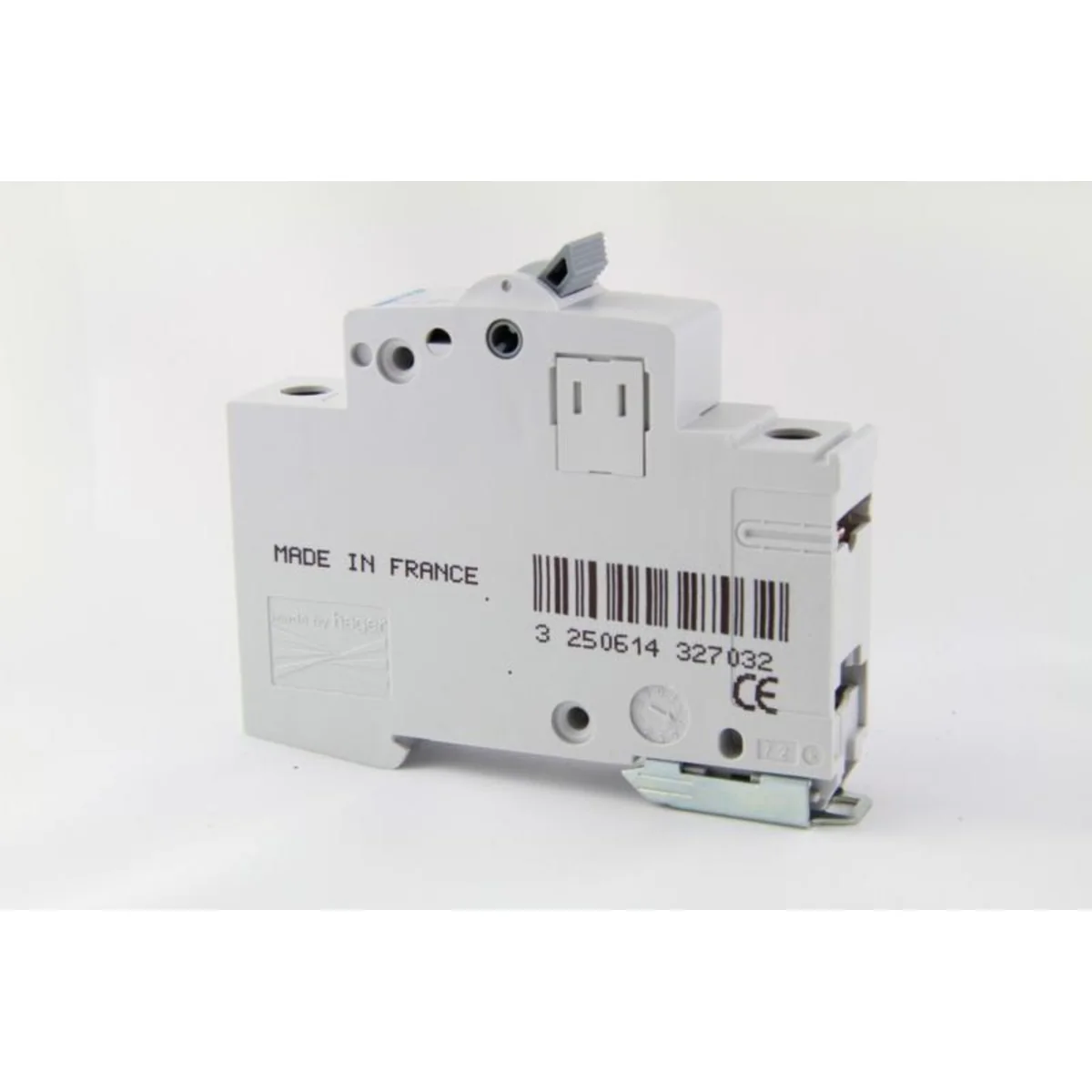

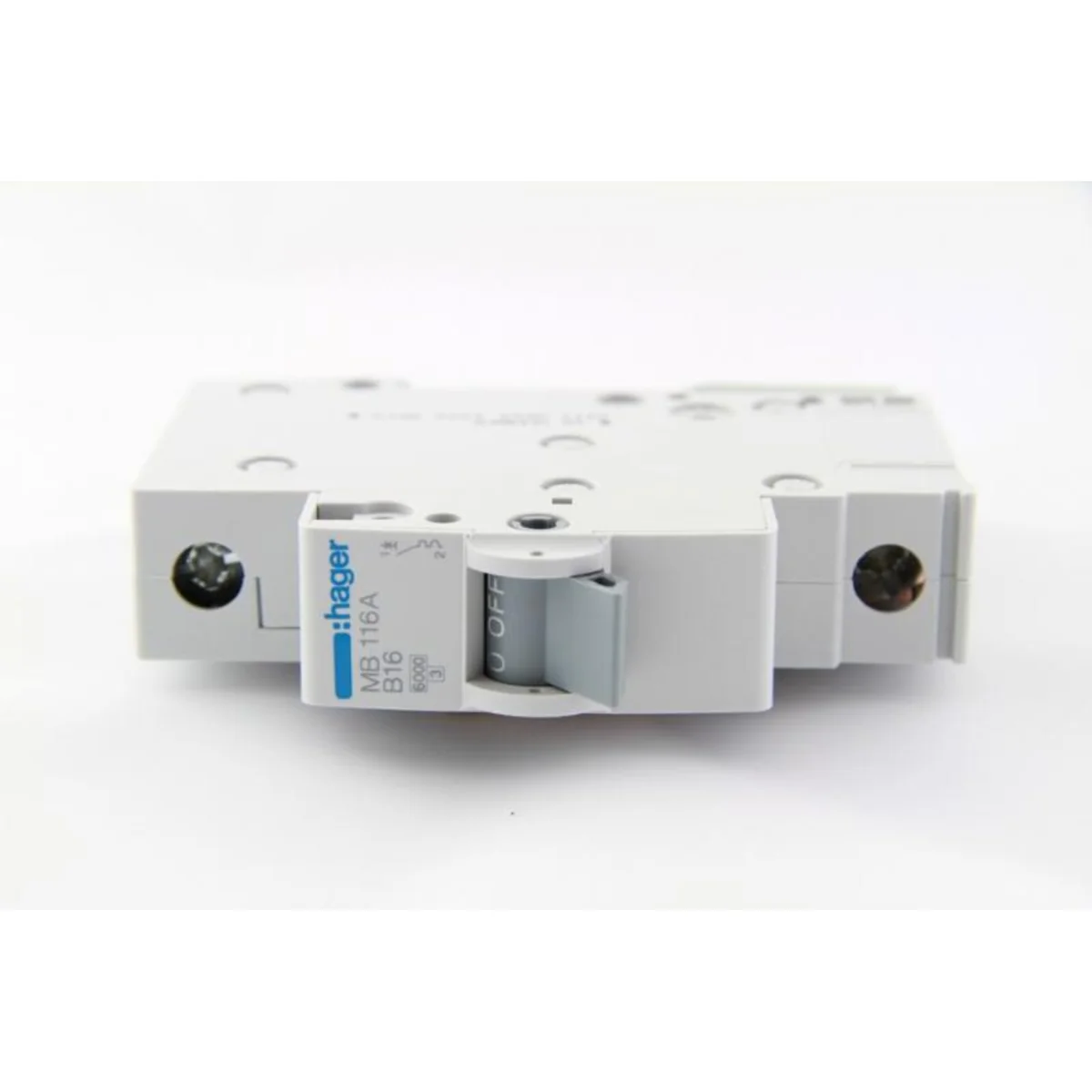

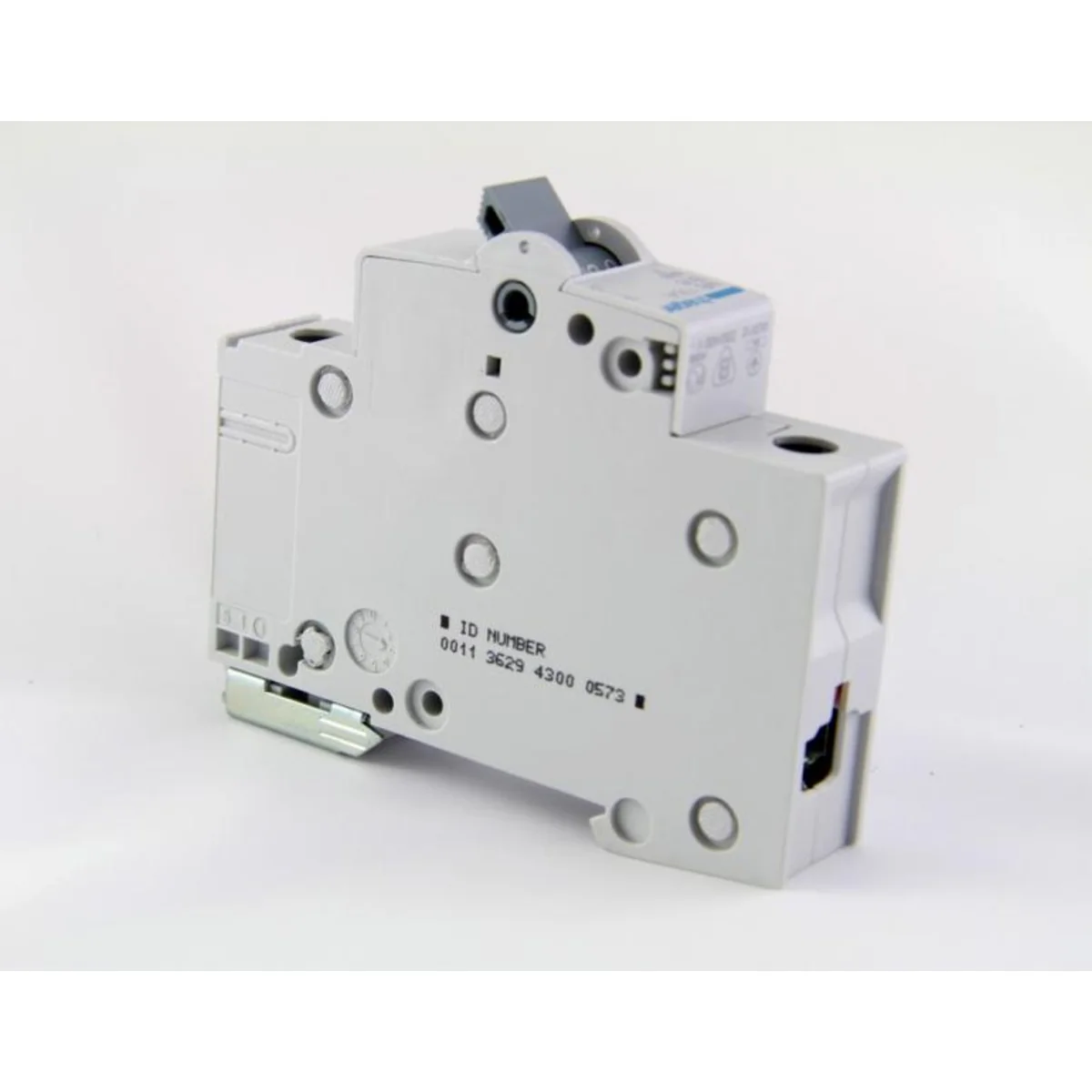

Circuit breaker B16 1P 6kA MBN116E

local index:
ABB111HAGE
Catalog No:
MBN116E
EAN code:
3250614312762
Manufacturer: HAGER
Characteristic: b
Frequency [Hz]: 50
Model: MB116A
Price:
3,21 €
gross / pcs.
(including VAT 23%)
Last lowest price: 3,21 € gross
Base price: 6,96 € gross -54%
Delivery in 3h
Accessible 4589 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description


Single-phase overcurrent circuit breaker is used to protect wires and receivers against overloads and short circuits in installations and devices. Equipped with a description window, terminal covers, a sealable lever, cage terminals for wire up to 25 mm2 or cable up to 16 mm2. Mounting on a TH35 mm rail. Possibility of connection using a comb rail. Adapted for the subsequent installation of auxiliary devices. Mechanical durability: 20,000 operations.

Technical data

  • Characteristic
    b
  • Model
    MB116A
  • Rated voltage [V]
    230
  • Family
    MCB
  • Power dissipation [W]
    3
  • Type
    1-phase circuit breaker
  • Mechanical durability (number of cycles)
    20000
  • Short-circuit switching capacity [kA]
    6
  • Frequency [Hz]
    50
  • Installation
    On the TH-35 rail
  • Rated current [A]
    16
  • Level of security
    IP20
  • Width in modules
    1
  • Electrical endurance (number of cycles)
    4000
  • Application
    Securing electrical devices and installations
  • PKWIU
    27.12.22.0

Other technical data

  • Built-in depth
    70 mm
  • Number of poles (total)
    1
  • Rated current
    16 A
  • Rated insulation voltage Ui
    500 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    6 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    6 kA
  • Current limiting class
    3
  • Over voltage category
    3
  • Additional equipment possible
    No
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Release characteristic
    B
  • Number of protected poles
    1
  • Rated voltage
    400 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Voltage type
    AC
  • Frequency
    50 ... 60 Hz
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    2
  • Width in number of modular spacings
    1
  • Ambient temperature during operating
    -25 ... 70 °C
  • Connectable conductor cross section solid-core
    1 ... 35 mm²

Bulk packaging

A kind of package Pakiet Paczka Paleta
Quantity 12 pcs. 144 pcs. 3456 pcs.
Weight (kg) 1,155 14,310 366,440
Width (m) 0,095 0,315 0,800
Length (m) 0,080 0,230 1,050
Depth (m) 0,225 0,370 1,200
