Click on the photo to enlarge

NKT

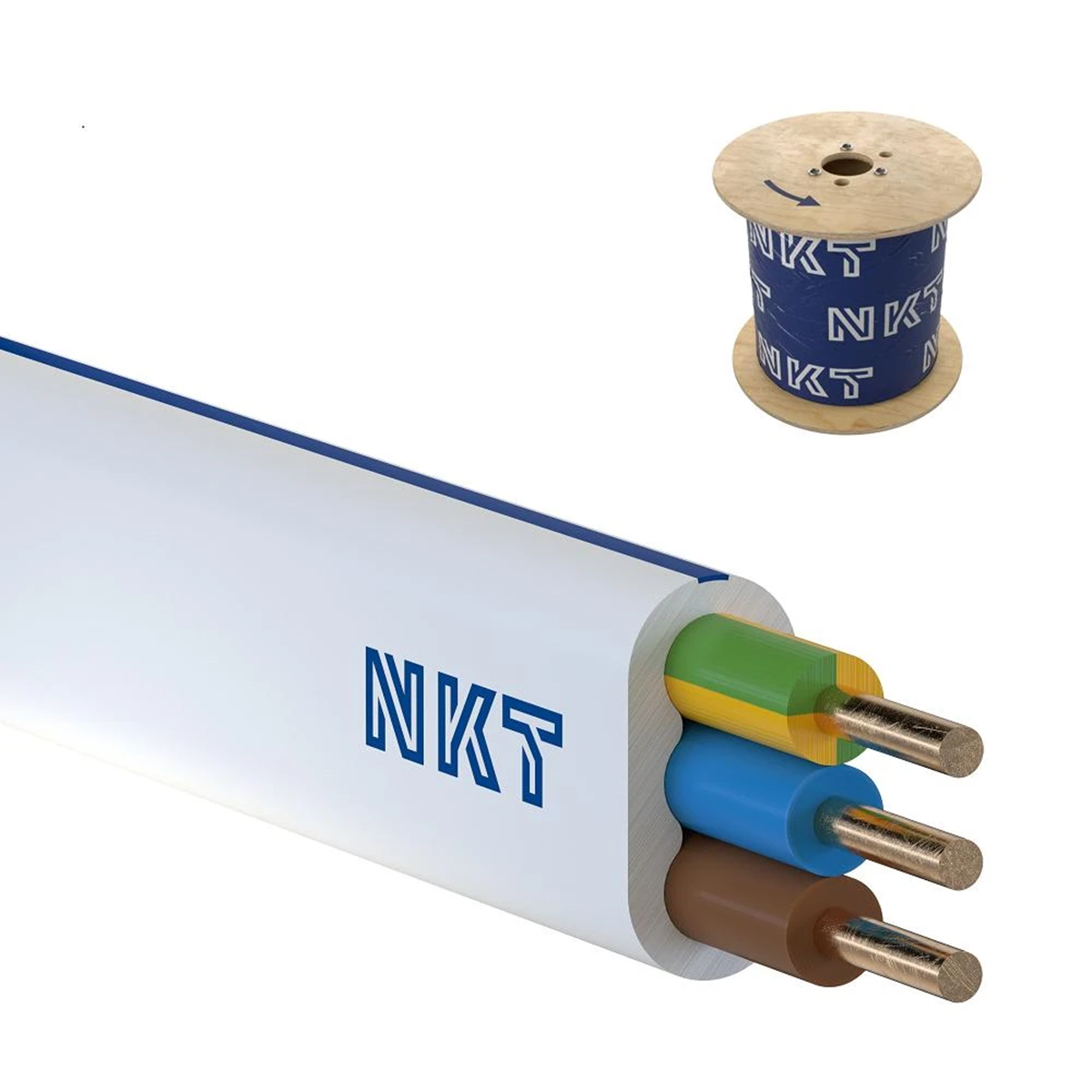

YDYp 3x1.5 cable 450/750V white 172152001S0500

local index:
KPP012NKTQ
Catalog No:
172152001S0500
EAN code:
5907802038451
Price:
0,71 €
gross / m.
including VAT 23%
Last lowest price:
0,75 € gross
Base price:
1,22 € gross -42%
Availability:
Check availability in branches
In warehouses 14695 m.
Delivery:
From 3,70 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock m.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Przewód YDYpżo 3X1, 5 450/750 biały, płaski, wielożyłowy do układania na stałe.
Przewód instalacyjny o żyłach miedzianych jednodrutowych w izolacji i powłoce polwinitowej

Technical data

  • Number of veins
    3
  • Maximum operating temperature [°C]
    70
  • Rated voltage [V]
    450/750
  • Core
    Wire
  • Insulation material
    PVC
  • Color
    White
  • Vein material
    Copper
  • Core cross-section [mm²]
    1.5
  • Type
    Flat

Other technical data

  • Conductor material
    Copper
  • Nominal cross section conductor
    1.5 mm²
  • Number of cores
    3
  • Material core insulation
    Polyvinyl chloride (PVC)
  • Core identification according to HD 308 S2
    yes
  • Core identification
    Colour
  • Max. conductor temperature
    +70 °C
  • Drain wire
    no
  • Armouring/reinforcement
    None
  • Specification material outer sheath
    Other
  • Cable geometry
    Flat
  • Reaction-to-fire according to EN 13501-6: Smoke production
    None
  • Reaction-to-fire according to EN 13501-6: Acidity
    None
  • Flame retardant
    According to IEC/EN 60332-1-2
  • Low temperature resistant according to EN 60811-504+505+506
    no
  • Wytrzymałość (trwałość) izolacji
    None
  • Permitted cable outer temperature during assembling/handling
    -5 ... +70 °C
  • Nominal voltage U0
    450 V
  • Circuit integrity
    None
  • Suitable as installation cable
    yes
  • Suitable as medium-voltage cable
    no
  • Certified as airport lighting cable
    no
  • No
  • No
  • yes
  • no
  • no
  • no
  • no
  • Conductor surface
    Bare
  • Conductor category
    Class 1 = solid
  • Twisted cores
    no
  • Specification core insulation
    Other
  • Identification/coding colour core
    Other
  • Core colour
    Several
  • Screen
    no
  • Protective barrier
    None
  • Material outer sheath
    Polyvinyl chloride (PVC)
  • Colour outer sheath
    White
  • Reaction-to-fire according to EN 13501-6: Class
    Eca
  • Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    None
  • Halogen free according to EN 60754-1/2
    no
  • Low smoke (according to EN 61034-2)
    no
  • Oil resistant according to EN IEC 60811-404
    no
  • Min. permitted bending radius, stationary application/permanent installation
    4 mm
  • Permitted cable outer temperature after assembling without vibration
    -40 ... +70 °C
  • Nominal voltage U
    750 V
  • Shape of conductor
    Round
  • Certified for shipboard application
    no
  • Suitable as high-voltage cable
    no
  • Weight
    104
  • no
  • no
  • no
  • no
  • no
  • no

Dane CPR (Construction Products Regulation)

  • Numer notyfikowanego laboratorium badawczego CE:
    nie doty
  • Wydzielane substancje niebezpieczne:
    NPD
  • Numer referencyjny DoP (DWU)
    DOP000042
  • Oznaczenie produktu
    NKT instal PLUS YDYpżo 450/750 3x1,5
  • Reakcja na ogień:
    Eca
  • Zharmonizowana specyfikacja techniczna (norma):
    EN 50575:2014, EN50575:2014/A1:2016
  • Zastosowanie:
    Dostawa energii (oraz zastosowania komunikacyjne) w budynkach i innych obiektach budowlanych w celu ograniczenia powstawania i rozprzestrzeniania się ognia i dymu
