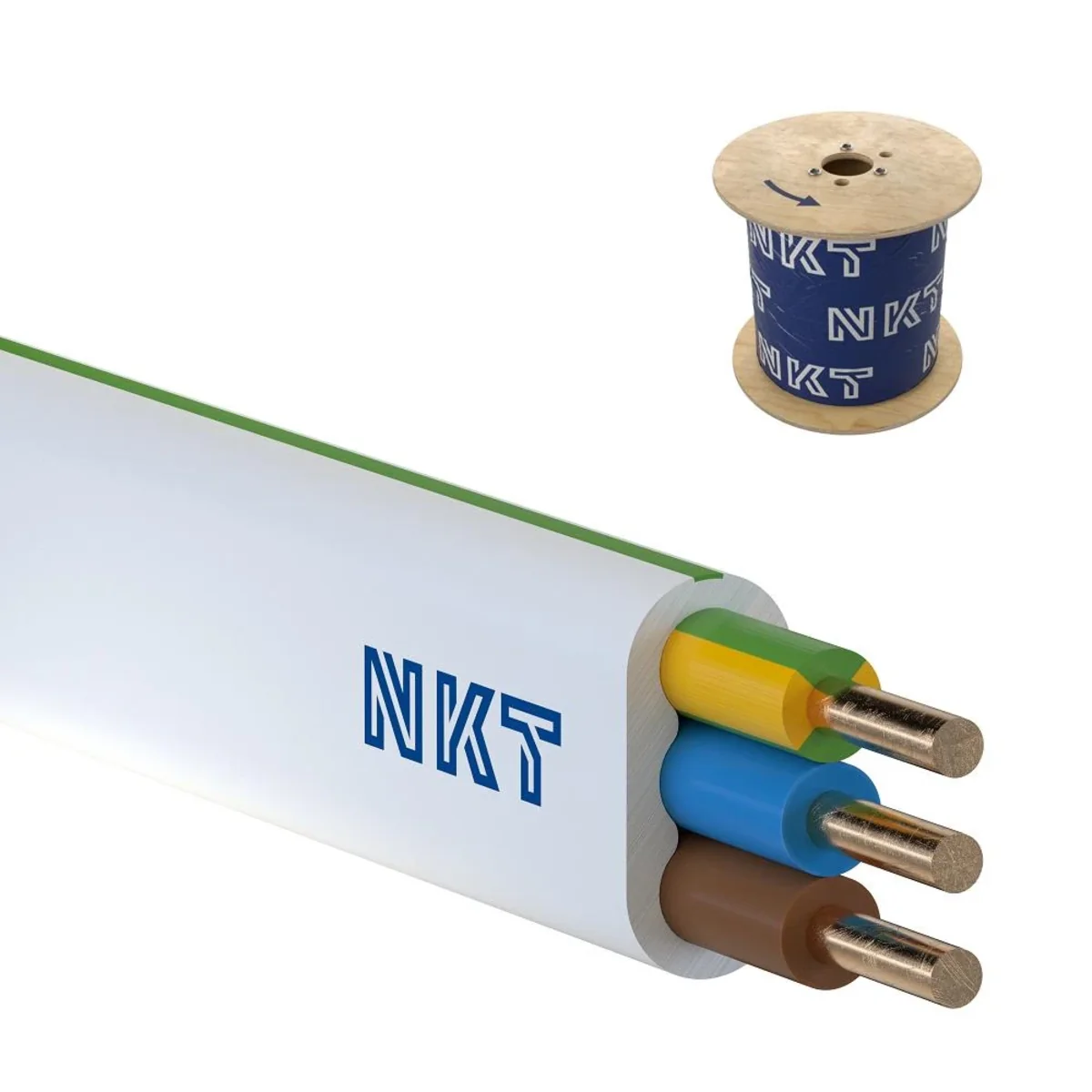

YDYp 3x2.5 cable 450/750V white 172152002S0500
local index:
KPP014NKTQ
Catalog No:
172152002S0500
EAN code:
5907802038505
Bestsellers
Price:
1,12 €
gross / m.
(including VAT 23%)
The lowest price from 30 days before the reduction:
1,13 € gross
-0,01 €
Price history for this product
1. 1,12 € gross / m.
2. The lowest price from 30 days before the reduction:
1,13 €
-0,01 €
3. Base price:
1,12 €
1. How much does this product cost today
2. The lowest price from 30 days before the reduction
3. The base price of the product
Delivery in 3h
Pickup in 1h
Quantity m.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Przewód YDYpżo 3X1, 5 450/750 biały, płaski, wielożyłowy do układania na stałe.
Przewód instalacyjny o żyłach miedzianych jednodrutowych w izolacji i powłoce polwinitowej
Technical data
-
Number of veins3
-
Maximum operating temperature [°C]70
-
Rated voltage [V]450/750
-
CoreWire
-
Insulation materialPVC
-
ColorWhite
-
Vein materialCopper
-
Core cross-section [mm²]1.5
-
TypeFlat
-
PKWIU27.32.13.0
Other technical data
-
Conductor materialCopper
-
Nominal cross section conductor2.5 mm²
-
Number of cores3
-
Material core insulationPolyvinyl chloride (PVC)
-
Core identification according to HD 308 S2Yes
-
Core identificationColour
-
Max. conductor temperature+70 °C
-
Drain wireNo
-
Armouring/reinforcementNone
-
Specification material outer sheathOther
-
Cable geometryFlat
-
Reaction-to-fire according to EN 13501-6: Smoke productionNone
-
Reaction-to-fire according to EN 13501-6: AcidityNone
-
Flame retardantAccording to IEC/EN 60332-1-2
-
Low temperature resistant according to EN 60811-504+505+506No
-
Wytrzymałość (trwałość) izolacjiNone
-
Permitted cable outer temperature during assembling/handling-5 ... +70 °C
-
Nominal voltage U0450 V
-
Circuit integrityNone
-
Suitable as installation cableYes
-
Suitable as medium-voltage cableNo
-
Certified as airport lighting cableNo
-
Conductor surfaceBare
-
Conductor categoryClass 1 = solid
-
Twisted coresNo
-
Specification core insulationOther
-
Identification/coding colour coreOther
-
Core colourSeveral
-
ScreenNo
-
Protective barrierNone
-
Material outer sheathPolyvinyl chloride (PVC)
-
Colour outer sheathWhite
-
Reaction-to-fire according to EN 13501-6: ClassEca
-
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
-
Halogen free according to EN 60754-1/2No
-
Low smoke (according to EN 61034-2)No
-
Oil resistant according to EN IEC 60811-404No
-
Min. permitted bending radius, stationary application/permanent installation4 mm
-
Permitted cable outer temperature after assembling without vibration-40 ... +70 °C
-
Nominal voltage U750 V
-
Shape of conductorRound
-
Certified for shipboard applicationNo
-
Suitable as high-voltage cableNo
-
Weight137
Dane CPR (Construction Products Regulation)
-
Wydzielane substancje niebezpieczne:NPD
-
Numer referencyjny DoP (DWU)DOP000042
-
Oznaczenie produktuNKT instal PLUS YDYpżo 450/750 3x2,5
-
Reakcja na ogień:Eca
-
Zharmonizowana specyfikacja techniczna (norma):EN 50575:2014, EN50575:2014/A1:2016
-
Zastosowanie:Dostawa energii (oraz zastosowania komunikacyjne) w budynkach i innych obiektach budowlanych w celu ograniczenia powstawania i rozprzestrzeniania się ognia i dymu
Manufacturer details
-
ManufacturerNKT S.A.
-
Address43-502 Warszowice Gajowa 3 Polska
-
