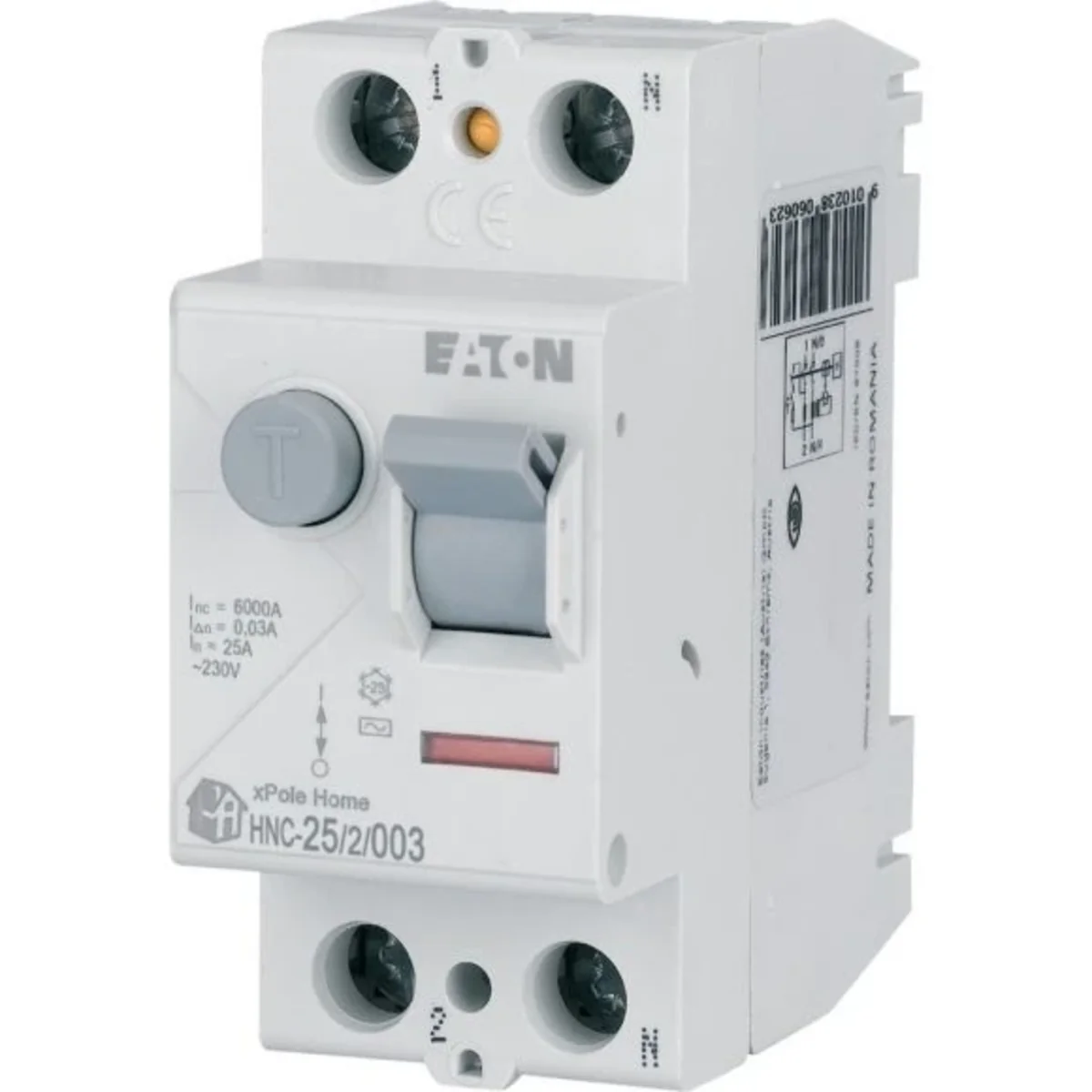

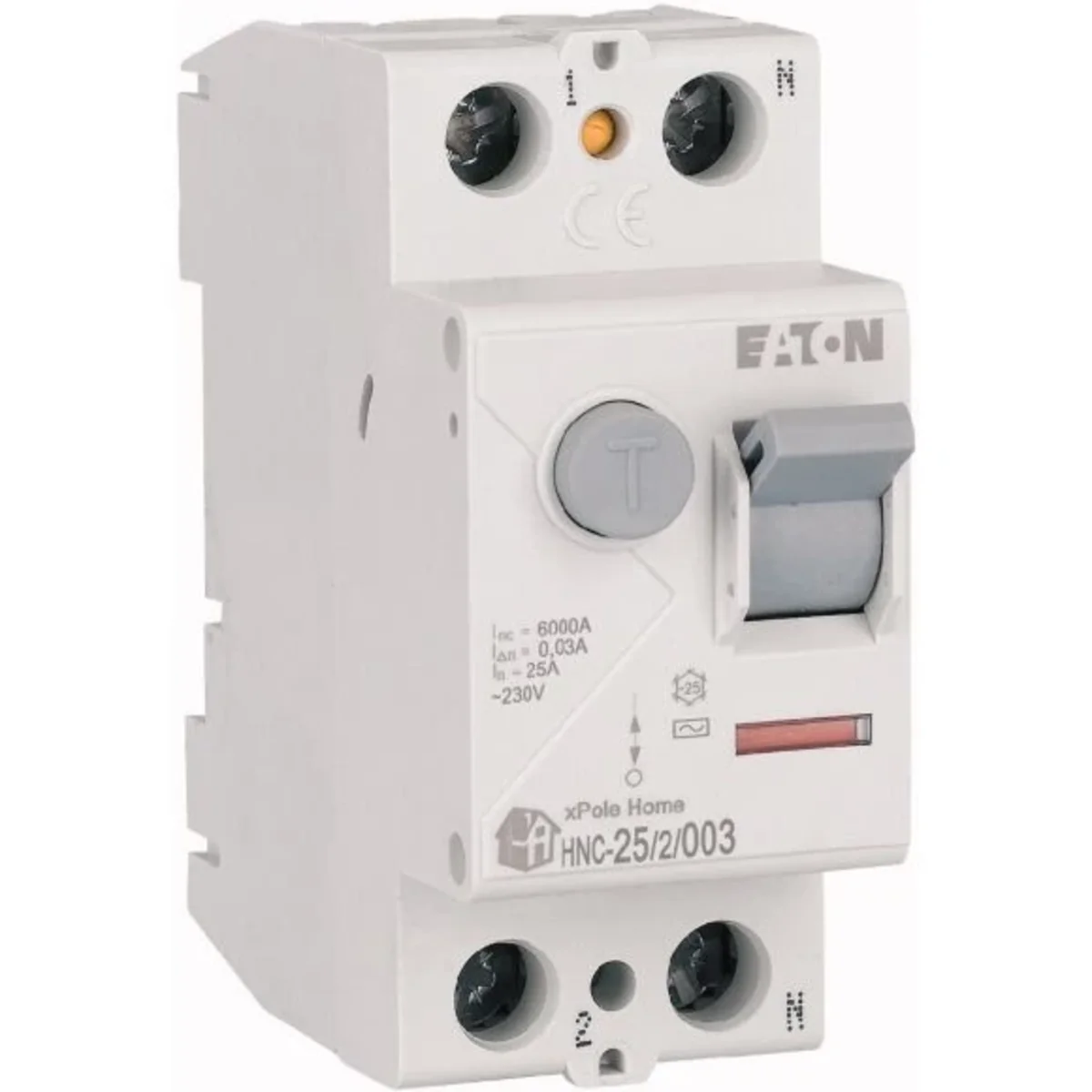

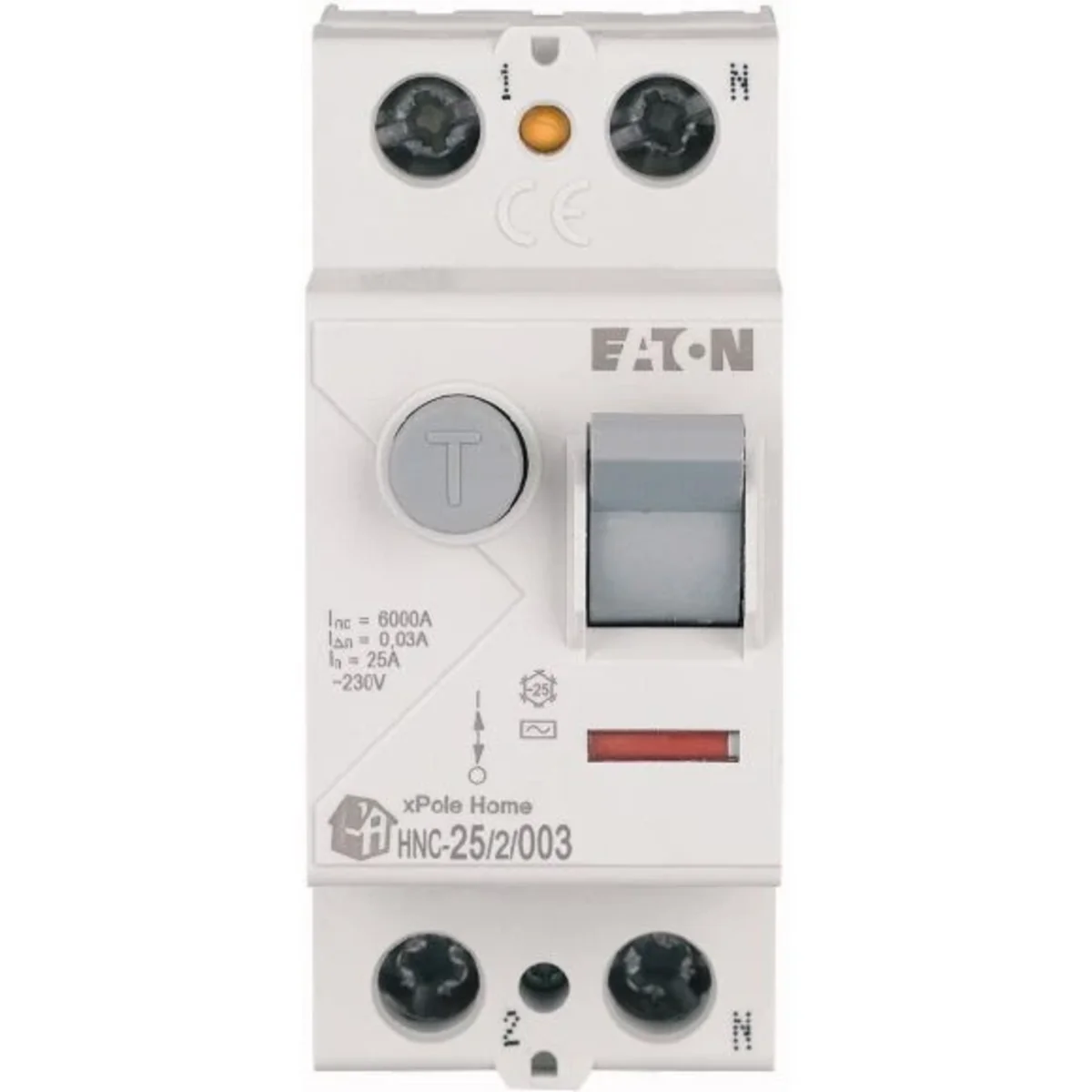

2-pole residual current device 25A 30mA AC 6kA 194690

Místní index:
ARP107MOEL
Katalogové číslo.:
194690
EAN kód:
9010238060623
Výrobce: EATON
Tenderness: AC
Depth [mm]: 45
Number of poles: 2
Bestsellery
Cena:
25,63 €
gross / kusů.
(včetně DPH 23%)
Nejnižší cena od 30 dnů před slevou: 27,08 € gross -1,45 €
Základní cena: 27,90 € gross
Dodání do 3 hodin
k dispozici 531 kusů.
Vyzvednutí za 1h
Množství kusů.
(vícenásobné:
1
)
Přidat do schránky
Vytisknout

Popis produktu

2-pole residual current device 25A 30mA AC 6kA

Technické údaje

  • Tenderness
    AC
  • Number of poles
    2
  • Installation
    On the TH-35 rail
  • Rated insulation voltage [V]
    440
  • Rated current [A]
    25
  • Degree of contamination
    2
  • Width [mm]
    35
  • Electrical endurance (number of cycles)
    >4000
  • Clamps
    Elevator Rail
  • Rated impulse voltage [kV]
    4
  • Terminal cross-section [mm²]
    1,5-35
  • Maximum fuse [A]
    63
  • Depth [mm]
    45
  • Fixing
    Clip
  • Rated voltage [V]
    230
  • Differential current [mA]
    thirty
  • Level of security
    IP20
  • Width [number of modules]
    2
  • Height [mm]
    80
  • Mechanical durability (number of cycles)
    >20000
  • Rated switching capacity [kA]
    6
  • Voltage type
    AC
  • Surge current resistance [A]
    250
  • PKWIU
    27.12.22.0

Další technické údaje

  • Number of poles
    2
  • Rated current
    25 A
  • Rated insulation voltage Ui
    440 V
  • Mounting method
    DIN rail
  • Selective protection
    No
  • Short-circuit breaking capacity (Icw)
    6 kA
  • Voltage type
    AC
  • Frequency
    50 Hz
  • Degree of protection (IP)
    IP20
  • Built-in depth
    45 mm
  • Pollution degree
    2
  • Connectable conductor cross section solid-core
    1.5 ... 35 mm²
  • Explosion-proof
    No
  • Rated voltage
    230 V
  • Rated fault current
    0.03 A
  • Rated impulse withstand voltage Uimp
    4 kV
  • Leakage current type
    AC
  • Short-time delayed tripping
    No
  • Surge current capacity
    0.25 kA
  • With interlocking device
    Yes
  • Additional equipment possible
    Yes
  • Width in number of modular spacings
    2
  • Ambient temperature during operating
    -25 ... 55 °C
  • Connectable conductor cross section multi-wired
    1.5 ... 16 mm²
  • RAL-number (similar)
    7035

Podrobnosti o výrobci

  • Výrobce
    EATON Electric Sp. z o.o.
  • Adresa
    80-299 Gdańsk ul. Galaktyczna 30
  • DIČ
    5841022327

Velkoobjemová balení

Typ obalu Skrzynia Karton
Množství 1 kusů. 1 kusů. 60 kusů.
Hmotnost (kg) 0,207 0,220 13,200
Objem (m3) 0,000 0,000 0,016
Šířka (m) 0,035 0,035 0,180
Délka (m) 0,080 0,080 0,385
Hloubka (m) 0,076 0,076 0,230
