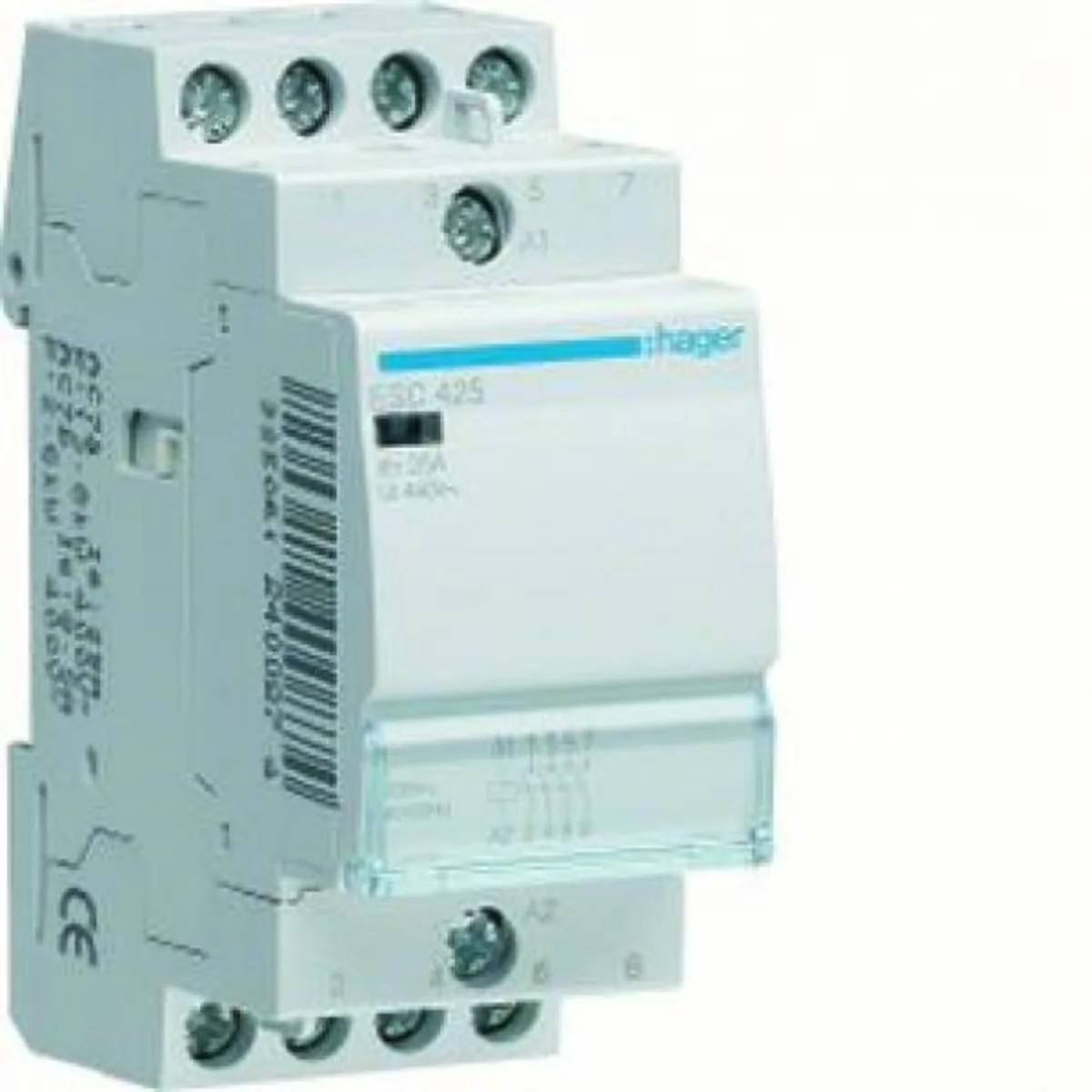

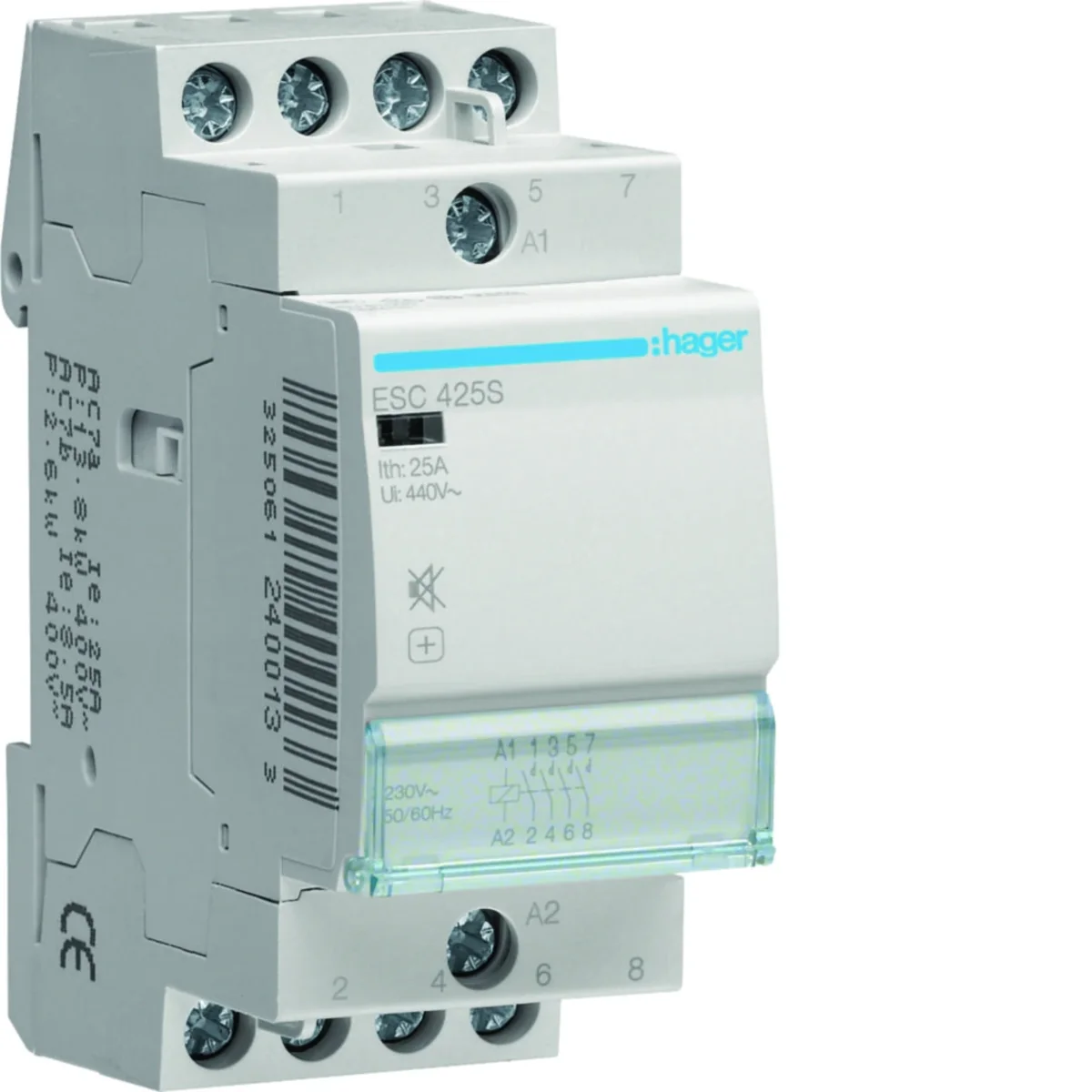

Silent contactor 4NO 25A 230V AC ESC425S

local index:
ATM149HAGE
Catalog No:
ESC425S
EAN code:
3250612400133
Manufacturer: HAGER
Depth [mm]: 60
Number of modules: 2
Rated voltage [V]: 400
Price:
49,57 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

2NO contacts - Silent contactor.

Surge [kV]< /td>4



Technical data

  • Depth [mm]
    60
  • Rated voltage [V]
    400
  • Power dissipation [W]
    8.8
  • Height [mm]
    83
  • PKWIU
    27.12.24.0
  • Number of modules
    2
  • Rated insulation voltage [V]
    440
  • Width [mm]
    35.75
  • Number of modules
    2

Other technical data

  • Rated operating voltage
    400 ... 400 V
  • Kategoria użytkowania
    7
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    4
  • Max. incandescent lamp load
    1900 W
  • Max. load fluorescent lamp (Duo circuit)
    1990 VA
  • Slider for hand switch
    No
  • Additional equipment possible
    Yes
  • Rated operation current
    25 A
  • Rated excitation voltage
    230 ... 230 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    0
  • Max. load fluorescent lamp
    950 VA
  • Max. load fluorescent lamp (parallel compensated)
    810 VA
  • Built-in depth
    60 mm
  • Degree of protection (IP)
    IP2X

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,198 0,215 13,070 336,680
Width (m) 0,036 0,080 0,315 0,800
Length (m) 0,083 0,040 0,210 0,994
Depth (m) 0,065 0,100 0,360 1,200
