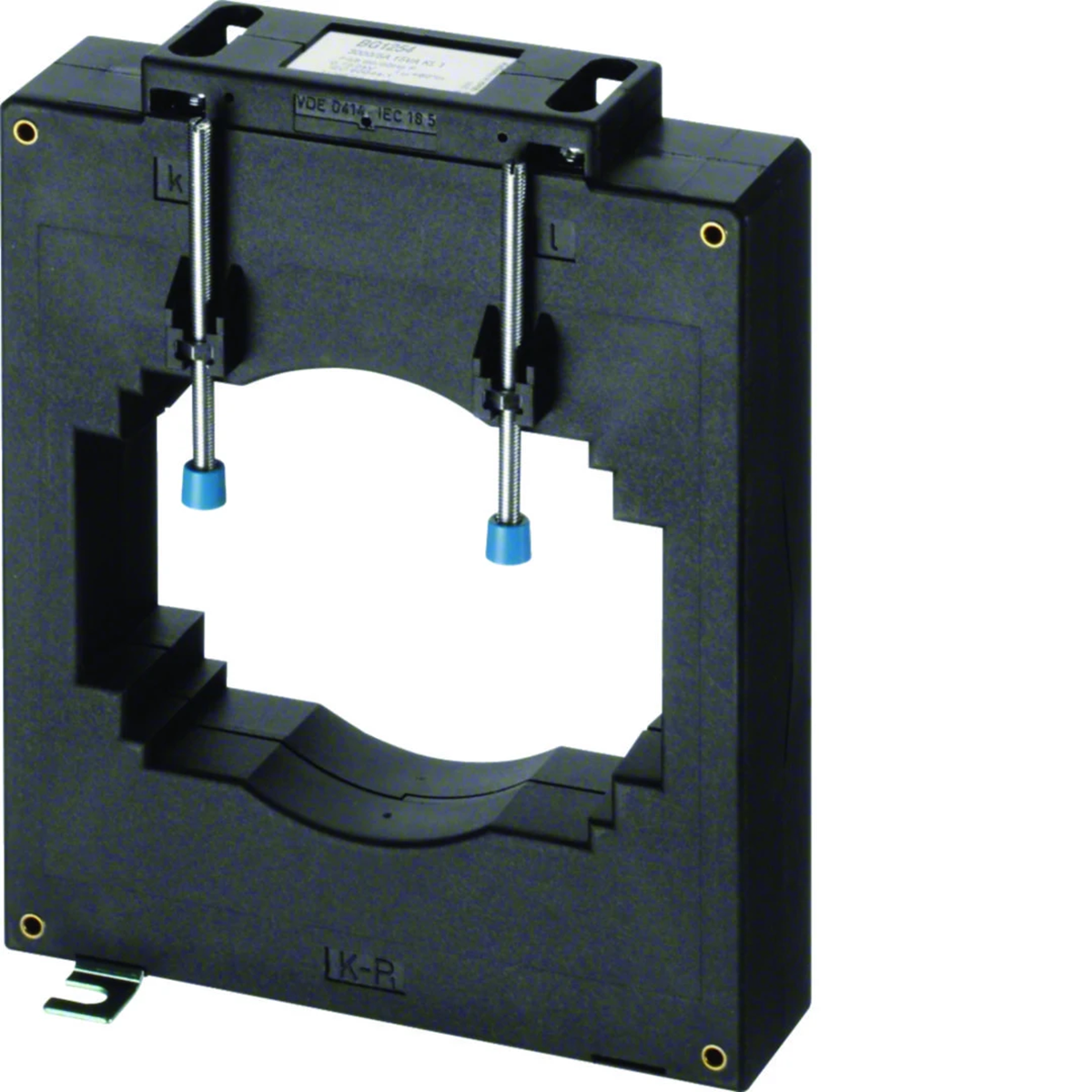

Current transformer 3000/5A 15VA class 1 SRG30005

local index:
AUK021HAGE
Catalog No:
SRG30005
EAN code:
4049857139484
Manufacturer: HAGER
Rated frequency [Hz]: 50/60
Depth [mm]: 40
Accuracy class: 1
Price:
135,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Current transformers
secondary current: 5 A,
primary side current range: from 50 to 2000 A,
used in indirect current measurement systems (electricity meters, multifunction meters),
accuracy class of current transformers: from 0.5 to 3 - depends on the power consumption of the secondary circuit of the transformer,
measuring input (primary side of the transformer) for round conductors and busbars,
can be mounted on a flat surface or on a 35 mm DIN rail.

Technical data

  • Rated frequency [Hz]
    50/60
  • Accuracy class
    1
  • Type
    Formed
  • Working temperature [°C]
    -40 to 40
  • Connection type
    Screw connection
  • PKWIU
    27.11.42.0
  • Depth [mm]
    40
  • Rated insulation voltage [V]
    3000
  • Width [mm]
    160
  • Height [mm]
    198
  • Gear
    3000;5

Other technical data

  • Model
    Attachable current transformer
  • Rated secondary current
    5 A
  • Overcurrent limiting factor
    FS 5
  • Opening diameter
    98 mm
  • With copper rail
    no
  • Rated primary current
    3000 A
  • Rated secondary apparent power
    15 VA
  • With shock protection
    yes
  • Snap mounting
    yes
  • Number of primary inputs
    1

Bulk packaging

A kind of package Pakiet Paleta
Quantity 1 pcs. 144 pcs.
Weight (kg) 0,935 157,640
Width (m) 0,175 0,800
Length (m) 0,090 0,600
Depth (m) 0,210 1,200
