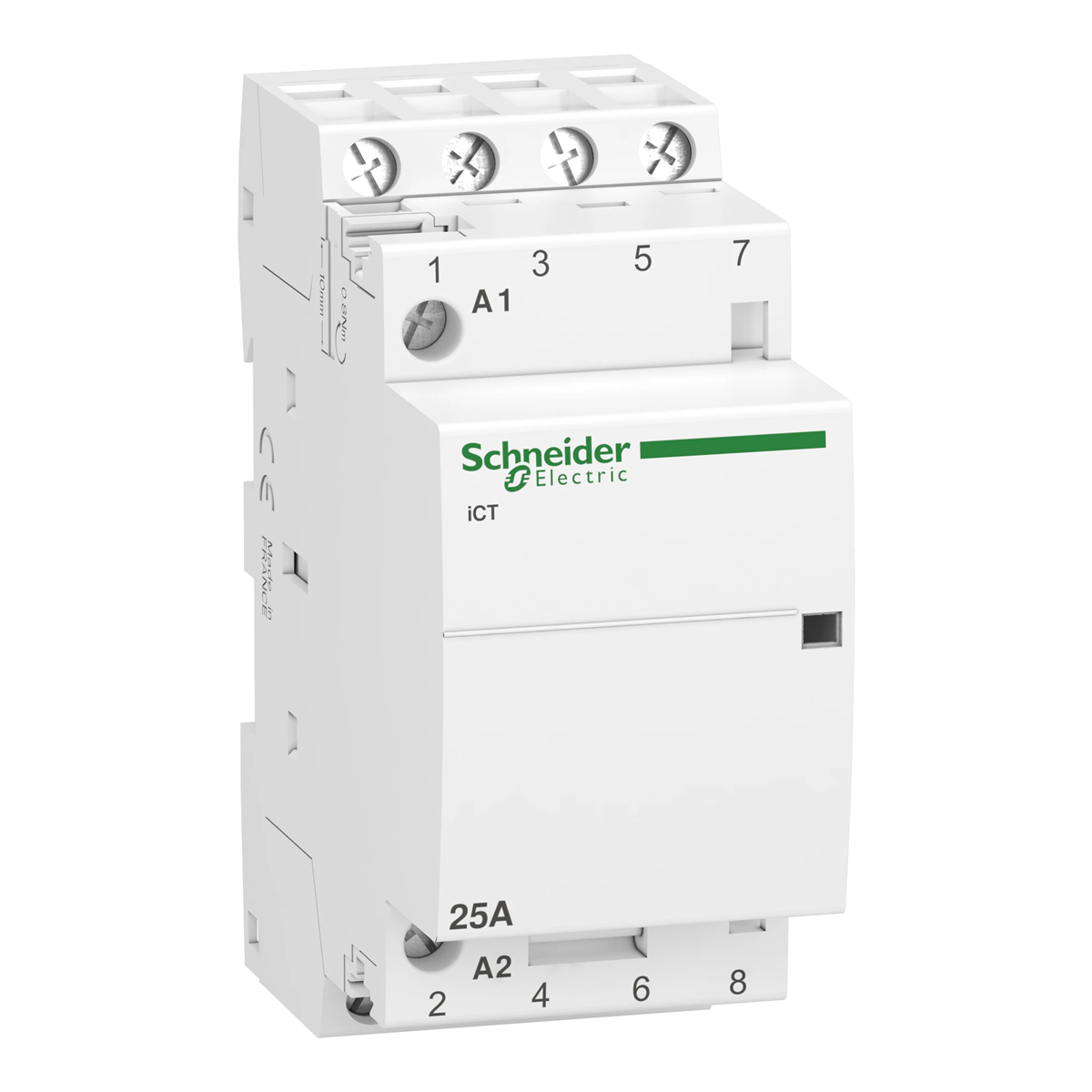

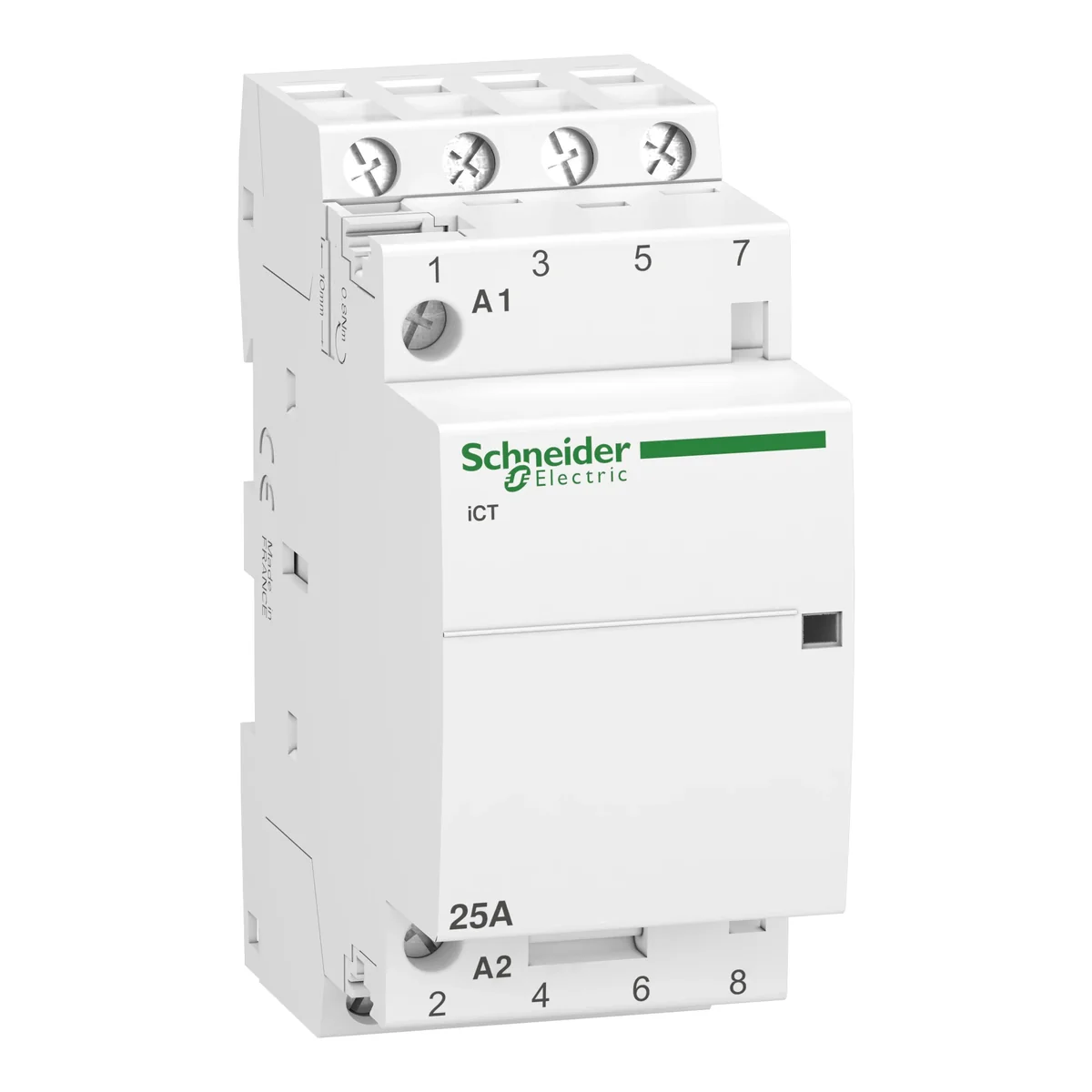

iCT25A modular contactor, 220/240V AC, 50Hz A9C20834

local index:
ATA175SCHN
Catalog No:
A9C20834
EAN code:
3606480088599
Manufacturer: SCHNEIDER ELECTRIC
Number of contacts: 4NO 0NC
Control circuit voltage [V]: 230
Rated operational current [A]: 25
Price:
41,55 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 4 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

iCT25A modular contactor, 220/240V AC, 50Hz

Technical data

  • Number of contacts
    4NO 0NC
  • Rated operational current [A]
    25
  • Control circuit voltage [V]
    230
  • PKWIU
    27.12.24.0

Other technical data

  • Rated operating voltage
    400 ... 400 V
  • Kategoria użytkowania
    7
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    4
  • Max. incandescent lamp load
    2850 W
  • Max. load fluorescent lamp (Duo circuit)
    2400 VA
  • Slider for hand switch
    No
  • Additional equipment possible
    Yes
  • Rated operation current
    25 A
  • Rated excitation voltage
    220 ... 240 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    0
  • Max. load fluorescent lamp
    1200 VA
  • Max. load fluorescent lamp (parallel compensated)
    1200 VA
  • Built-in depth
    43.5 mm
  • Degree of protection (IP)
    IP20
