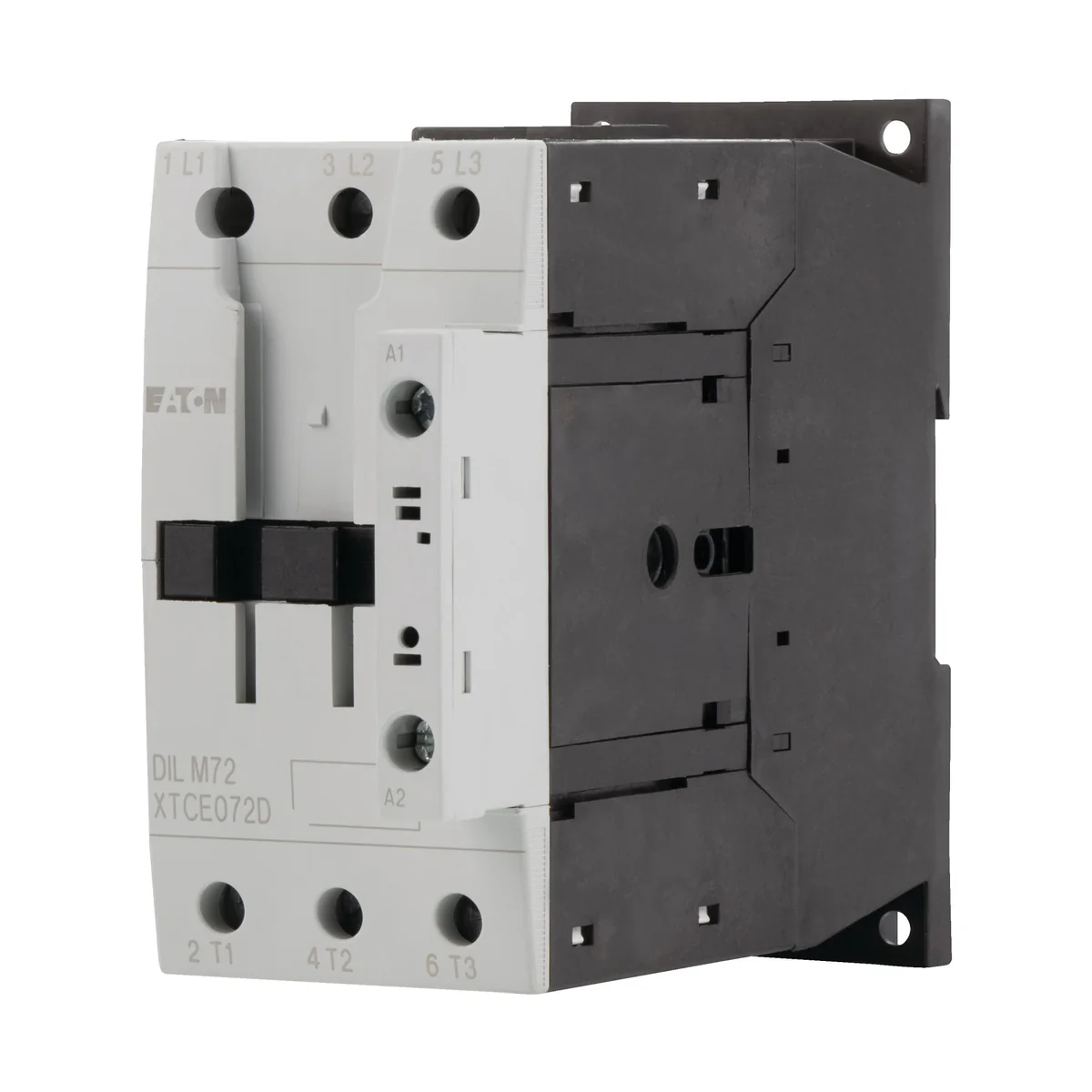

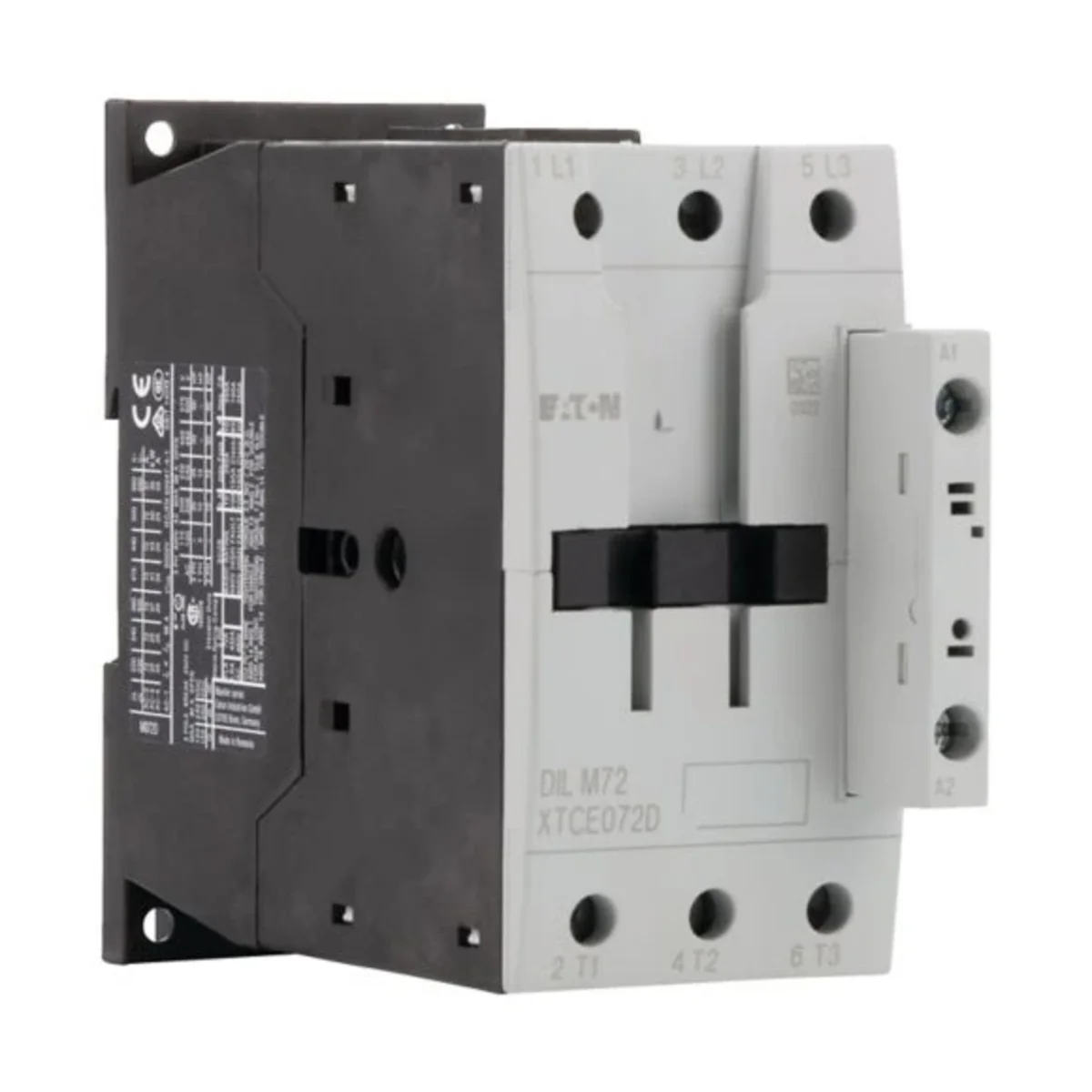

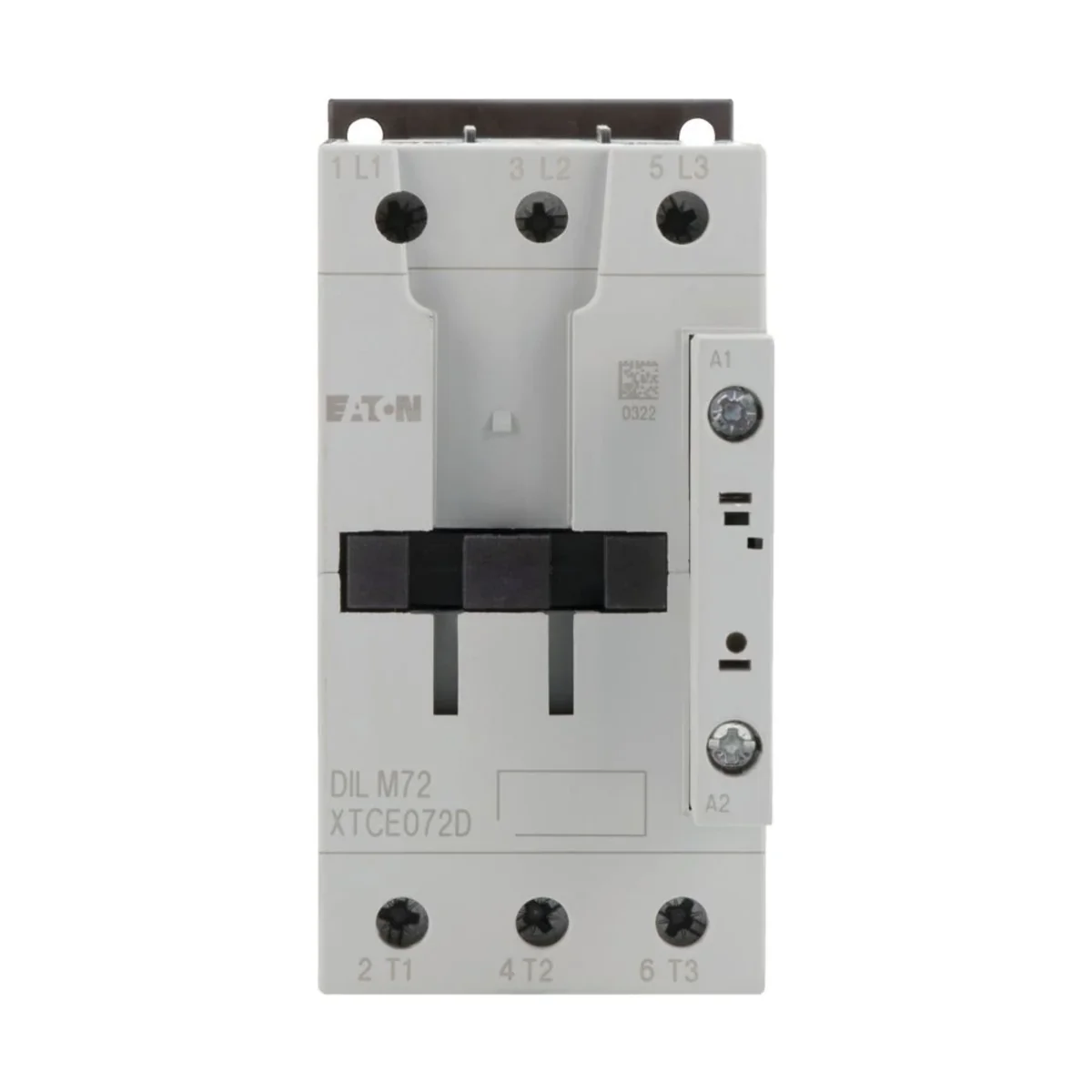

Power contactor, 3-pole, DILM72(24V50/60HZ) 109197

local index:
ATM010MOEL
Catalog No:
109197
EAN code:
4015081088171
Manufacturer: EATON
Number of poles: 3
Installation: screw terminals
Voltage [V]: 24V 50/60Hz
Price:
329,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power contactor, Application: Power contactor for motors, Power contactors up to 170 A, 3-pole, Utilization category:

AC-1: Non-inductive or weakly inductive load, resistance furnaces,

AC-3: Squirrel cage motors: starting, shutdown during operation,

AC-4: Squirrel cage motors: starting, counter-current brakes, reversing mode, impulse mode,

Method connections: Screw terminals,

Note: Not suitable for motors of energy efficiency class IE3.,

Rated operational current AC-3 380 V 400 V: Ie= 72 A, Rated operational current AC -1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith =Ie= 98 A, enclosed: Ith= 72 A, Rated operational current AC-1 conventional thermal current, 1-pole open: Ith= 200 A, enclosed: Ith= 180 A, Max. rated power of three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 22 kW, 380 V 400 V: P= 37 kW, 660 V 690 V : P= 35 kW, Max. rated power of three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 7 kW, 380 V 400 V: P= 12 kW, 660 V 690 V: P= 17 kW,< /p>

for combination with auxiliary switch module: DILM150-XHI(V).., DILM1000-XHI(V)..,

Notes: Switching elements according to EN 50012. Observe durability electricity.,

Type of AC/DC current: AC operation

Technical data

  • Number of poles
    3
  • Voltage [V]
    24V 50/60Hz
  • PKWIU
    27.12.24.0
  • Installation
    screw terminals
  • Rated operational power at AC-3, 400 V [kW]
    72

Other technical data

  • Rated control supply voltage AC 50 Hz
    24 ... 24 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Rated operation current Ie at AC-1, 400 V
    98 A
  • Rated operation power at AC-3, 400 V
    37 kW
  • Rated operation power at AC-4, 400 V
    12 kW
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    24 ... 24 V
  • Voltage type for actuating
    AC
  • Rated operation current Ie at AC-3, 400 V
    72 A
  • Rated operation current Ie at AC-4, 400 V
    25 A
  • Rated operation power NEMA
    37 kW
  • Number of auxiliary contacts as normally open contact
    0
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    3

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,923
Volume (m3) 0,001
Width (m) 0,057
Length (m) 0,151
Depth (m) 0,118
