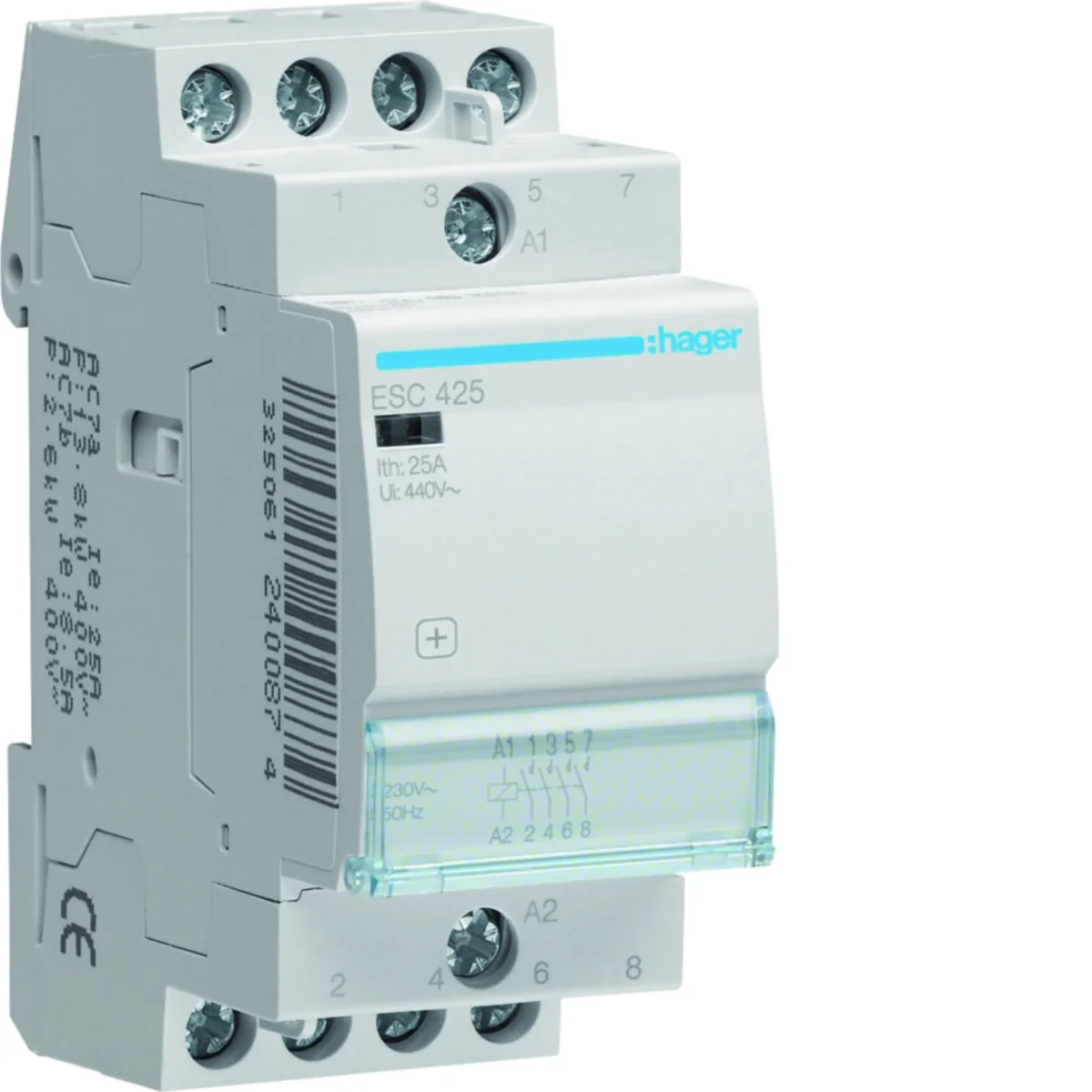

Contactor 4NO 25A 230V AC ESC425

local index:
ATM108HAGE
Catalog No:
ESC425
EAN code:
3250612400874
Manufacturer: HAGER
Depth [mm]: 60
Number of modules: 4
Number of contacts: 4NO 0NC
Price:
39,88 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 44 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

2NC contacts Standard version contactor.

Technical data

  • Depth [mm]
    60
  • Number of contacts
    4NO 0NC
  • Rated voltage [V]
    400
  • Width [mm]
    35.75
  • Number of modules
    4
  • Number of modules
    4
  • Surge voltage [kV]
    4000
  • Rated current [A]
    25
  • Height [mm]
    83
  • PKWIU
    27.12.24.0

Other technical data

  • Rated operating voltage
    400 ... 400 V
  • Kategoria użytkowania
    7
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    4
  • Max. incandescent lamp load
    1900 W
  • Max. load fluorescent lamp (Duo circuit)
    1990 VA
  • Slider for hand switch
    No
  • Additional equipment possible
    Yes
  • Rated operation current
    25 A
  • Rated excitation voltage
    230 ... 230 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    0
  • Max. load fluorescent lamp
    950 VA
  • Max. load fluorescent lamp (parallel compensated)
    810 VA
  • Built-in depth
    60 mm
  • Degree of protection (IP)
    IP2X

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,200 0,210 13,140 338,360
Width (m) 0,080 0,100 0,315 0,800
Length (m) 0,040 0,041 0,212 0,998
Depth (m) 0,100 0,080 0,362 1,200
