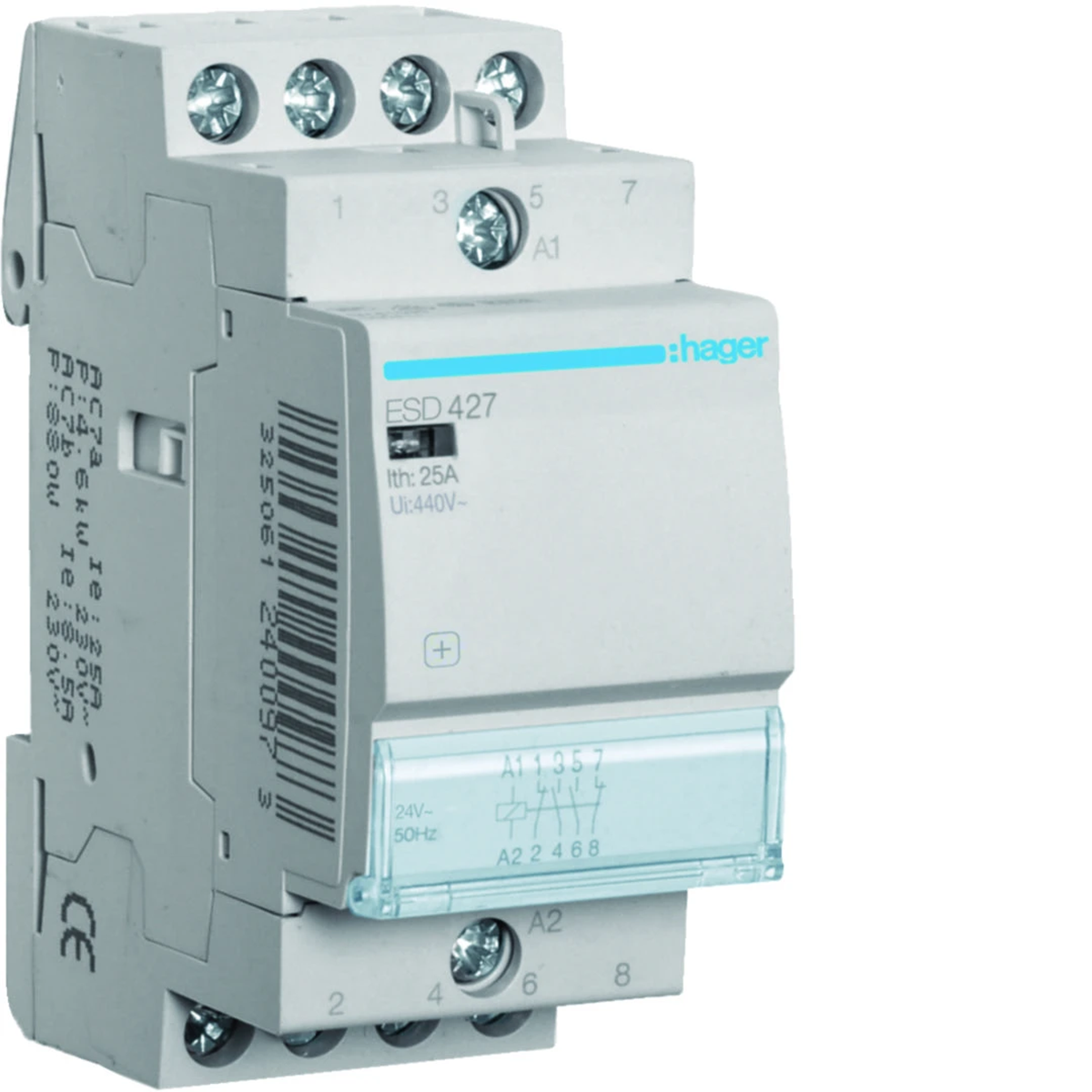

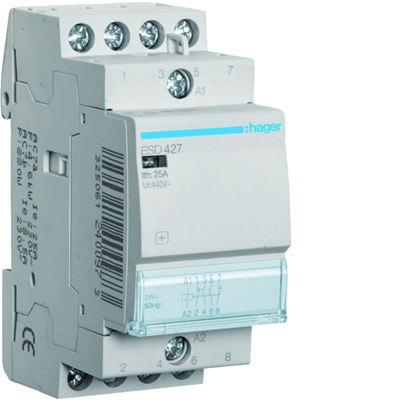

Contactor 24VAC 2NO+2NC 25A ESD427

local index:
ATM041HAGE
Catalog No:
ESD427
EAN code:
3250612400836
Manufacturer: HAGER
Rated frequency [Hz]: 50
Depth [mm]: 60
Number of contacts: 2NO 2NC
Price:
56,49 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Contactors, standard version, for controlling lighting circuits, heating, ventilation, etc. Contact position indicator (window in the front of the housing).

Characteristics:
standard application: utilization category AC-7a - 240 V AC (1 mod. / 2 mod.) / 440 V AC (3 mod. / 4 mod.),
possibility of using auxiliary contact Art. ESC080 and terminal covers for sealing (Art. ESC001,
ESC002, ESC003),
compliance with the PN-EN 61095
standard Usage:
incandescent lamps (traditional and halogen bulbs)
linear and compact fluorescent lamps (energy-saving), compensated or uncompensated, with traditional or electronic ignitor
discharge lamps (high pressure sodium and mercury lamps, metal halide lamps, compensated or uncompensated),
resistive loads (category AC-7a)
inductive loads (category AC-7b)
In order to reduce the influence of the generated heat on the operation of contactors, it is recommended to use a spacer Art. LZ060 - using 1 piece of LZ060 every 3 contactors mounted in 1 row of the switchgear

Technical data

  • Rated frequency [Hz]
    50
  • Number of contacts
    2NO 2NC
  • AC control voltage [V]
    24
  • Rated current [A]
    25
  • Width [mm]
    35.75
  • Height [mm]
    83
  • Mechanical durability (number of cycles)
    1000000
  • Connection type
    With a screw
  • AC rated voltage [V]
    400
  • Depth [mm]
    60
  • Maximum input power [VA]
    21
  • Rated insulation voltage [V]
    440
  • power loss [W]
    6.4
  • Working temperature [°C]
    -10 to 50
  • Electrical endurance (number of cycles)
    30000
  • Rated impulse voltage [kV]
    4
  • Number of modules
    2
  • PKWIU
    27.12.24.0

Other technical data

  • Rated operating voltage
    400 ... 400 V
  • Kategoria użytkowania
    7
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    2
  • Max. incandescent lamp load
    1900 W
  • Max. load fluorescent lamp (Duo circuit)
    1990 VA
  • Slider for hand switch
    No
  • Additional equipment possible
    Yes
  • Rated operation current
    25 A
  • Rated excitation voltage
    24 ... 24 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    2
  • Max. load fluorescent lamp
    950 VA
  • Max. load fluorescent lamp (parallel compensated)
    810 VA
  • Built-in depth
    60 mm
  • Degree of protection (IP)
    IP2X

Bulk packaging

A kind of package Pakiet Paczka Paleta
Quantity 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,211 13,100 339,400
Width (m) 0,082 0,315 0,800
Length (m) 0,038 0,214 1,006
Depth (m) 0,098 0,372 1,200
