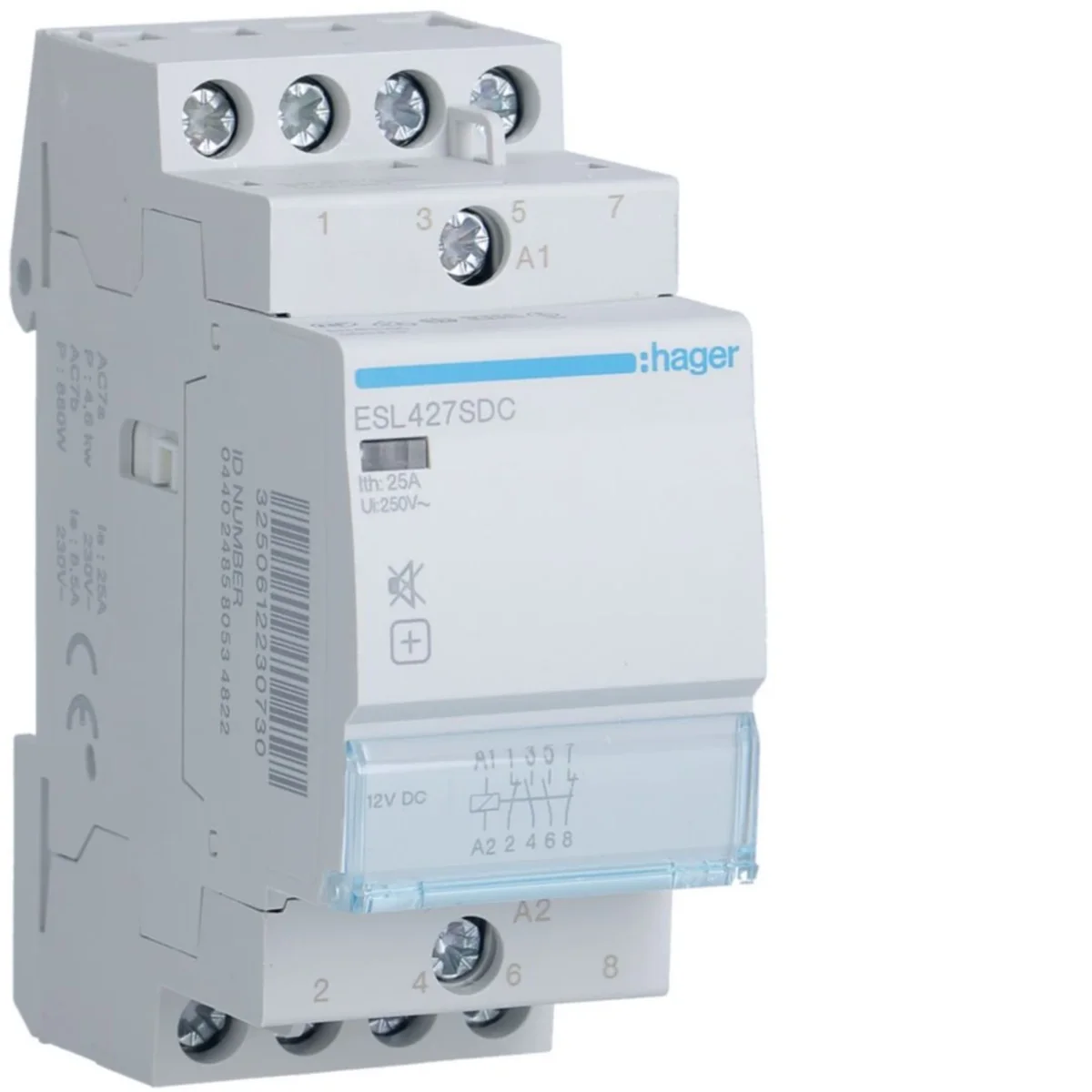

Silent contactor 12V DC 2NO+2NC 25A ESL427SDC

local index:
ATM016HAGE
Catalog No:
ESL427SDC
EAN code:
3250612230730
Manufacturer: HAGER
Depth [mm]: 60
DC control voltage [V]: 12
Rated voltage [V]: 400
Price:
85,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Silent contactors with a new design, ensuring noise-free operation throughout the life of the device. Available versions dedicated only to DC voltage control circuits (12 and 24 V DC).

Higher load capacity:
Devices marked with the mark have a reinforced structure that allows you to connect more light sources in the pore

Application:

  • incandescent lamps (traditional and halogen bulbs)
  • ​fluorescent lamps; linear and compact coils,
  • discharge lamps (high pressure sodium and mercury vapor lamps, metal halide lamps),
  • LED sources,
  • resistive loads (category AC- 7a),
  • inductive loads (category AC-7b).

In order to limit the influence of the generated heat on the operation of contactors, it is recommended to use a spacer Art. LZ060 .​

Technical data

  • Depth [mm]
    60
  • Rated voltage [V]
    400
  • Width [mm]
    35.75
  • Electrical endurance (number of cycles)
    30000
  • Number of modules
    2
  • DC control voltage [V]
    12
  • Rated current [A]
    25
  • Height [mm]
    83
  • Mechanical durability (number of cycles)
    100000
  • PKWIU
    27.12.24.0

Other technical data

  • Rated operating voltage
    400 ... 400 V
  • Kategoria użytkowania
    7
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    2
  • Max. incandescent lamp load
    1900 W
  • Max. load fluorescent lamp (Duo circuit)
    1990 VA
  • Slider for hand switch
    No
  • Additional equipment possible
    Yes
  • Rated operation current
    25 A
  • Rated excitation voltage
    12 ... 12 V
  • Voltage type (excitation voltage)
    DC
  • Number of contacts as normally closed contact
    2
  • Max. load fluorescent lamp
    950 VA
  • Max. load fluorescent lamp (parallel compensated)
    810 VA
  • Built-in depth
    60 mm
  • Degree of protection (IP)
    IP2X

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,204 0,217 13,440 345,560
Width (m) 0,041 0,080 0,315 0,800
Length (m) 0,099 0,040 0,212 0,998
Depth (m) 0,079 0,100 0,362 1,200
