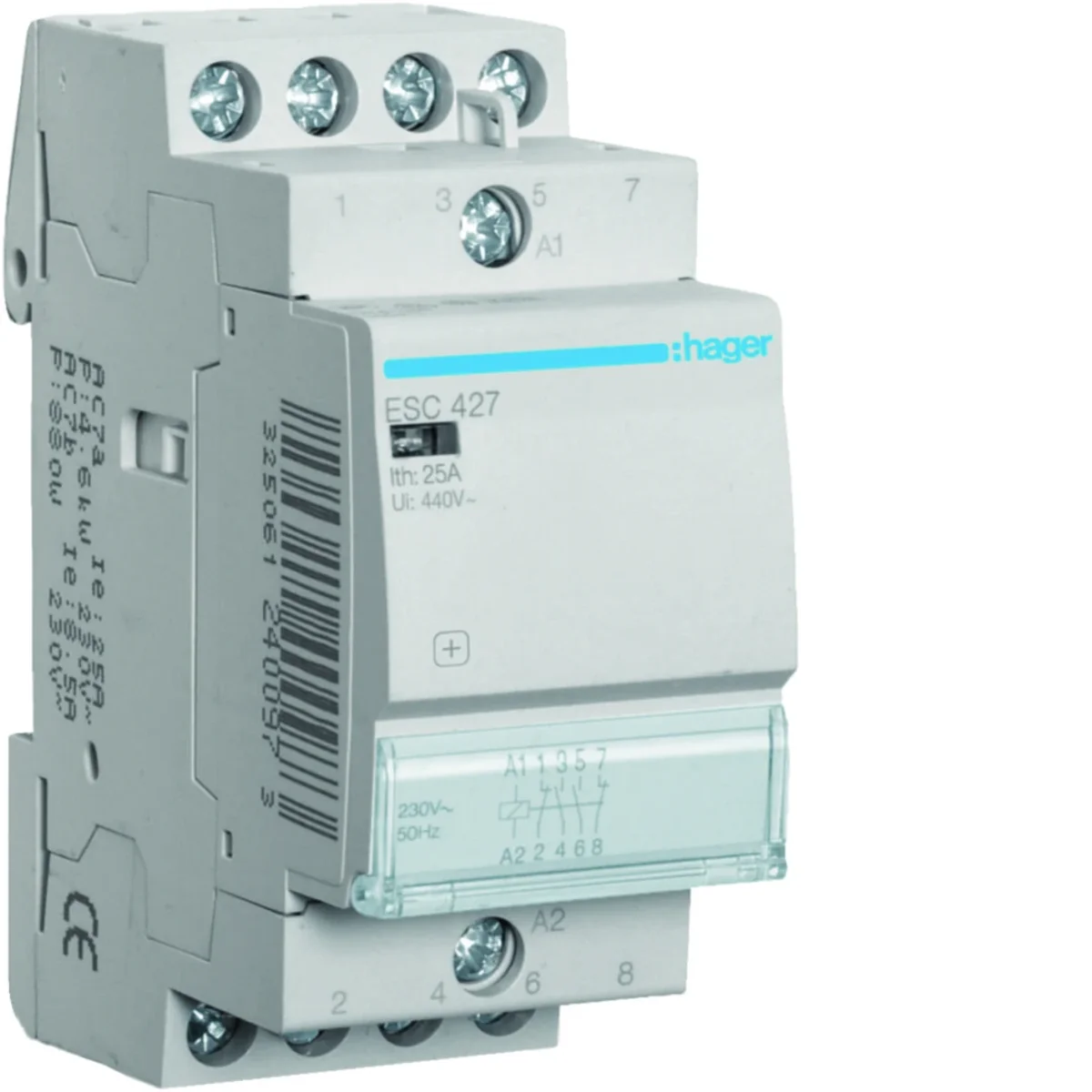

Contactor 2NO+2NC 25A 230V AC ESC427
local index:
ATM013HAGE
Catalog No:
ESC427
EAN code:
3250612400973
Price:
49,35 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Contactor 2NO+2NC 25A 230V AC
Technical data
-
Depth [mm]60
-
Number of contacts2NO 2NC
-
AC control voltage [V]230
-
Rated voltage [V]230
-
Rated current [A]25
-
Height [mm]83
-
PKWIU27.12.24.0
-
Number of modules2
-
Maximum input power [VA]21
-
Surge voltage [kV]4
-
Rated insulation voltage [V]440
-
Width [mm]35.75
-
Number of modules2
Other technical data
-
Rated operating voltage230 ... 230 V
-
Kategoria użytkowania7
-
Voltage type (operating voltage)AC
-
Number of contacts as normally open contact2
-
Max. incandescent lamp load1900 W
-
Max. load fluorescent lamp (Duo circuit)1990 VA
-
Slider for hand switchNo
-
Additional equipment possibleYes
-
Rated operation current25 A
-
Rated excitation voltage230 ... 230 V
-
Voltage type (excitation voltage)AC
-
Number of contacts as normally closed contact2
-
Max. load fluorescent lamp950 VA
-
Max. load fluorescent lamp (parallel compensated)810 VA
-
Built-in depth60 mm
-
Degree of protection (IP)IP2X
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 60 pcs. | 1440 pcs. |
| Weight (kg) | 0,198 | 0,214 | 13,081 | 336,944 |
| Width (m) | 0,036 | 0,080 | 0,323 | 0,800 |
| Length (m) | 0,083 | 0,041 | 0,214 | 1,006 |
| Depth (m) | 0,065 | 0,097 | 0,366 | 1,200 |
