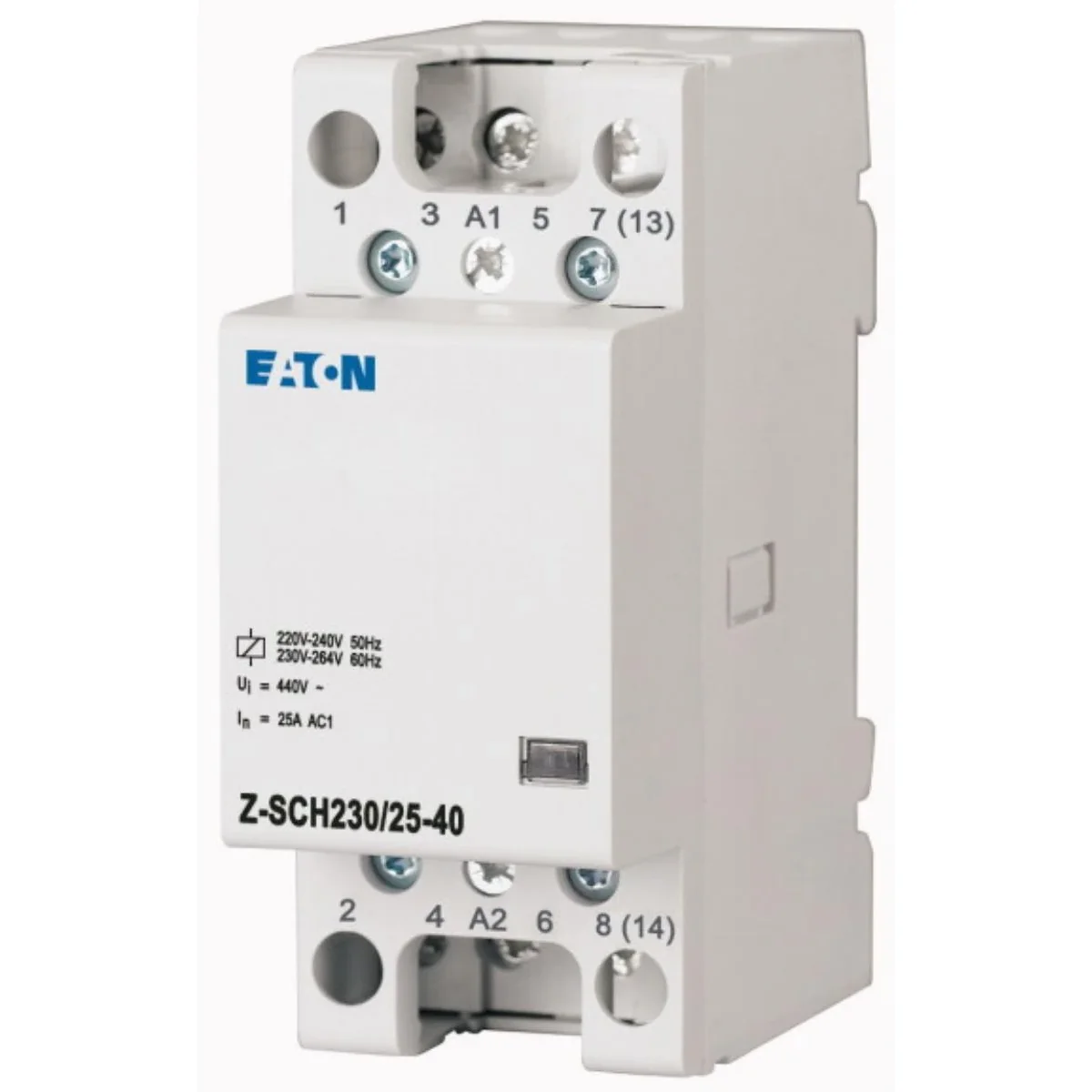

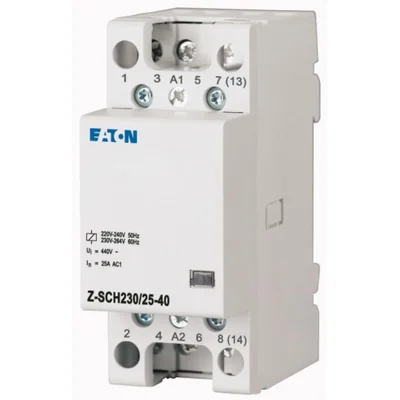

Contactor, Z-SCH230/25-40 248847
local index:
ATC243MOEL
Catalog No:
248847
EAN code:
4015082488475
Manufacturer:
EATON
Rated voltage [V]: 230
Price:
37,42 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Eaton Moeller Contactor Z-SCH230/25-40
Category AC1, rated current [A]: 25
Function: 4 make contacts
Operating voltage : 230V
Protection level [IP]: 20
Width in modules: 2
Mechanical strength [x 106]: 10
AC1 category, load:
- 230-240V [kW]: 9, 5
- 230-240V [kW]: 17
AC3 category, current rated [A]: 9
Rated power 3-phase motor 50-60Hz:
- 220 [kW]: 2, 2
- 230-240V [kW]: 2, 5
- 380-415V [kW]: 4
Technical data
-
Rated voltage [V]230
Other technical data
-
Rated operating voltage440 ... 440 V
-
Kategoria użytkowania1
-
Voltage type (operating voltage)AC
-
Number of contacts as normally open contact4
-
Max. incandescent lamp load3000 W
-
Max. load fluorescent lamp (Duo circuit)2552 VA
-
Slider for hand switchNo
-
Additional equipment possibleYes
-
Rated operation current25 A
-
Rated excitation voltage195.5 ... 253 V
-
Voltage type (excitation voltage)AC
-
Number of contacts as normally closed contact0
-
Max. load fluorescent lamp1160 VA
-
Max. load fluorescent lamp (parallel compensated)1044 VA
-
Built-in depth60 mm
-
Degree of protection (IP)IP40
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 60 pcs. |
| Weight (kg) | 0,220 | 0,234 | 17,500 |
| Volume (m3) | 0,000 | 0,000 | 0,016 |
| Width (m) | 0,035 | 0,037 | 0,385 |
| Length (m) | 0,085 | 0,092 | 0,180 |
| Depth (m) | 0,060 | 0,075 | 0,230 |
