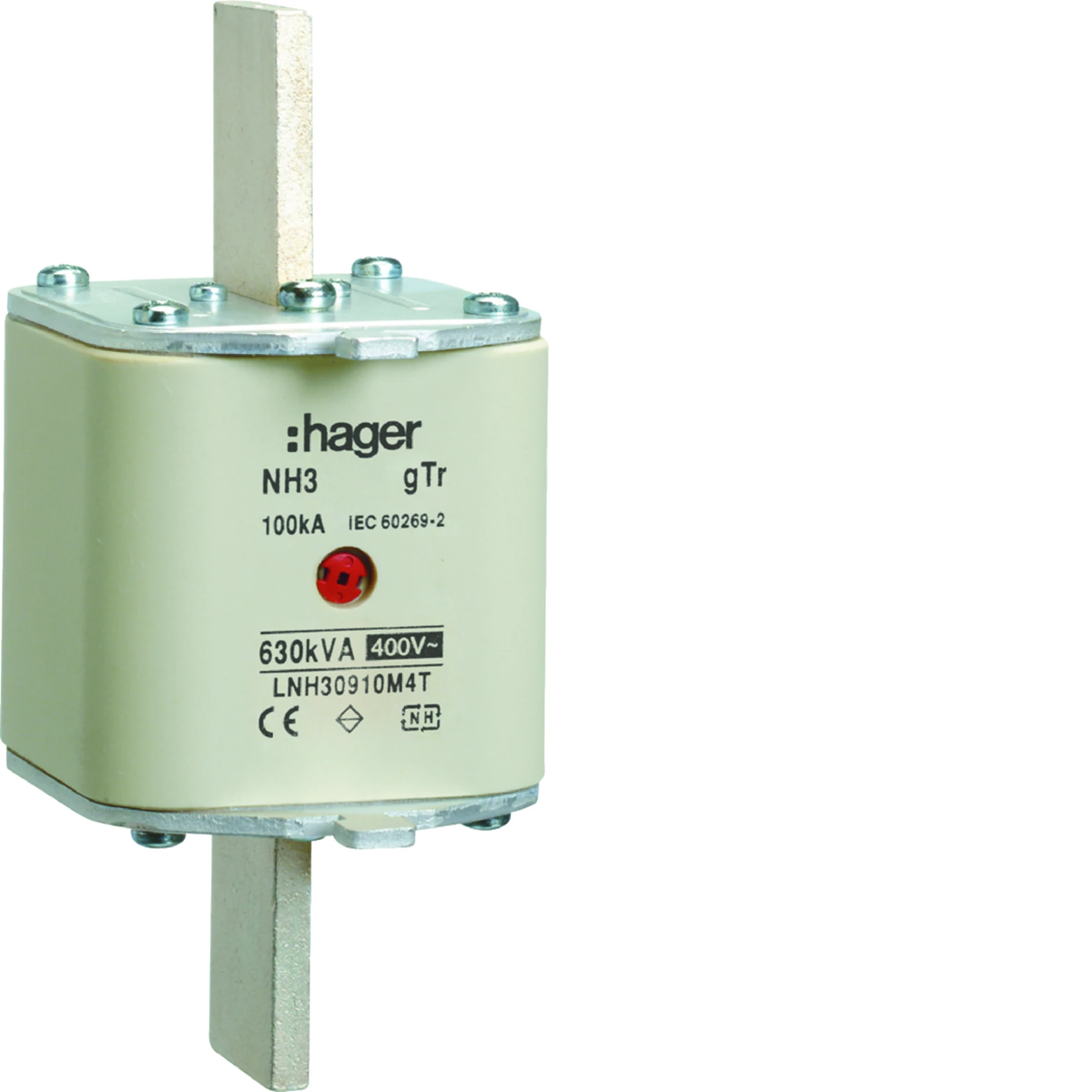

Knife fuse link NH3 gTr 400V 910A LNH30910M4T

local index:
ABI415HAGE
Catalog No:
LNH30910M4T
EAN code:
3250614126307
Manufacturer: HAGER
Characteristic: gTr
Length [mm]: 80
DC operating voltage [V]: 0/400/440
Price:
80,77 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

910A blade fuse link:

  • double indicator,
  • non-insulated handle,
  • fuse characteristics: gTr.

Technical data

  • Characteristic
    gTr
  • DC operating voltage [V]
    0/400/440
  • power loss [W]
    62
  • Fuse link size
    NH3
  • Rated switching voltage [V]
    0/400/440
  • PKWIU
    27.12.21.0
  • Length [mm]
    80
  • Rated current [A]
    910
  • Width [mm]
    66
  • Height [mm]
    150
  • Rated short-circuit breaking capacity Icn [kA]
    100

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    100 kA
  • Type of fuse status indicator
    Centre fuse status indicator
  • Rated current
    910 A
  • Utilization category
    gTr (Transformer protection)
  • Insulated metal gripping lugs (IMGL)
    No

Manufacturer details

  • Manufacturer
    HAGER POLO Sp. z o. o.
  • Address
    43-100 Tychy Fabryczna 10
  • Tax identification number
    6460015532

Bulk packaging

A kind of package Karton Pakiet Paleta Karton Pakiet Paleta
Quantity 1 pcs. 7 pcs. 224 pcs. 1 pcs. 7 pcs. 224 pcs.
Weight (kg) 1,200 8,670 302,440 1,200 8,670 302,440
Width (m) 0,160 0,290 0,800 0,160 0,290 0,800
Length (m) 0,090 0,145 1,500 0,090 0,145 1,500
Depth (m) 0,180 0,320 1,200 0,180 0,320 1,200
