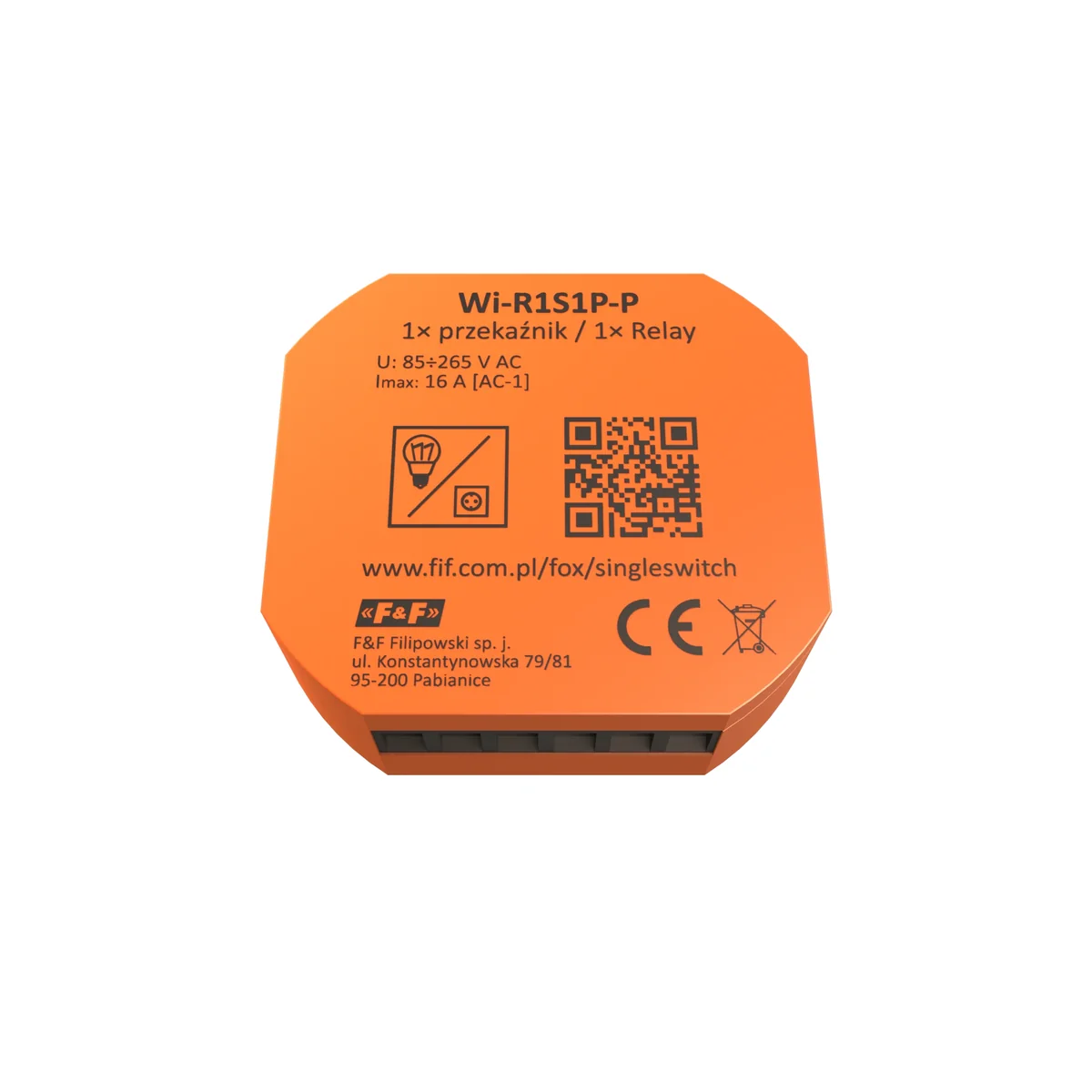

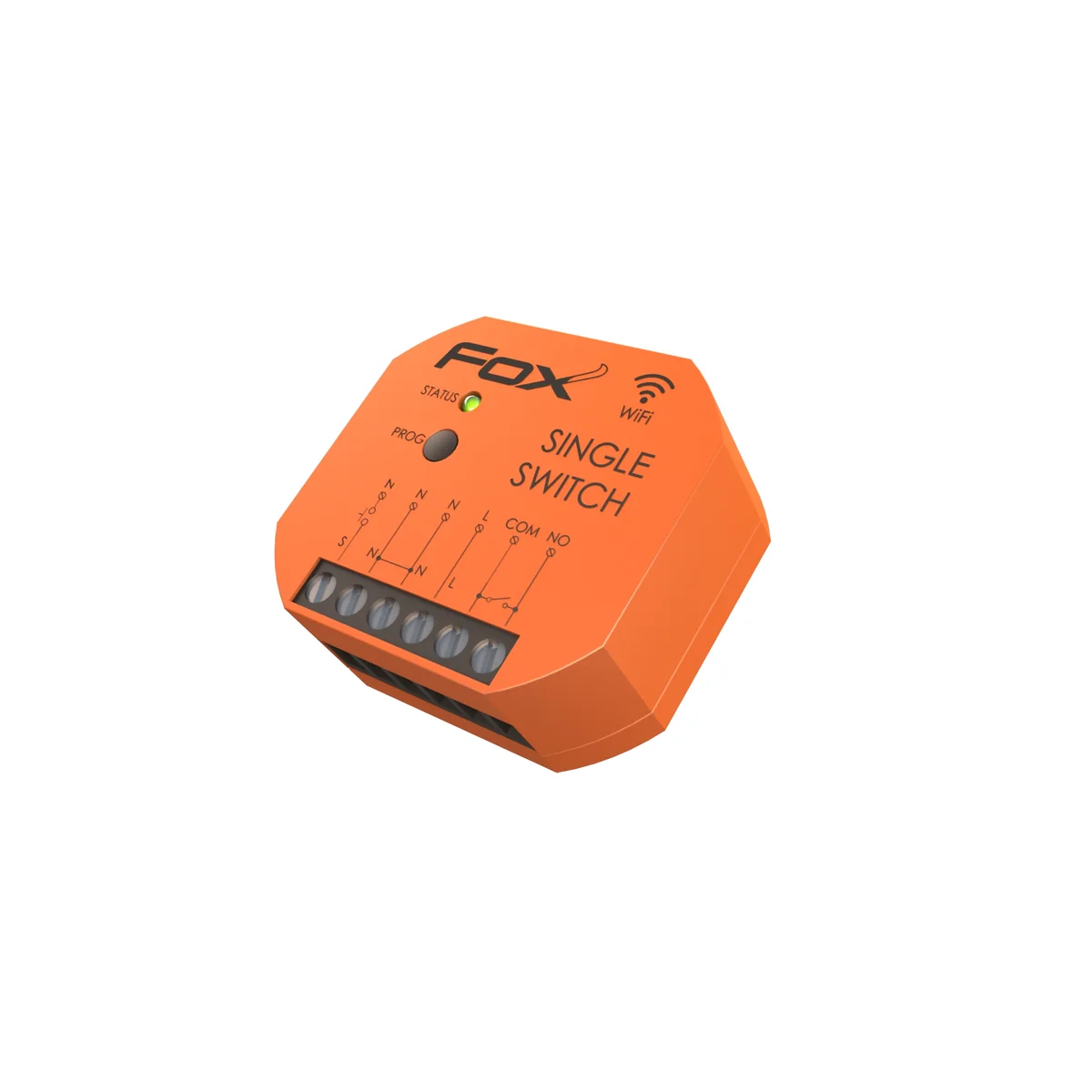

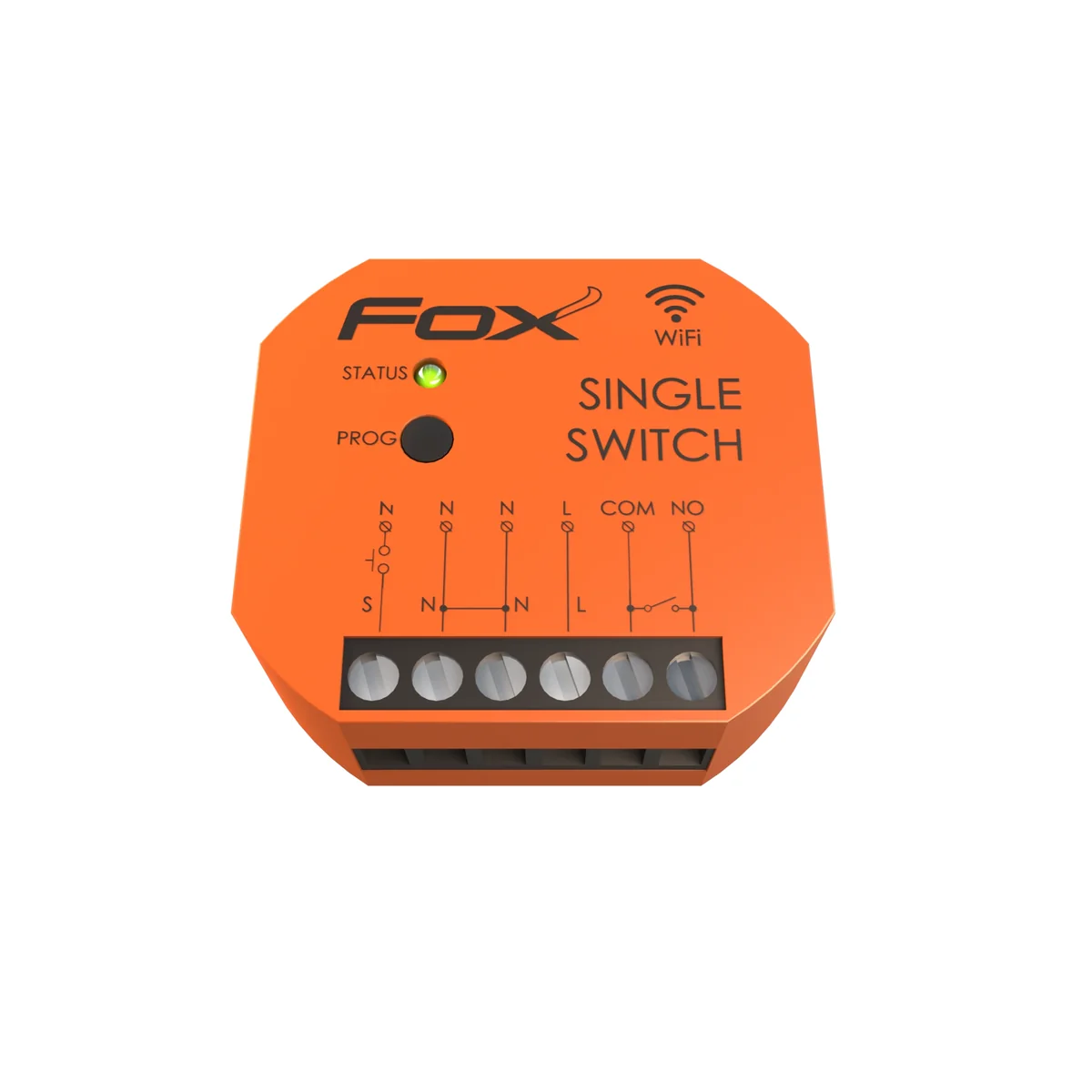

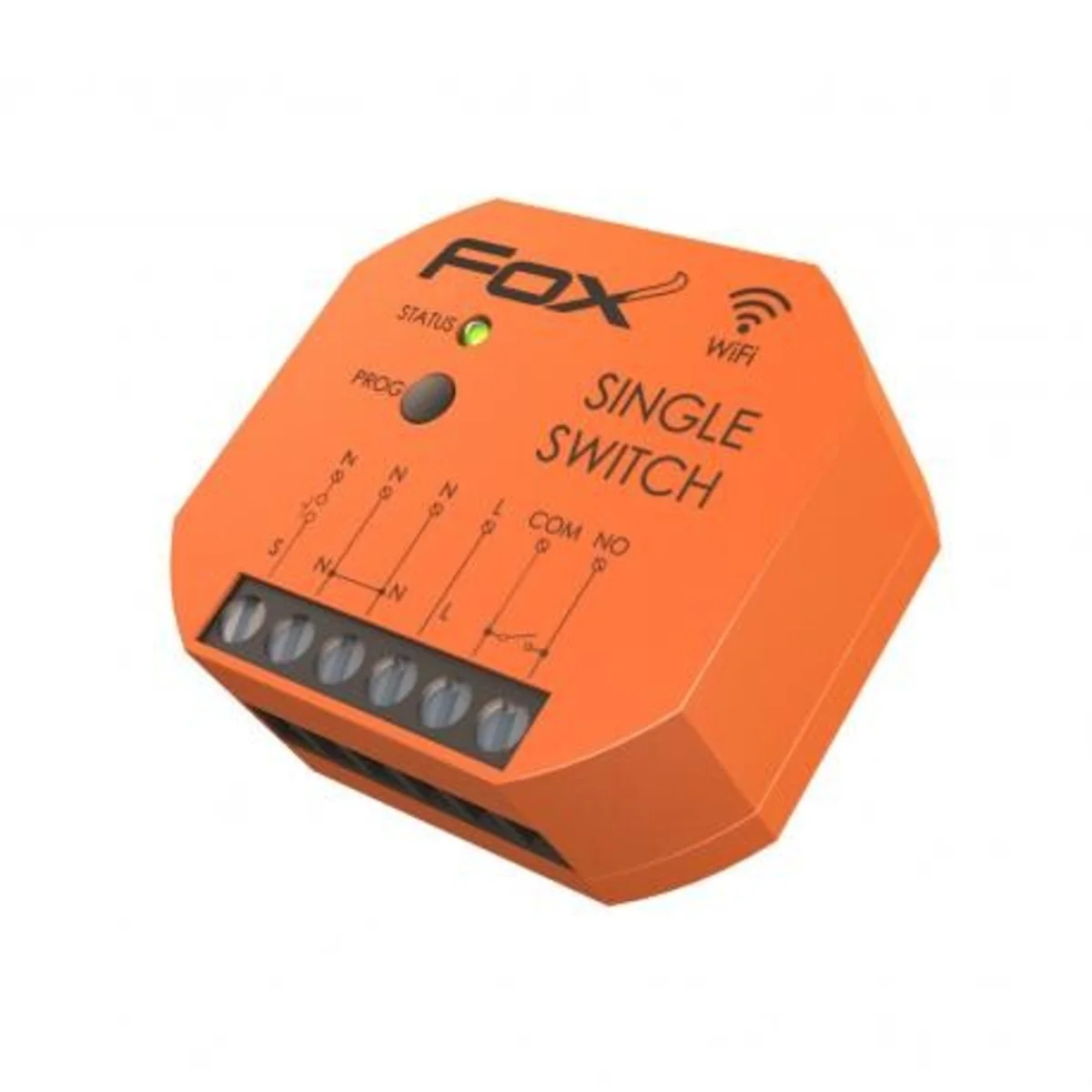

Single-channel Wi-Fi relay 230 V SINGLE SWITCH WI-R1S1P-P

local index:
API068FIFQ
Catalog No:
WI-R1S1P-P
EAN code:
5902431674780
Manufacturer: F&F
Maximum load current [A]: 16
Tightening torque [Nm]: 0.4
Rated voltage [V]: 230
Price:
41,49 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 18 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Single-channel Wi-Fi transmitter 230 V SINGLE SWITCH from the manufacturer F&F. The product catalog number is WI-R1S1P-P.

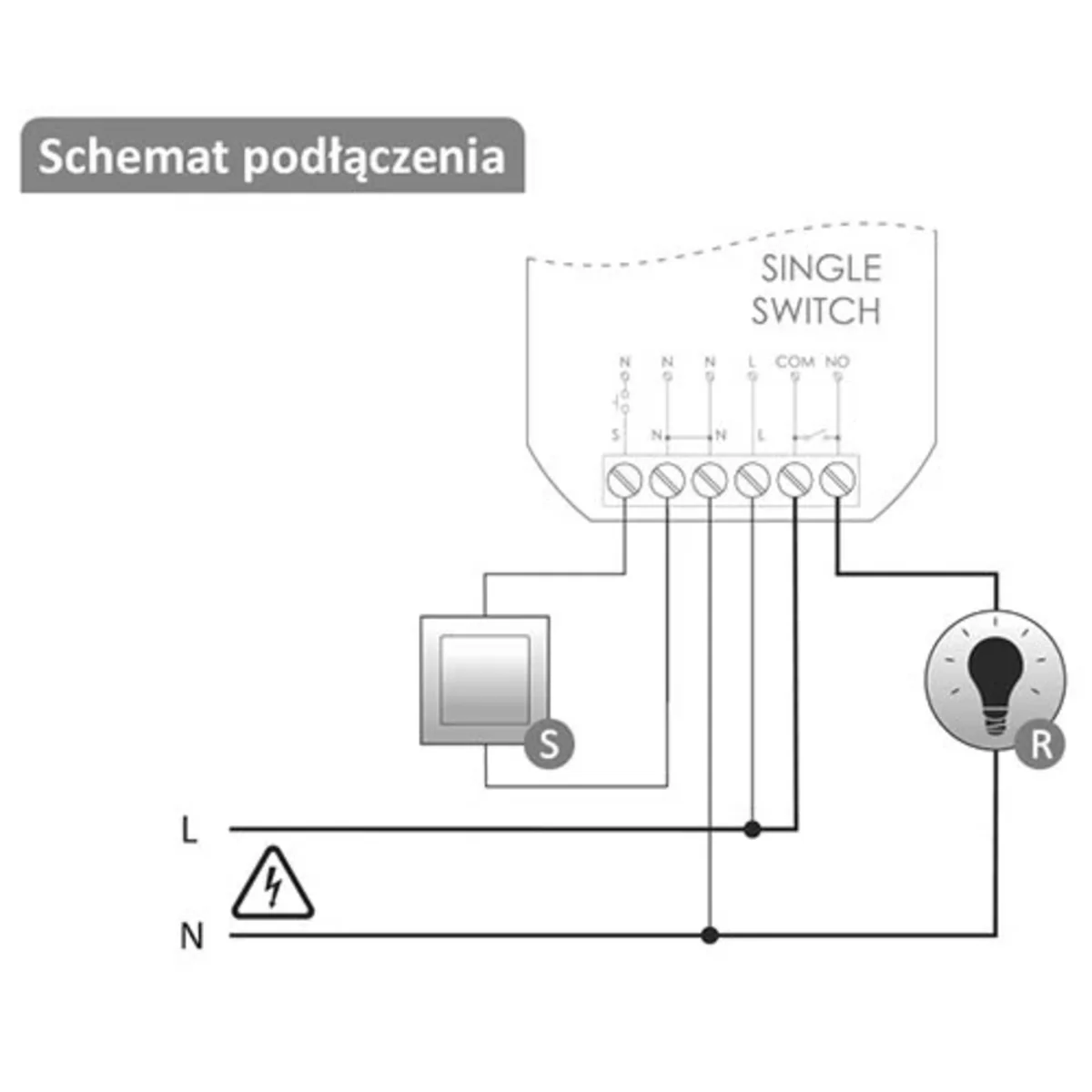

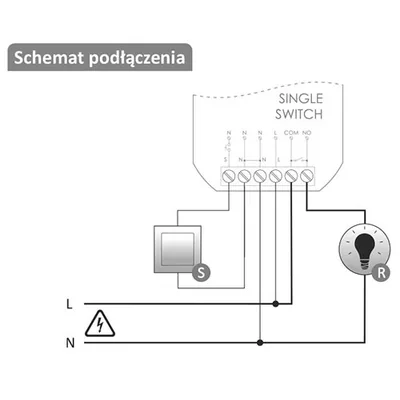

To be mounted in box with a diameter fi fi 60 mm under a socket or switch. Allows you to turn on or off a connected electrical device. With it, you can run most home appliances. Mounted under the light switch, it gives you the ability to control a single lighting circuit. The relay controlled by Wi-Fi works with classic and bell switches.

  • With a load capacity of up to 16 A [AC-1] 1 and with a separated NO output contact.
  • Control using a mobile application and time programmers.
  • Built-in clock with power backup and own copy of work program - thanks to this, it is possible to operate the relay without connecting to a Wi-Fi network;
  • < li>Supports REST API.
  • Thermal protection.



Parameters

< ul>
  • Control pulse current: less than 1 mA.
  • Radio frequency: 2.4 GHz.
  • Radio power (IEEE 802.11n):<13 dBm.
  • Receiver sensitivity: -98 dBm.
  • Power consumption:
    • standby: 1.2 W.
    • operation ( relay on): 2 W.
  • Operating temperature: 0÷45°C.
  • Dimensions: Ø54 (48× 43mm).
  • Technical data

    • Maximum load current [A]
      16
    • Rated voltage [V]
      230
    • Level of security
      IP20
    • Height [mm]
      20
    • Relative humidity (no condensation) [%]
      < 90
    • PKWIU
      26.30.11.0
    • Tightening torque [Nm]
      0.4
    • Family
      FOX
    • Transmission
      WIFI
    • AC supply voltage [V]
      85÷265
    • Terminal type
      Threaded
