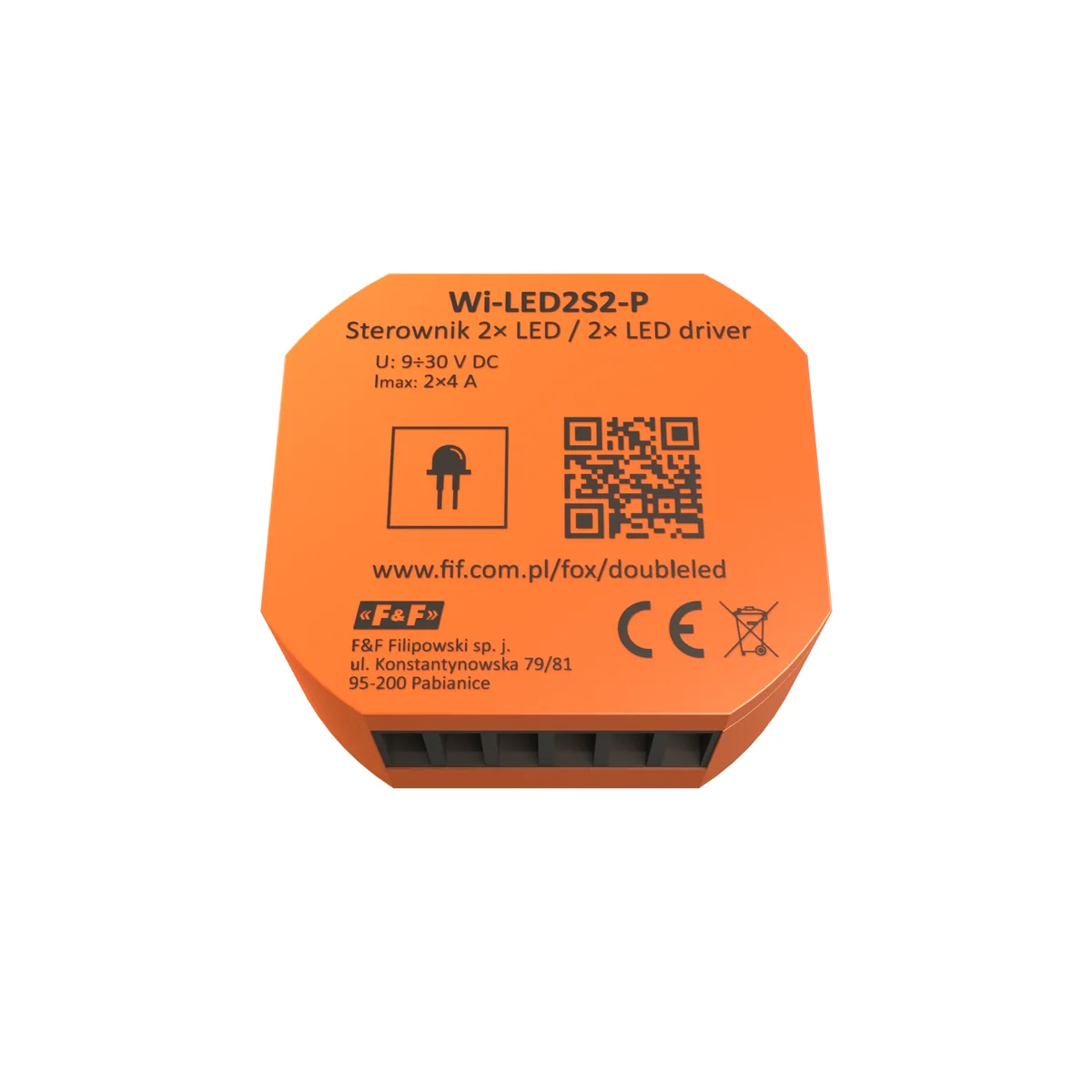

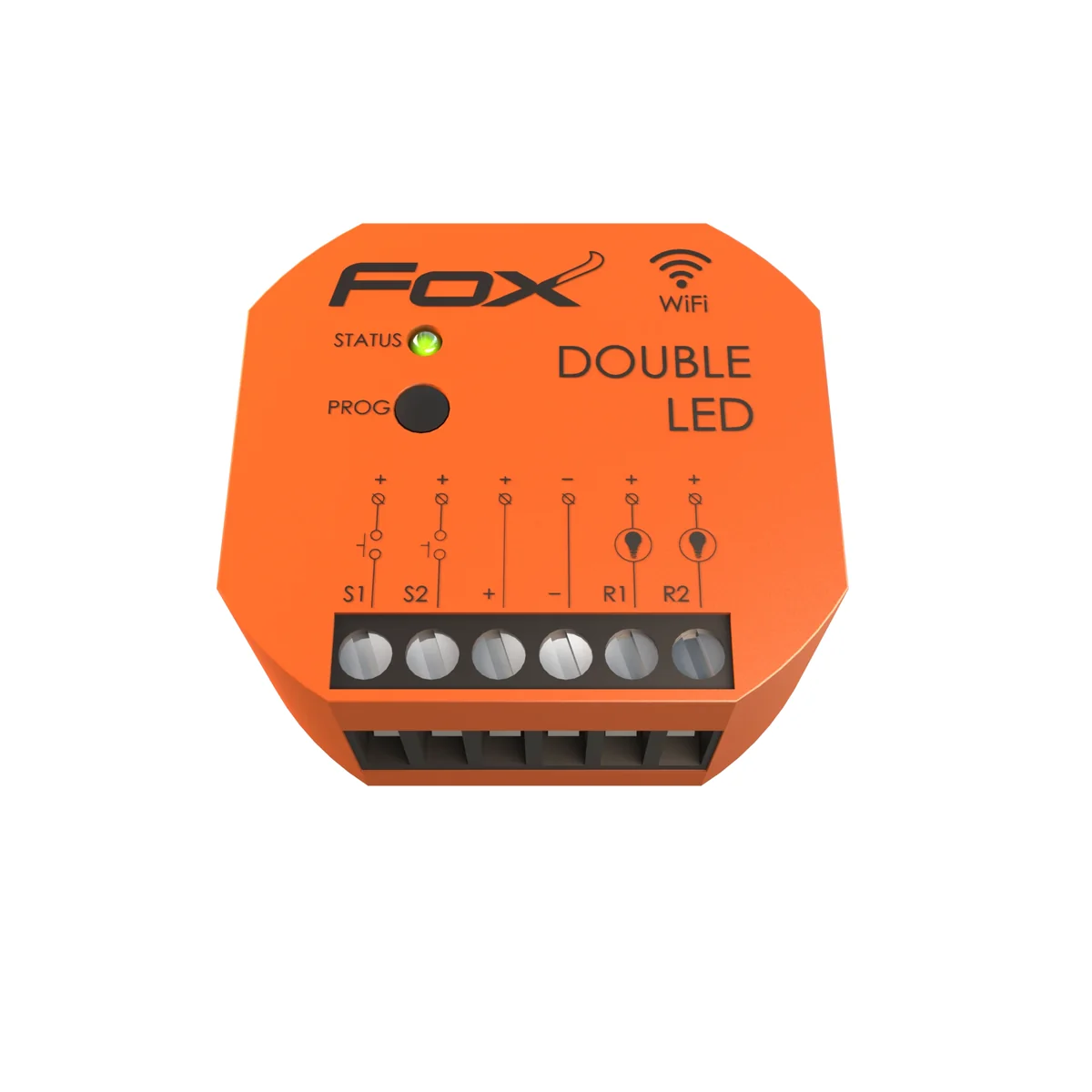

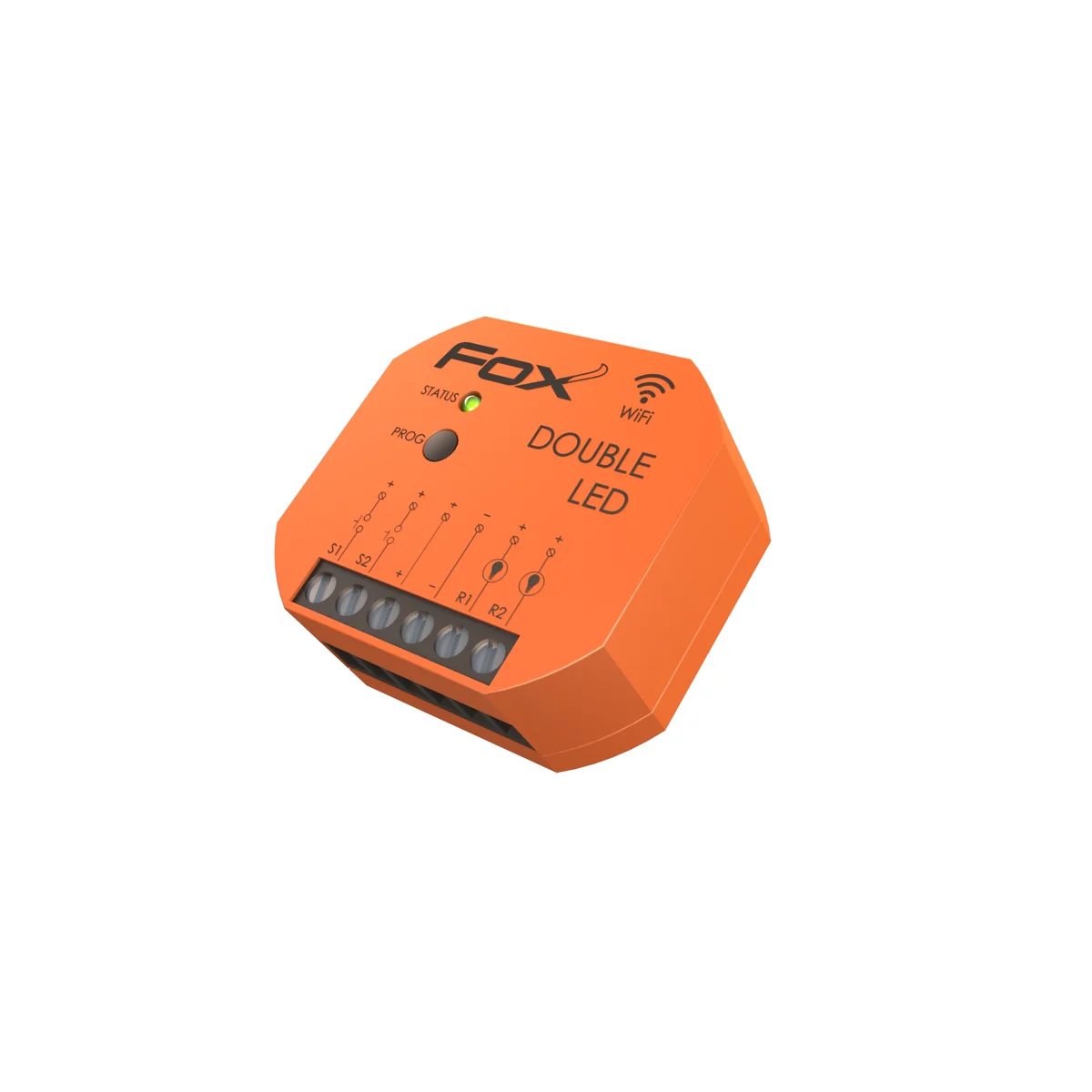

Wi-Fi controller for LED lighting, two-channel 12 V DOUBLE LED WI-LED2S2-P

local index:
APL032FIFQ
Catalog No:
WI-LED2S2-P
EAN code:
5902431674216
Manufacturer: F&F
Maximum load current [A]: 8
Tightening torque [Nm]: 0.4
Family: FOX
Price:
38,40 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 20 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Wi-Fi controller for LED lighting, two-channel 12 V DOUBLE LED from the manufacturer F&F. The product catalog number is WI-LED2S2-P. Designed for LED lighting powered by 9-30 V DC. Configuration of a smooth transition between the set brightness levels.

  • For LED light sources 12/24 V with a load capacity of up to 4 A per channel.
  • Control via mobile application and time programmers.
  • Built-in clock with power backup and own copy of work program - thanks to this it is possible to operate the relay without connecting to a Wi-Fi network;
  •  REST support API.
  • Thermal protection.
  • For installation in a 60 mm diameter junction box.



Parameters

  • Control pulse current: less than 3 mA.
  • Radio frequency: 2.4 GHz.
  • Radio power (IEEE 802.11n): less than 13 dBm.
  • Receiver sensitivity: -98 dBm.
  • Power consumption:
    • standby: 1.2W.
    • Running (relay on): 2.2W.
  • Operating Temperature: 0÷45°C.< /li>
  • Dimensions: Ø54 (48×43mm).

Technical data

  • Maximum load current [A]
    8
  • Family
    FOX
  • Transmission
    WIFI
  • Rated load current [A]
    4
  • Terminal type
    Threaded
  • Tightening torque [Nm]
    0.4
  • Level of security
    IP20
  • Height [mm]
    20
  • DC supply voltage [V]
    9÷30
  • PKWIU
    26.30.11.0

Other technical data

  • Suitable for dimmer
    Yes
  • Suitable for roller shutter switch
    No
  • Suitable for venetian-/roller shutter switch
    No
  • In housing
    Yes
  • Printed circuit board/module
    No
  • Switching mode
    No
  • Number of relays
    2
  • Material
    Plastic
  • Halogen free
    Yes
  • Colour
    Orange
  • Transparent
    No
  • Radio frequency
    50 MHz
  • Compatible with Google Assistant
    Yes
  • IFTTT support available
    No
  • Suitable for pulse button
    Yes
  • Suitable for venetian shutter switch
    No
  • Suitable for switch
    Yes
  • In tube base housing
    No
  • Current supply
    Other
  • With manual radio transmitter
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Type of fastening
    Mounting with screw
  • RAL-number (similar)
    2003
  • Suitable for degree of protection (IP)
    IP20
  • Compatible with Apple HomeKit
    Yes
  • Compatible with Amazon Alexa
    Yes
