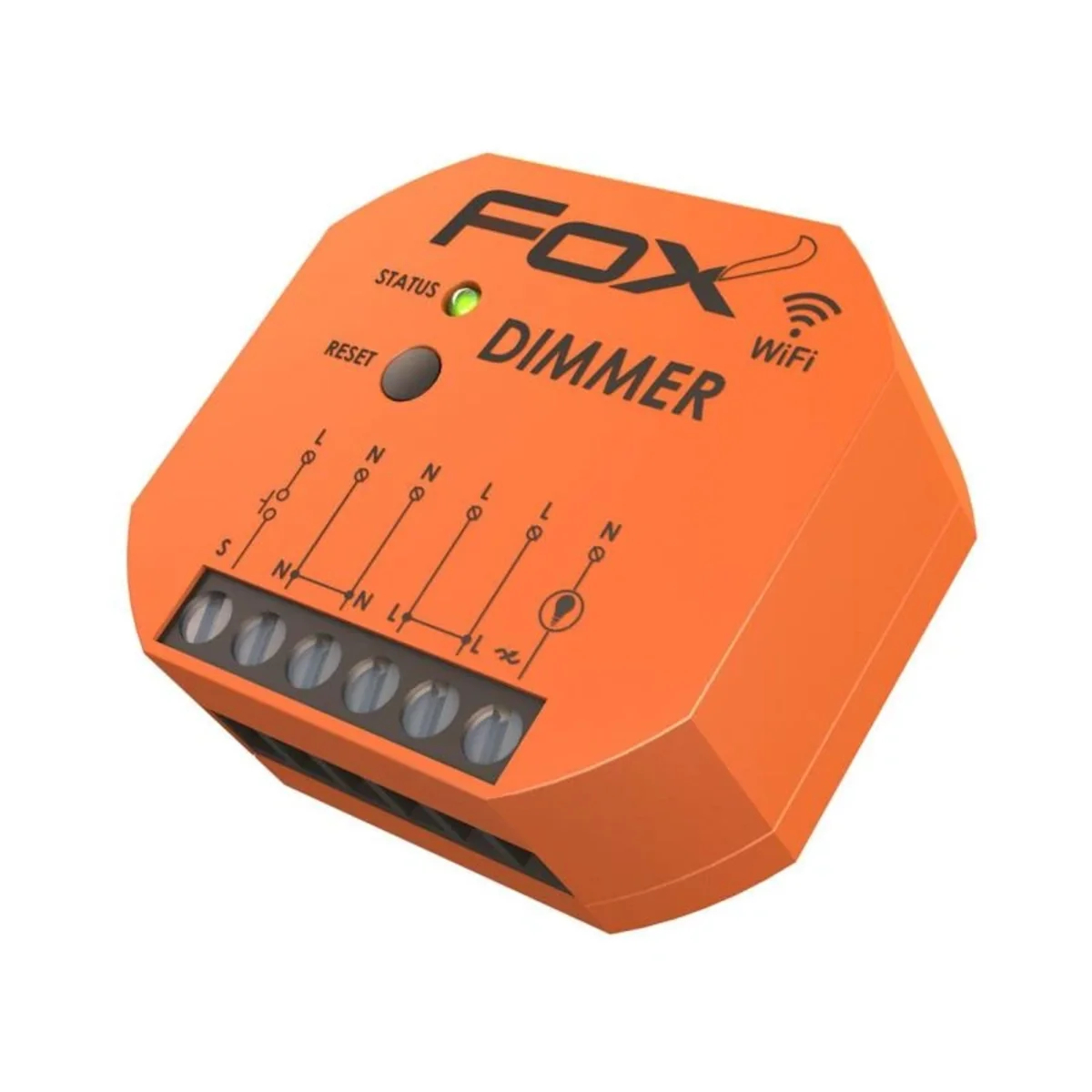

Wi-Fi dimmer for LED and regular lighting 230 V DIMMER WI-DIM1S1-P

Wi-Fi dimmer for LED and ordinary lighting 230 V DIMMER from the manufacturer F&F. The product catalog number is  Wi-DIM1S1-P.

Wifi dimmerdesigned to control the brightness of 230 V light sources up to 150 W

DIMMER is a universal wi-fi dimmer for 230 V light. It works with both classic and LED light sources. The unique feature of the WiFi DIMMER FOX dimmer is the ability to configure the minimum and maximum light levels. This allows you to get rid of the flickering effect of LED bulbs at low light intensity levels. Provides a smooth transition between preset brightness levels. The time of brightening and dimming is configurable.

• Brightness control of 230 V light sources, including dimmable LED lighting  with a power of up to 180 W;
• It is possible to connect a local momentary button to turn the light on and off (short press) and to control the brightness (long press);
• Mobile application and programmers time to set the desired brightness level;
• Proper operation also without connection to the Wi-Fi network is ensured by:  built-in clock with power backup and own copy of the work program;
• REST API support allows integration of the WiFi dimmer also with other home automation systems;
• Built-in thermal protection;
< li>Simple installation in an installation box with a diameter of 60 mm.

The condition for the correct operation of the Wi-Fi light dimmer is the connection of dimmable light sources. Make sure that there is clear information on the packaging or in the light source manual about the possibility of adjusting the brightness.

Parameters

< li>Control pulse current: less than 1 mA.
• Radio frequency: 2.4 GHz.
• Radio power (IEEE 802.11n): less than 13 dBm.
• Receiver sensitivity: -98 dBm.
• Power consumption:
  • standby: 1.2 W.
  • operation (relay on) : 2 W.
• Operating temperature: 0÷45°C
• Dimensions: Ø54 (48×43mm) .
