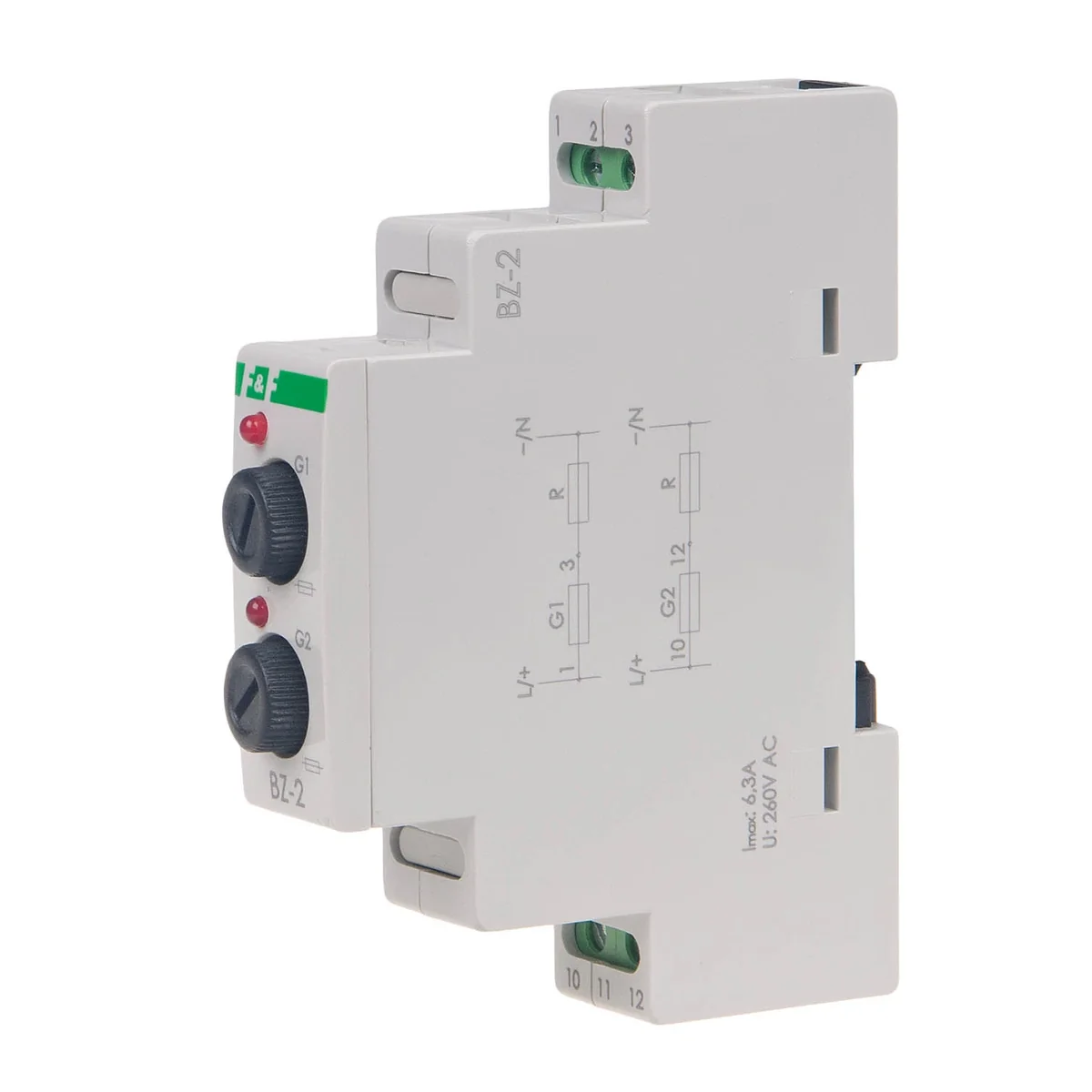

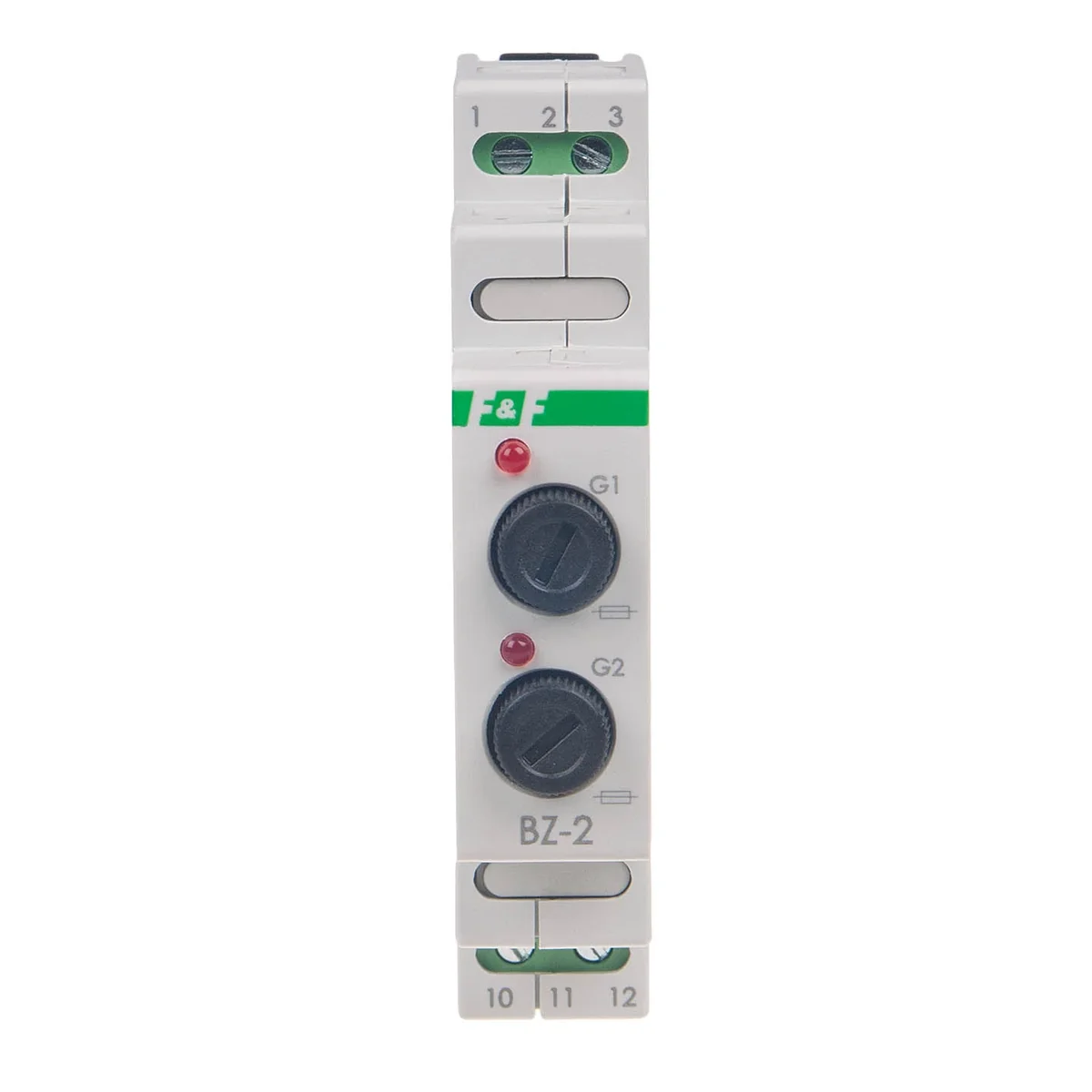

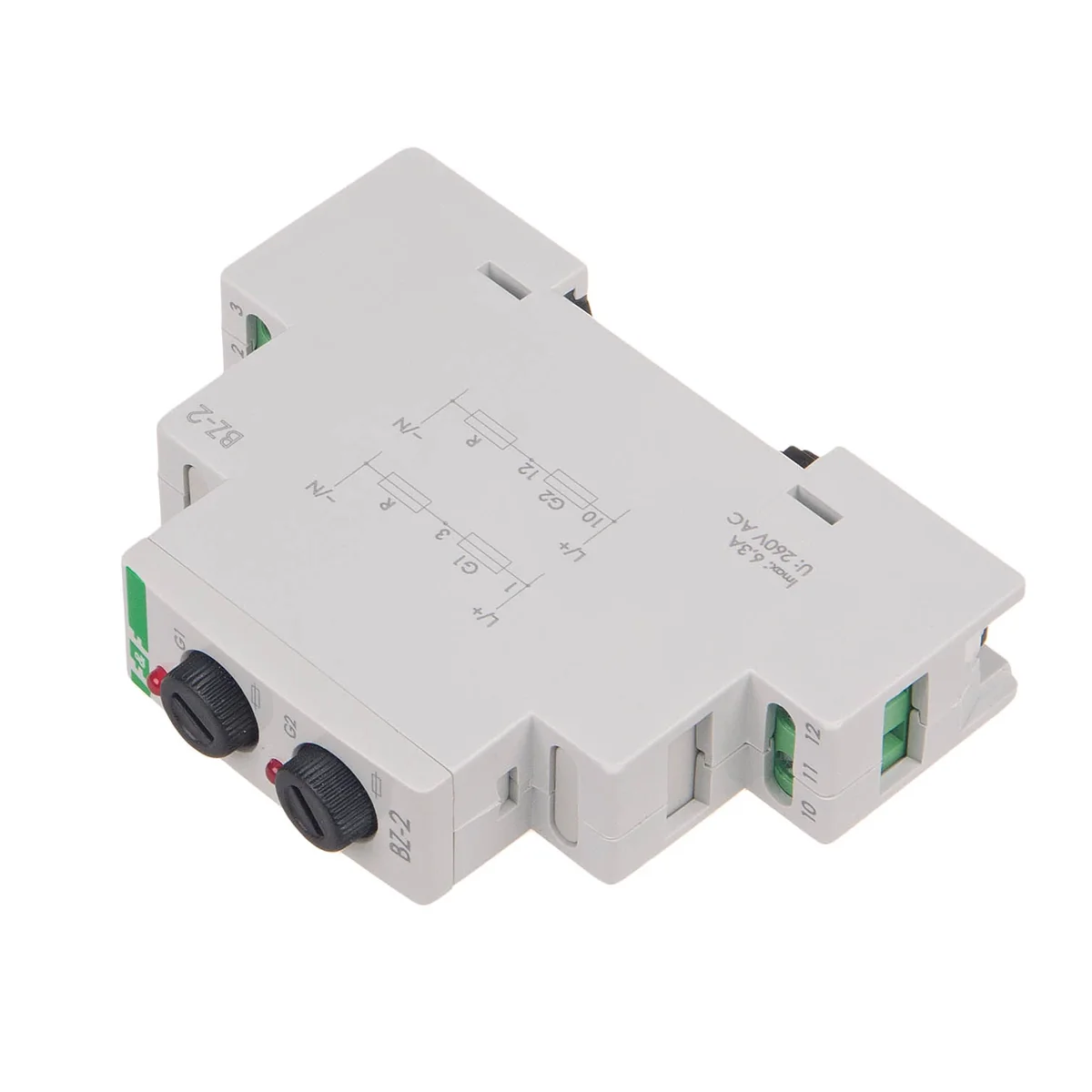

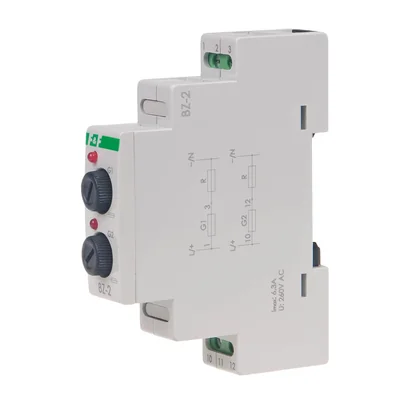

BZ-2 fuse module BZ-2

Name: BZ-2 fuse module
Brand: F&F
SKU: API015FIFQ
Price: 15.94 PLN
Availability: InStock

local index:

API015FIFQ

Catalog No:

BZ-2

EAN code:

5908312596240

Click on the photo to enlarge

Manufacturer: F&F

Fuse: Fusible link 5×20mm

Installation: On the TH-35 rail

Rated voltage [V]: 230

See full description

Price:

15,94 €

gross / pcs.

(including VAT 23%)

Accessible 22 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Intended use
The fuse module is used to protect electrical receivers against the effects of current increase above the rated current value of the protected receiver.
Operation
Fuse activation ( fuse-link burnout) is signaled by the red LED.

Technical data

Fuse

Fusible link 5×20mm
Rated voltage [V]

230
connection

2.5mm screw terminals
Dimensions

1 module (18mm)
Package width [mm]

20
PKWIU

27.12.23.0

Installation

On the TH-35 rail
Rated current [A]

6.3
Working temperature [°C]

-25-50
Package height [mm]

150
Package weight [kg]

0.1

Other technical data

Type of fuse insert

G-fuse 5x20 mm
Type of indication element for defect indication

LED
Voltage type for defect indication

AC/DC
Rated current In

6 A
Type of electrical connection 1

Screw connection
Mounting method

DIN rail (top hat rail) 35 mm
Operating temperature

-25 ... 50 °C

Type of fuse holder

Swivelling
Supply voltage for defect-indication

250 ... 250 V
Connectable conductor cross section fine-strand without cable end sleeve

2.5 ... 2.5 mm²
Rated voltage

250 V
Number of levels

2
Material insulation body

Duroplast
Colour

Grey
