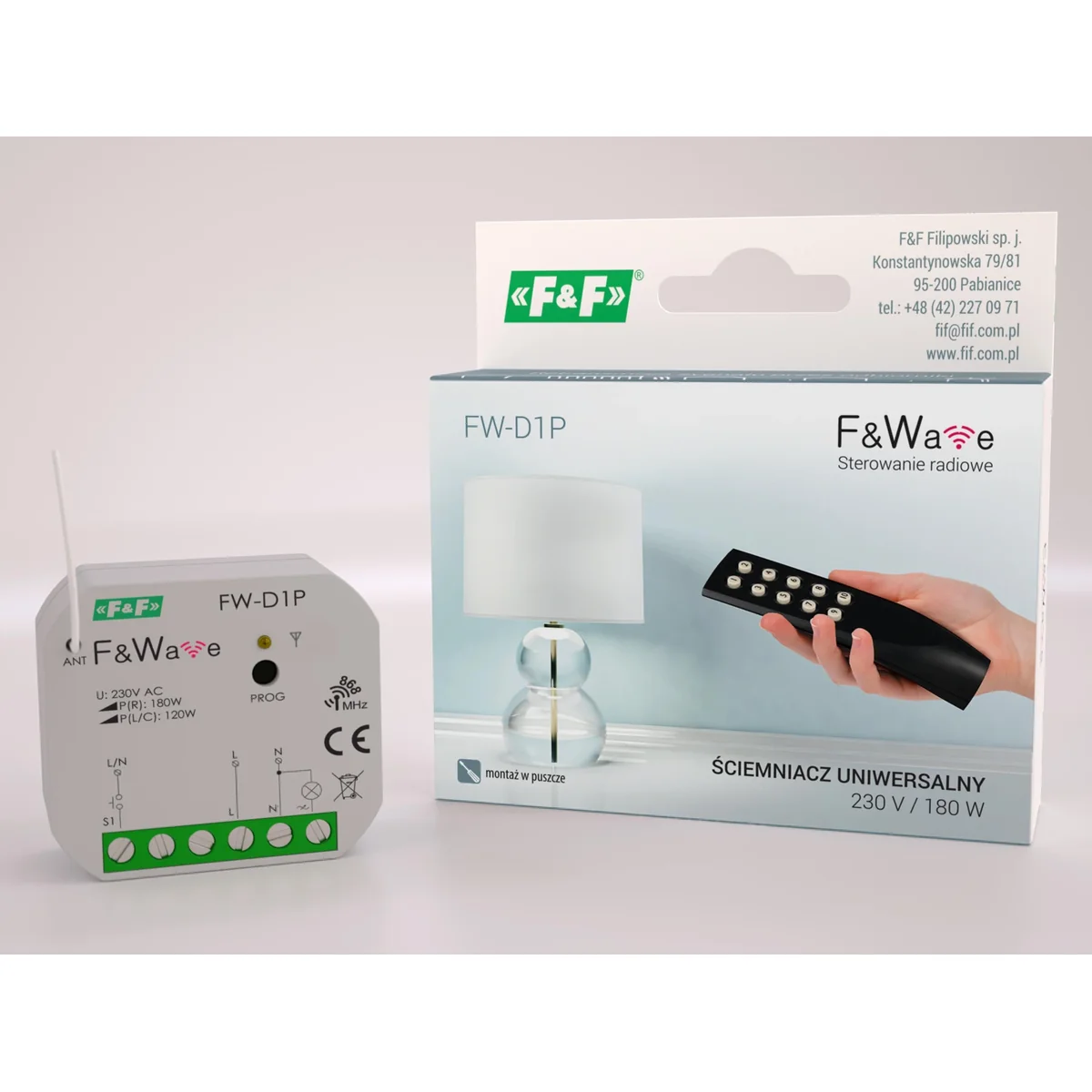

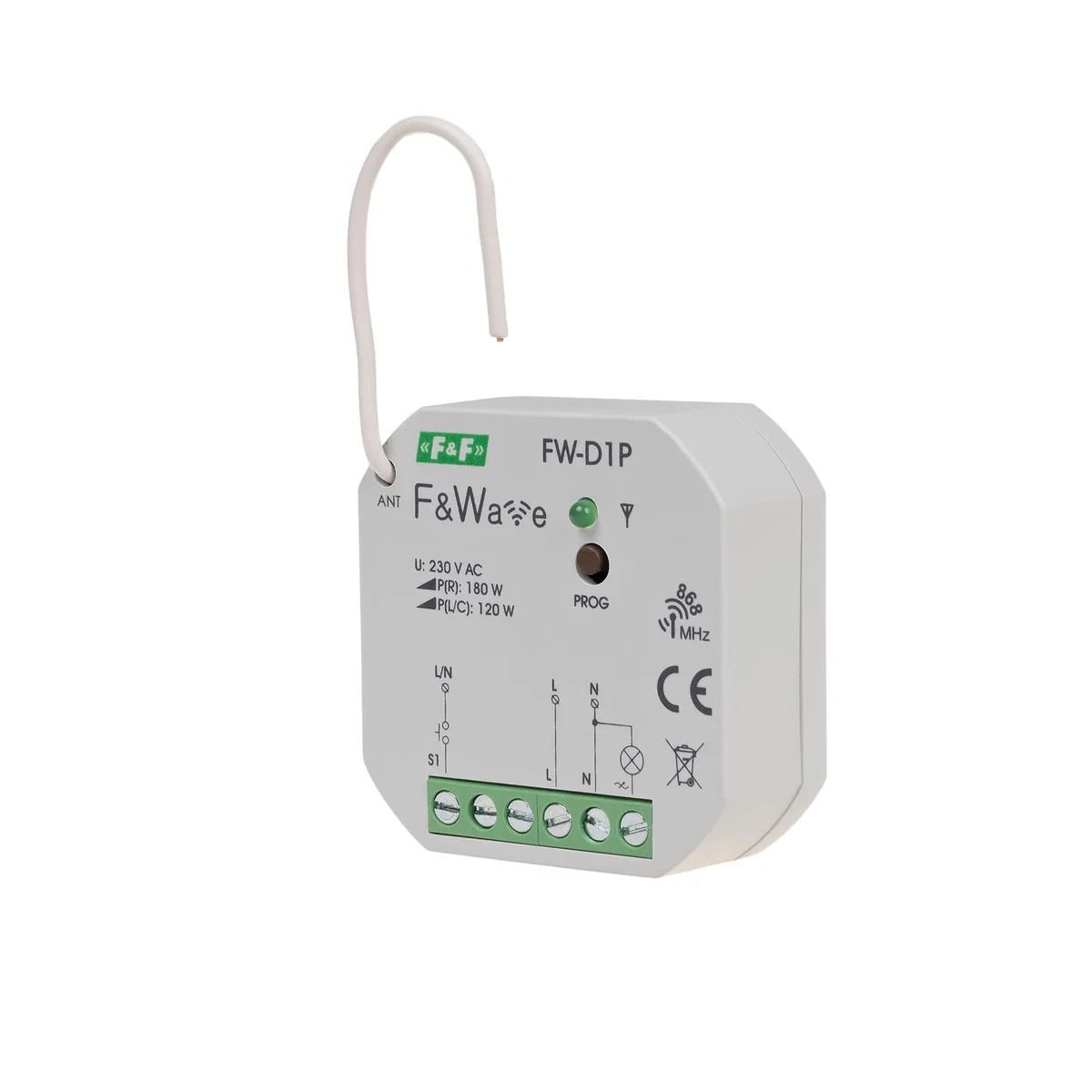

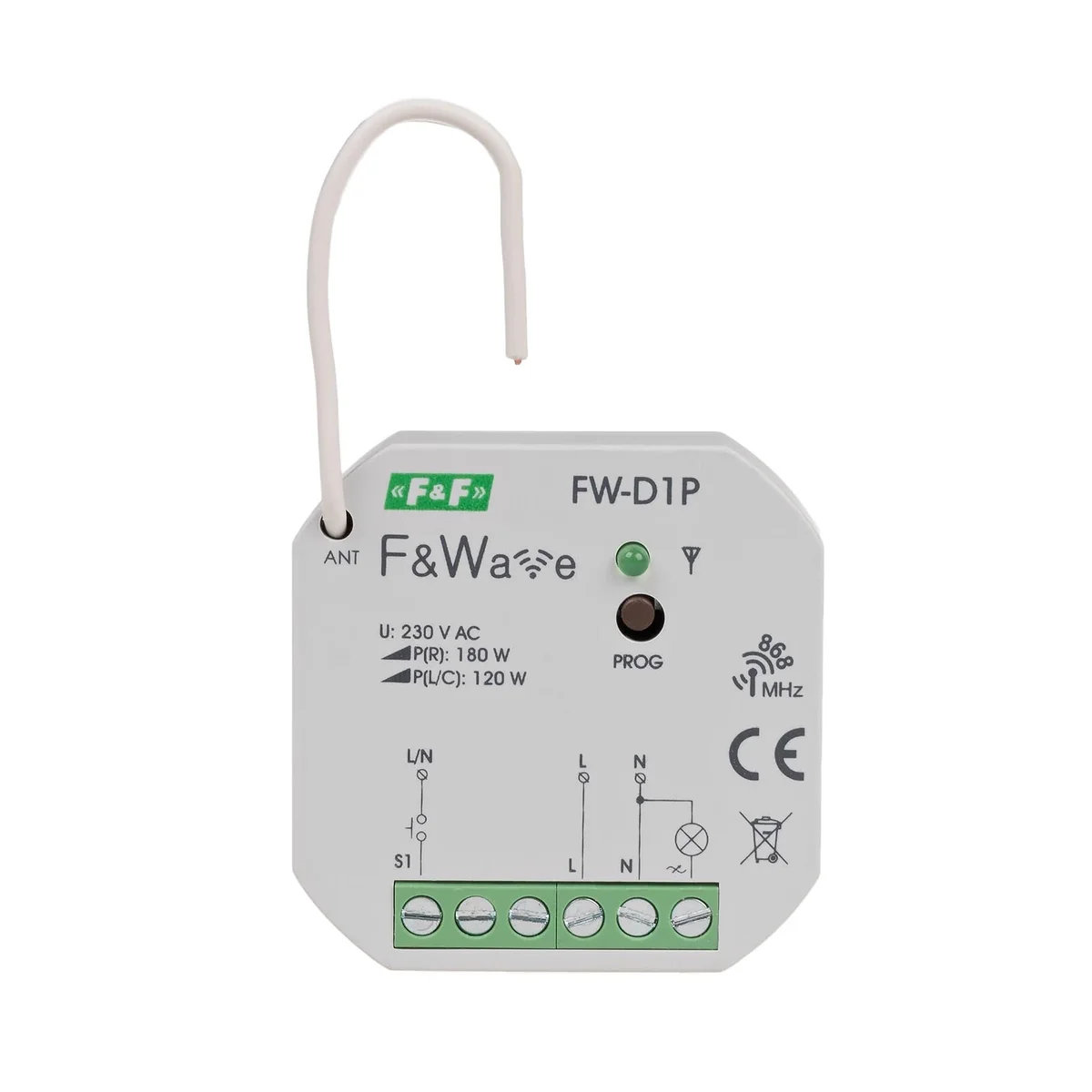

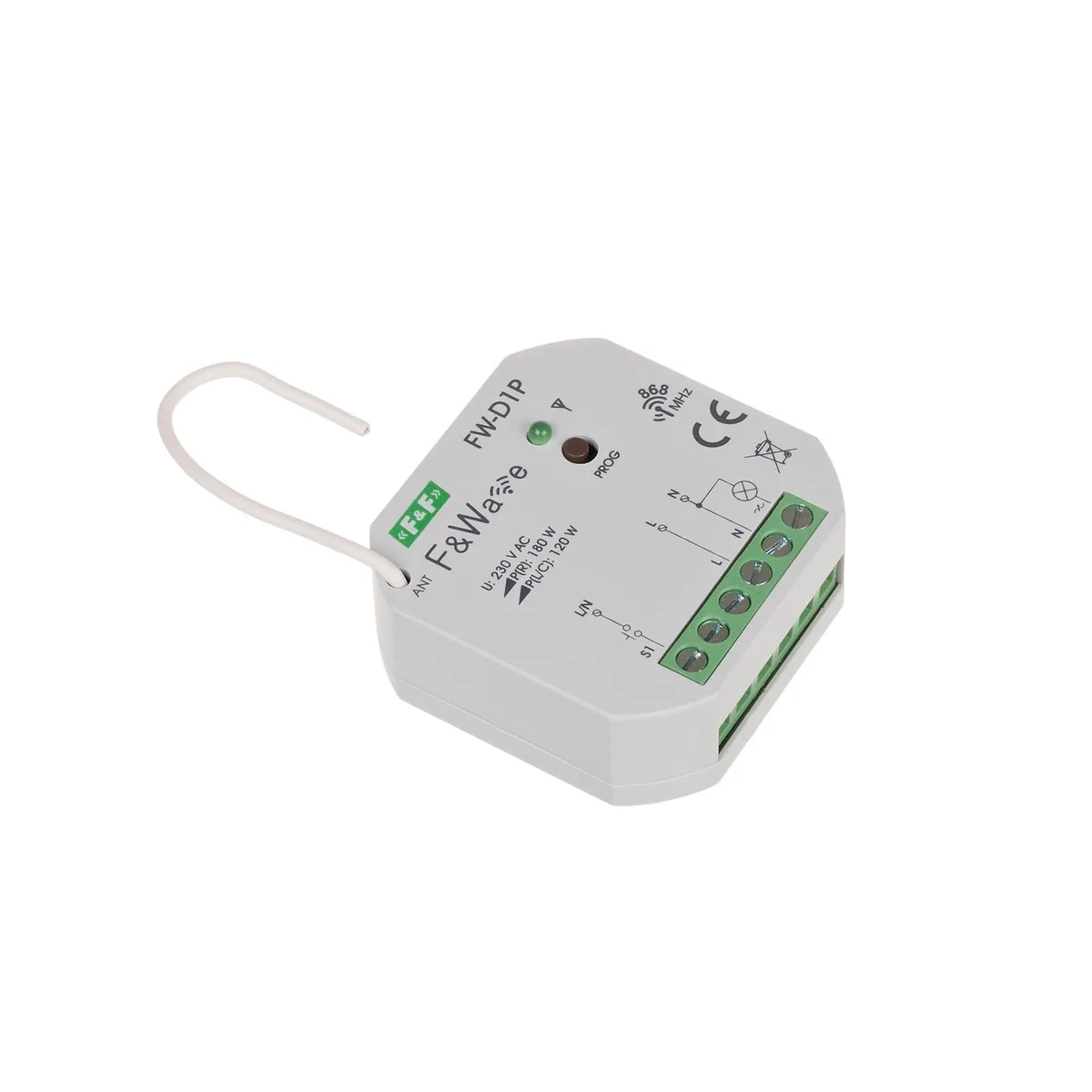

Universal radio dimmer 230V - PDT assembly 85÷265V AC/DC FW-D1P

local index:
API132FIFQ
Catalog No:
FW-D1P
EAN code:
5908312599296
Manufacturer: F&F
Power consumption in standby mode [W]: 0.25
Family: F&WAVE
Level of security: IP20
Price:
38,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description


Universal dimmer 230V AC. For flush-mounted box Ø60.


Module features



  • Universal dimmer 230 V AC (works with dimmable bulbs);


  • Compatibility with F&Wave remote control transmitters;


  • Possibility of control from up to 8 transmitters;


  • Local control - possibility of direct control of the dimmer using any button monostable (e.g. bell);


  • Soft start - smooth lighting on/off;
  • < br/>

  • Small form factor;

  • < br/> Screw terminals for easy mounting in a Ø60 flush-mounted box;


  • Retransmission of commands from the transmitter - the ability to increase the remote control range;


  • Low power consumption - low operating cost;


  • Built-in electronic thermal protection to prevent damage when the dimmer is overloaded.


Specifications
















operating mode










< br/>

< /tr>
























power supply

85÷265 V AC

control input

85÷265 V AC; <1mA

power consumption



0.40W

standby

0.25W
output load
180 W (cos ϕ=1)

radio frequency

868 MHz

operating temperature

-25÷65°C

connector

2.5 mm² screw terminals

tightening torque (max)

0.4Nm

assembly< /td>

Ø60 flush-mounted box
< br/> dimensions
48×48×20 mm

degree of protection

IP20





Operating range

In open space without interfering factors, the range of radio-controlled devices oscillates within 100 m.  In built-up conditions and in the presence of sources of interference (power lines, transmitters, etc.) the actual range may be less. The range can be improved by direct retransmission of modules within each other's range.

Technical data

  • Power consumption in standby mode [W]
    0.25
  • Level of security
    IP20
  • Power consumption in operating mode [W]
    0.4
  • Family
    F&WAVE
  • Working temperature [°C]
    25 - +65
  • PKWIU
    27.12.24.0

Other technical data

  • Suitable for dimmer
    No
  • Suitable for roller shutter switch
    No
  • Suitable for venetian-/roller shutter switch
    No
  • In housing
    Yes
  • Printed circuit board/module
    No
  • Push button mode
    Yes
  • With manual radio transmitter
    Yes
  • With radio controlled push button
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    Grey
  • Transparent
    No
  • Radio frequency
    868 MHz
  • Suitable for pulse button
    Yes
  • Suitable for venetian shutter switch
    No
  • Suitable for switch
    No
  • In tube base housing
    No
  • Current supply
    230 V AC
  • Switching mode
    Yes
  • With radio coding device
    Yes
  • Number of relays
    1
  • Material
    Plastic
  • Halogen free
    Yes
  • Type of fastening
    Mounting with screw
  • RAL-number (similar)
    9018
  • Suitable for degree of protection (IP)
    IP20
  • Rolling code system
    Yes

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Width (m) 0,026
Length (m) 0,095
Depth (m) 0,070
