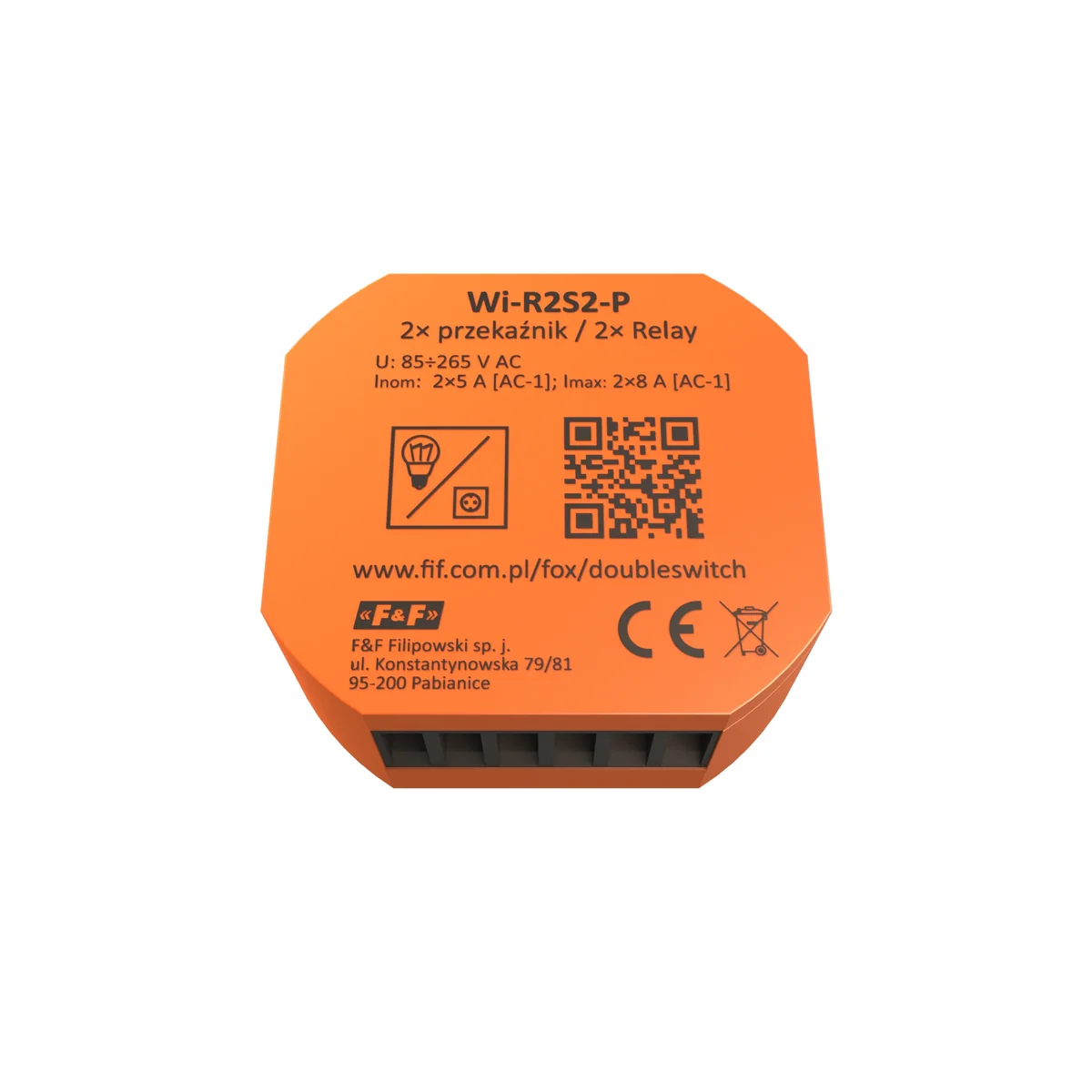

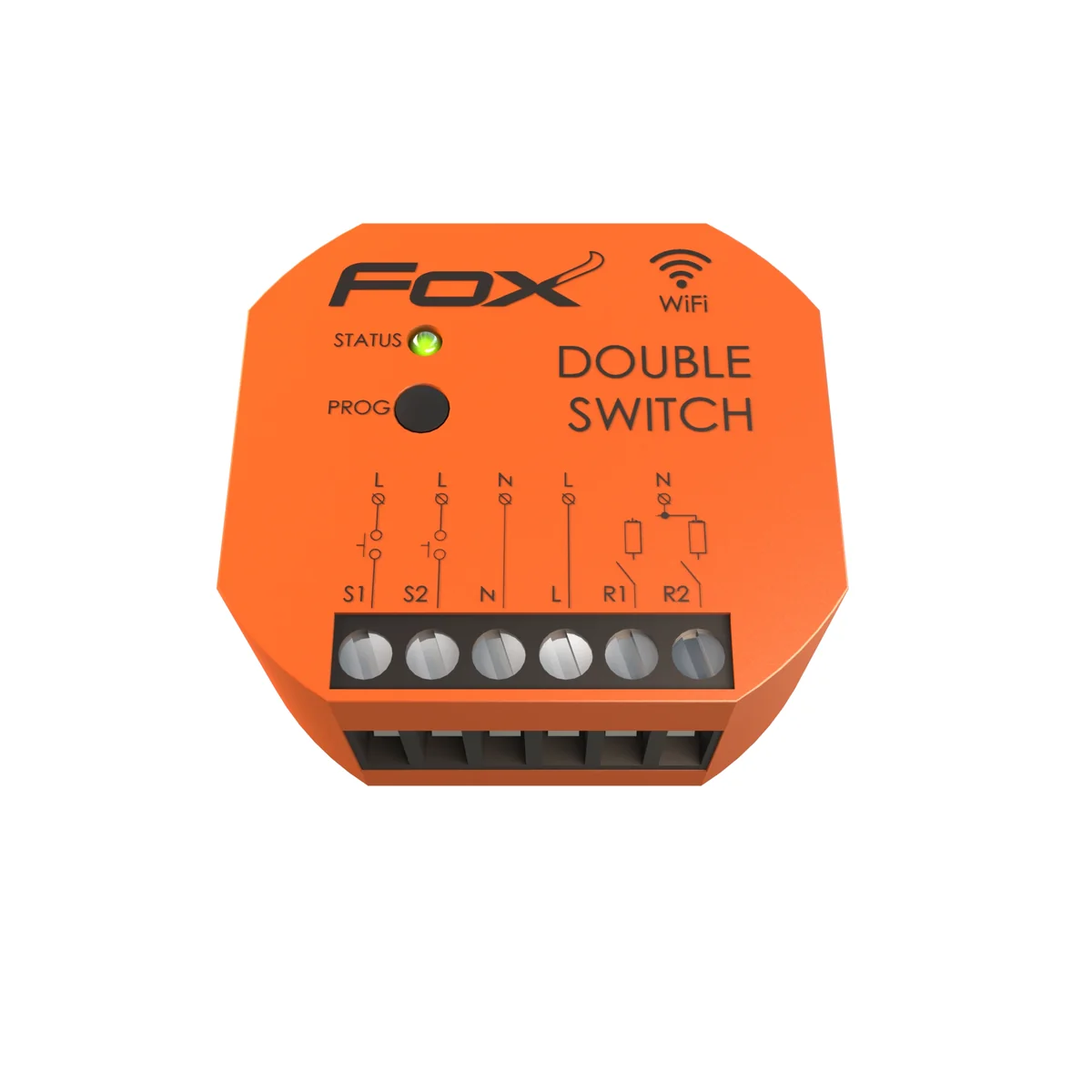

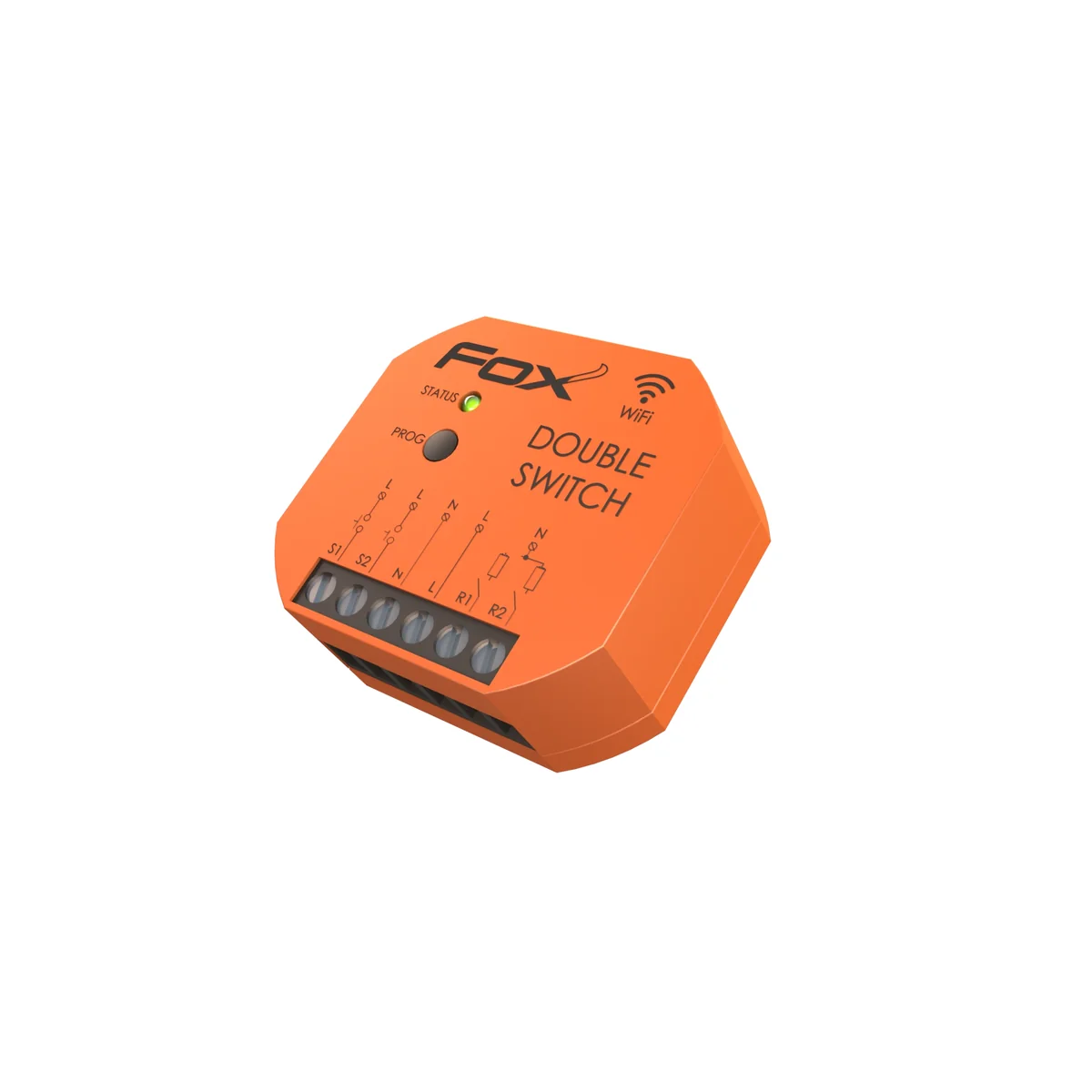

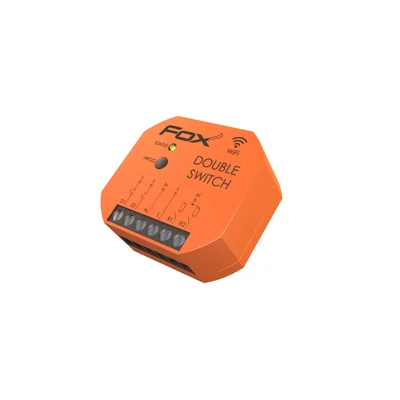

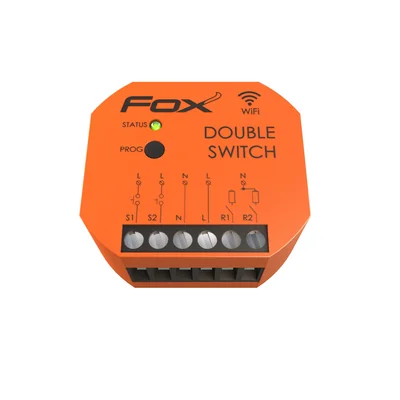

Two-channel Wi-Fi relay 230 V DOUBLE SWITCH WI-R2S2-P

local index:
APL031FIFQ
Catalog No:
WI-R2S2-P
EAN code:
5902431674179
Manufacturer: F&F
Maximum load current [A]: 8
Tightening torque [Nm]: 0.4
Rated voltage [V]: 230
Price:
43,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 23 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Double-channel Wi-Fi relay 230 V DOUBLE SWITCH from the manufacturer F&F. The product catalog number is WI-R2S2-P.

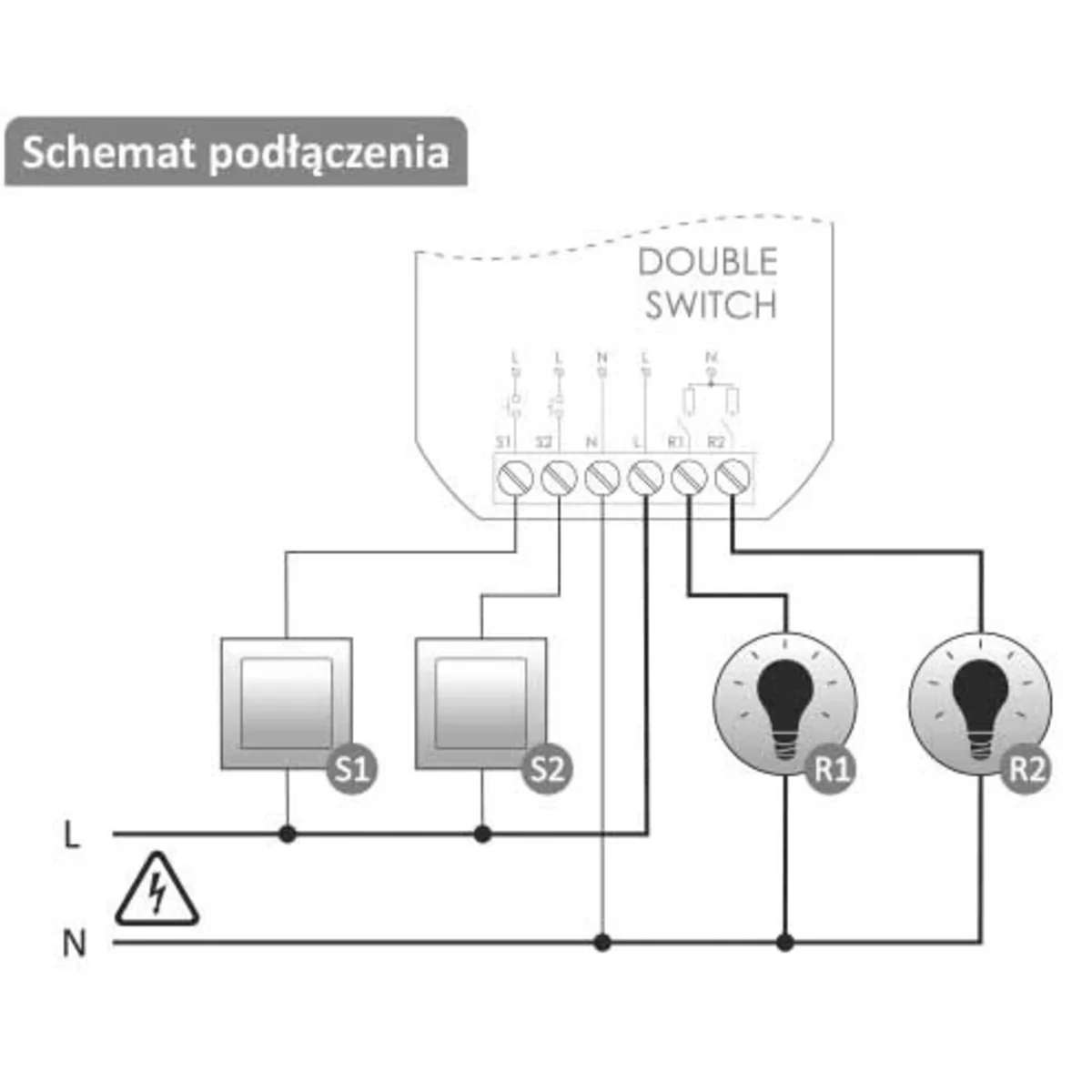

To be mounted in a box with a diameter of 60 mm under a socket or switch. It allows you to turn on and monitor the connected electrical device via the WiFi network - parameters such as voltage, current, power, energy consumption are measured. With it, you can run most home appliances. Mounted under the light switch, it gives you the ability to control two lighting circuits. The relay controlled by Wi-Fi works with classic and bell switches.

  • Control via mobile application and timers.
  • Built-in clock with power backup and  ;own copy of work program - thanks to this, it is possible to operate the relay without connecting to the Wi-Fi network;
  • REST API support.
  • Thermal protection.



Parameters

  • With a load capacity of 5 (8*) A per channel.
  • Current control pulse: less than 1 mA.
  • Maximum load current (AC-1) - rated current: 2 x 5 A.
  • Maximum load current (AC-1) - maximum current (momentary): 2 x 8A.
  • Radio frequency: 2.4 GHz.
  • Radio power (IEEE 802.11n): below 13 dBm.
  • Receiver sensitivity: -98 dBm.
  • Power consumption:
    • standby: 1.2 W.
    • operation (relay on) : 2.2 W.
  • Operating temperature: 0÷45°C.
  • Dimensions: Ø54 (48×43 mm).

Technical data

  • Maximum load current [A]
    8
  • Rated voltage [V]
    230
  • Level of security
    IP20
  • Height [mm]
    20
  • AC supply voltage [V]
    85÷265
  • Terminal type
    Threaded
  • Tightening torque [Nm]
    0.4
  • Family
    FOX
  • Transmission
    WIFI
  • Rated load current [A]
    5
  • Relative humidity (no condensation) [%]
    < 90
  • PKWIU
    26.30.11.0

Other technical data

  • Suitable for dimmer
    No
  • Suitable for roller shutter switch
    No
  • Suitable for venetian-/roller shutter switch
    No
  • In housing
    No
  • Printed circuit board/module
    No
  • Switching mode
    No
  • Number of relays
    2
  • Material
    Plastic
  • Halogen free
    Yes
  • Colour
    Orange
  • Transparent
    No
  • Radio frequency
    50 MHz
  • Compatible with Google Assistant
    Yes
  • IFTTT support available
    No
  • Suitable for pulse button
    Yes
  • Suitable for venetian shutter switch
    No
  • Suitable for switch
    Yes
  • In tube base housing
    No
  • Current supply
    230 V AC
  • With manual radio transmitter
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Type of fastening
    Mounting with screw
  • RAL-number (similar)
    2003
  • Suitable for degree of protection (IP)
    IP20
  • Compatible with Apple HomeKit
    Yes
  • Compatible with Amazon Alexa
    Yes
