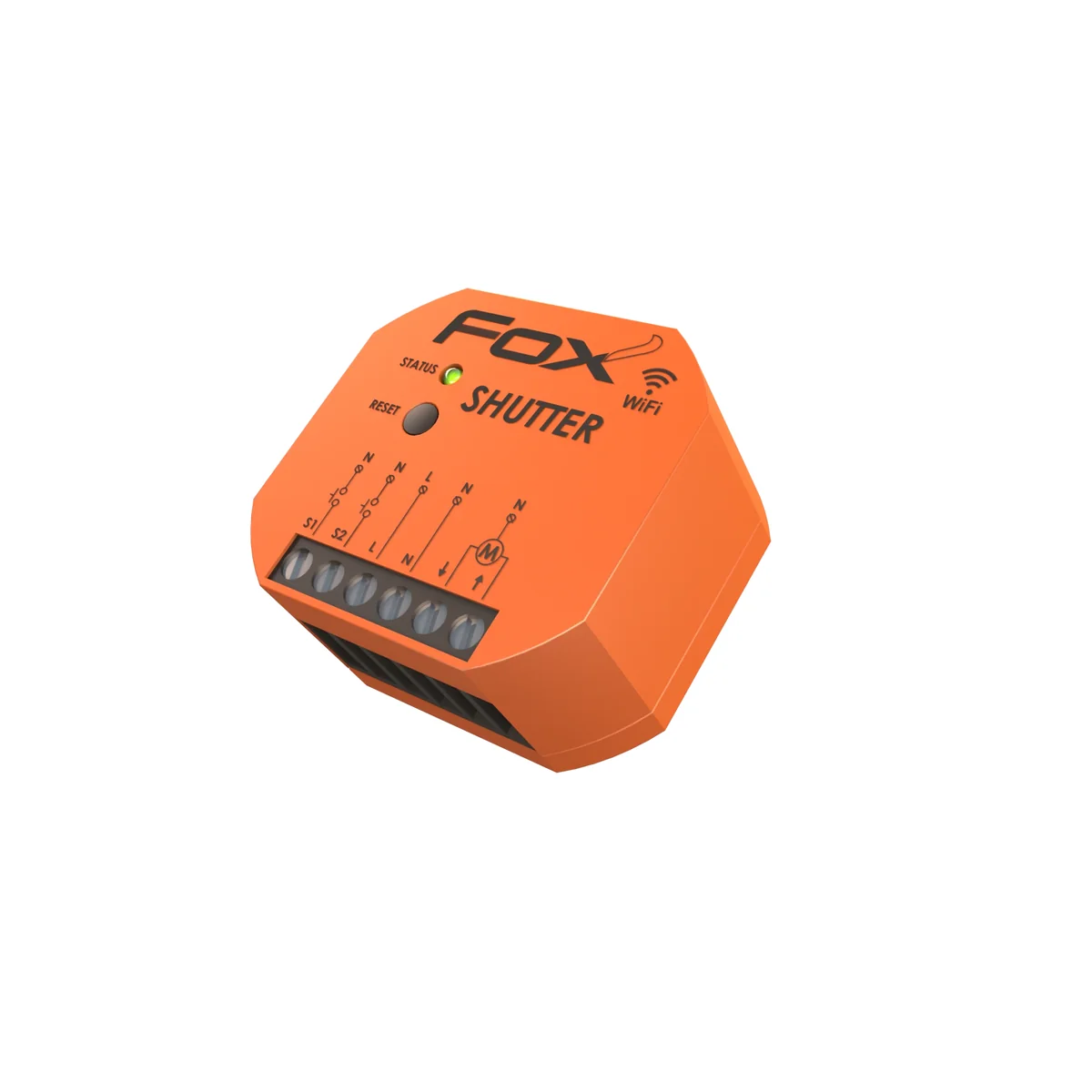

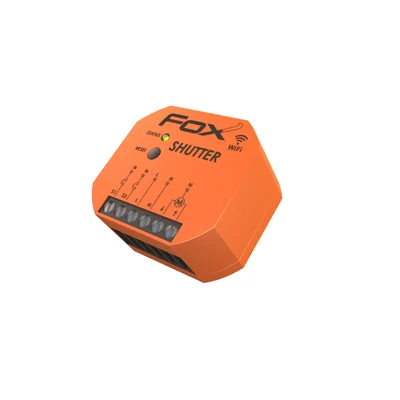

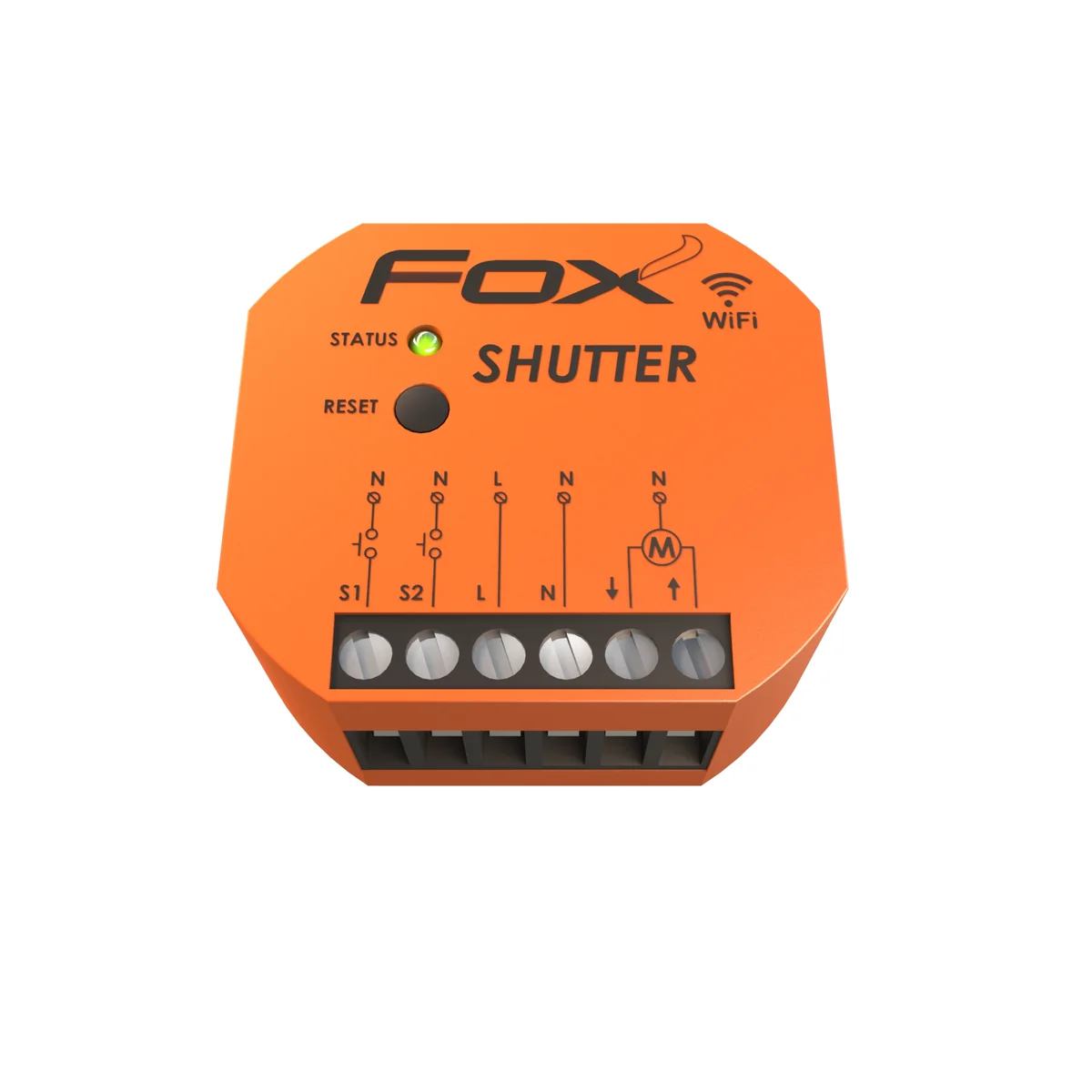

Wi-Fi 230 V SHUTTER roller shutter controller WI-STR1S2-P

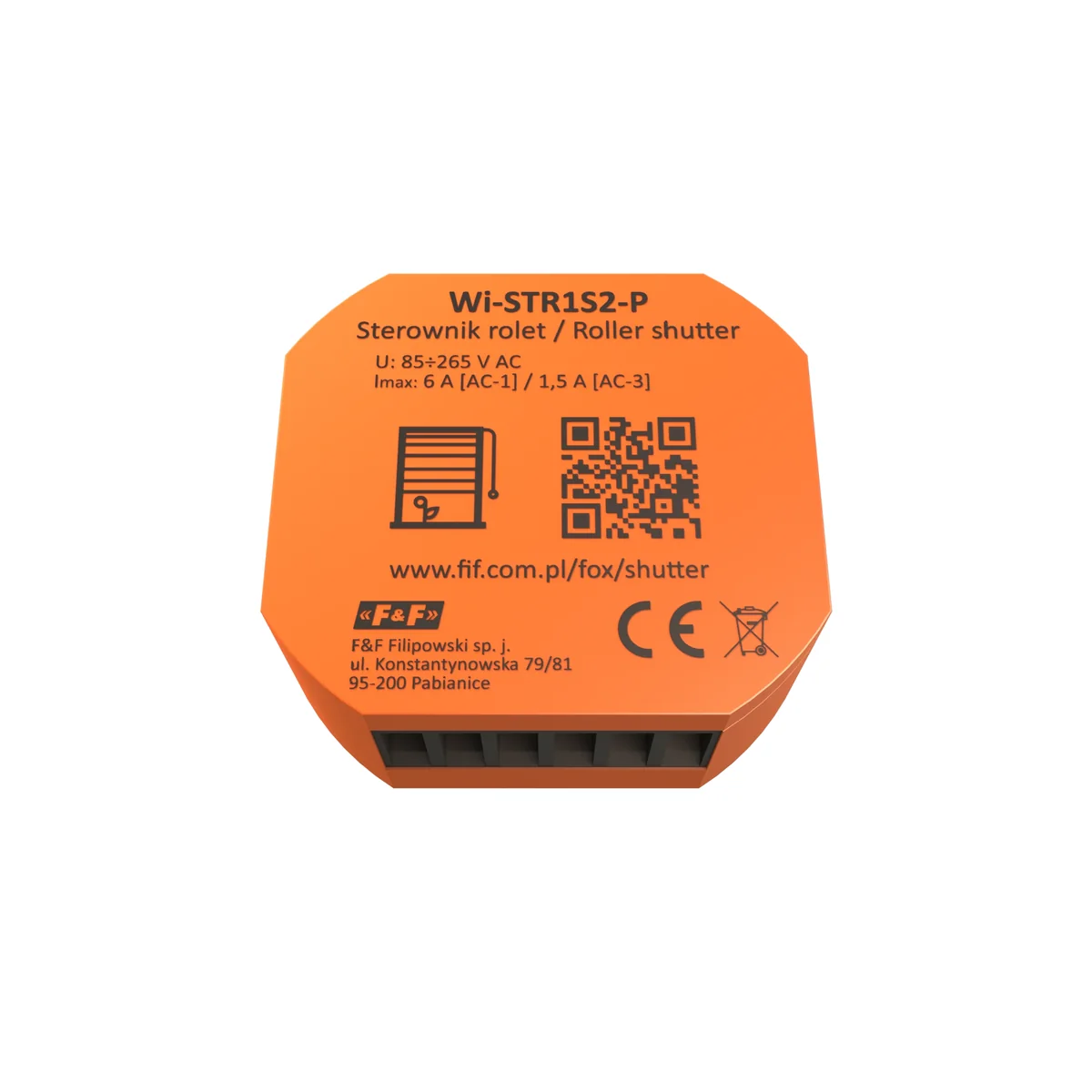

Wi-Fi 230 V SHUTTER roller shutter controller from the manufacturer F&F. The product part number is WI-STR1S2-P. With the possibility of smooth control of the slats. Thanks to the active power measurement function, it is not necessary to manually calibrate the times in which the blind moves. The FOX application allows you to implement  “quick steps”in” i.e. raise – down, and setting the slat angle to -90ᣞ➱ 0ᣞ➱ 90ᣞ. In the case of blinds, after lowering or lifting them, the controller sets the slats to the angle in which the slats were a moment earlier.

• Control of a single roller shutter with a 230 V AC motor with a power of up to 320 W.< /li>

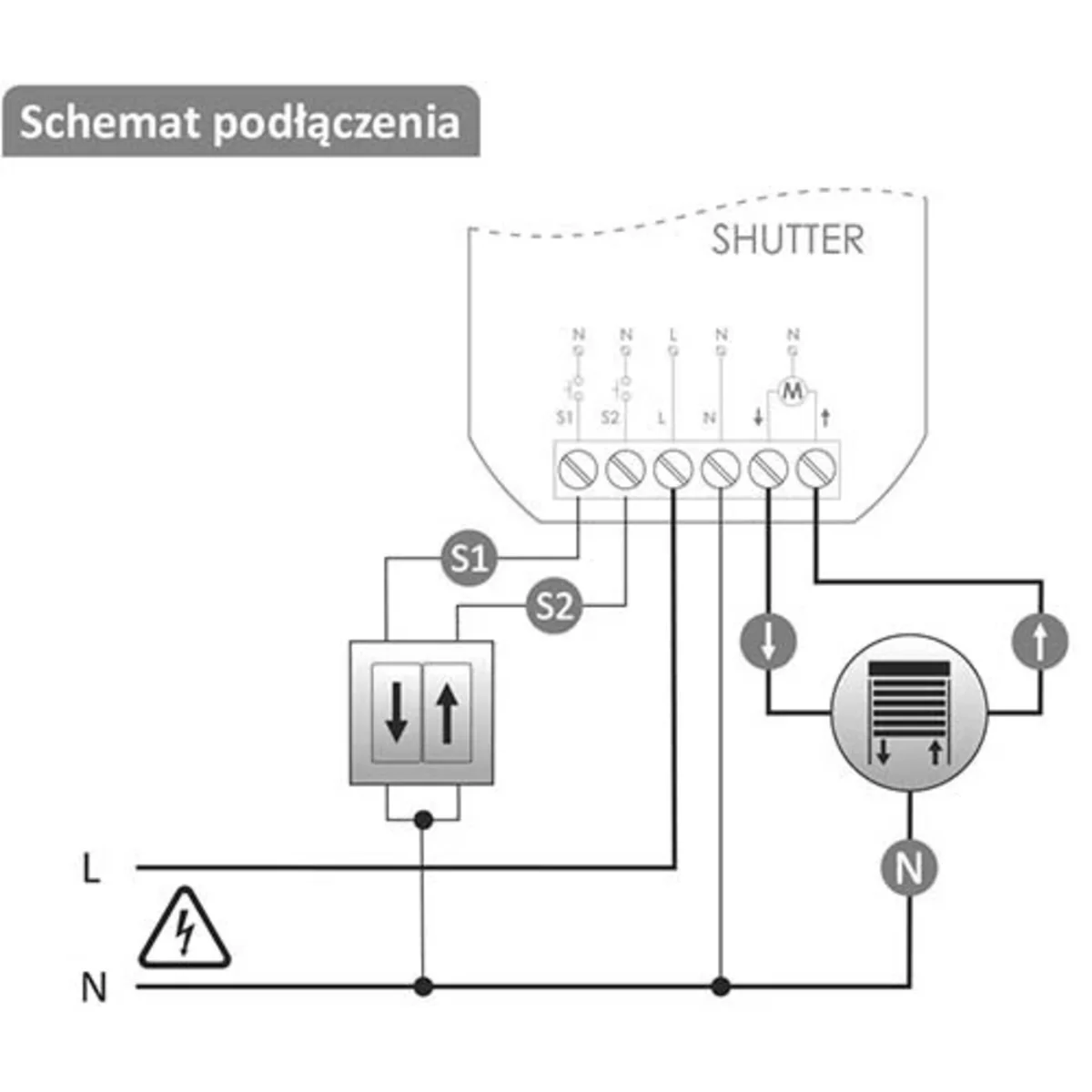

• Possibility of local connection of one or two buttons for direct control of the roller shutter's operation.
• Control of the opening level of the roller shutter and  control of the degree of slat inclination.
< li>Control via a mobile application and timers.
• Built-in clock with power backup and own copy of work program - thanks to this, it is possible to operate the relay without connecting to a Wi-Fi network.
• Supports REST API.
• Thermal protection.
• For mounting in a junction box diameter fi 60 mm.

Parameters

• Control pulse current: less than 1 mA.
• Radio frequency: 2, 4 GHz.
• Radio power (IEEE 802.11n): less than 13 dBm.
• Maximum load current (AC-1) - rated current: AC motor - max. 320 W.
• Maximum load current (AC-1) - maximum current (instantaneous): AC-1: 6 A; AC-3: 1.5A.
• Operating temperature: 0÷45°C.
• Dimensions: Ø54 (48×43mm).
