Manufacturer: F&F
Maximum load current [A]: 4
Tightening torque [Nm]: 0.4
Rated voltage [V]: 12/24
Price:
34,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 21 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

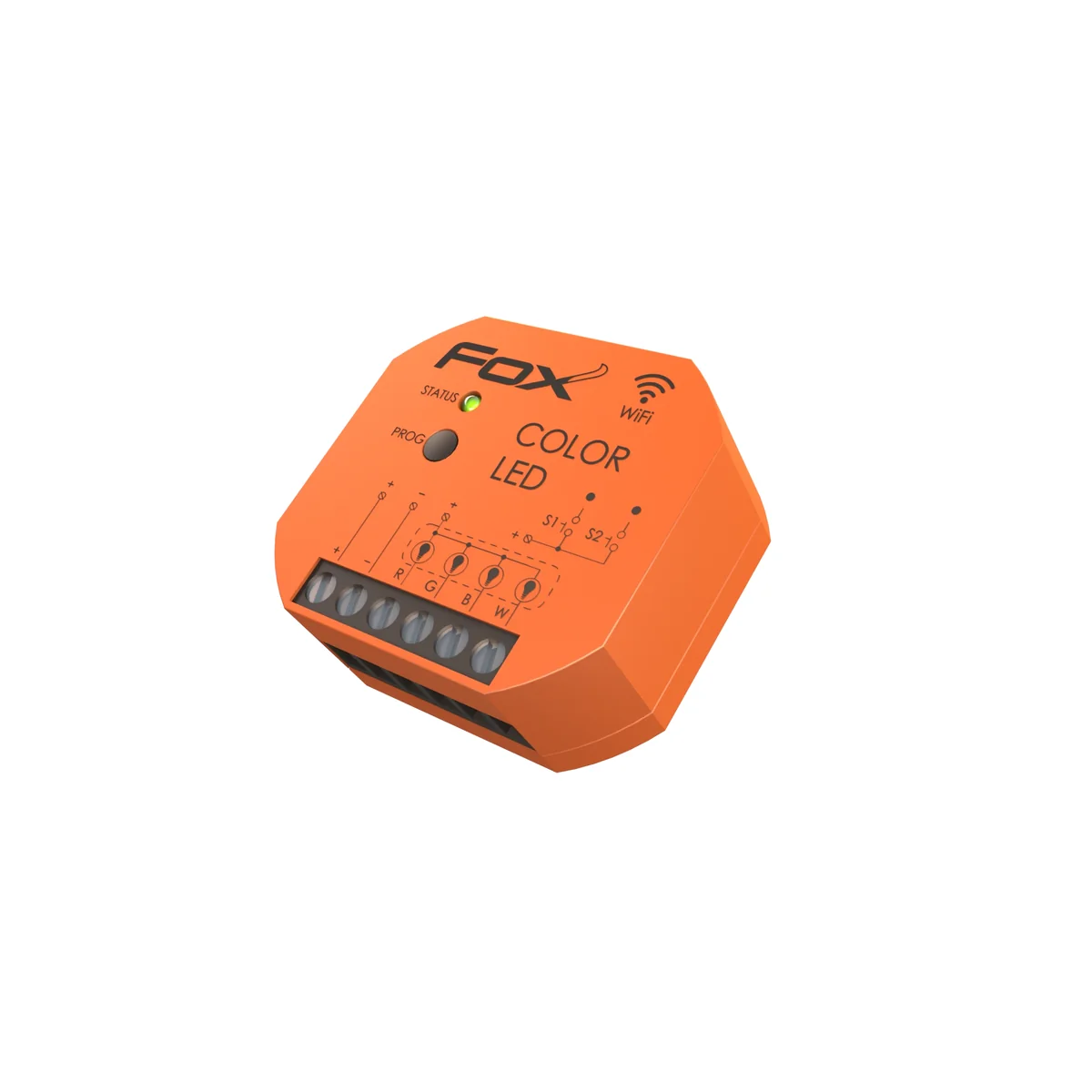

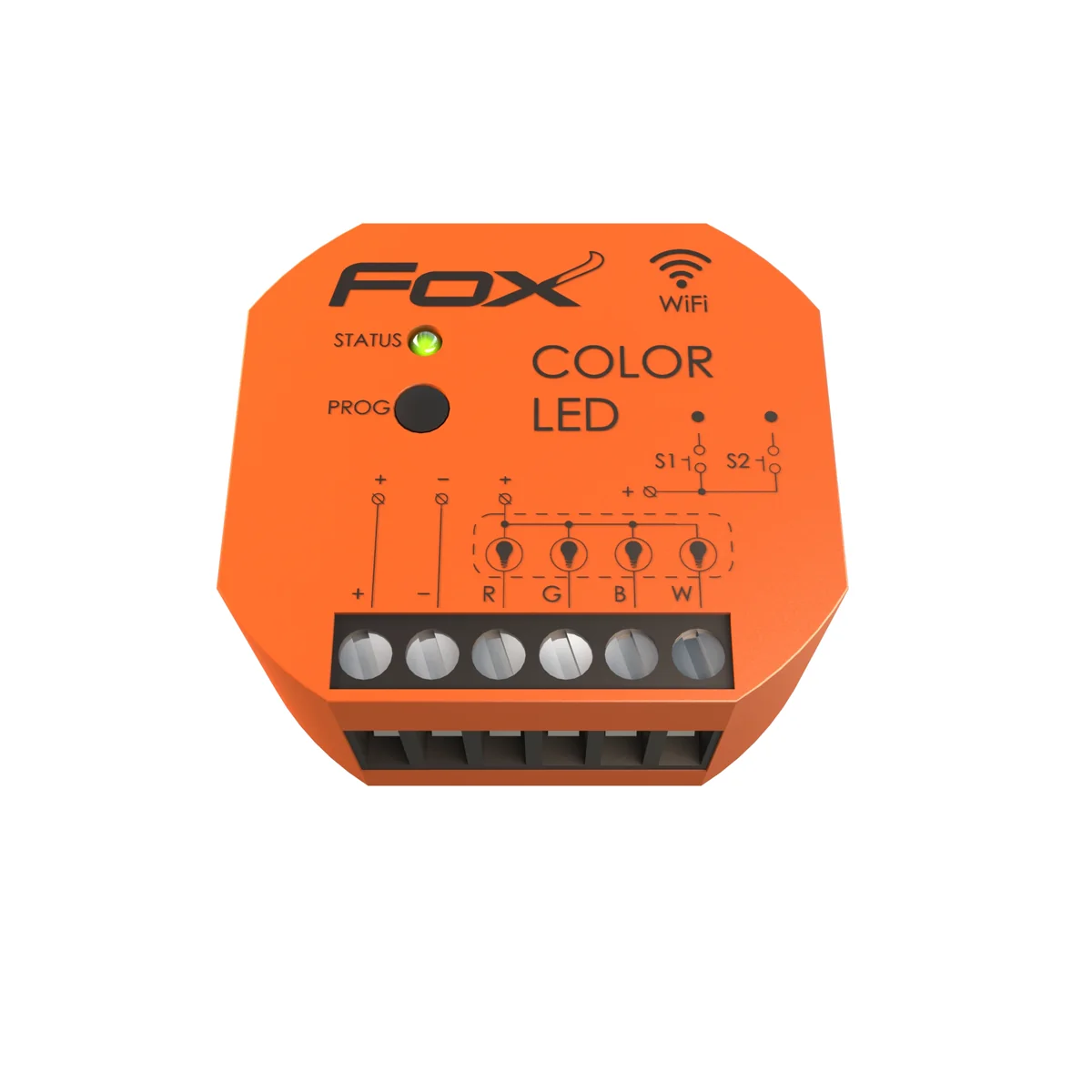

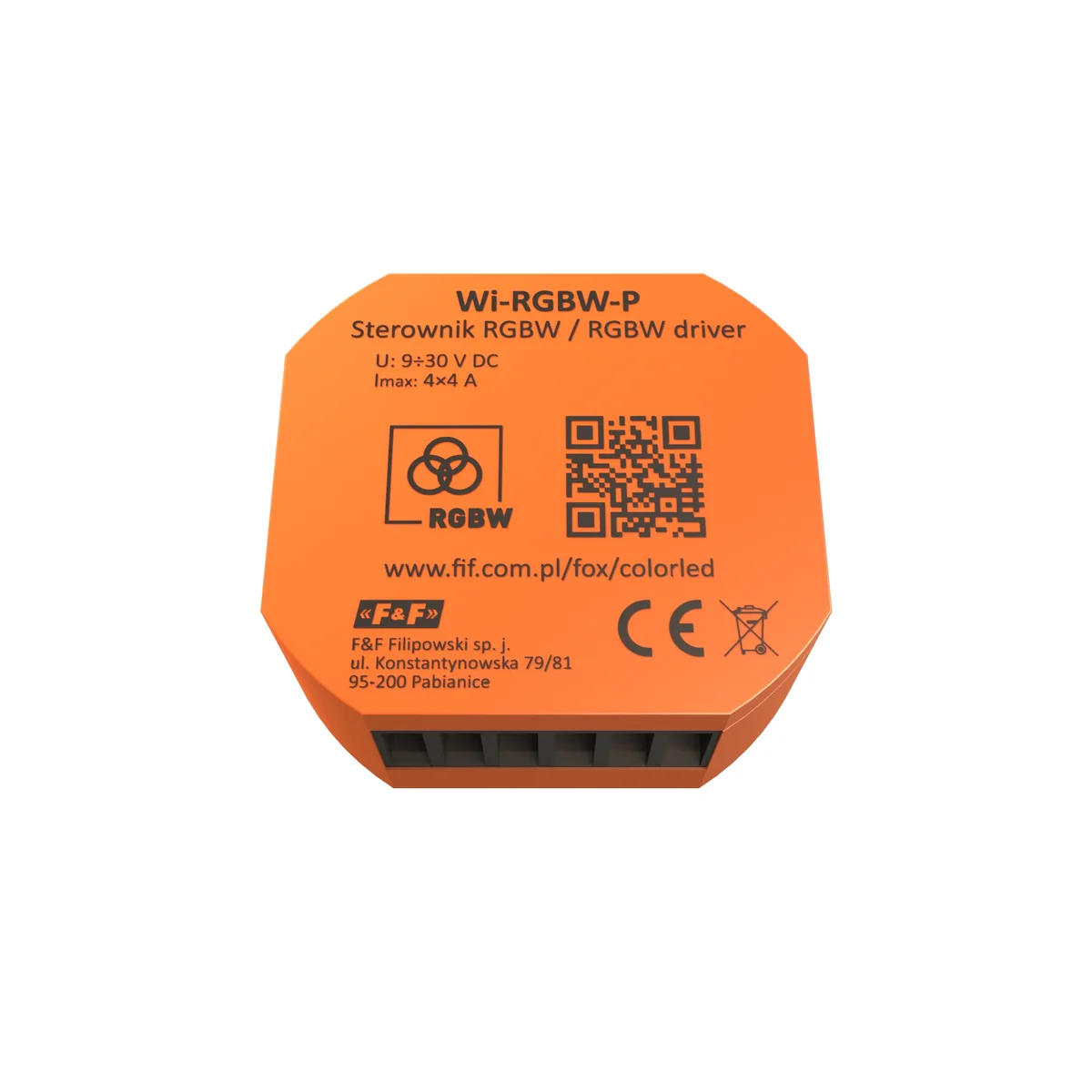

WiFi LED RGBW 12 V COLOR LED controller from F&F. The product part number is WI-RGBW-P. Color LED lighting controller with an additional channel for white light. Allows precise color settings or adjustment of the color temperature of white light. Provides a smooth transition between colors. The transition times between colors and dimming are configurable.

  • 12/24 V with a load capacity of 4 A per color.
  • Working in the color or white color temperature control mode.

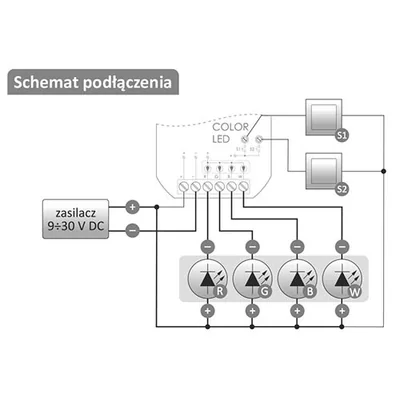

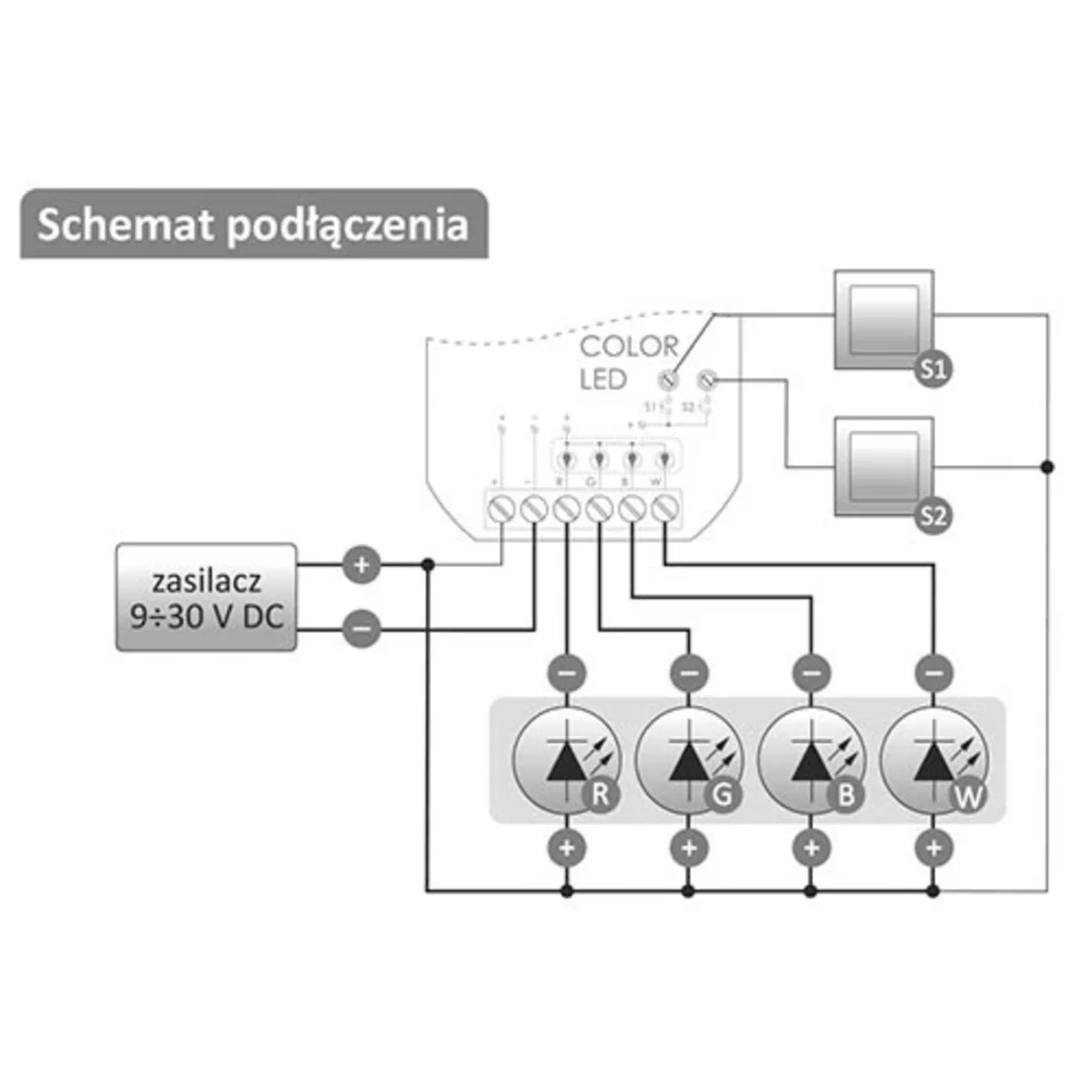

  • Possibility to connect two local buttons:
    • first   light on/off (short press) and brightness level control (long press).
    • second   switching between colors (short press) and smooth color change (long press).
  • App control and timers.
  • Built-in clock with power backup and own copy work program - thanks to this, it is possible to operate the relay without connecting to a Wi-Fi network.
  • Support  ;REST API.
  • Thermal protection.
  • For mounting in a junction box diameter fi 60 mm.



Parameters

  • Control pulse current: less than 3mA.
  • Radio frequency: 2.4GHz.
  • Radio power (IEEE 802.11n): less than 13 dBm.
  • Maximum load current (AC-1) - rated current: 4 A/color.
  • Maximum load current (AC-1) - maximum current (instantaneous): 4 A/color.
  • Receiver sensitivity: -98 dBm.
  • Power consumption: < ul>
  • standby: 1.2 W.
  • operation (relay on): 1.5 W.
  • Operating temperature:  0÷45°C.
  • Dimensions: Ø54 (48×43mm).
  • Technical data

    • Maximum load current [A]
      4
    • Rated voltage [V]
      12/24
    • Level of security
      IP20
    • Height [mm]
      20
    • DC supply voltage [V]
      9÷30
    • PKWIU
      26.30.11.0
    • Tightening torque [Nm]
      0.4
    • Family
      FOX
    • Transmission
      WIFI
    • Rated load current [A]
      4
    • Terminal type
      Threaded

    Other technical data

    • Suitable for dimmer
      Yes
    • Suitable for roller shutter switch
      No
    • Suitable for venetian-/roller shutter switch
      No
    • In housing
      No
    • Printed circuit board/module
      No
    • Switching mode
      No
    • Number of relays
      1
    • Material
      Plastic
    • Halogen free
      Yes
    • Colour
      Orange
    • Transparent
      No
    • Radio frequency
      50 MHz
    • Compatible with Google Assistant
      Yes
    • IFTTT support available
      No
    • Suitable for pulse button
      Yes
    • Suitable for venetian shutter switch
      No
    • Suitable for switch
      Yes
    • In tube base housing
      No
    • Current supply
      Other
    • With manual radio transmitter
      No
    • Mounting method
      Flush-mounted
    • Material quality
      Thermoplastic
    • Type of fastening
      Mounting with screw
    • RAL-number (similar)
      2003
    • Suitable for degree of protection (IP)
      IP20
    • Compatible with Apple HomeKit
      Yes
    • Compatible with Amazon Alexa
      Yes
