Wi-Fi controller for the GATE gate and wicket WI-TO2S2

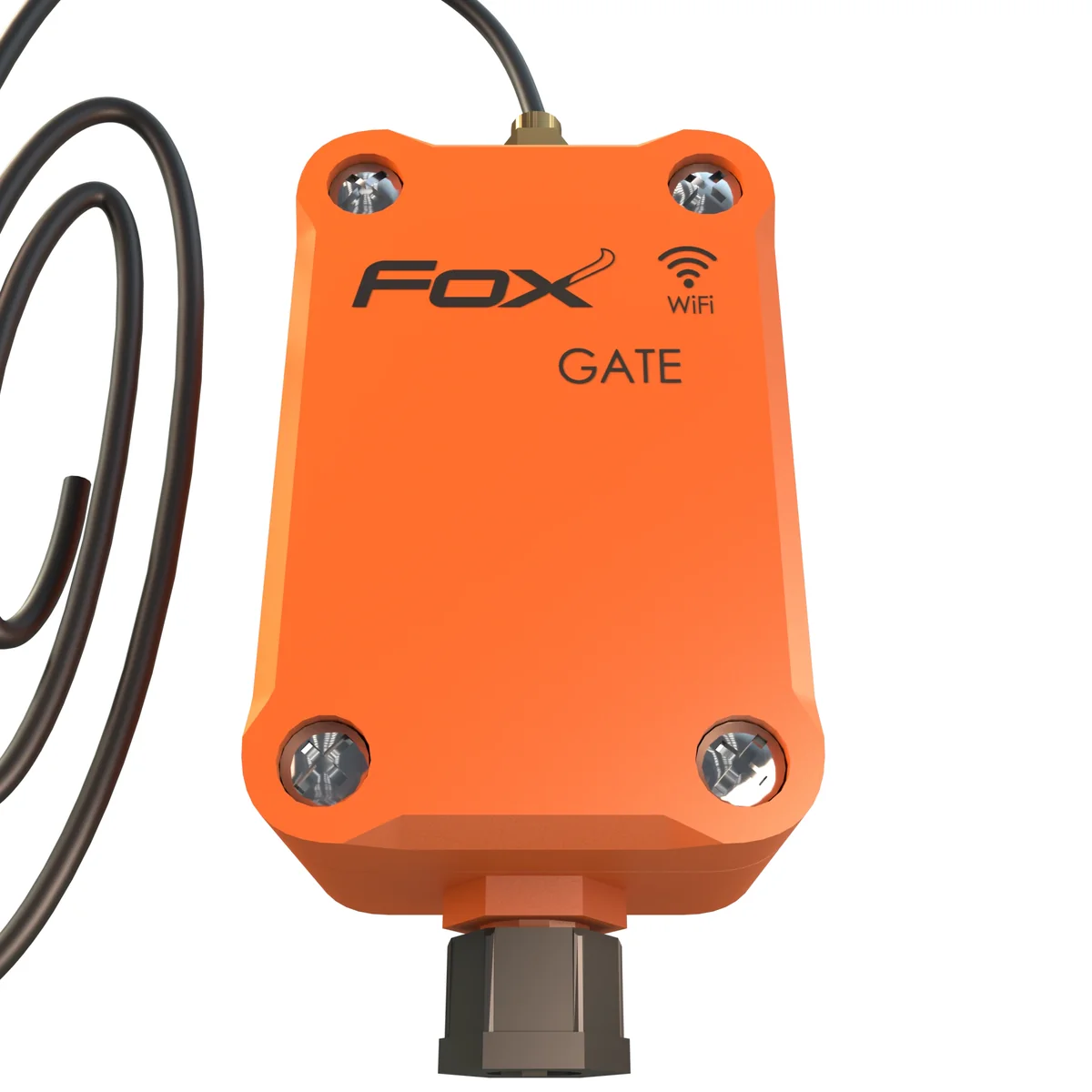

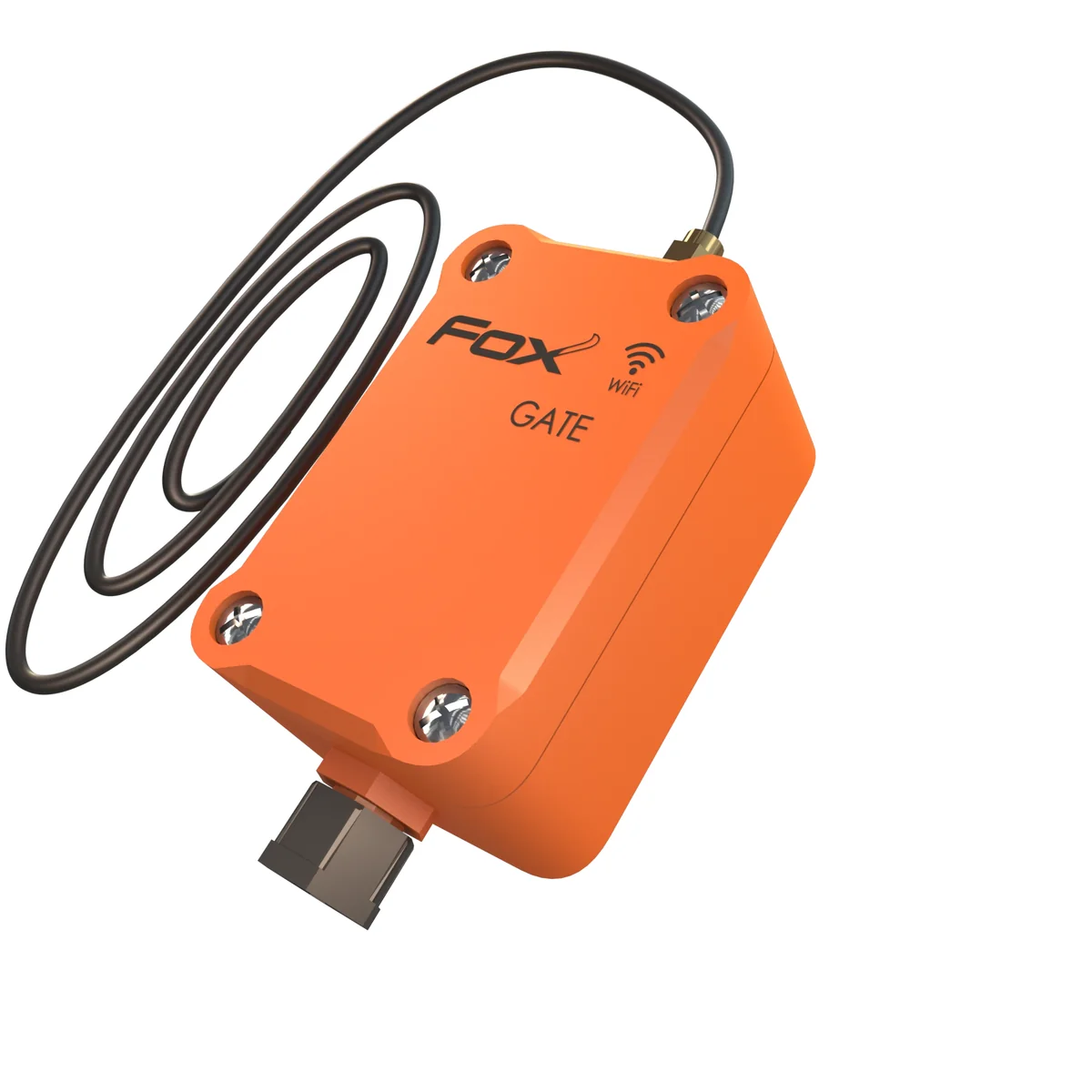

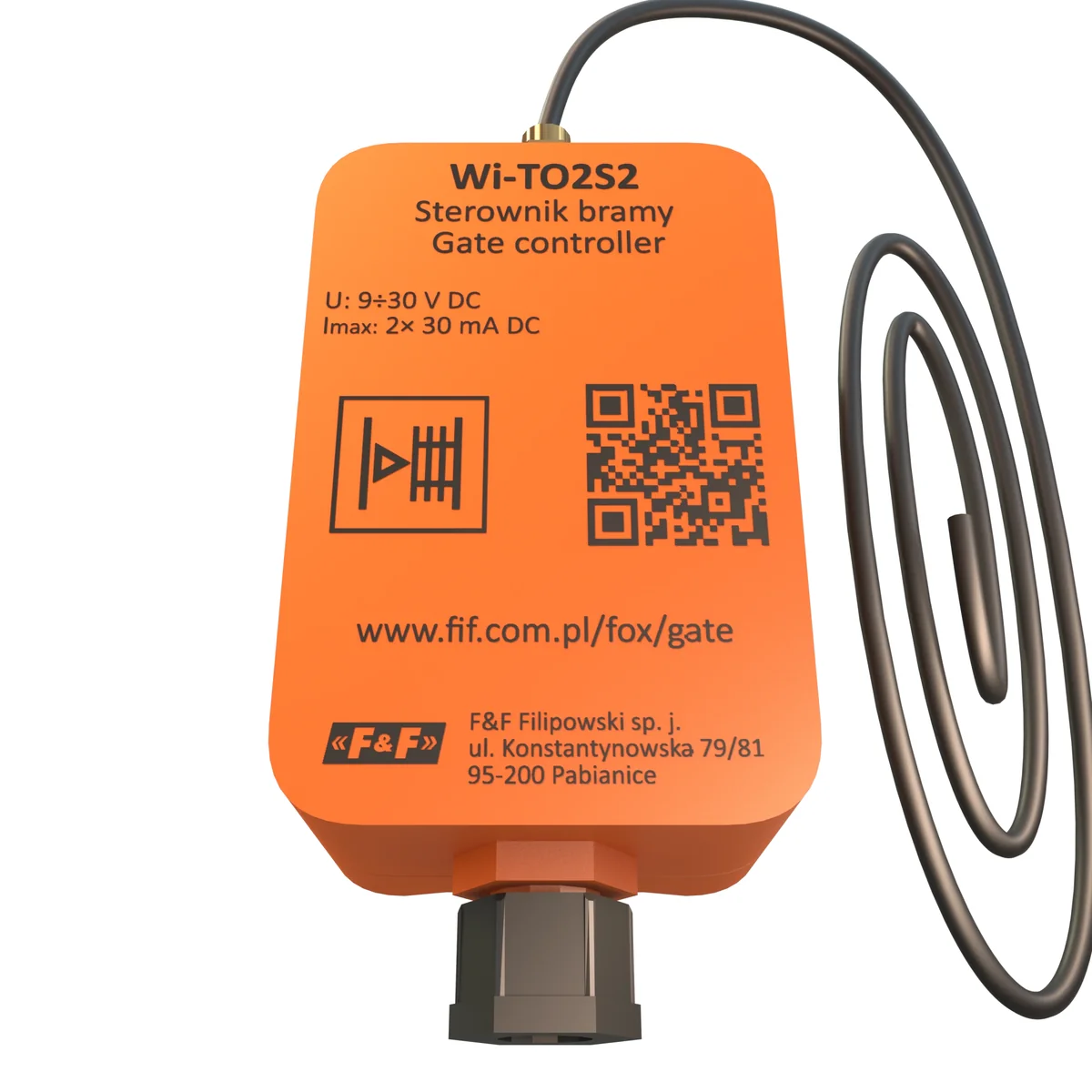

Wi-Fi controller for the GATE gate and wicket from the manufacturer F&F. The product catalog number is WI-TO2S2. Controller for two gates or a gate and a wicket. It allows you to define the statuses of devices “gate closed”, “gate open”.  Due to the architecture of the wifi system, the gate can be controlled via the cloud or only locally via wifi or bluetooth. To improve the signal strength, the wifi GATE module is equipped with an external antenna. The hermetic housing of the Wi-Fi controller for gates guarantees uninterrupted operation of the controller outside. The Wi-Fi GATE controller supports all types of gates, except rolling gates.

• The Wi-Fi gate controller supports two local inputs which re enable:
  • opening/closing the gate or wicket.
  • connection of sensorsów opening/closing the gate or wicket.
• REST API support.
< li>External antenna for extended operation range.
• Hermetic housing.

Parameters

• Number of control inputs: 2.
• Maximum AC-1 load current: less than 20 mA.
• Radio frequency: 2.4 GHz.
• Control pulse current: less than 3 mA.
• Radio power (IEEE 802.11n): below 13 dBm.
• Receiver sensitivity:  ;-98 dBm.
• Antenna cable length: 1 m/25 mm.

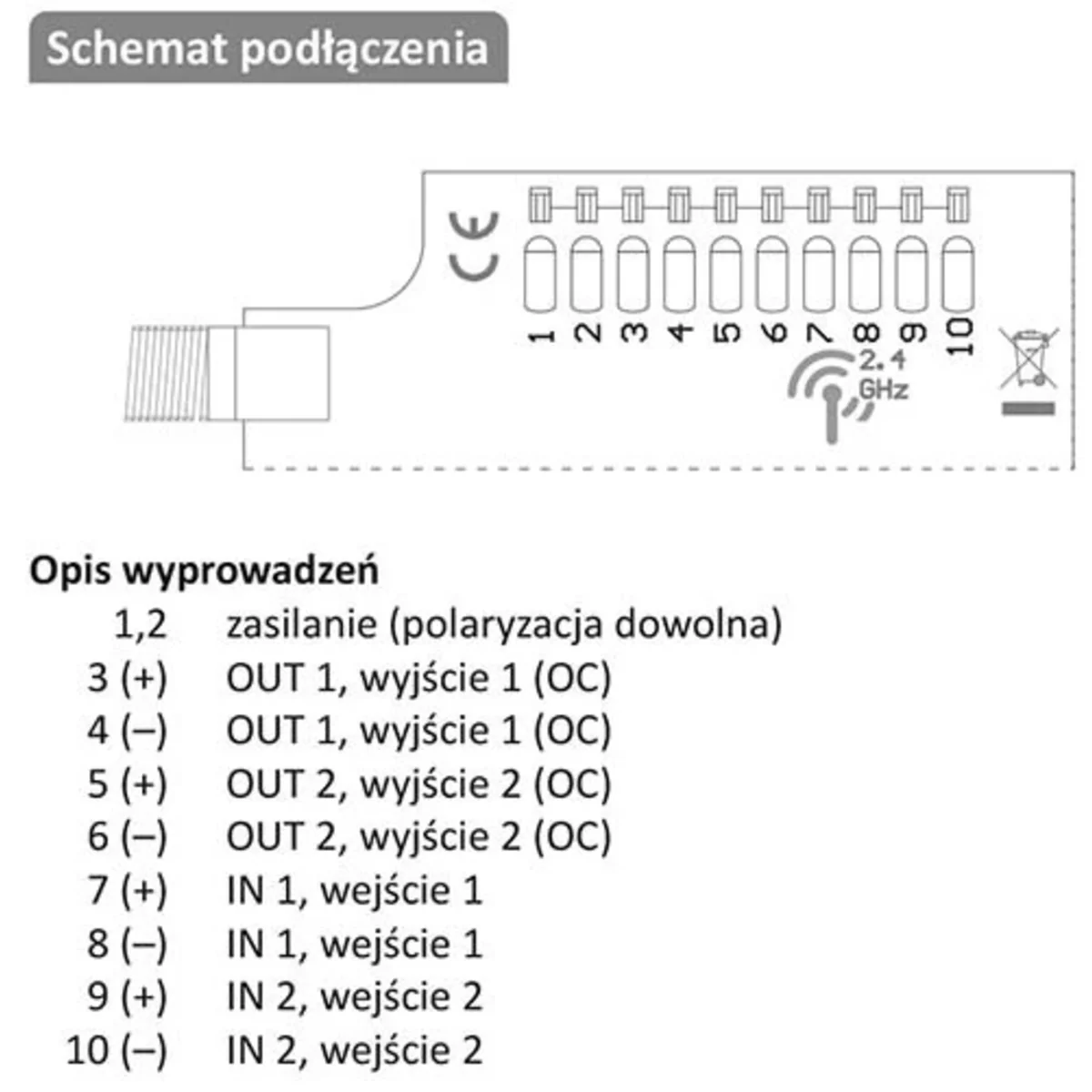

• Connection: spring terminals 0.14÷0.5 mm².
• Power consumption:
  • standby: 1.2 W.
  • operation (output on): 1.5 W.
• Operating temperature: -20÷55°C.
• Dimensions: 42×89×31mm.
