YDY 3x1.5 cable 450/750V white 172171005C0100

Name: YDY 3x1.5 cable 450/750V white
Brand: NKT
SKU: KPO360NKTQ
Price: 0.79 PLN
Availability: InStock

local index:

KPO360NKTQ

Catalog No:

172171005C0100

EAN code:

5907802041079

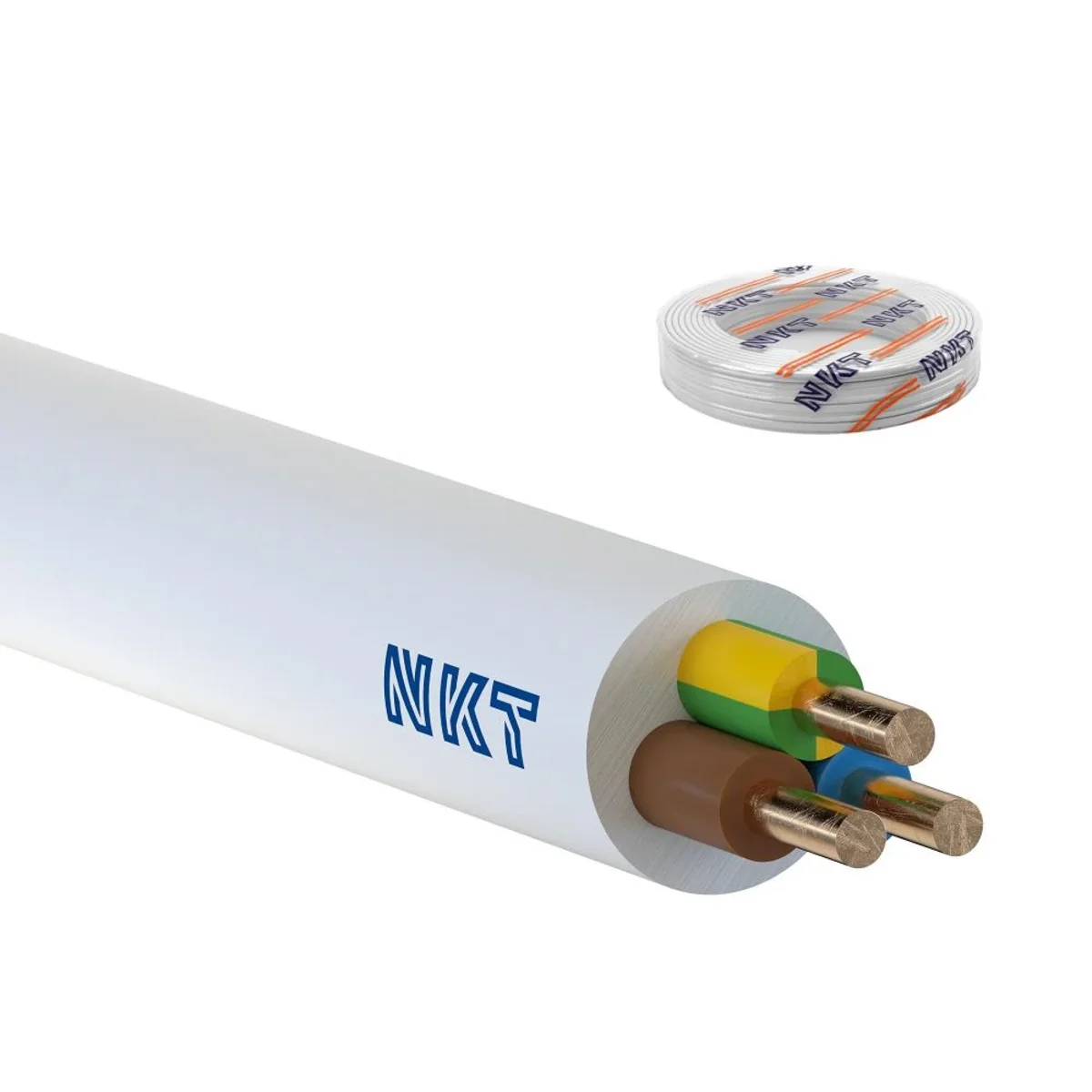

Click on the photo to enlarge

Manufacturer: NKT

Number of veins: 3

Color: White

Vein material: Copper

See full description

Price:

0,79 €

gross / m.

(including VAT 23%)

Accessible 27482 m.

Quantity m.

(multiplicity:

1

)

Add to clipboard

Print

Ask about the product

Product description Technical data Manufacturer details Files to download

Product description

The YDY 3x1.5 cable is an installation cable with single-wire copper conductors in insulation and PVC sheath. It is used primarily in facilities covered by regulations regarding the reaction of construction products to fire. It should also be noted that this cable is used for permanent installation, both under plaster and on plaster. What else should you know about this particular product? It is white and round. In addition, you can buy it at a really good price with us – you will not overpay! We invite you to place an order.

Technical data

Number of veins

3
Vein material

Copper
Core cross-section [mm²]

1.5
Libra

119 kg/km
PKWIU

27.32.13.0

Color

White
Rated voltage [V]

450/750
Core

Wire
Insulation material

PVC

Other technical data

Conductor surface

Bare
Conductor category

Class 1 = solid
Material core insulation

Polyvinyl chloride (PVC)
Core identification

Colour
Max. conductor temperature

70 °C
Screen

No
Protective barrier

None
Material outer sheath

Polyvinyl chloride (PVC)
Colour outer sheath

White
Reaction-to-fire according to EN 13501-6: Smoke production

None
Reaction-to-fire according to EN 13501-6: Acidity

None
Flame retardant

According to IEC/EN 60332-1-2
Low temperature resistant according to EN 60811-504+505+506

No
Wytrzymałość (trwałość) izolacji

No
Permitted cable outer temperature after assembling without vibration

-40 ... 70 °C
Nominal voltage U

750 V

Nominal cross section conductor

1.5 mm²
Number of cores

3
Specification core insulation

Other
Core colour

Several
Żyła ochronna

No
Drain wire

No
Armouring/reinforcement

None
Specification material outer sheath

Other
Reaction-to-fire according to EN 13501-6: Class

Eca
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles

None
Halogen free according to EN 60754-1/2

No
Low smoke (according to EN 61034-2)

No
Oil resistant according to EN IEC 60811-404

No
Outer diameter approx.

8.50 mm
Nominal voltage U0

450 V

Dane CPR (Construction Products Regulation)

Wydzielane substancje niebezpieczne:

NPD
Numer referencyjny DoP (DWU)

DOP000038
Oznaczenie produktu

YDYżo 450/750 3x1,5 biały

Reakcja na ogień:

Eca
Zharmonizowana specyfikacja techniczna (norma):

EN 50575:2014, EN50575:2014/A1:2016
Zastosowanie:

Dostawa energii (oraz zastosowania komunikacyjne) w budynkach i innych obiektach budowlanych w celu ograniczenia powstawania i rozprzestrzeniania się ognia i dymu

Manufacturer details

Manufacturer

NKT S.A.
Address

43-502 Warszowice Gajowa 3 Polska
E-mail

info.pl@nkt.com

Files to download

YDY_450$750V+DOP+DOP000038+PL+Rev11.pdf
