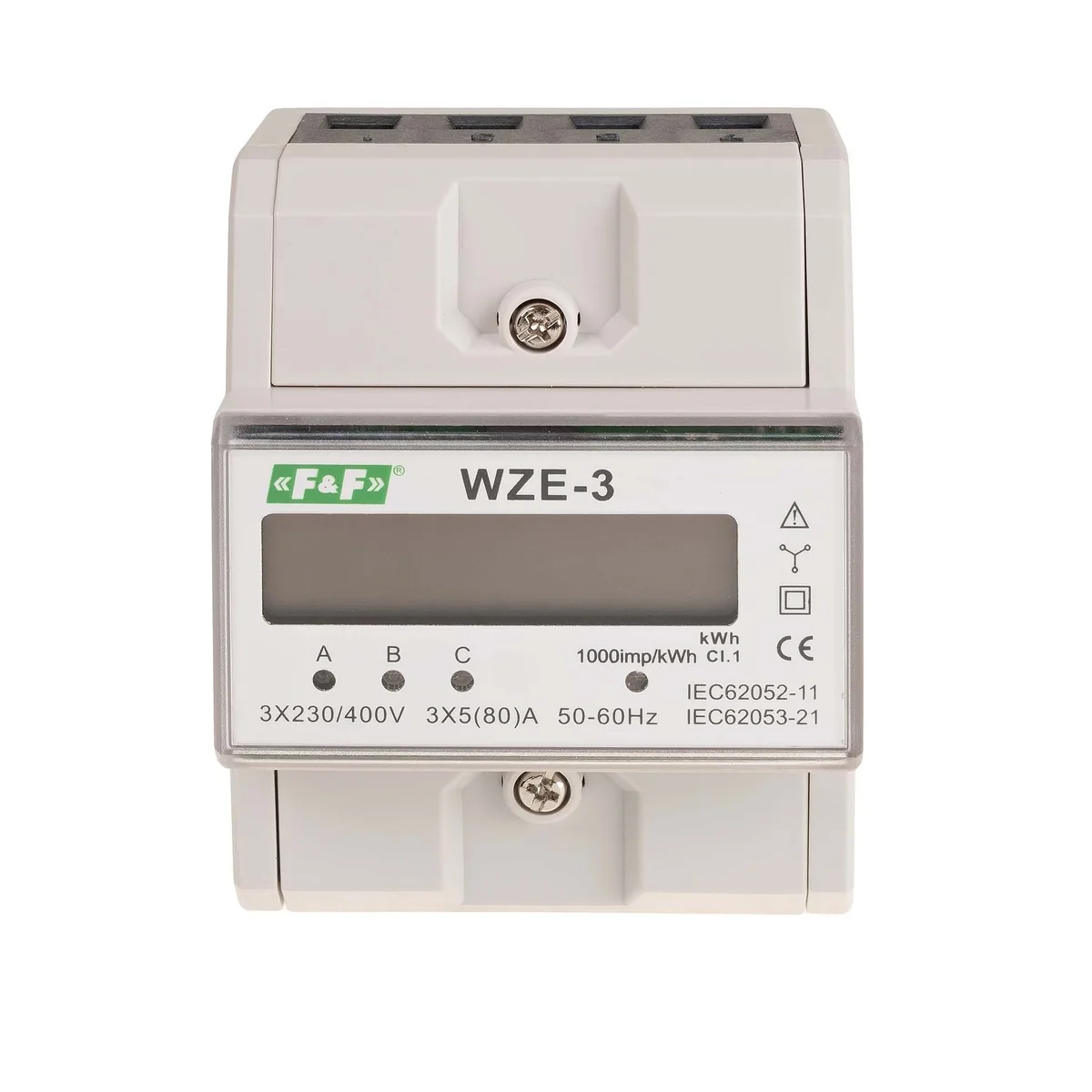

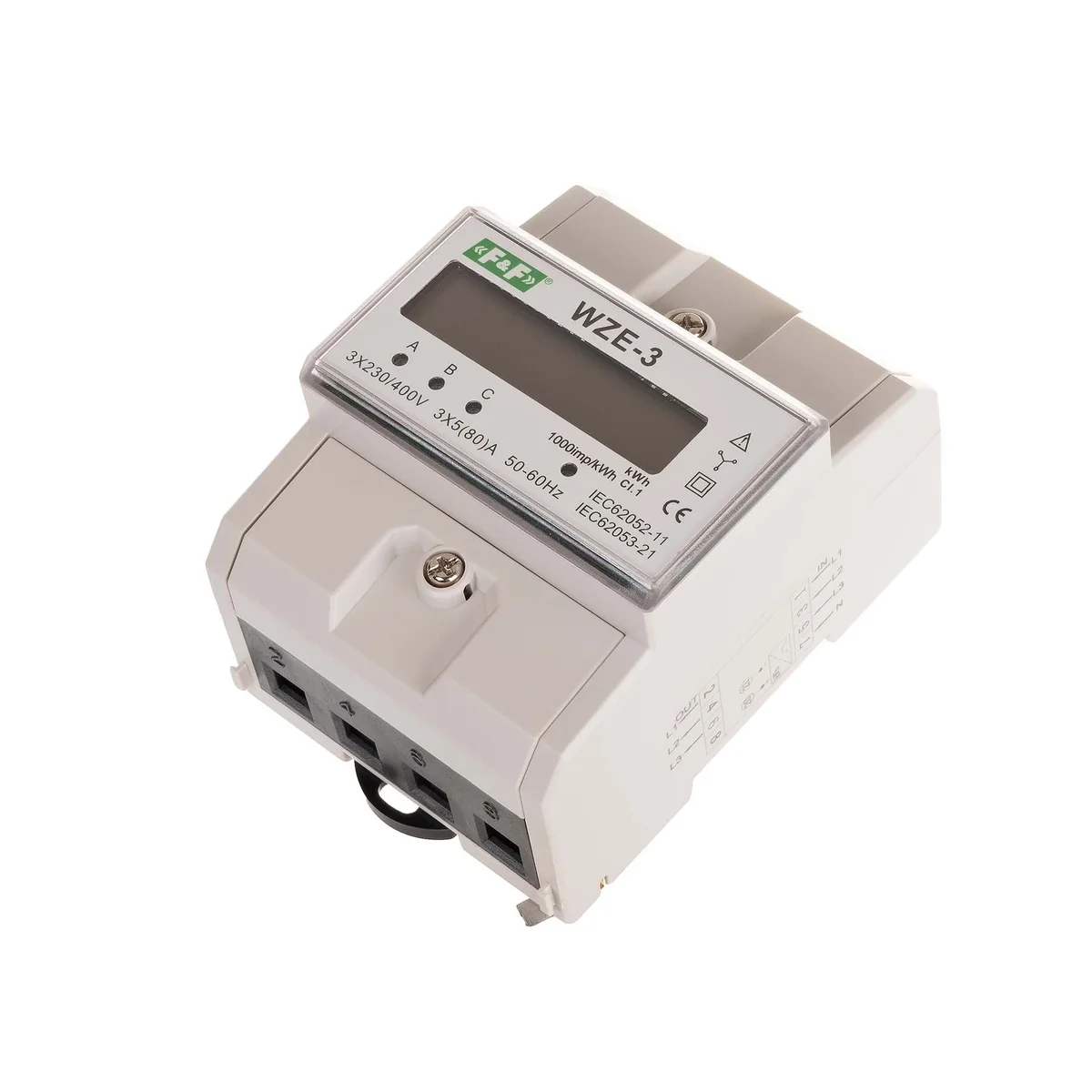

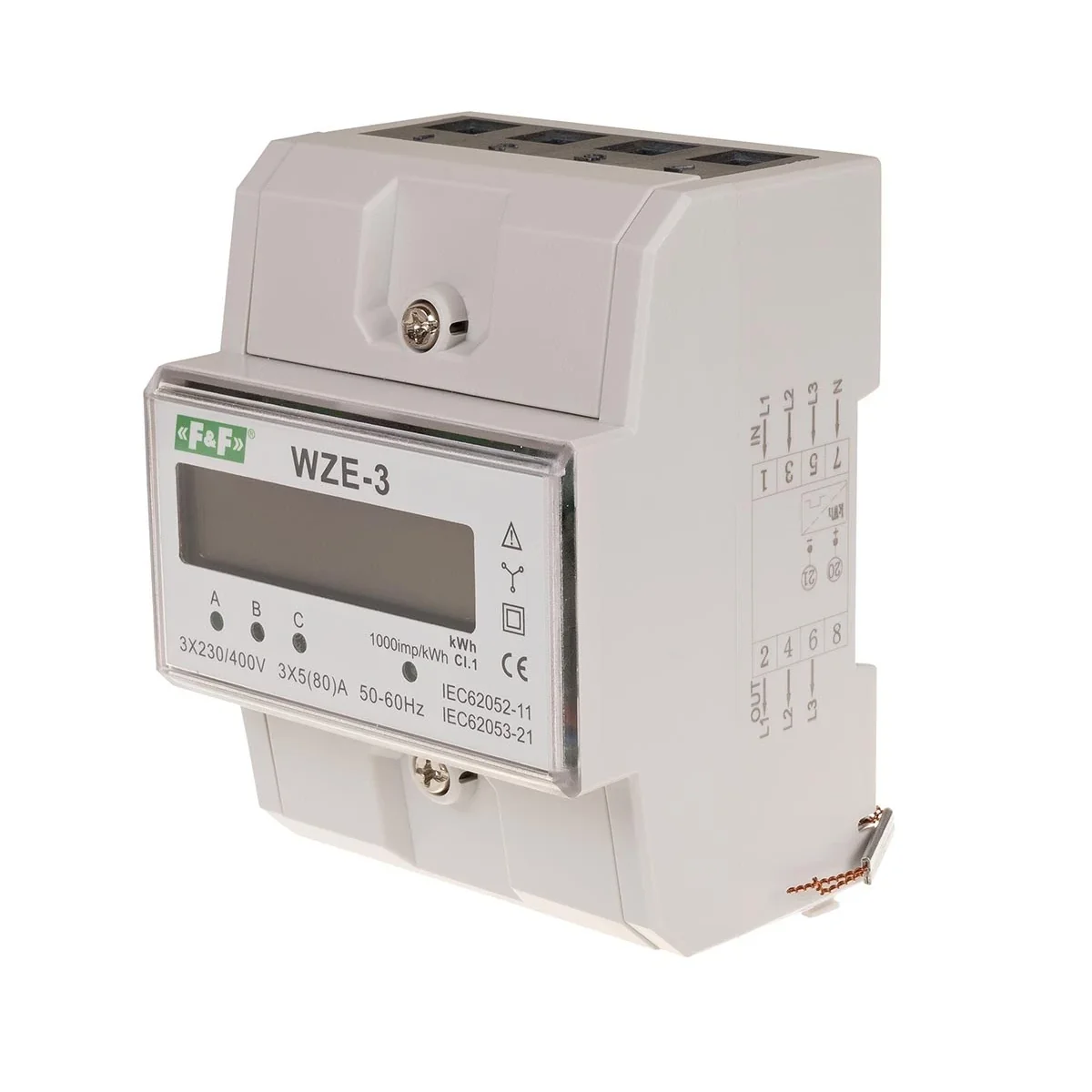

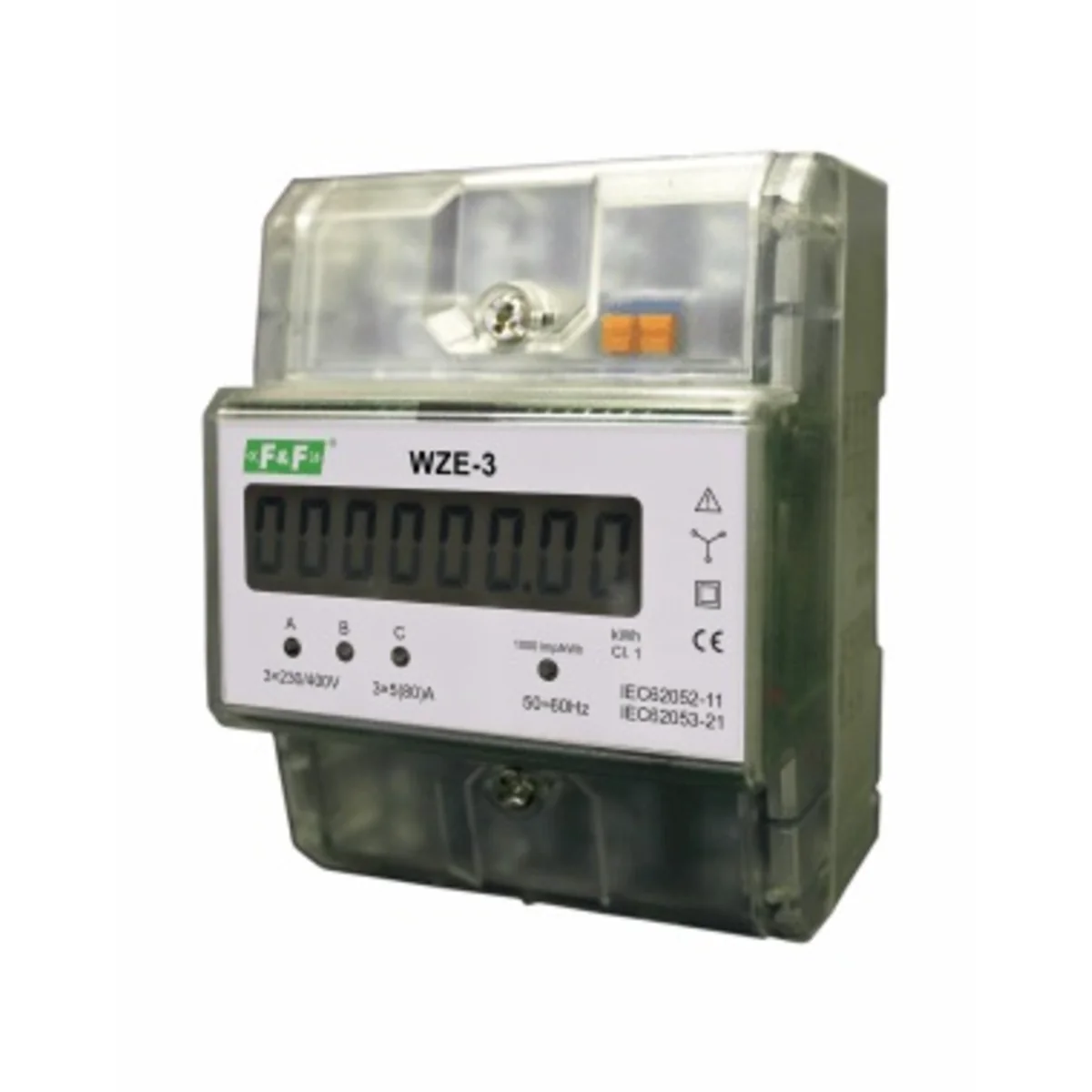

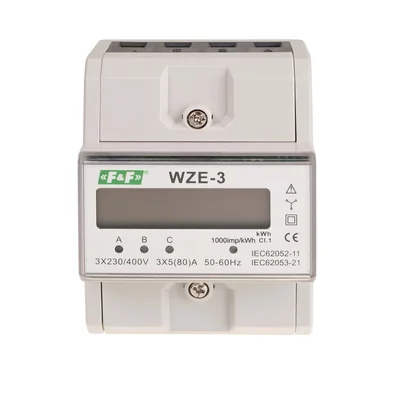

Electricity indicator 3-phase class 1 3x230V+N, 3x10 (80A) WZE-3

Intended use
WZE-3 is a static (electronic), calibrated indicator three-phase alternating current electricity in a direct system.

reference voltage      3×230/400V+N
base current*     5A
maximum current*     80A
minimum current*     0.04A
accuracy class     B
download your own indicator     <10VA; <2W
indication range     0÷99999.99kWh
indicator constant     (1Wh/imp)  1000imp/kWh
power consumption signaling     3×Red LED
kWh reading indication     LED red
pulse output SO+ SO-     open collector
connection voltage SO+ SO-     <30V DC
connection current SO+ SO-     <27mA
constant SO+ SO-     (1Wh/imp)  1000imp/kWh
impulse time SO+ SO-     35ms
operating temperature     -20÷55°C
connection     16mm screw terminals²
dimensions     4.5 modules (75mm)
assembly     on TH-35mm rail
protection grade     IP20

Operation
Special electronics for under the influence of the flowing current
and the applied voltage in each phase, it generates impulses in an amount proportional to the electricity consumed in that phase. The energy consumption in the phase is indicated by the flashing of the appropriate LED (L1, L2, L3). The sum of the pulses from the three phases, indicated by the blinking of the LED diode (800 pulses/kWh), is converted into energy consumed in the entire three-phase system, and its value is indicated by the segment LCD display. Decimal places are hundredths (.01 KWh =10Wh).


Attention!The indicator has a pulse output SO+ - SO-. This allows to connect another impulse device (SO) reading the impulses generated by the indicator. For the correct operation of the indicator, it is not required to connect an additional device.
The indicator has the option of sealing the covers of the terminals  inputs and outputs preventing the meter from being bypassed.
