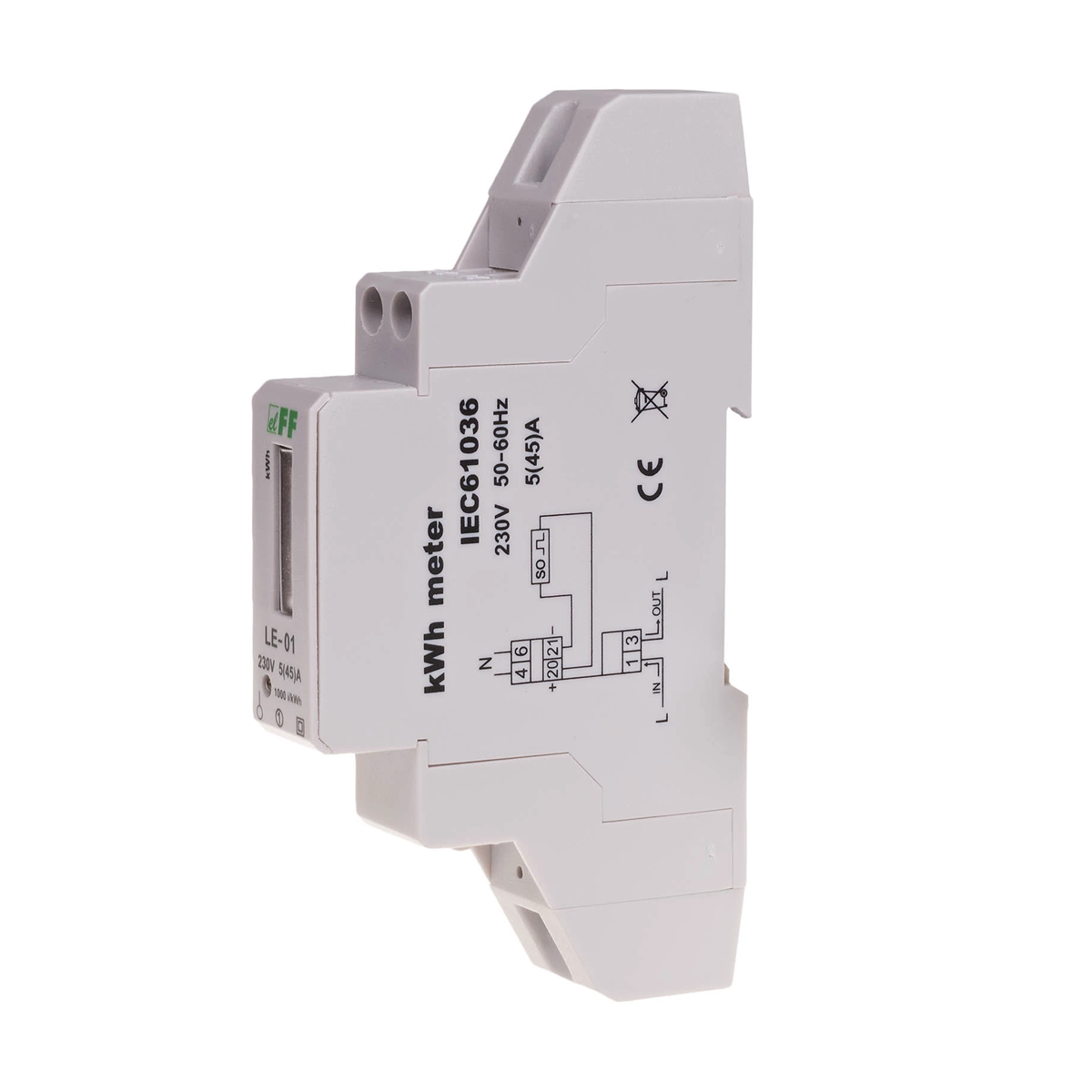

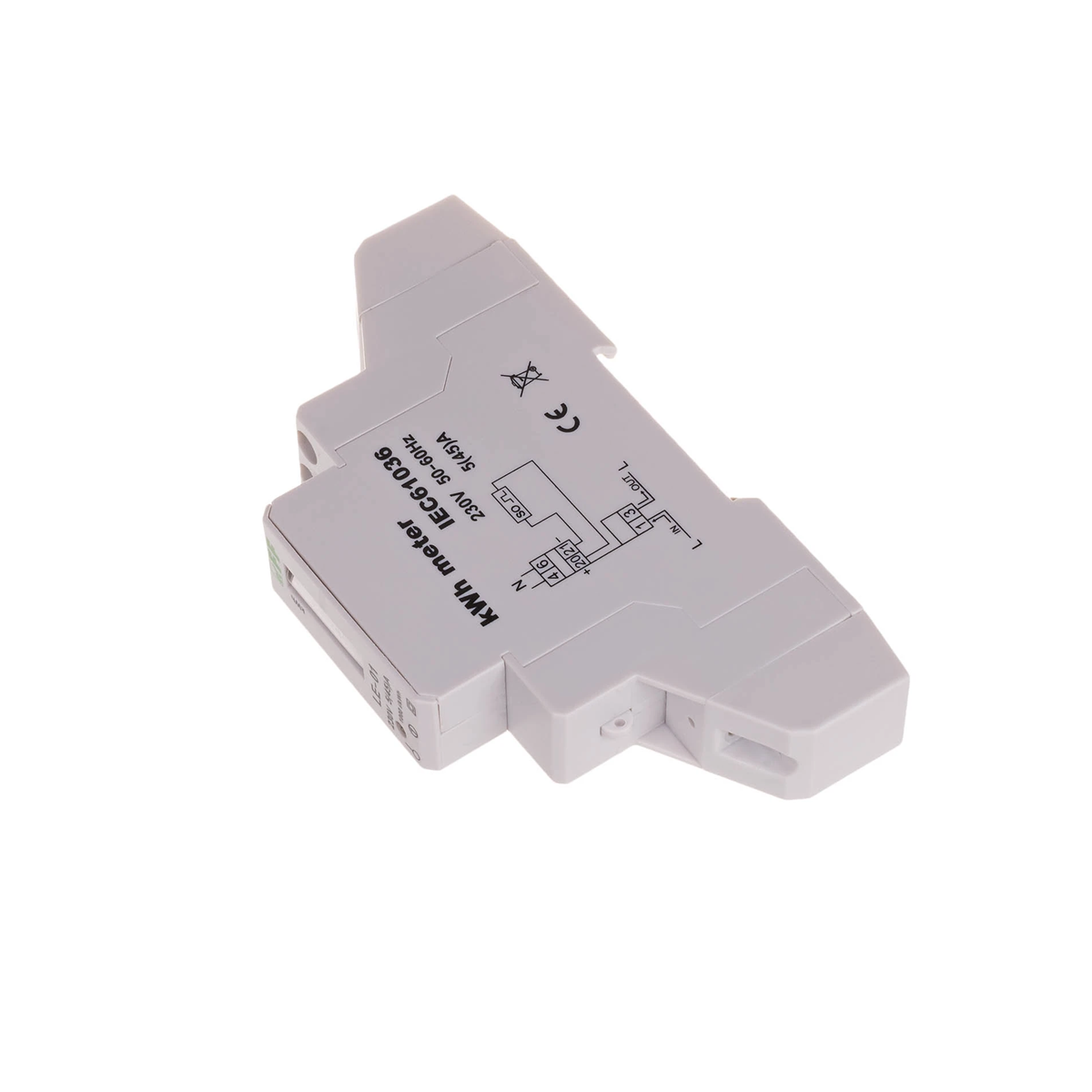

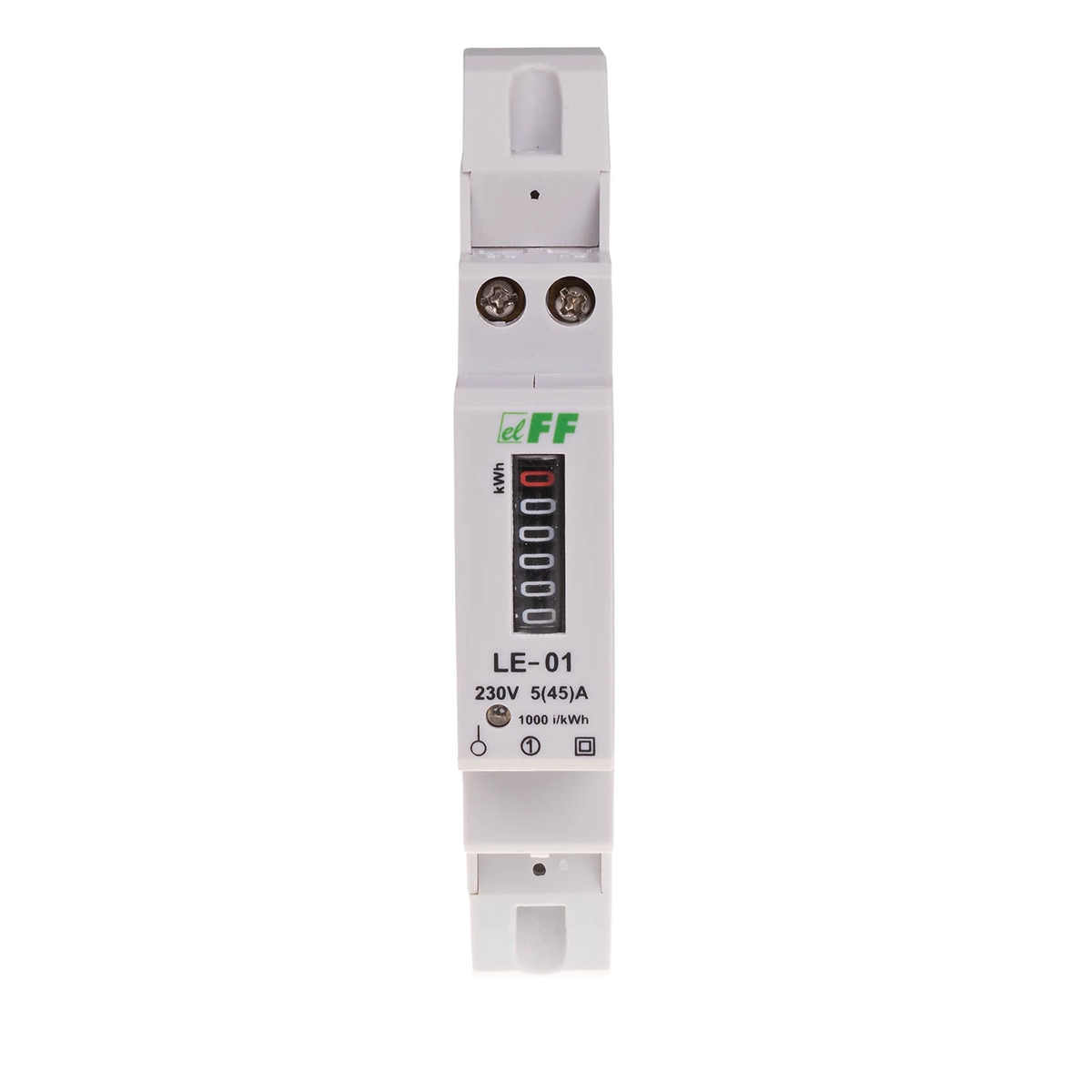

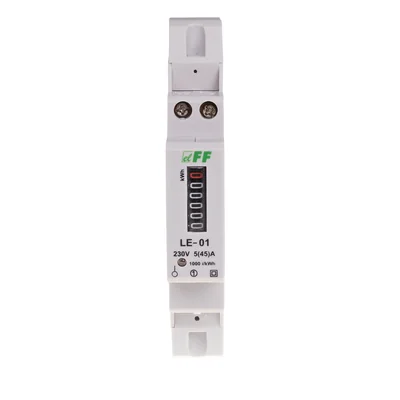

Electricity meter - single-phase LE-01 LE-01

local index:
NPL001FIFQ
Catalog No:
LE-01
EAN code:
5908312591634
Manufacturer: F&F
Installation: On the TH-35 rail
Rated voltage [V]: 230
Base Current [A]: 5
Price:
33,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

LE-01 are static (electronic) calibrated electricity meters used as sub-meters for measuring single-phase alternating current electricity in a direct system.

Technical data

  • Installation
    On the TH-35 rail
  • Base Current [A]
    5
  • connection
    6mm screw terminals
  • Dimensions
    1 module (18mm)
  • Package width [mm]
    20
  • PKWIU
    26.51.63.0
  • Rated voltage [V]
    230
  • Maximum current [A]
    45
  • Level of security
    IP20
  • Package height [mm]
    150
  • Package weight [kg]
    0.1

Other technical data

  • Type of meter
    Electronic
  • Max. current (Imax)
    45 A
  • Pole type
    Single phase
  • Energy type
    Effective power
  • Tariff type
    One-tariff
  • Escapement mechanism
    Yes
  • Approval
    Domestic
  • Pulse type
    S0
  • Type of interface
    None
  • With lock code
    No
  • Nominal current (In)
    5 A
  • Accuracy class
    B
  • Model
    Direct measurement
  • Suitable for
    Purchase
  • Measurement type load profile
    No
  • Calibrated
    No
  • Pulse output
    Electrical
  • Type of indication
    Analogue
  • EEC40 signature
    No
  • Degree of protection (IP)
    IP20

Manufacturer details

  • Manufacturer
    F&F Filipowski Spółka Komandytowa
  • Address
    95-200 Pabianice ul. Konstantynowska 79/81
  • Phone number
  • Tax identification number
    7310005314
  • GLN
    5900009915815

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,097
Width (m) 0,020
Length (m) 0,100
Depth (m) 0,065
