NKT

YDY 3x2.5 cable 450/750V white 172171006C0100

local index:
KPO370NKTQ
Catalog No:
172171006C0100
EAN code:
5907802041123
Price:
1,13 €
gross / m.
including VAT 23%
Availability:
Check availability in branches
In warehouses 35784 m.
Delivery:
From 3,70 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock m.
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

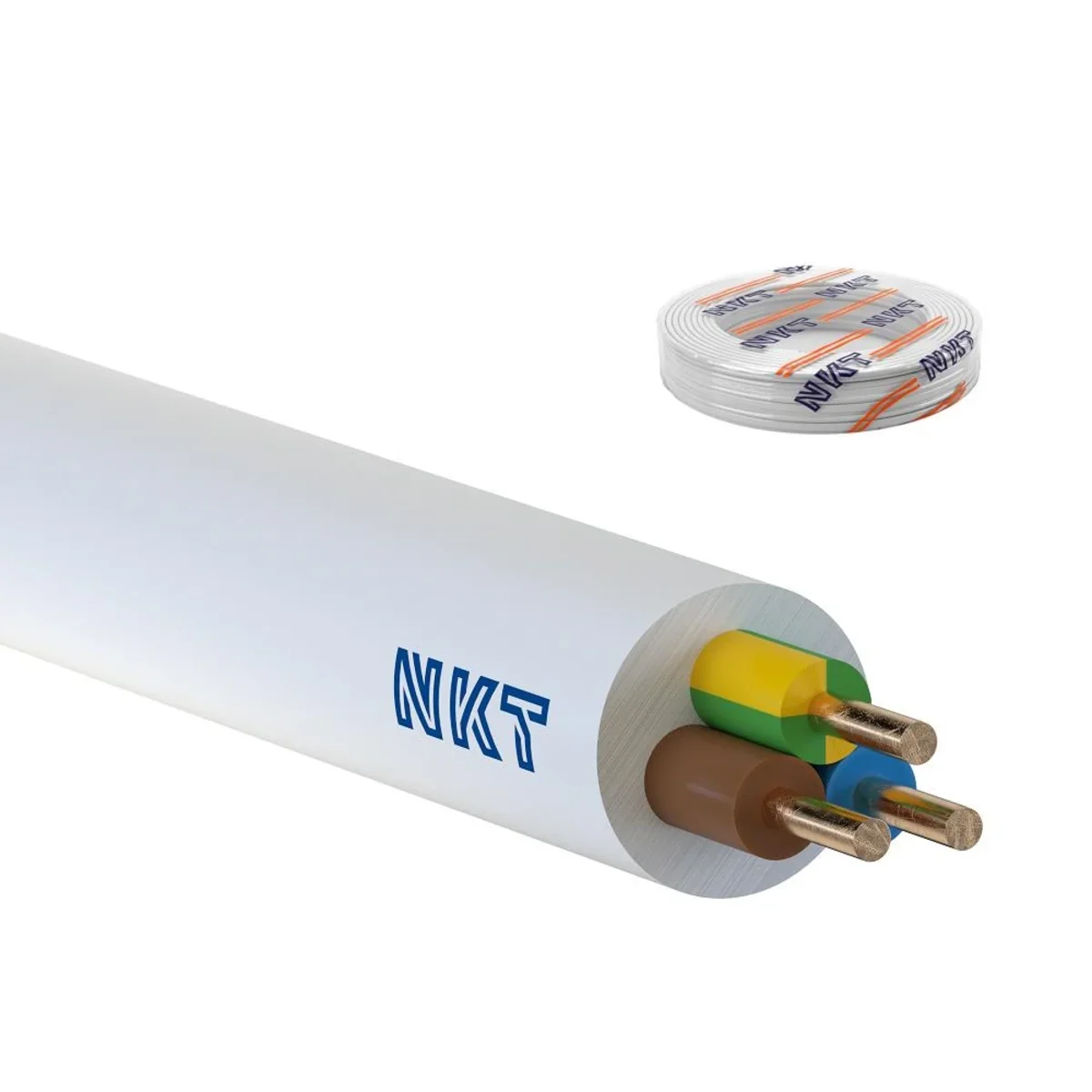

Cable YDYżo 3x2, 5 450/750 white, round, multicore for permanent installation.

Cable with single-wire copper conductors in insulation and PVC sheath.

Technical data

  • Number of veins
    3
  • Vein material
    Copper
  • Core cross-section [mm²]
    2.5
  • Libra
    158 kg/km
  • Insulation material
    PVC
  • Color
    White
  • Rated voltage [V]
    450/750
  • Core
    Wire
  • Accurate color
    White

Other technical data

  • Conductor surface
    Bare
  • Conductor category
    Class 1 = solid
  • Material core insulation
    Polyvinyl chloride (PVC)
  • Core identification
    Colour
  • Max. conductor temperature
    70 °C
  • Screen
    no
  • Protective barrier
    None
  • Material outer sheath
    Polyvinyl chloride (PVC)
  • Colour outer sheath
    White
  • Reaction-to-fire according to EN 13501-6: Smoke production
    None
  • Reaction-to-fire according to EN 13501-6: Acidity
    None
  • Flame retardant
    According to IEC/EN 60332-1-2
  • Low temperature resistant according to EN 60811-504+505+506
    no
  • Wytrzymałość (trwałość) izolacji
    No
  • Permitted cable outer temperature after assembling without vibration
    -40 ... 70 °C
  • Nominal voltage U
    750 V
  • Nominal cross section conductor
    2.5 mm²
  • Number of cores
    3
  • Specification core insulation
    Other
  • Core colour
    Several
  • Żyła ochronna
    no
  • Drain wire
    no
  • Armouring/reinforcement
    None
  • Specification material outer sheath
    Other
  • Reaction-to-fire according to EN 13501-6: Class
    Eca
  • Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    None
  • Halogen free according to EN 60754-1/2
    no
  • Low smoke (according to EN 61034-2)
    no
  • Oil resistant according to EN IEC 60811-404
    no
  • Outer diameter approx.
    9.32 mm
  • Nominal voltage U0
    450 V

Dane CPR (Construction Products Regulation)

  • Numer notyfikowanego laboratorium badawczego CE:
    nie doty
  • Wydzielane substancje niebezpieczne:
    NPD
  • Numer referencyjny DoP (DWU)
    DOP000038
  • Oznaczenie produktu
    YDYżo 450/750 3x2,5 biały
  • Reakcja na ogień:
    Eca
  • Zharmonizowana specyfikacja techniczna (norma):
    EN 50575:2014, EN50575:2014/A1:2016
  • Zastosowanie:
    Dostawa energii (oraz zastosowania komunikacyjne) w budynkach i innych obiektach budowlanych w celu ograniczenia powstawania i rozprzestrzeniania się ognia i dymu
