Electricity indicator 1-phase class 1 230V, 5 (100A) WZE-1

local index:
NPL026FIFQ
Catalog No:
WZE-1
EAN code:
5902431670041
Manufacturer: F&F
Fixing: screw terminals
Installation: On the TH-35 rail
Rated voltage [V]: 230
Price:
22,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 38 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Intended use

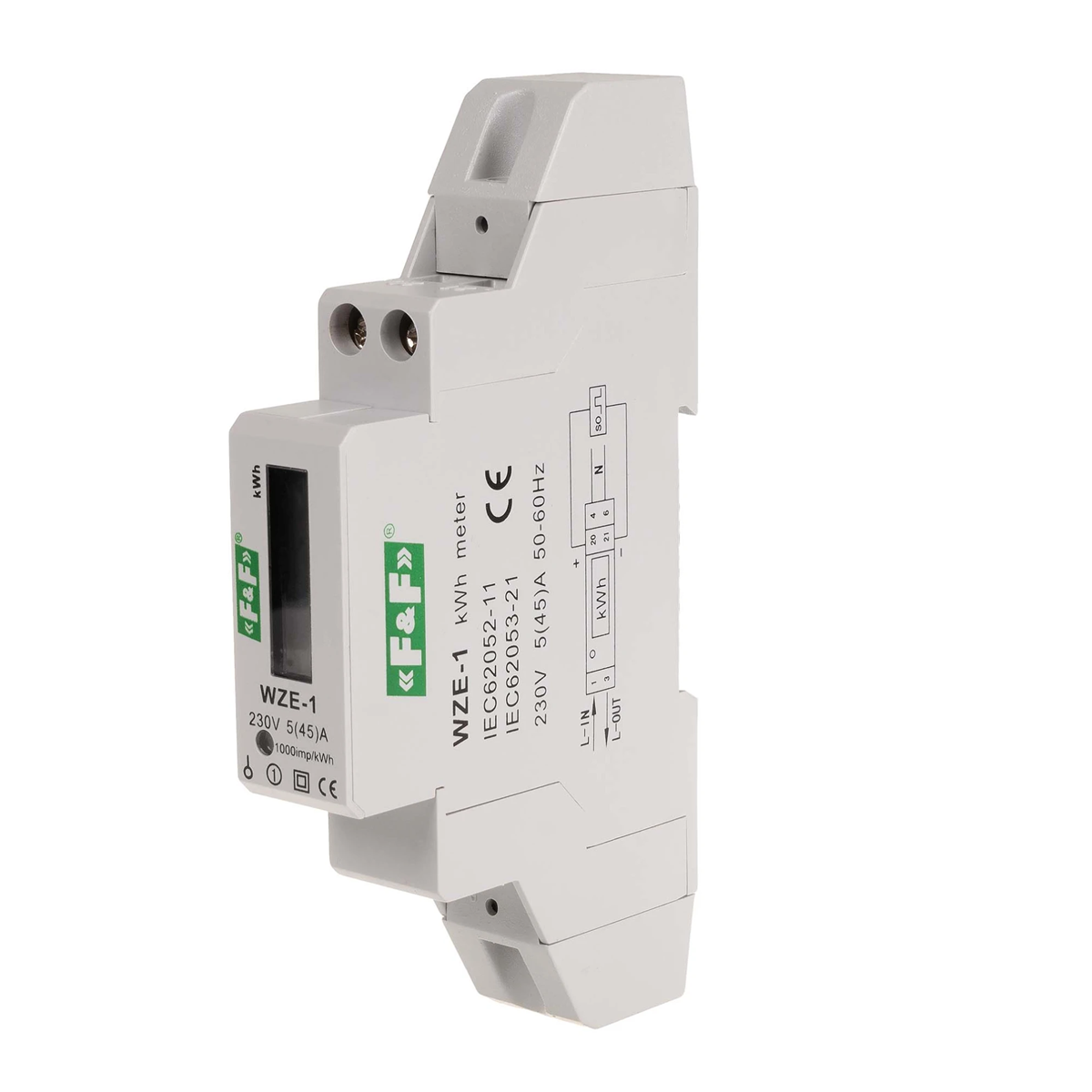

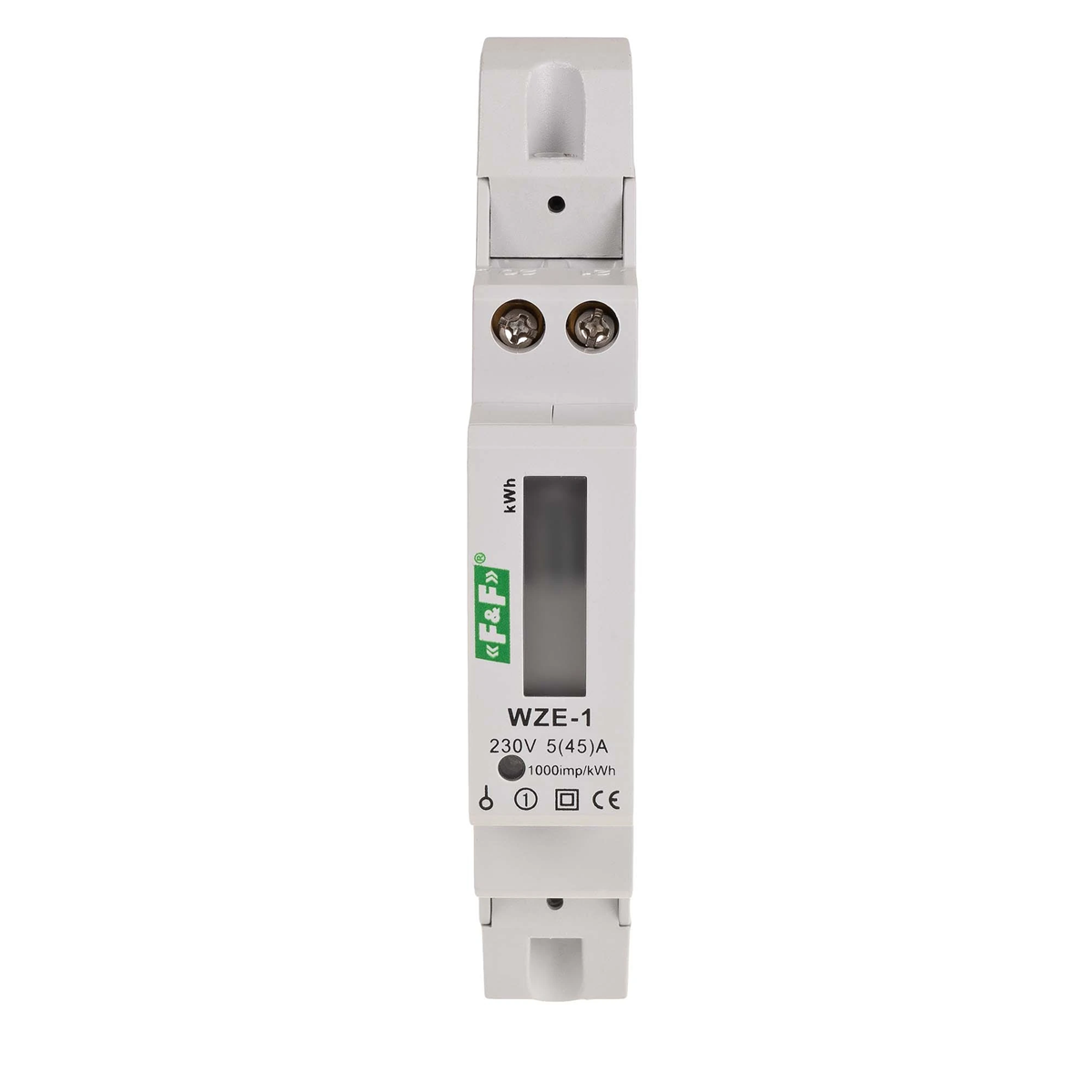

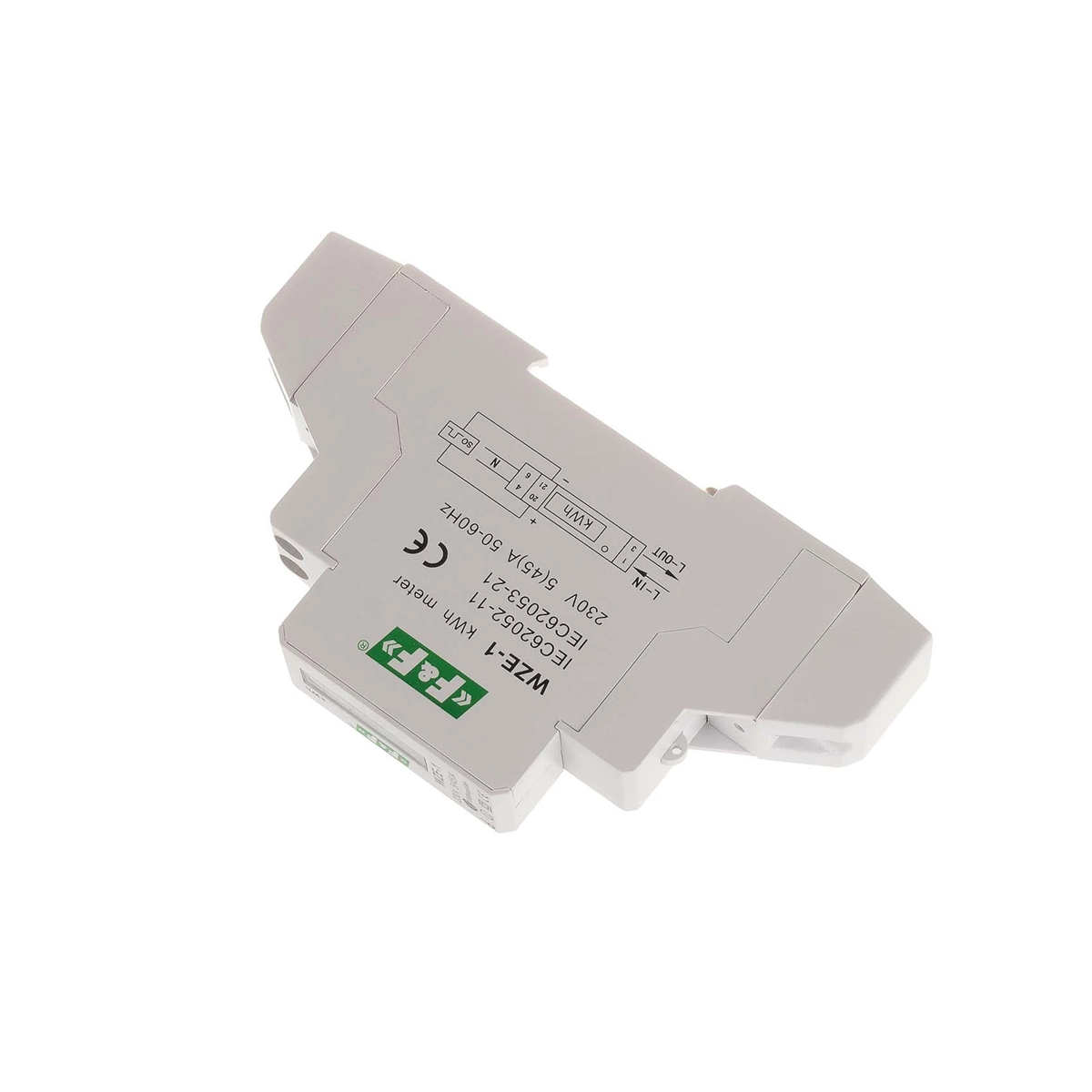

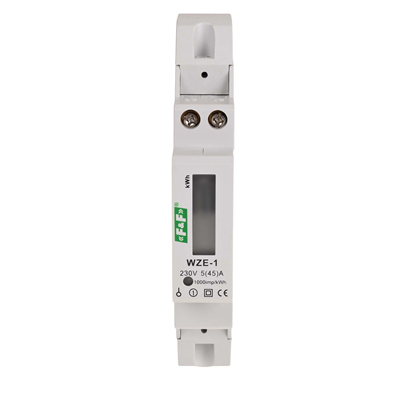

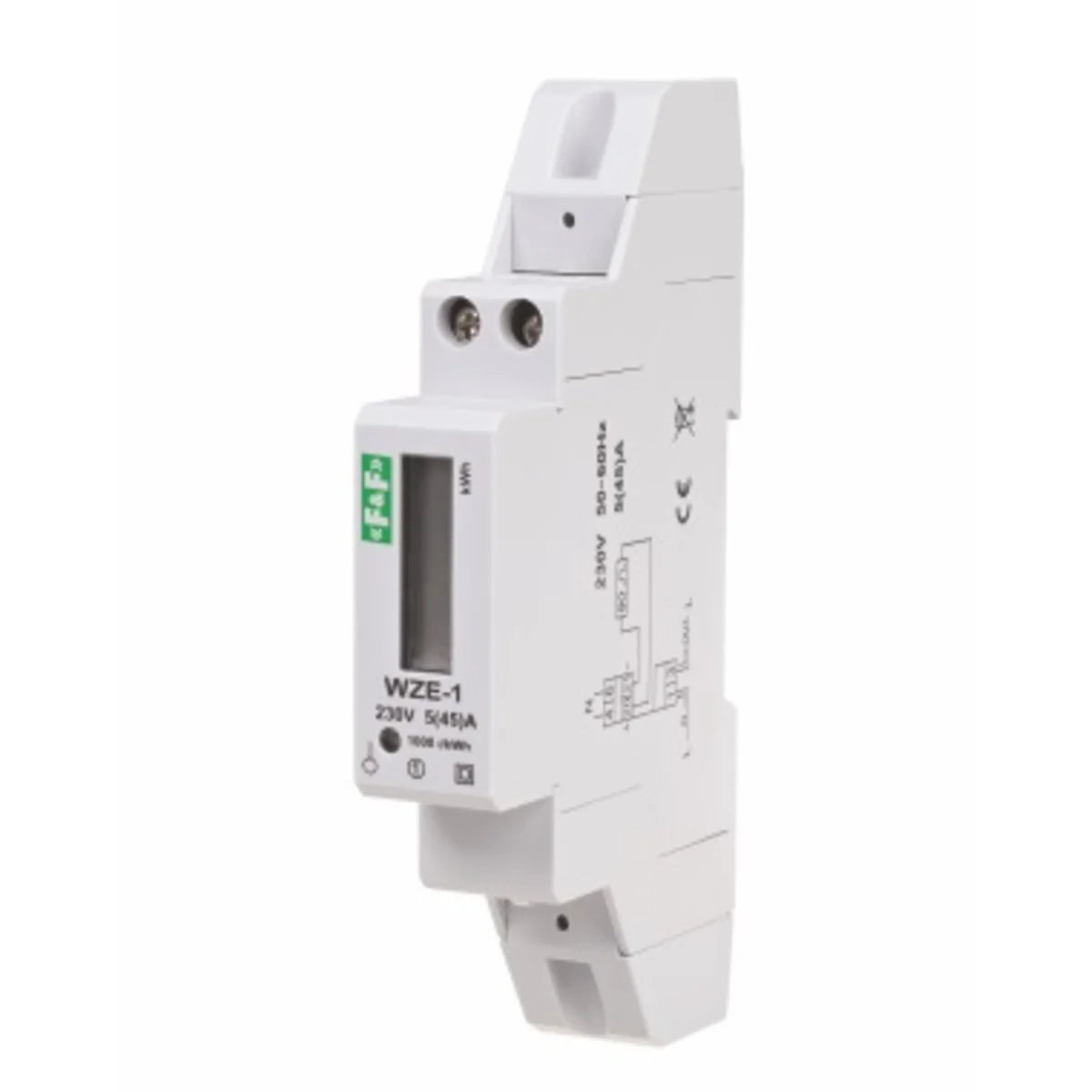

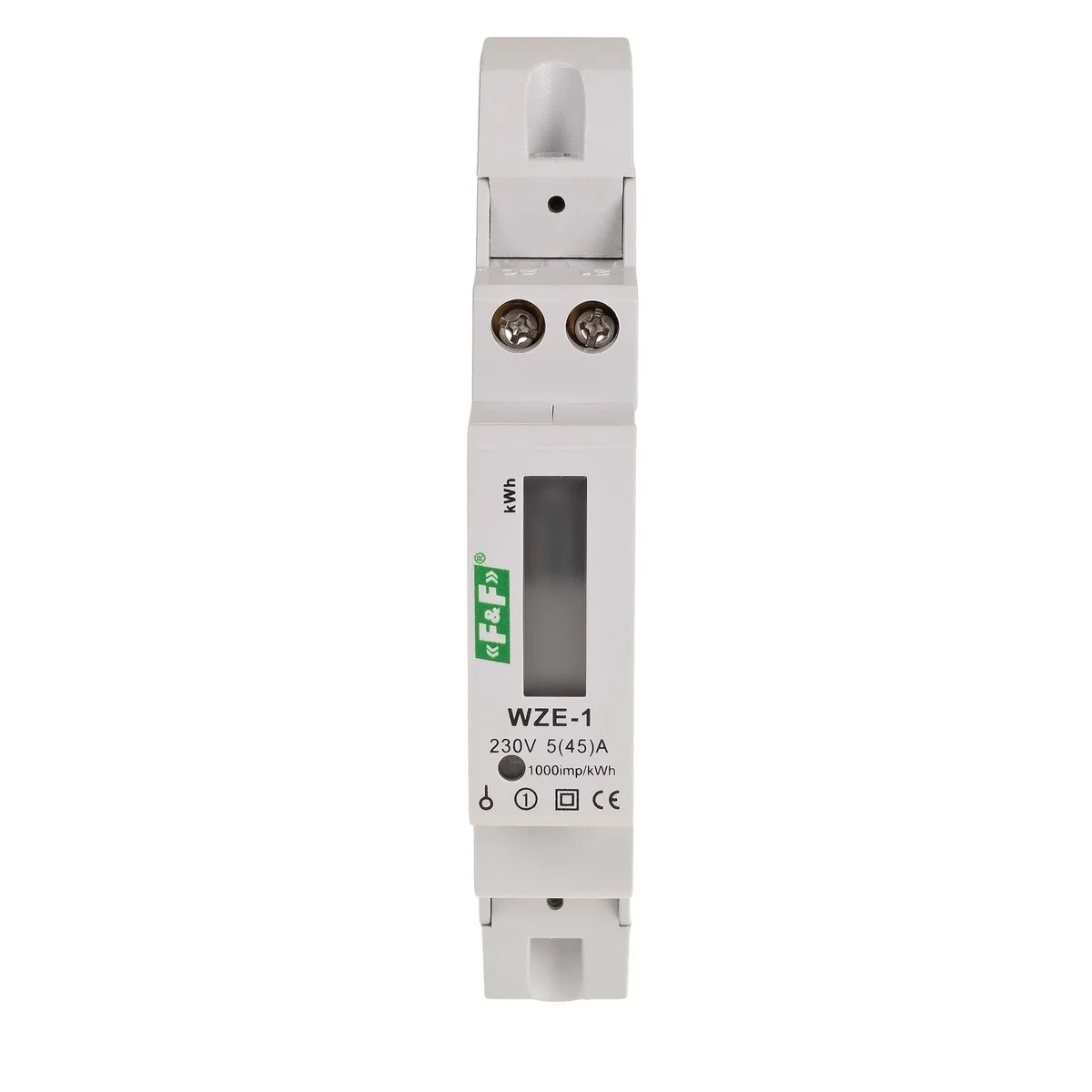

WZE-1 is a static (electronic), calibrated indicator single-phase alternating current electricity in a direct system.

reference voltage      230V AC 50Hz
base current*     0.25÷5A
maximum current*     45A
minimum current*     0.02A
accuracy class     B (1)
download your own indicator      <8VA; <0.4W
indication range     0÷99999.99kWh
indicator constant     (1Wh/imp)  1000imp/kWh
kWh reading signaling     LED red
pulse output SO+ SO-     open collector
connection voltage SO+ SO-     <27V DC
connection current SO+ SO-     <27mA
constant SO+ SO-     (1Wh/imp)  1000imp/kWh
impulse time SO+ SO-     90ms
length of SO+ SO-     <20m
operating temperature     -25÷55°C
connection     6mm screw terminals²
dimensions     1 module (18mm)
assembly     on TH-35mm rail
protection grade     IP20

Operation
Special electronics for under the influence of the flowing current and the applied voltage, it generates impulses in an amount proportional to the electricity consumed. Energy consumption is signaled by blinking LED. The number of pulsesóis converted into consumed energy, and its value is indicated  through a segmented LCD display. Decimal places are hundredths (.01 kWh = 10Wh).


Attention!The indicator has a pulse output SO+ - SO-. This allows to connect another impulse device (SO) reading the impulses generated by the indicator. For the correct operation of the indicator, it is not required to connect an additional device.
The indicator has the option of sealing the covers of the terminals  inputs and outputs preventing the counter from being bypassed.



Technical data

  • Fixing
    screw terminals
  • Rated voltage [V]
    230
  • Level of security
    IP20
  • Number of modules
    1
  • Installation
    On the TH-35 rail
  • Rated current [A]
    45
  • Module width [mm]
    18
  • PKWIU
    26.51.63.0

Other technical data

  • Type of meter
    Electronic
  • Pole type
    Single phase
  • Energy type
    Effective power
  • Tariff type
    One-tariff
  • Escapement mechanism
    No
  • Approval
    Domestic
  • Pulse type
    S0
  • Mounting method
    DRA (DIN-rail adapter)
  • With lock code
    No
  • Max. current (Imax)
    45 A
  • Model
    Direct measurement
  • Suitable for
    Purchase
  • Measurement type load profile
    No
  • Calibrated
    No
  • Pulse output
    Electrical
  • Type of indication
    Digital
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP20
