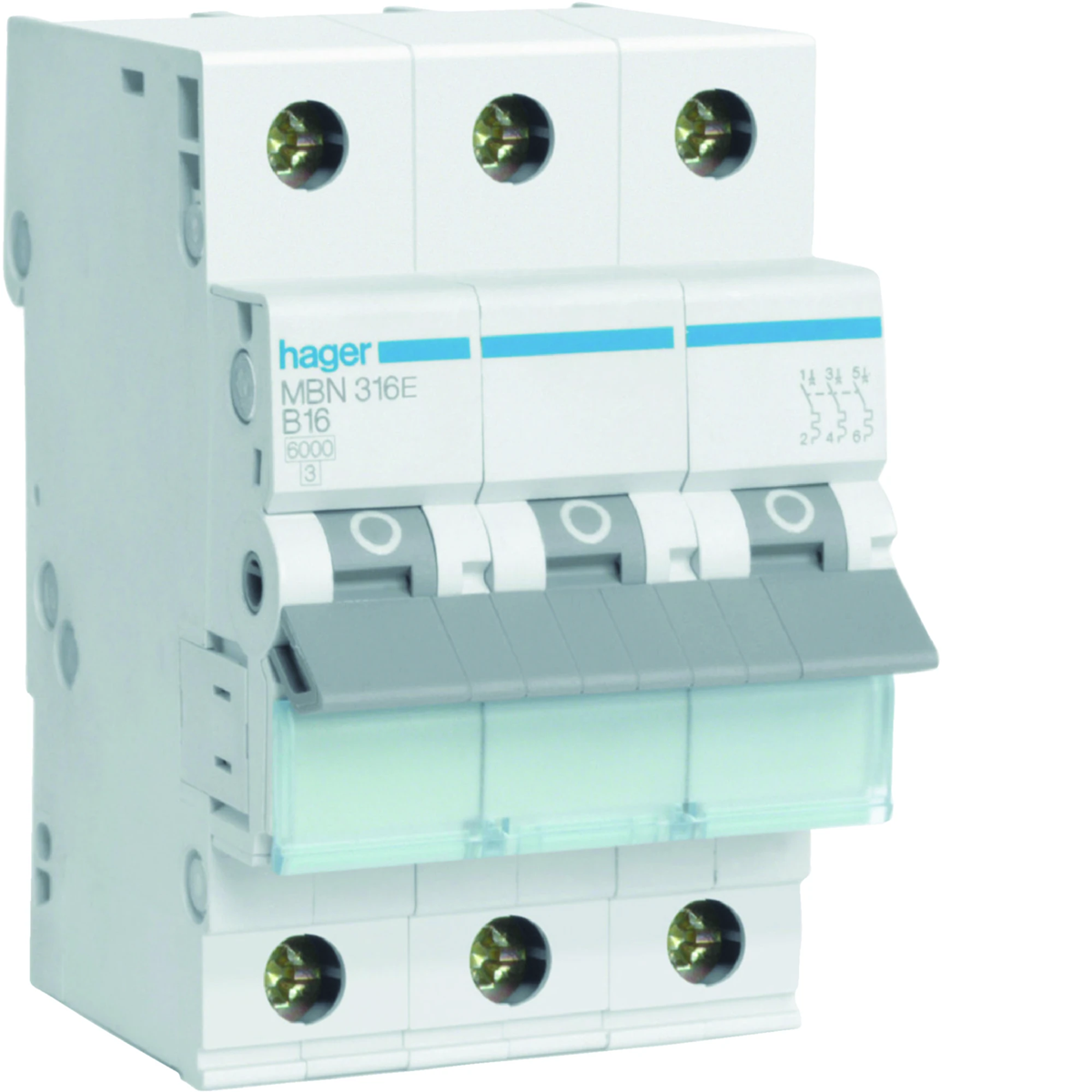

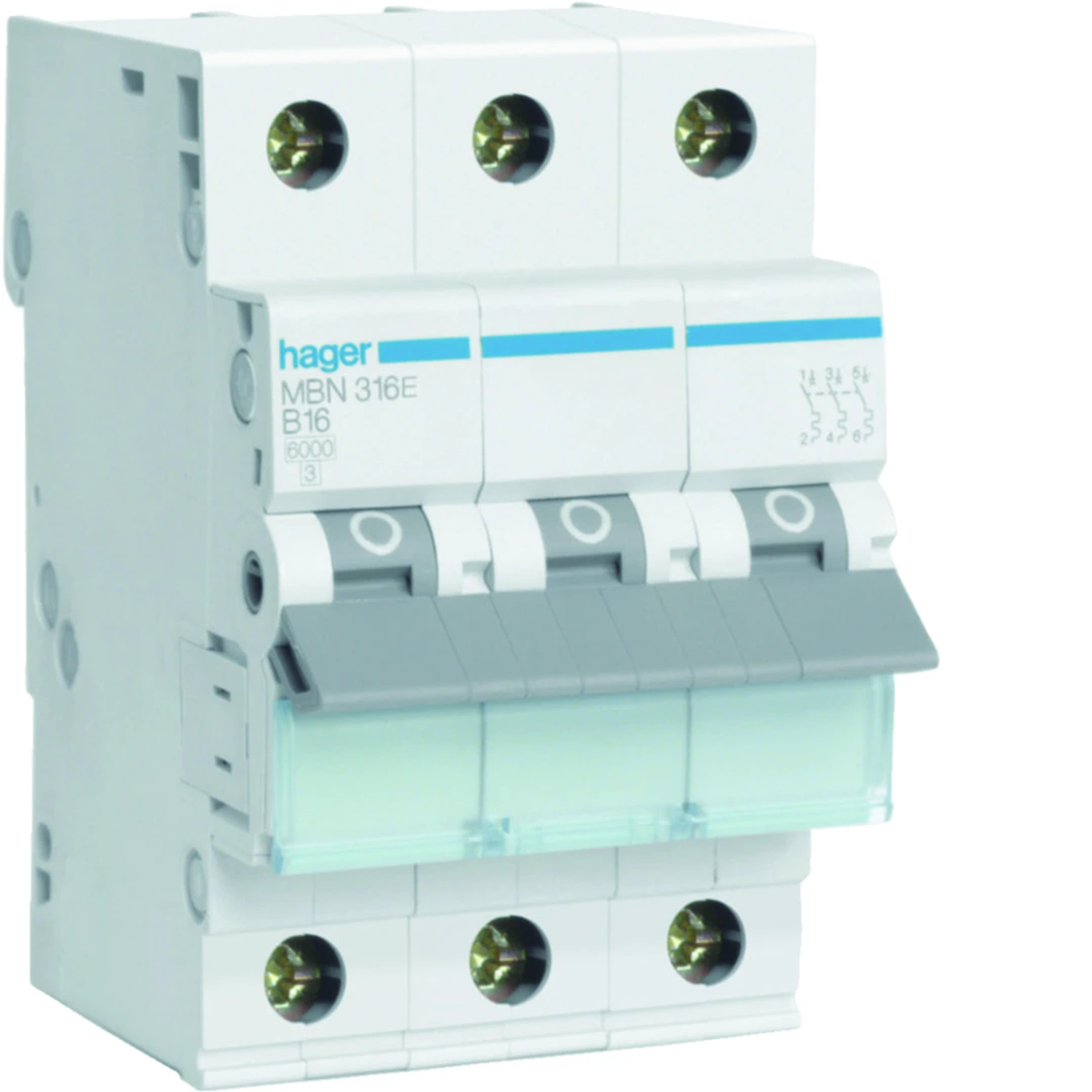

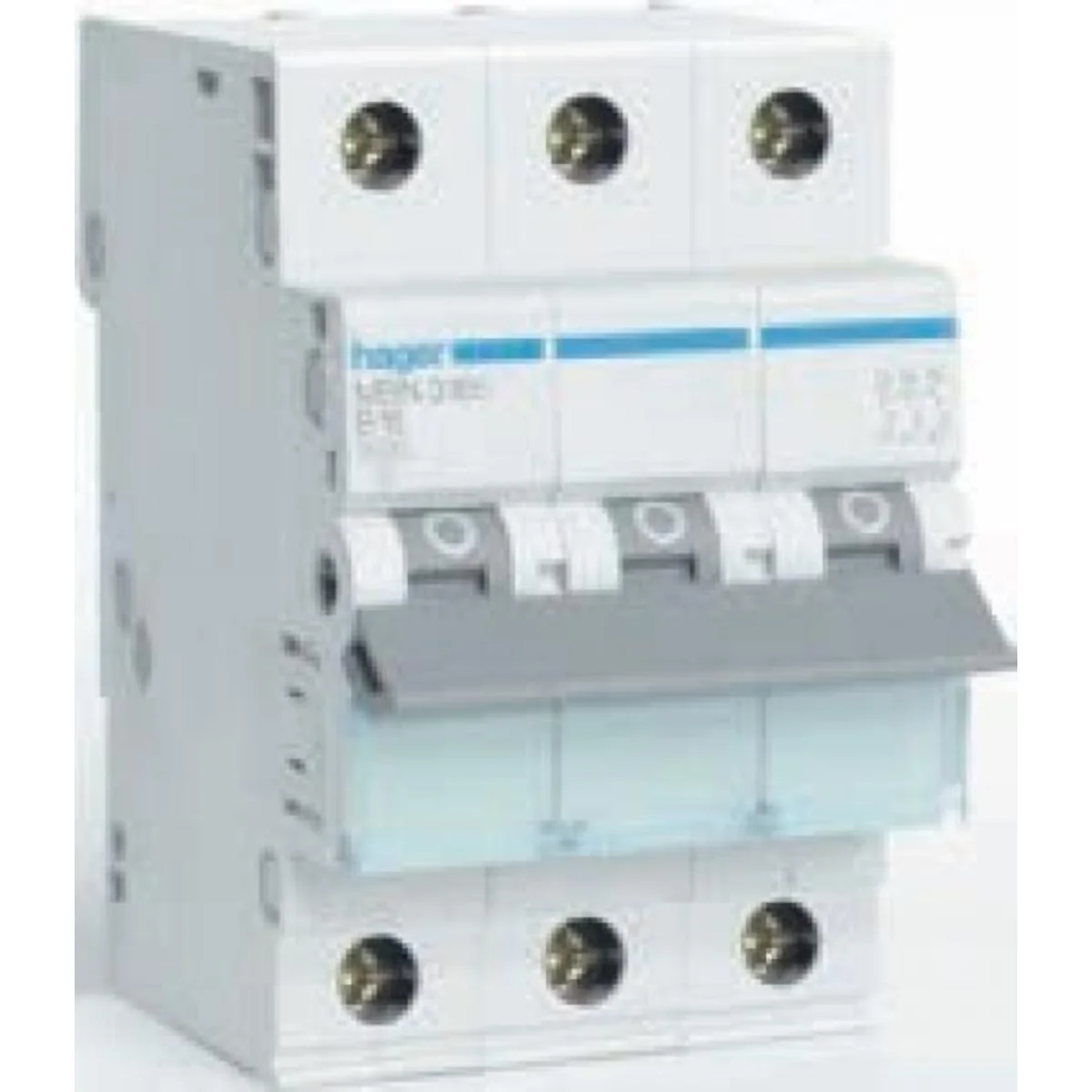

Miniature circuit breaker 6kA B 3-pole 16A MBN316E

Lokaler Index:
ABB151HAGE
Katalognummer:
MBN316E
EAN-Code:
3250614313066
Hersteller: HAGER
Characteristic: b
Depth [mm]: 70
Number of modules: 3
Preis:
16,56 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
Zugänglich 207 stk.
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

Circuit breakers 0.5 - 16A. Type B Rated short-circuit breaking capacity 6000 A
• rated short-circuit switching capacity: 6000 A, in accordance with PN-EN 60898-1,
• energy limitation class: 3,
• rated operational voltage: 230/400 V AC - single-pole circuit breaker, 400 V AC - multi-pole circuit breaker,
• can be used in DC circuits,
• wide range of accessories,
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals: wire up to 25 mm2, stranded up to 16 mm2,
• description field with a safety flap,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Technische Daten

  • Characteristic
    b
  • Number of modules
    3
  • Rated insulation voltage [V]
    500
  • Power dissipation [W]
    7.68
  • Height [mm]
    83
  • PKWIU
    27.12.22.0
  • Depth [mm]
    70
  • Number of poles
    3
  • Rated current [A]
    16
  • Width [mm]
    52.5
  • Number of modules
    3

Weitere technische Daten

  • Built-in depth
    70 mm
  • Number of poles (total)
    3
  • Rated current
    16 A
  • Rated insulation voltage Ui
    500 V
  • Voltage type
    AC
  • Frequency
    50 ... 60 Hz
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    2
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Release characteristic
    B
  • Number of protected poles
    3
  • Rated voltage
    400 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    6 kA
  • Current limiting class
    3
  • Over voltage category
    3
  • Width in number of modular spacings
    3
  • Ambient temperature during operating
    -25 ... 70 °C
  • Connectable conductor cross section solid-core
    1 ... 35 mm²

Hersteller-Details

  • Hersteller
    HAGER POLO Sp. z o. o.
  • Adresse
    43-100 Tychy Fabryczna 10
  • Steueridentifikationsnummer
    6460015532

Großpackungen

Eine Art Paket Karton Pakiet Paleta Karton Pakiet Paleta
Menge 4 stk. 48 stk. 1152 stk. 4 stk. 48 stk. 1152 stk.
Gewicht (kg) 1,110 13,737 352,688 1,110 13,737 352,688
Breite (m) 0,097 0,321 0,800 0,097 0,321 0,800
Länge (m) 0,084 0,234 1,086 0,084 0,234 1,086
Tiefe (m) 0,225 0,371 1,200 0,225 0,371 1,200
