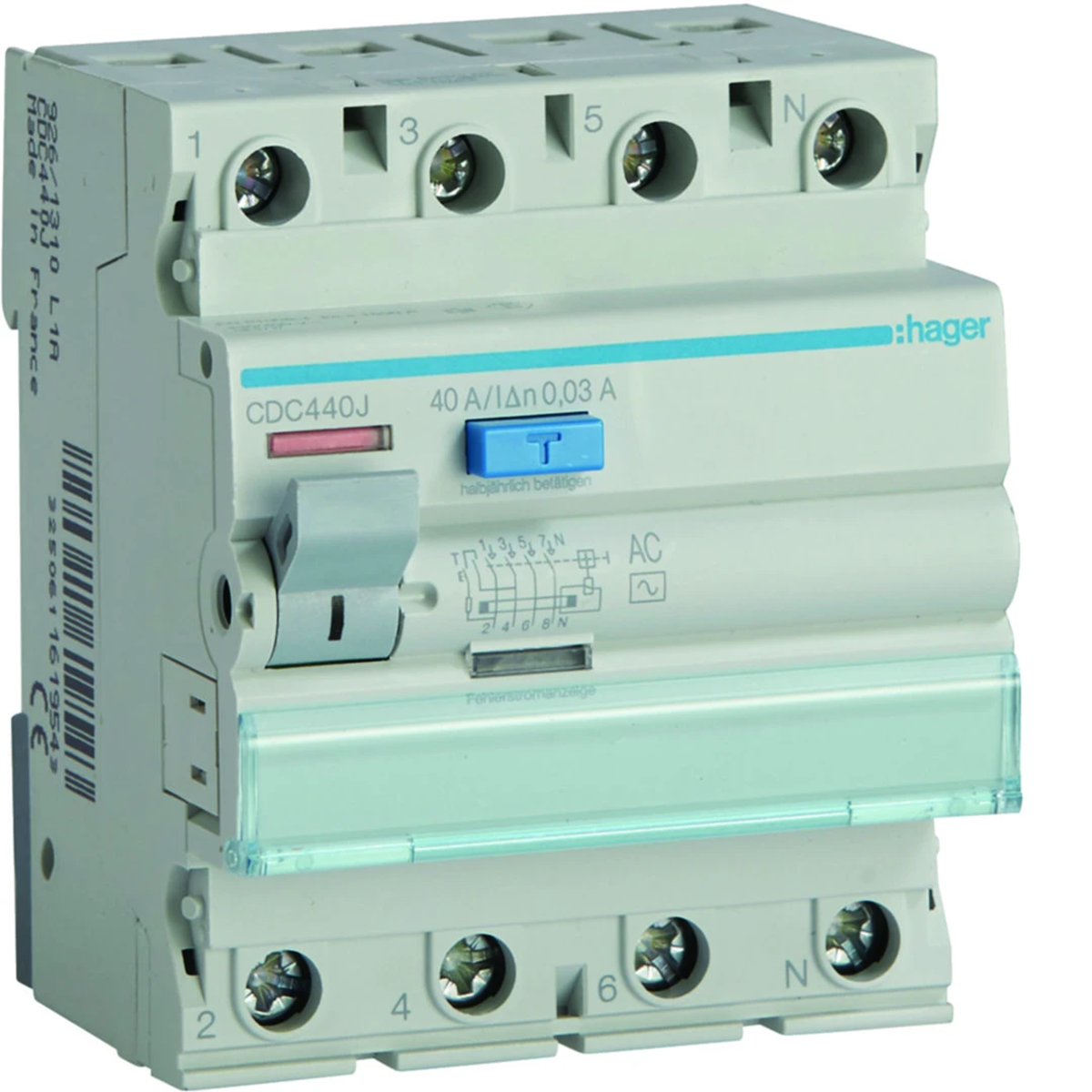

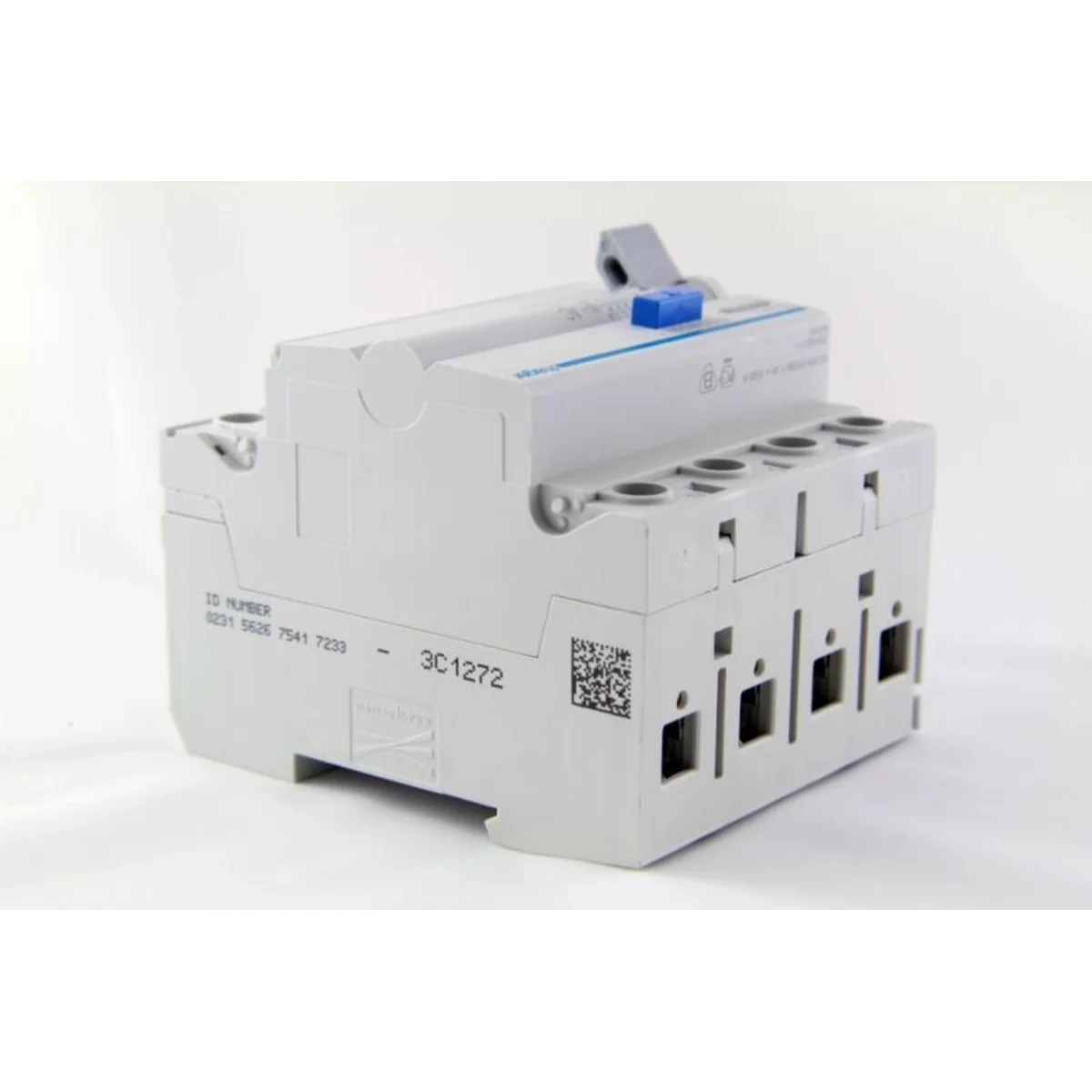

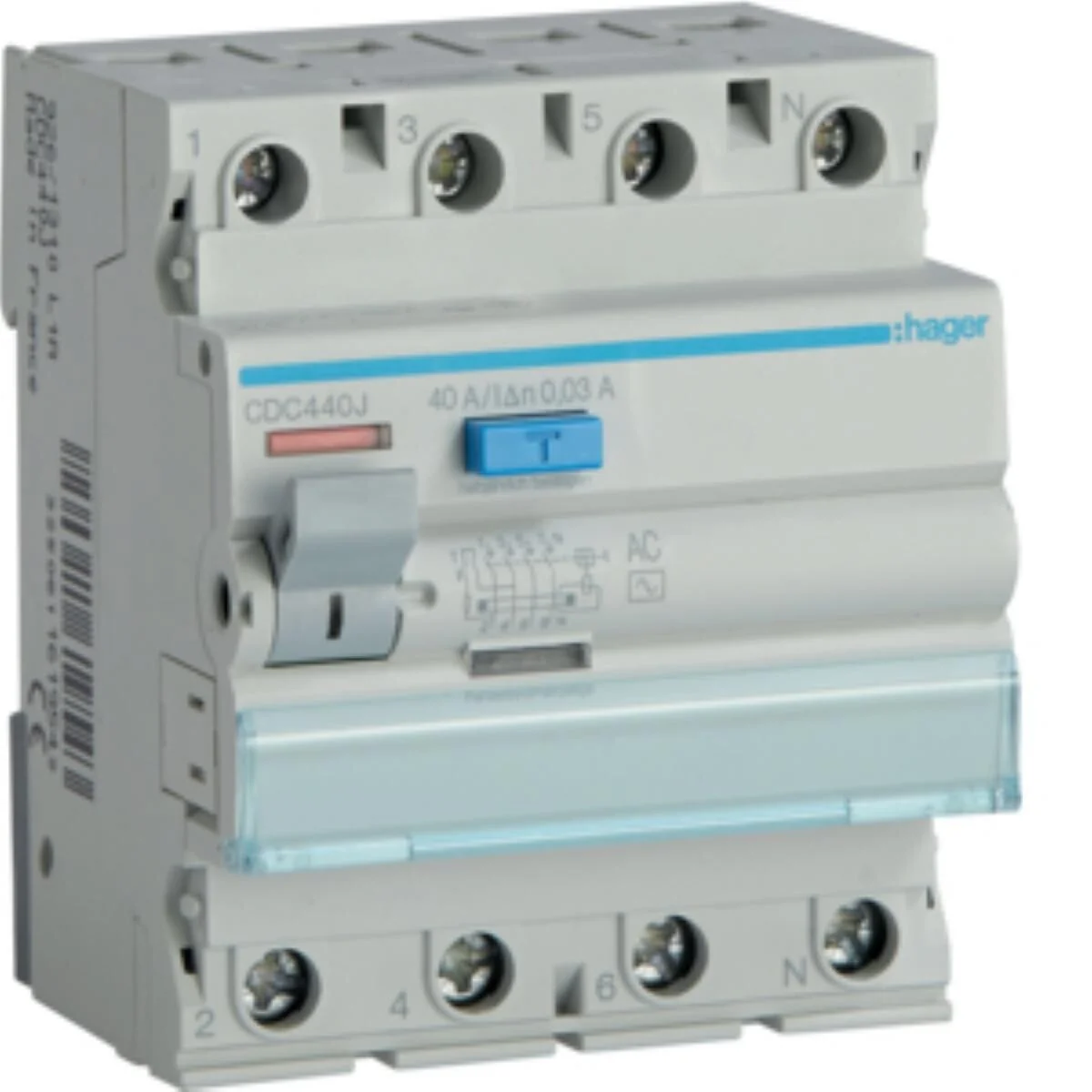

4P 40A 30mA RCD CDC440J

local index:
ARP232HAGE
Catalog No:
CDC440J
EAN code:
3250611619543
Manufacturer: HAGER
Depth [mm]: 70
Number of poles: 4
Rated insulation voltage [V]: 900
Price:
40,34 €
gross / pcs.
(including VAT 23%)
Last lowest price: 40,34 € gross
Base price: 87,72 € gross -54%
Delivery in 3h
Accessible 164 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description


The task of the residual current device is to protect people, animals and objects in direct or indirect contact with electricity. Residual current devices also guarantee fire protection, as they monitor the condition of the insulation and disconnect the power supply when leakage currents occur. In the event of an earth fault, when the short-circuit current exceeds the sensitivity of the residual current device, the device automatically switches off the damaged part of the electrical installation within 0.2 seconds. It has a trip indicator and  optical ON/OFF status indicator. Possibility of adding additional equipment. Ambient temperature -25 to +40°C.

Technical data

  • Depth [mm]
    70
  • Rated insulation voltage [V]
    900
  • Rated current [A]
    40
  • Width [mm]
    70
  • Short-circuit switching capacity [kA]
    6
  • PKWIU
    27.12.23.0
  • Number of poles
    4
  • Differential current [mA]
    thirty
  • Level of security
    IP40
  • Height [mm]
    83
  • Breakdown voltage [V]
    900

Other technical data

  • Number of poles
    4
  • Rated current
    40 A
  • Rated insulation voltage Ui
    500 V
  • Mounting method
    DIN rail
  • Selective protection
    No
  • Short-circuit breaking capacity (Icw)
    6 kA
  • With interlocking device
    No
  • Additional equipment possible
    Yes
  • Width in number of modular spacings
    4
  • Ambient temperature during operating
    -25 ... 40 °C
  • Connectable conductor cross section multi-wired
    1 ... 16 mm²
  • Rated voltage
    400 V
  • Rated fault current
    30 A
  • Rated impulse withstand voltage Uimp
    4 kV
  • Leakage current type
    AC
  • Short-time delayed tripping
    No
  • Surge current capacity
    0.25 kA
  • Frequency
    50 Hz
  • Degree of protection (IP)
    IP20
  • Built-in depth
    70 mm
  • Pollution degree
    2
  • Connectable conductor cross section solid-core
    1 ... 25 mm²

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 864 pcs.
Weight (kg) 0,320 0,335 12,440 323,560
Width (m) 0,070 0,080 0,315 0,800
Length (m) 0,085 0,075 0,210 1,118
Depth (m) 0,073 0,095 0,360 1,200
