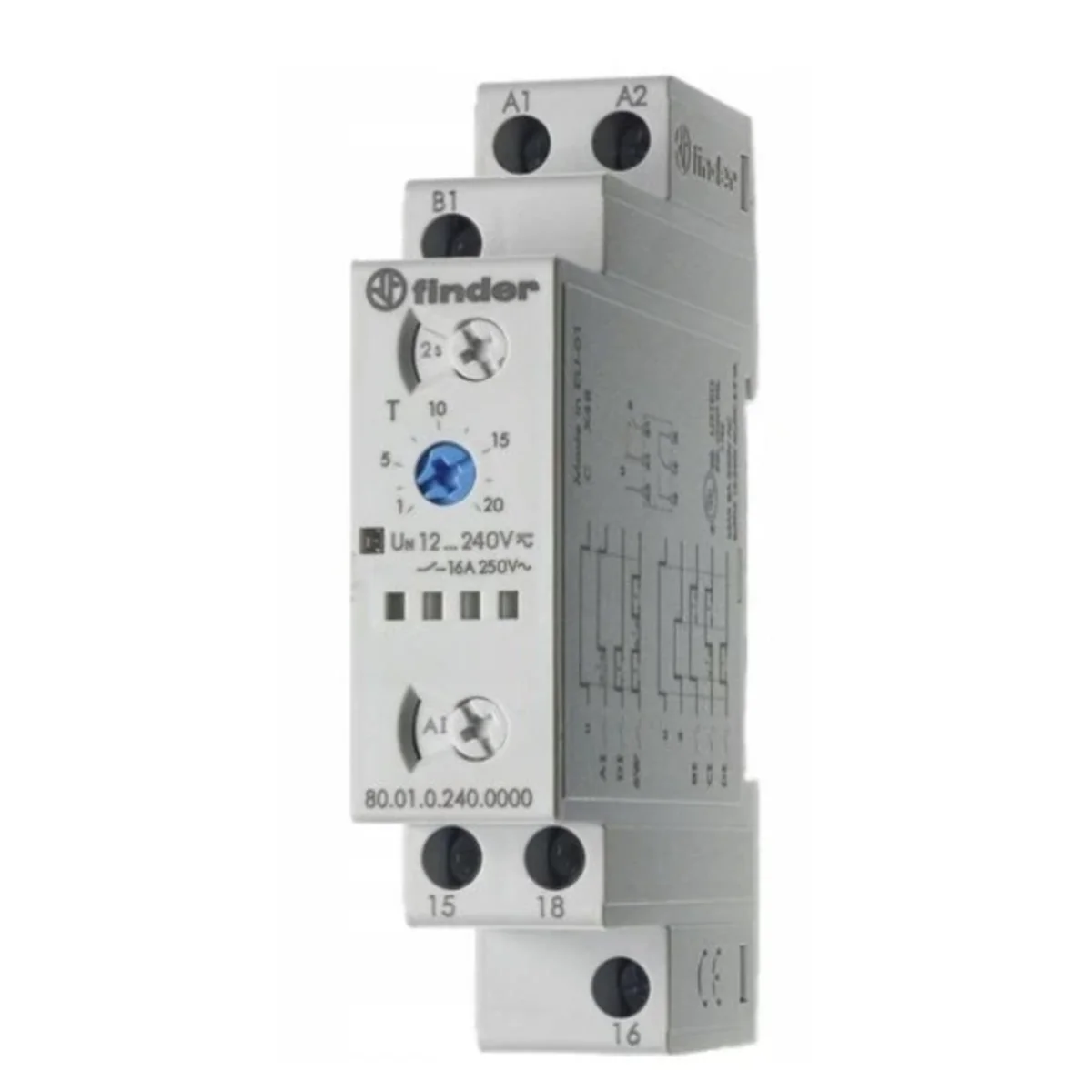

SERIES 80 Time relay 1CO 16A 12-240V AC/DC 800102400000PAS

Modular time relay 16 A from the 80 series, from the manufacturer FINDER. The product part number is 80.01.0.240.0000PAS.

• Multifunctional,
• Universal voltage.
• Selectable six time scales from 0.1s to 24h.
• High isolation between input and output.
• Mounted on 35mm DIN rail (EN 60715).
• Both a flathead and a Phillips screwdriver can be used to set functions and time ranges, fill ranges, and release the mounting clip on the rail.
• Universal power supply using PWM technology.< /li>
• AI: Activation after the set time.
• DI: Switching on for the set time.
• SW: Cyclic, symmetrical operation starts with switching on.
• BE: Delayed disconnection - timing from the negative edge of the control pulse.
• CE: Delayed on (positive edge) and off (negative edge).
• DE : Delayed disconnect - timing from the positive edge of the control pulse.
• Coil data:
  • Rated voltage (UN): 12…240 V.
  • Pobó r power AC/DC VA (50 Hz)/W: < 1.8/< 1.
  • Supply voltage range: 10.8…265 V.
  < /ul>
  • Time ranges (0.1…2)s, (1…20)s, (0.1…2)min, (1…20)min, (0.1…2)h, (1…24)h.
  • Repeatability: ± 1 %.
  • Playback time: 100 ms.
  • Accuracy range: ± ; 5 %.
