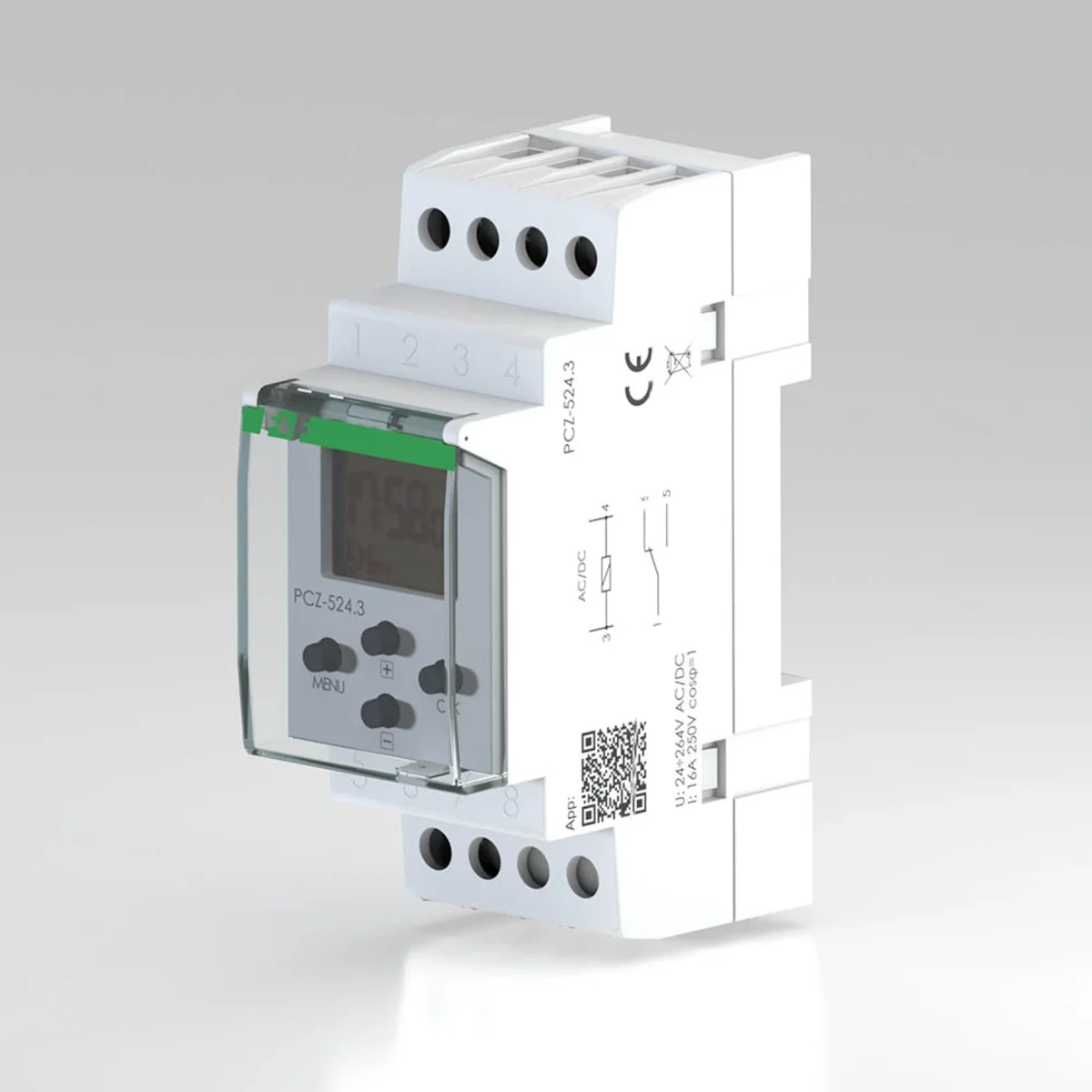

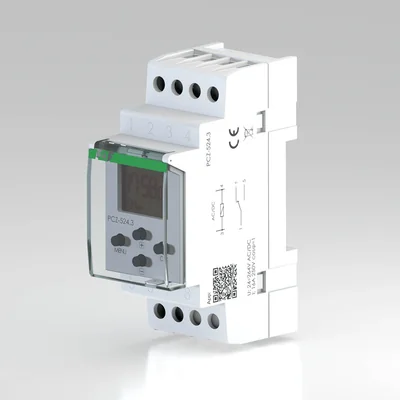

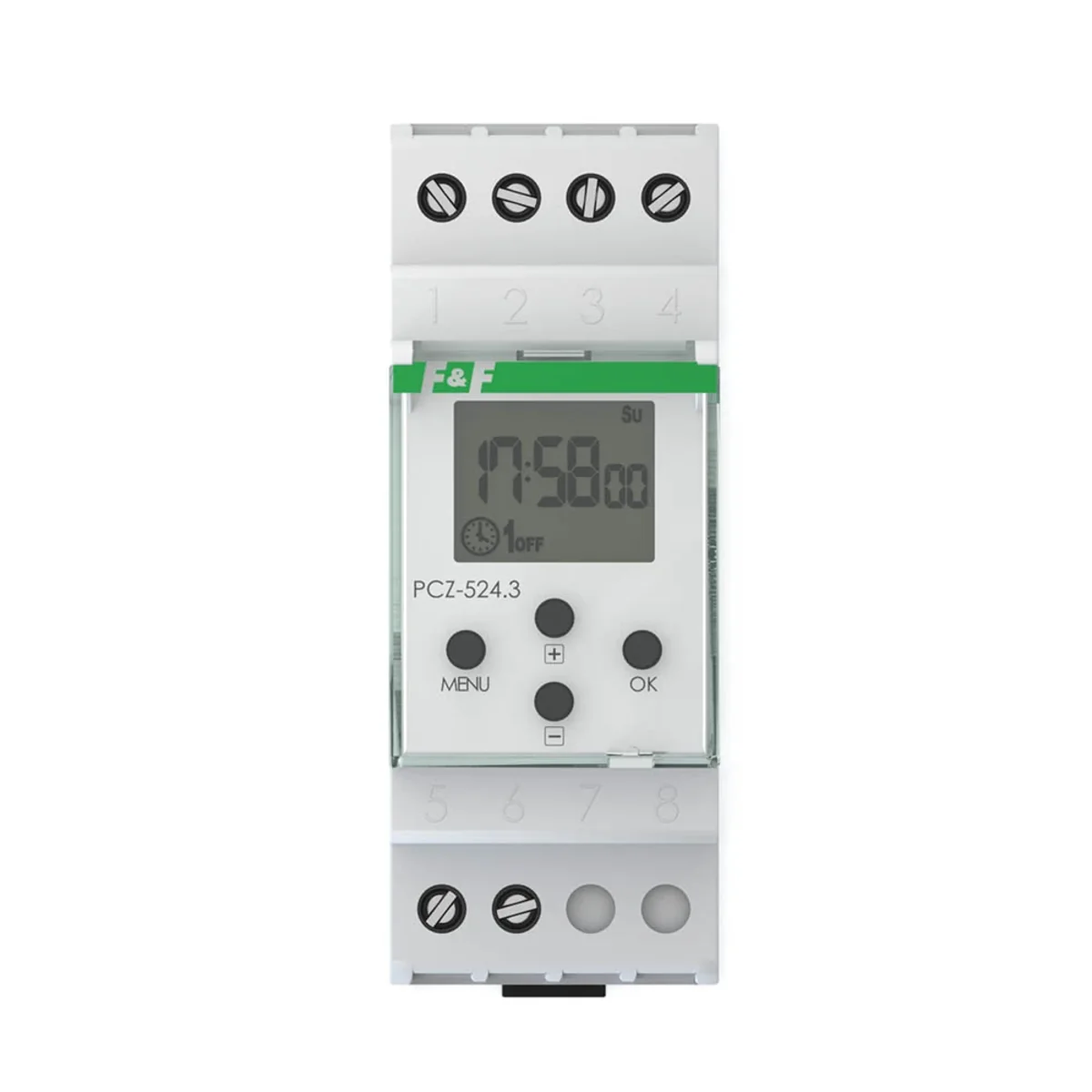

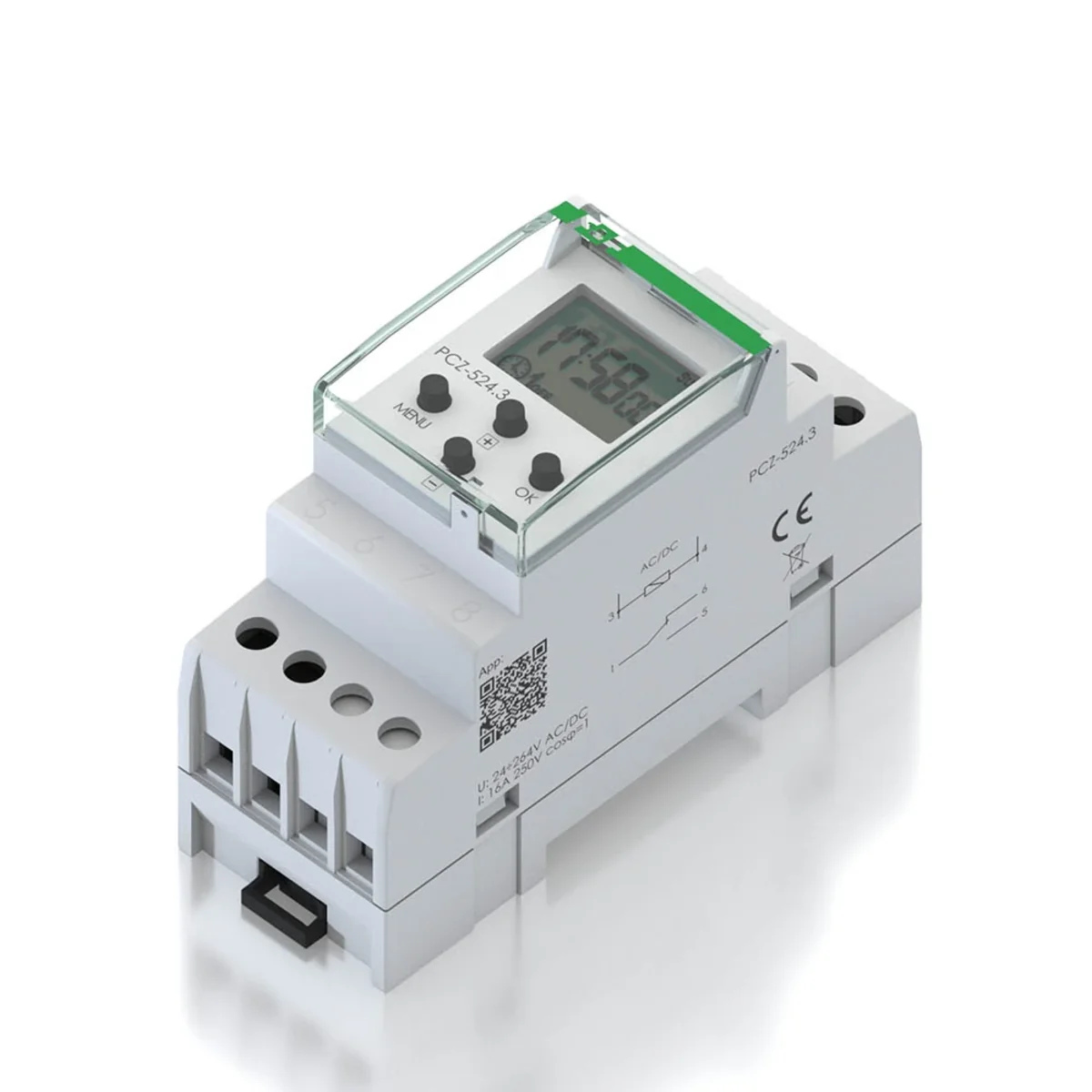

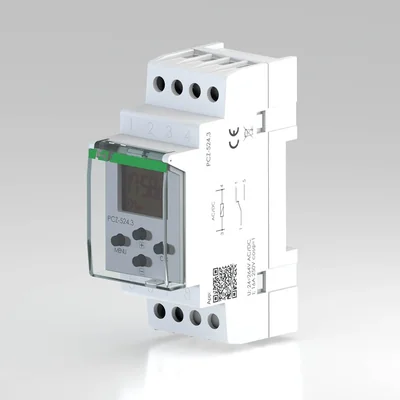

Programmable control clock - astronomical PCZ-524 PCZ-524

local index:
APC174FIFQ
Catalog No:
PCZ-524
EAN code:
5908312596295
Manufacturer: F&F
Time error: 1s/24h
Display backup time: Lack
Clock back-up time: 6 years (lithium battery)
Price:
70,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 24 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Purpose
The astronomical clock is used to switch on and off lighting or other electrical receivers according to the daily, astronomical points of sunset and sunrise. Operation
The astronomical clock, based on information about the current date, geographic coordinates of its installation location (LOCATION) and HOUR SHIFT relative to universal time (Greenwich UT), automatically sets the daily time points of switching on and off the clock contact in accordance with the astronomical times of sunrise and sunset. Time points of switching on and off can be configured by the user by means of HOUR SHIFT and TIME CORRECTION, i.e. it is possible to accelerate or delay the programmed points of switching on and off (separately the switching point and the switching point separately) in relation to sunset and sunrise . Between the programmable switch-on and switch-off points, it is possible to program a night break, i.e. temporary switching off of receivers for saving purposes.

Technical data

  • Time error
    1s/24h
  • Clock back-up time
    6 years (lithium battery)
  • Setting accuracy
    1min
  • On and off time correction [min]
    0-99
  • Installation
    On the TH-35 rail
  • screw connection
    2.5mm screw terminals
  • Dimensions
    2 modules (35mm)
  • Package height [mm]
    150
  • Package weight [kg]
    0.2
  • PKWIU
    26.52.24.0
  • Display backup time
    Lack
  • Accuracy [min]
    1min
  • Number of contacts
    0NO 0NC
  • Power [W]
    1.5
  • load current [A]
    <16
  • Working temperature [°C]
    -20-50
  • Power
    24-264V AC/DC
  • Package width [mm]
    40
  • Accuracy [s]
    1

Other technical data

  • Mounting method
    DIN rail
  • Supply voltage
    24 ... 264 V
  • Accuracy per day
    1 s
  • With memory card
    No
  • 24 h program
    Yes
  • Annual program
    No
  • Cycle program
    Yes
  • Quartz controlled
    Yes
  • Radio-controlled (DCF77)
    No
  • Contact type
    Change-over contact (NO/NC)
  • Shortest switching time channel 2
    1 min
  • Automatic switching summer-/winter time
    Yes
  • External pushbutton input
    Yes
  • Degree of protection (IP)
    IP20
  • Number of channels
    1
  • Voltage type (supply voltage)
    AC/DC
  • External programming
    Yes
  • 60 min program
    Yes
  • Weekly program
    Yes
  • Impulse program
    Yes
  • Astro program
    Yes
  • Radio-controlled
    No
  • GPS (global positioning system)
    No
  • Shortest switching time channel 1
    1 min
  • Number of memory locations
    500
  • Suitable for manual operation
    Yes
  • Nominal switching current at 250 V AC
    16 A
  • Width in number of modular spacings
    2
