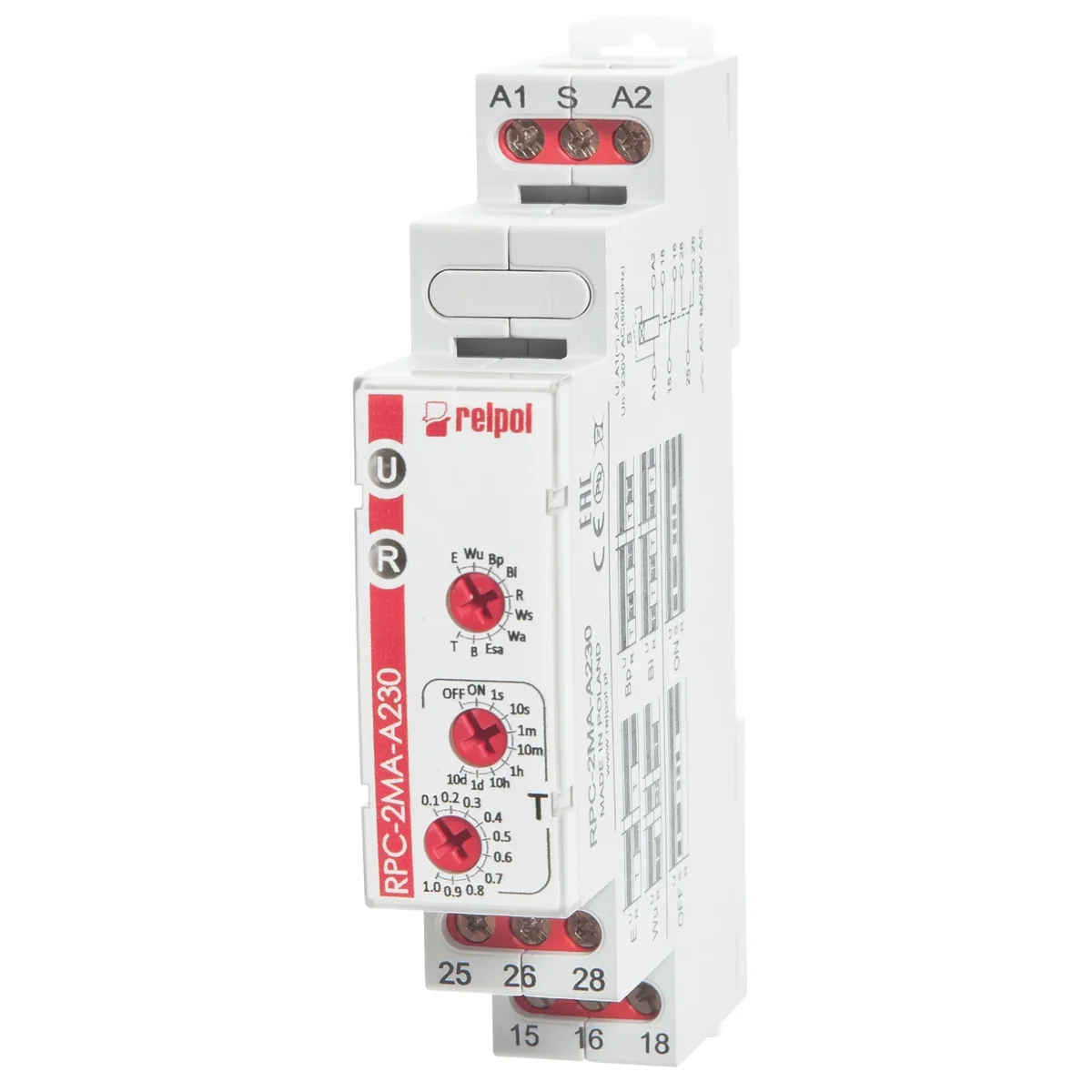

Time Relay 230V AC 1P AgSnO2 8A / 250V AC 863200
local index:
APC055RELP
Catalog No:
863200
EAN code:
5900005230783
Price:
33,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Multifunctional time relay - 10 time functions E, Wu, Bp, Bi, Ra, Wst, Wi, Esf, Esp, Est;
Technical data
-
ColorGray
-
Width [mm]17.5
-
Terminal typescrew terminals
-
InstallationOn the TH-35 rail
-
Height [mm]90
Other technical data
-
Type of electric connectionScrew connection
-
Function delay on de-energizationYes
-
Function floating contact on de-energizationYes
-
Function pulse shapingNo
-
Function flashing, starting with pulse, fixed timeYes
-
Clock function, starting with pulse, variableYes
-
Remote operation possibleNo
-
Pluggable on auxiliary contact blockNo
-
Rated control supply voltage AC 60 Hz230 ... 230 V
-
Nominal current16 A
-
Number of outputs, undelayed, change-over contact1
-
Outputs, reversible delayed/undelayedNo
-
Suitable for DIN rail (top hat rail) mountingYes
-
Height90 mm
-
Function delay-on energizationYes
-
Function floating contact on energizationYes
-
Function star-deltaNo
-
Function flashing, starting with pause, fixed timeYes
-
Clock function, starting with pause, variableYes
-
Z gniazdem wtykowymNo
-
Suitable as remote controlNo
-
Rated control supply voltage AC 50 Hz230 ... 230 V
-
Voltage type for actuatingAC
-
Time range0.1 ... 864000 s
-
Number of outputs, delayed, change-over contact1
-
With semiconductor outputNo
-
Width17.5 mm
-
Depth64.5 mm
Manufacturer details
-
ManufacturerRELPOL S.A.
-
Address68-200 Żary 11 Listopada 37
-
Phone number
-
E-mail
-
Tax identification number9280007076
-
GLN5909000713000
