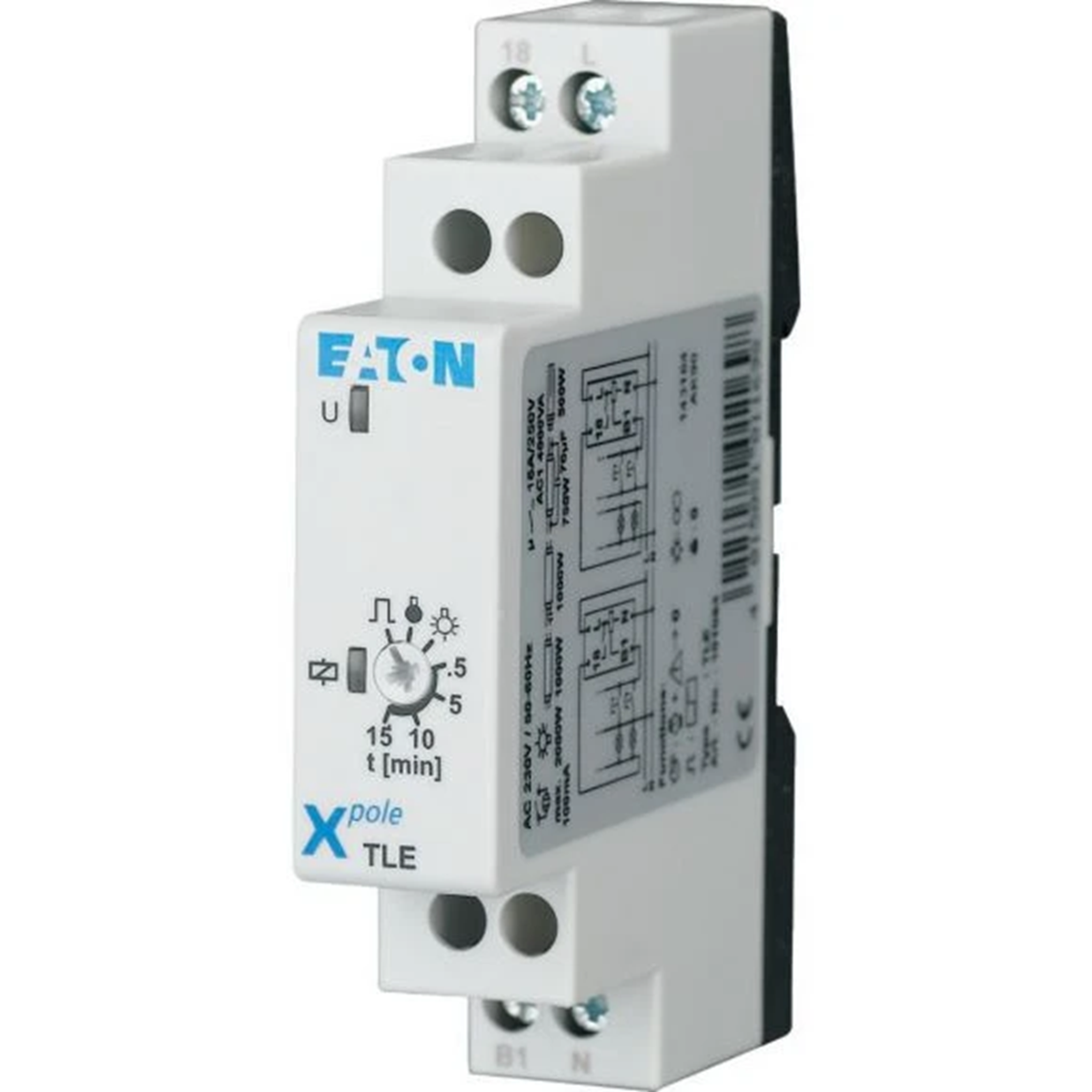

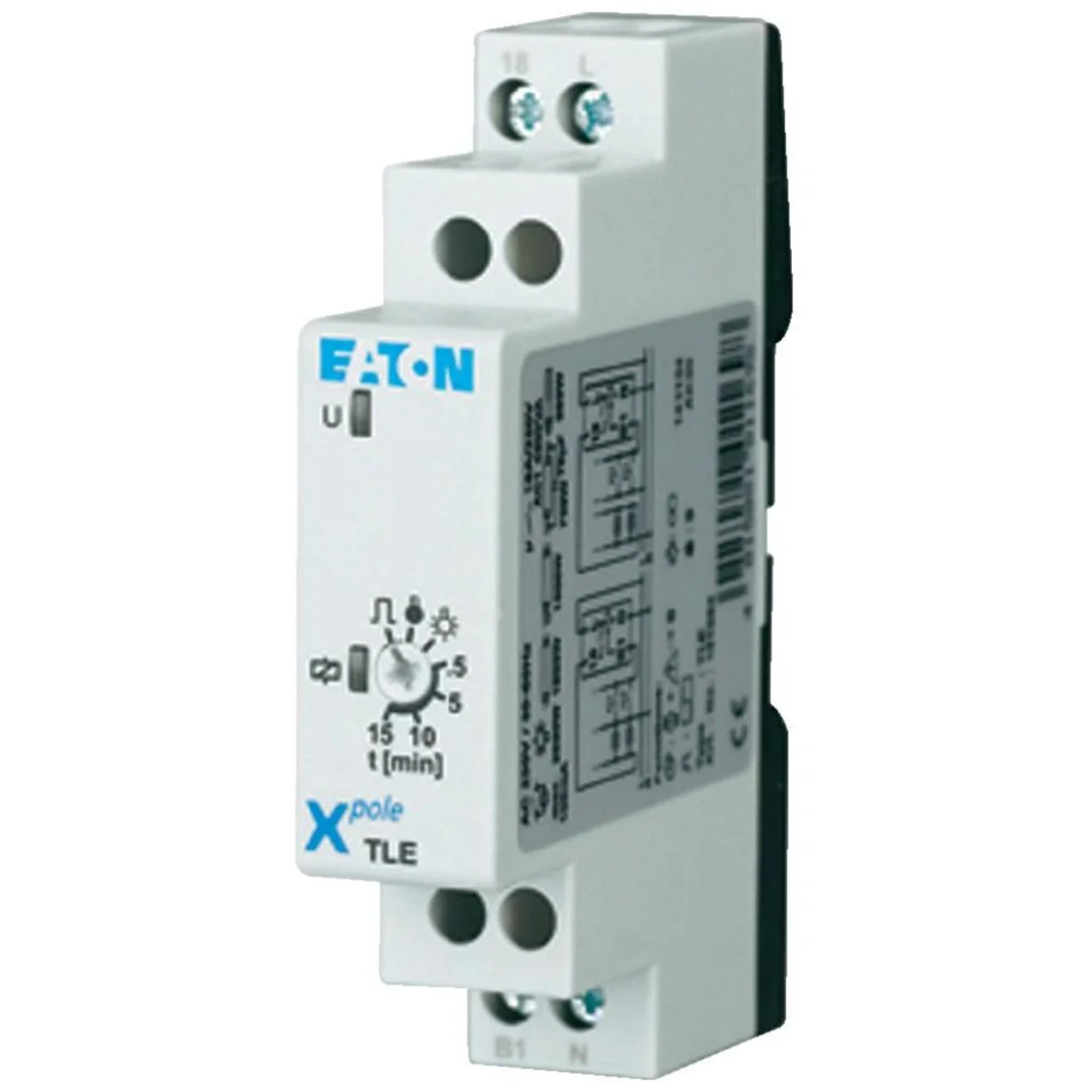

Staircase switch, TLE, 16A 230V 101064 101064

local index:
APC122MOEL
Catalog No:
101064
EAN code:
4015081011698
Manufacturer: EATON
Depth [mm]: 65
Voltage [V]: 230
Rated voltage [V]: 230
Price:
133,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
2
)
Add to clipboard
Print

Product description


TLE type automatic staircase switch, 16A 230V 101064 has a single NO contact, voltage of 230V and control voltage frequency of 50Hz. Offers STOP function and shutdown warning.

Type of electrical connection: screw connection.


Ideally suitable for use in lighting of passageways:



  • stairwells,


  • croaters.

Technical data

  • Depth [mm]
    65
  • Rated voltage [V]
    230
  • Height [mm]
    87
  • Voltage [V]
    230
  • Width [mm]
    17.5
  • Current [A]
    16

Other technical data

  • Type of electric connection
    Screw connection
  • Function delay on de-energization
    Yes
  • Function floating contact on de-energization
    No
  • Function pulse shaping
    No
  • Function flashing, starting with pulse, fixed time
    No
  • Clock function, starting with pulse, variable
    No
  • Remote operation possible
    No
  • Pluggable on auxiliary contact block
    No
  • Rated control supply voltage AC 60 Hz
    230 ... 230 V
  • Voltage type for actuating
    AC
  • Time range
    30 ... 720 s
  • Number of outputs, undelayed, normally open contact
    0
  • Number of outputs, delayed, normally closed contact
    0
  • Number of outputs, delayed, change-over contact
    0
  • With semiconductor output
    No
  • Suitable for front mounting
    Yes
  • Height
    87 mm
  • Function delay-on energization
    No
  • Function floating contact on energization
    No
  • Function star-delta
    No
  • Function flashing, starting with pause, fixed time
    No
  • Clock function, starting with pause, variable
    No
  • Z gniazdem wtykowym
    No
  • Suitable as remote control
    No
  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Nominal current
    16 A
  • Number of outputs, undelayed, normally closed contact
    0
  • Number of outputs, undelayed, change-over contact
    0
  • Number of outputs, delayed, normally open contact
    1
  • Outputs, reversible delayed/undelayed
    No
  • Suitable for DIN rail (top hat rail) mounting
    Yes
  • Width
    17.5 mm
  • Depth
    65 mm

Bulk packaging

A kind of package Skrzynia Karton Karton
Quantity 1 pcs. 2 pcs. 120 pcs.
Weight (kg) 0,061 0,122 7,320
Volume (m3) 0,000 0,000 0,017
Width (m) 0,020 0,095 0,385
Length (m) 0,067 0,035 0,192
Depth (m) 0,089 0,075 0,230
