Limit switch PAP1 T13 PZ11 A37-1030
local index:
ALC121POKO
Catalog No:
A37-1030
EAN code:
5902626133320
Manufacturer:
POKÓJ
Level of security: IP65
Price:
24,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

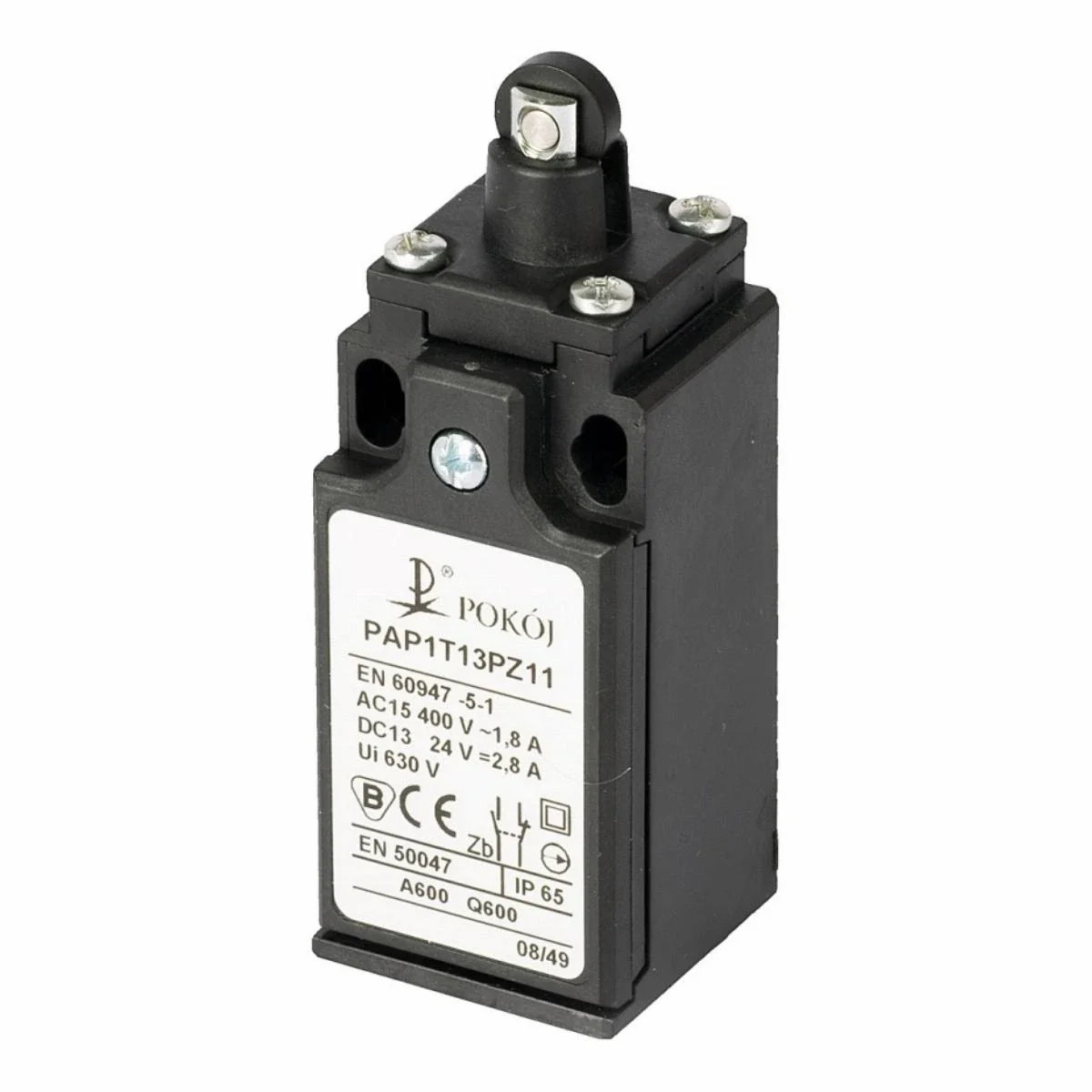

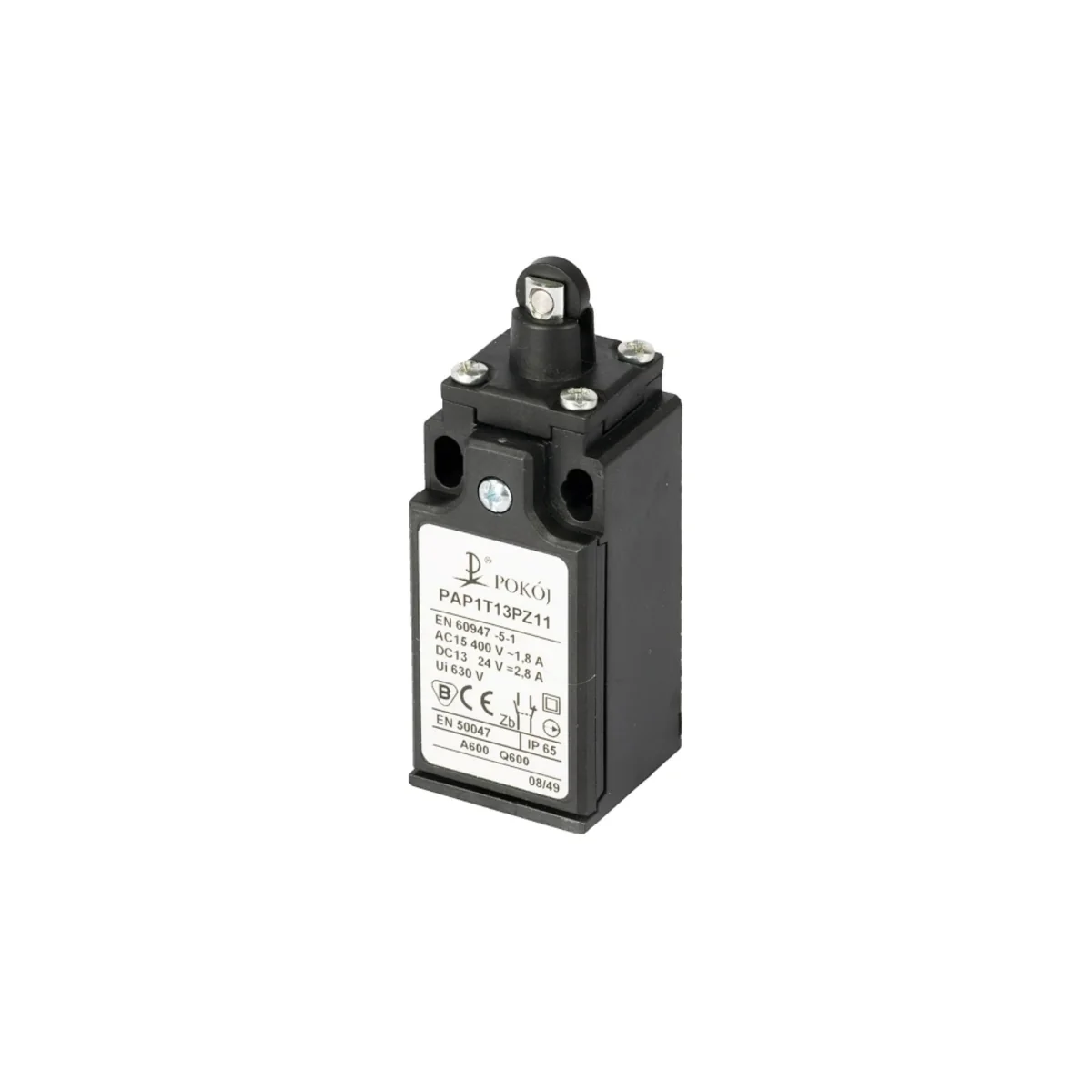

Limit switch PAP1 T13 PZ11
Technical data
-
Level of securityIP65
-
PKWIU27.33.11
Other technical data
-
Width sensor30.3 mm
-
Height of sensor30 mm
-
Rated operation current Ie at AC-15, 24 V10 A
-
Rated operation current Ie at AC-15, 230 V3 A
-
Rated operation current Ie at DC-13, 125 V0.55 A
-
Switching functionQuick-break switch
-
Forced openingYes
-
Number of contacts as normally closed contact1
-
Number of contacts as change-over contact0
-
Type of interface for safety communicationNone
-
Construction type housingCuboid
-
Coating housingOther
-
Alignment of the control elementOther
-
With status indicationNo
-
Explosion safety category for gasNone
-
Ambient temperature during operating-25 ... 70 °C
-
Diameter sensor11 mm
-
Length of sensor84 mm
-
Rated operation current Ie at AC-15, 125 V6 A
-
Rated operation current Ie at DC-13, 24 V2.8 A
-
Rated operation current Ie at DC-13, 230 V0.27 A
-
Output electronicNo
-
Number of safety auxiliary contacts0
-
Number of contacts as normally open contact1
-
Type of interfaceNone
-
Obudowa zgodnie z normąDIN EN 50047
-
Housing materialPlastic
-
Type of control elementRoller cam
-
Type of electric connectionCable entry PG
-
Suitable for safety functionsNo
-
Explosion safety category for dustNone
-
Degree of protection (IP)IP65
