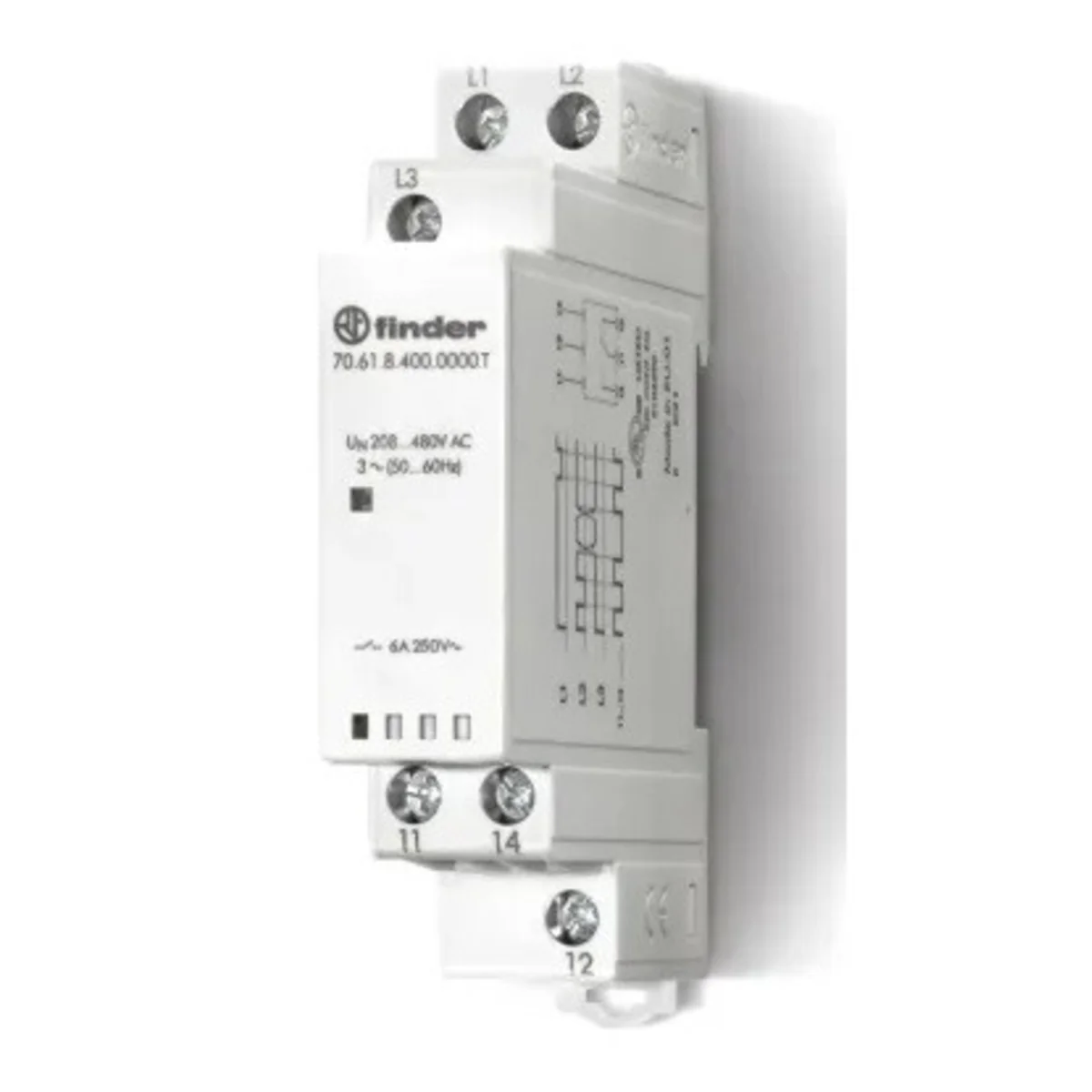

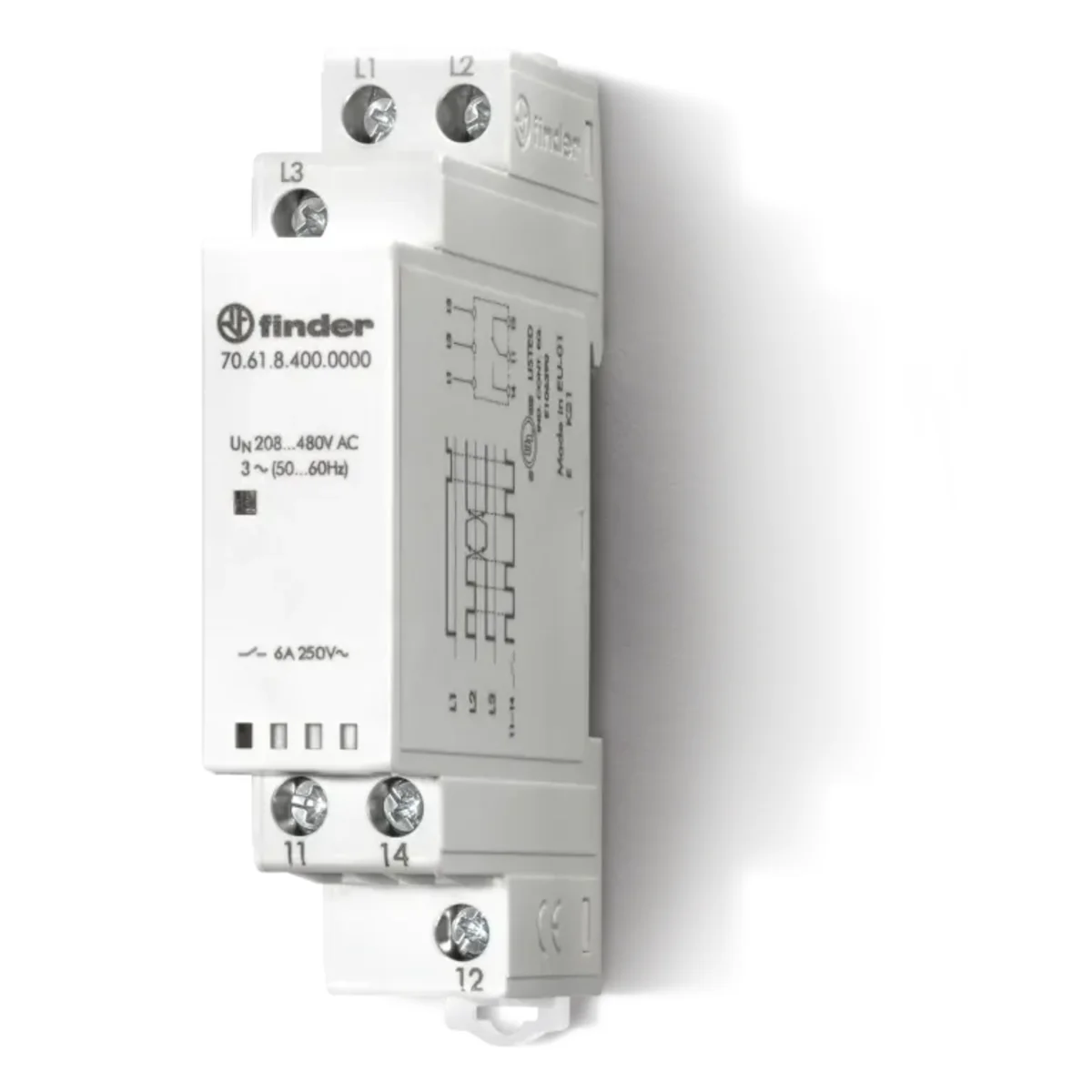

70 SERIES Electronic phase sequence and phase loss monitoring relay for 208…480V three-phase systems 706184000000PAS

local index:
APE106FIND
Catalog No:
706184000000PAS
EAN code:
8012823371993
Manufacturer: FINDER
Maximum switching voltage [V]: 400
Contact material: AgSnO2
Rated voltage [V]: 230
Price:
53,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 15 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

Electronic relay supervising the sequence and loss of phases in three-phase systems of the 70 series, from the manufacturer FINDER. The product part number is 70.61.8.400.0000PAS.

  • Wide voltage control range (UN 208 V to 480 V, 50/60 Hz).
  • Phase loss control even below the minimum value.
  • Positive safety logic - contact opens when a fault is detected.
  • 1 changeover contact, 6 A (17.5 mm wide).
  • For mounting on a 35 mm DIN rail (EN 60715).
  • European patent for a completely innovative solution in the effective monitoring and fault control of three-phase networks.
  • Three phase voltage supervision (208…480V):
    • Phase loss.
    • Phase rotation
  • Data coils:
    • Installation voltage (UN) V AC (50/60 Hz) 208…480.
    • Power consumption VA (50 Hz)/W 8/1.
    • Power supply voltage range V AC (50/60 Hz) 170…500.

Technical data

  • Maximum switching voltage [V]
    400
  • Rated voltage [V]
    230
  • Switching current [A]
    15
  • Family
    70
  • Number of contacts
    1
  • Electrical durability AC1 [number of cycles]
    100000
  • Contact material
    AgSnO2
  • Shutdown delay [s]
    0.5
  • Rated current [A]
    6
  • Level of security
    IP20
  • Rated switching power for AC1 [VA]
    1500
  • Terminal type
    Threaded
