F&F

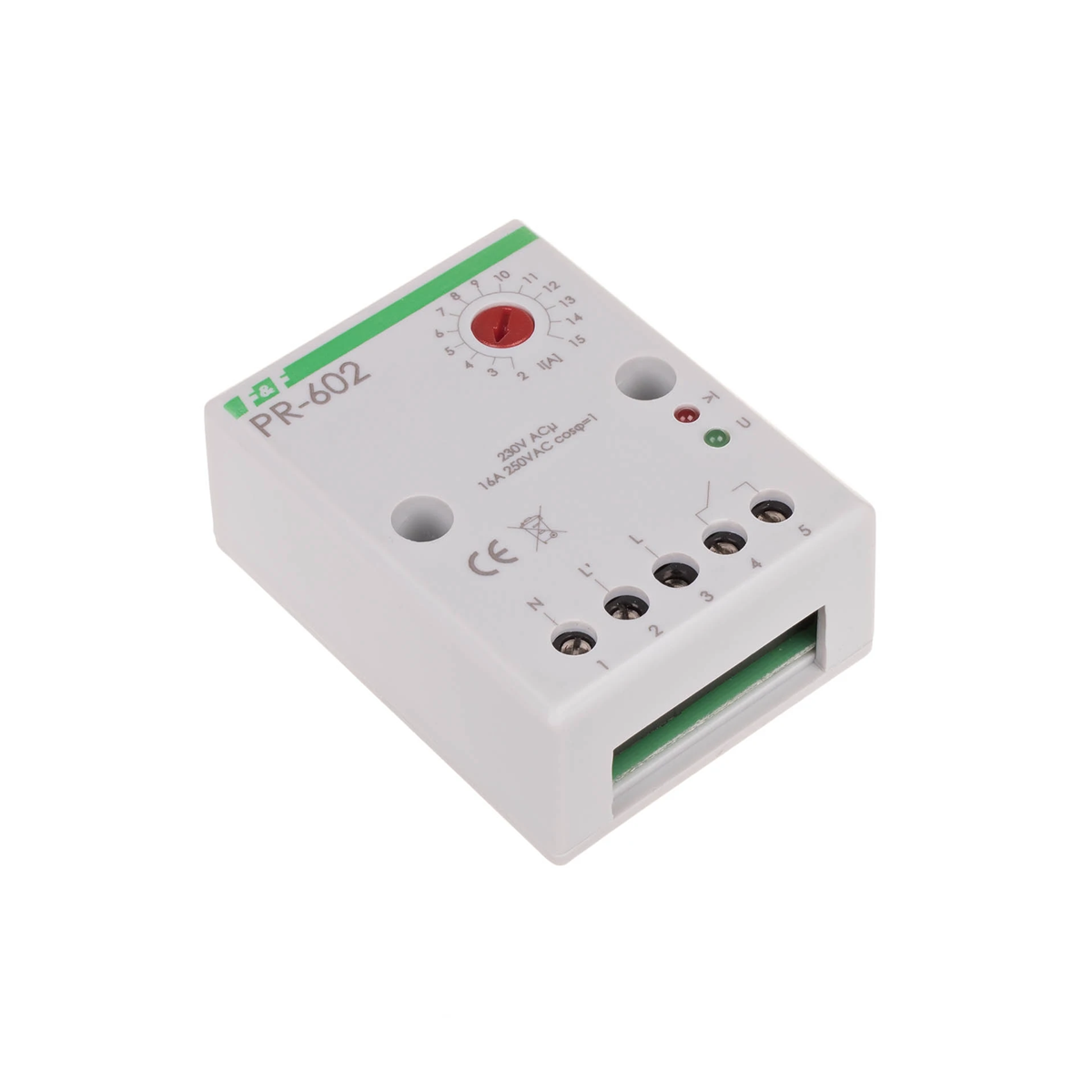

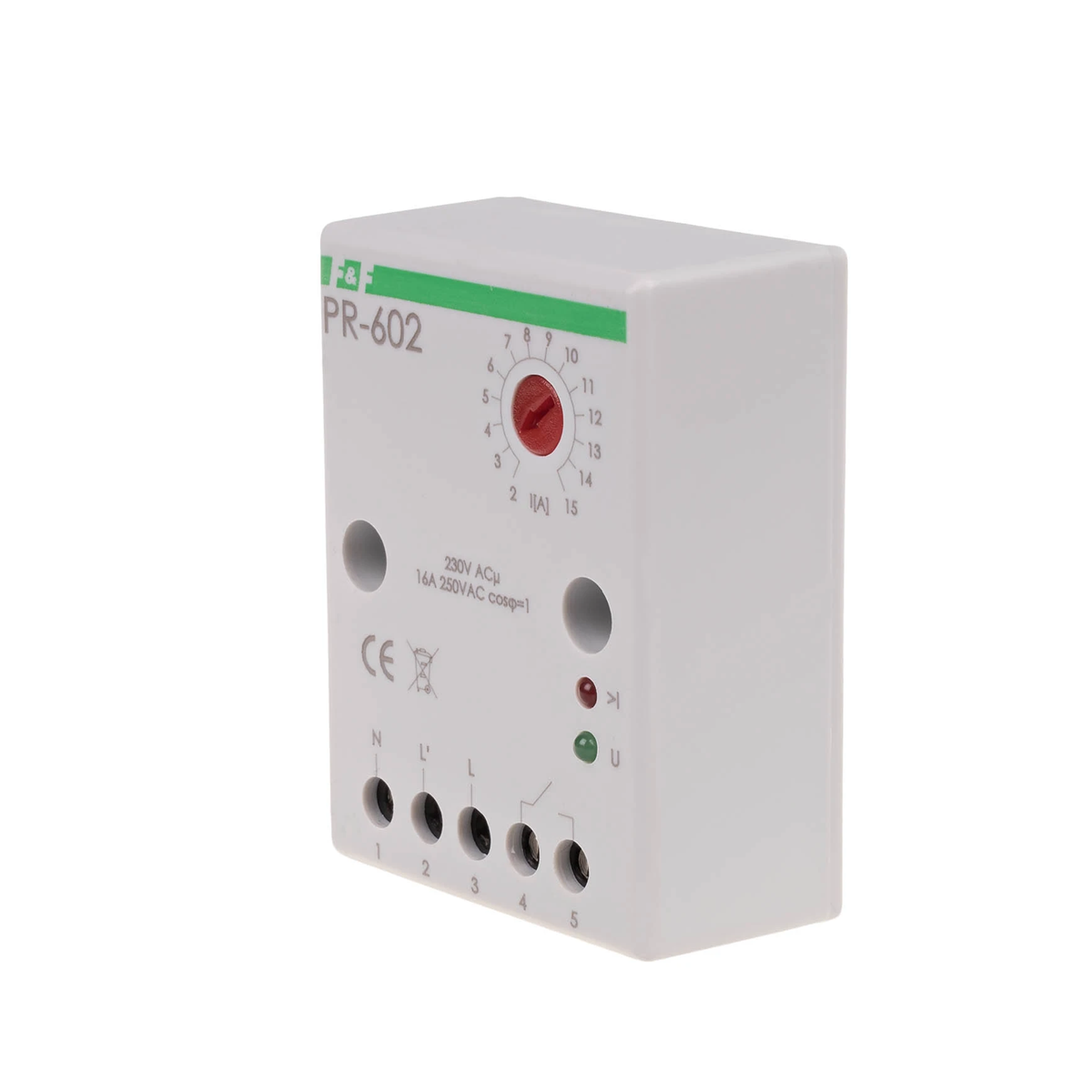

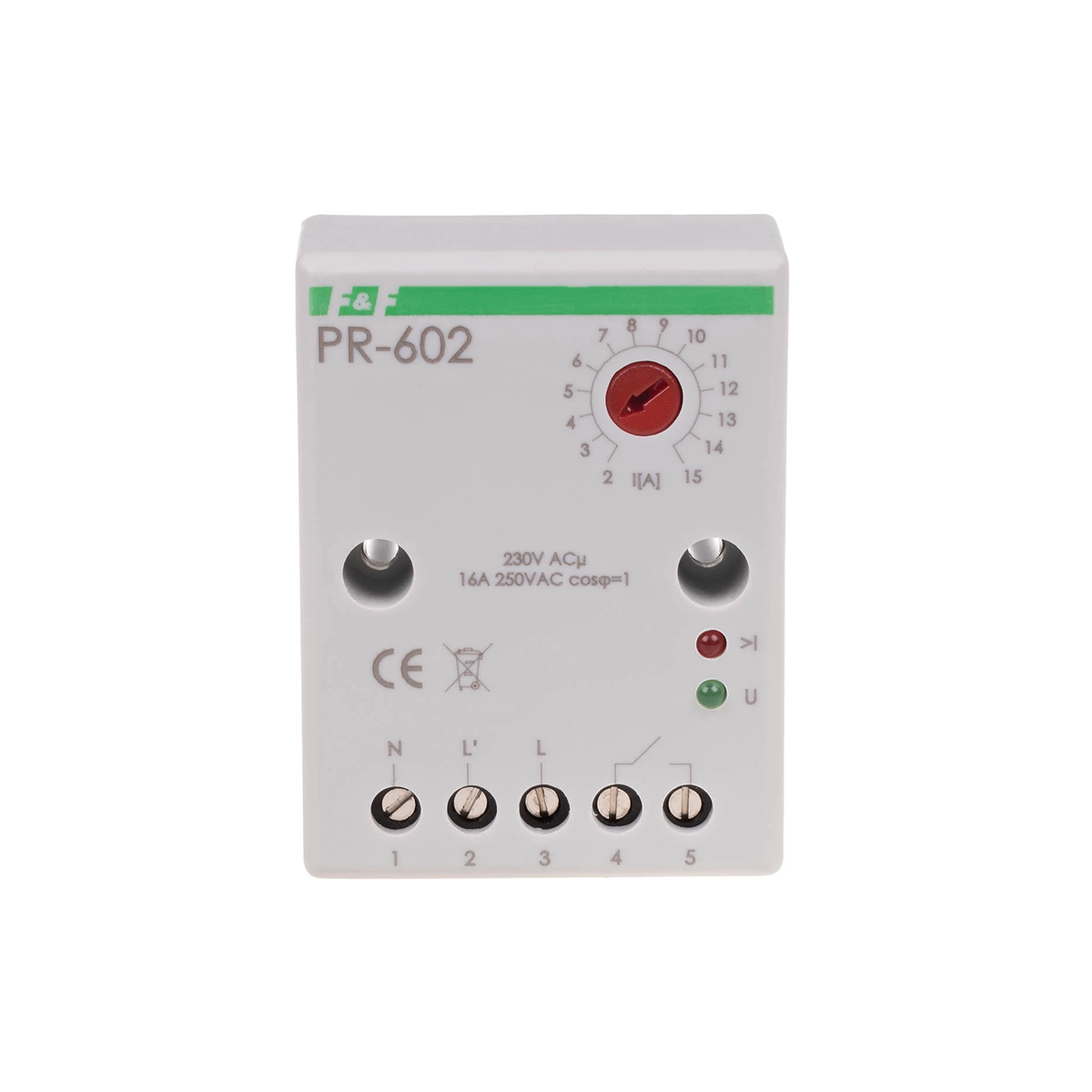

PR-602 priority relay PR-602

local index:
APC220FIFQ
Catalog No:
PR-602
EAN code:
5908312595939
Price:
28,07 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,70 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Intended use
Priority relays are used, among others, when the current circuit is connected to at least two high-power receivers that can work independently, and their simultaneous operation would cause the current protection to trip.
Operation
The potentiometer is used to set the value of current consumption in the priority circuit, above which the relay disconnects the non-priority circuit. A decrease in the current consumption in the priority circuit below the set threshold value will automatically switch on the non-priority circuit. In case the receiver is already enabled. the priority relay will prevent the load from being switched on.
Attention!
The current of the priority and non-priority receiver cannot exceed 16A.

Technical data

  • Return hysteresis [%]
    1
  • Power [W]
    0.4
  • Return delay [s]
    0, 1
  • Current of non-priority receivers [A]
    16
  • connection
    2.5mm screw terminals
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    67
  • Package weight [kg]
    0, 1
  • Switching delay [s]
    0.1
  • Number of contacts
    1NO 0NC
  • Rated voltage [V]
    230
  • load current [A]
    <16
  • Switching current - adjustable [A]
    2-15
  • Mounting method
    For screws
  • Dimensions
    50×67×26mm
  • Package width [mm]
    50
  • Switching delay
    0.1 sec

Other technical data

  • Rated voltage
    230 V
  • Max. time-delayed switch-off
    100 ms
  • Rated current (control contacts)
    15 A
  • Mounting method
    DIN rail
  • Just-operate current
    2 ... 15 A
  • Max. continuous current
    16 A
  • Voltage type
    AC
  • Degree of protection (IP)
    IP20
