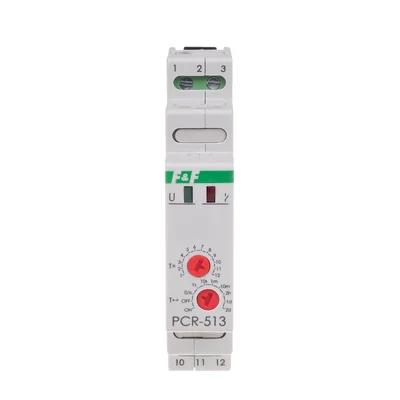

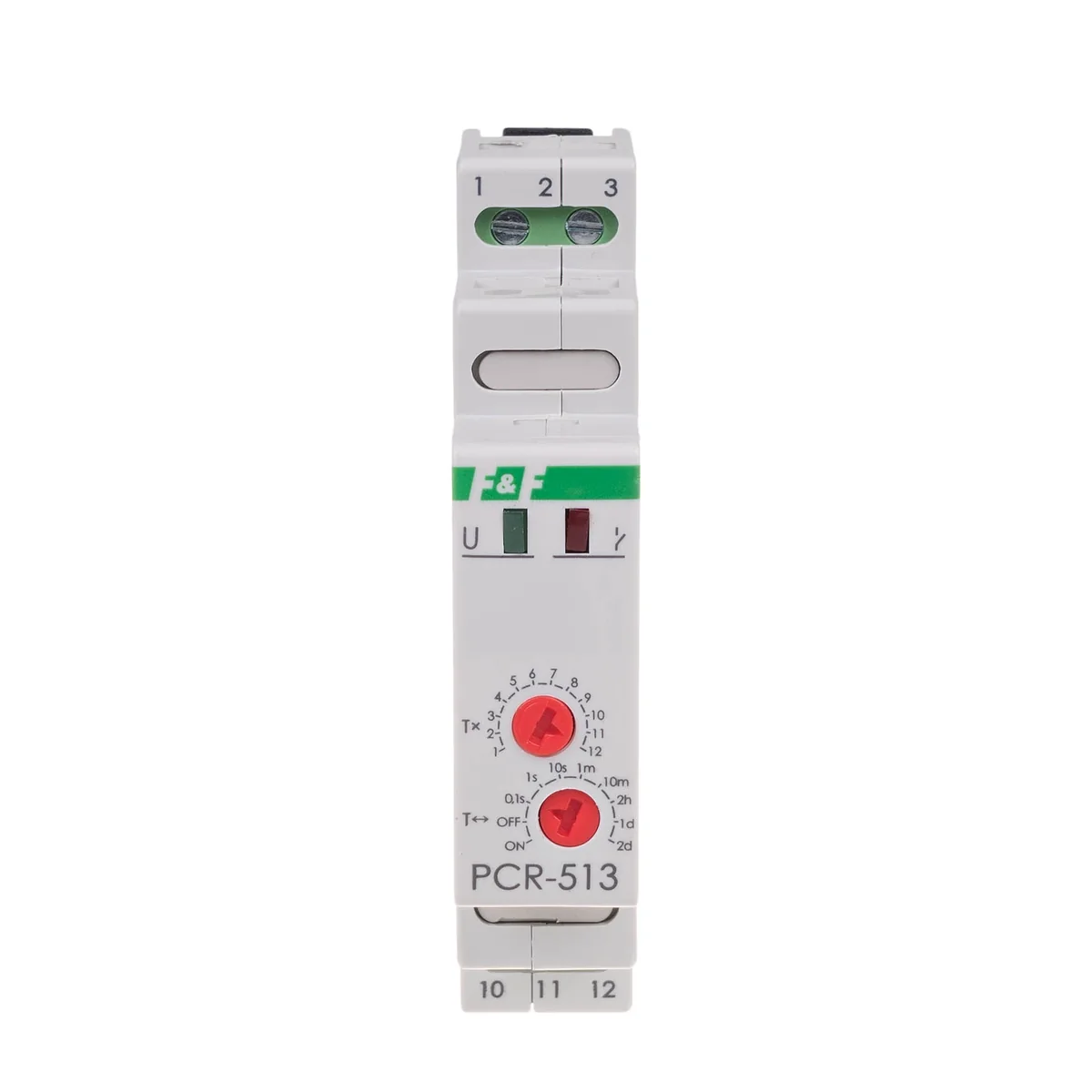

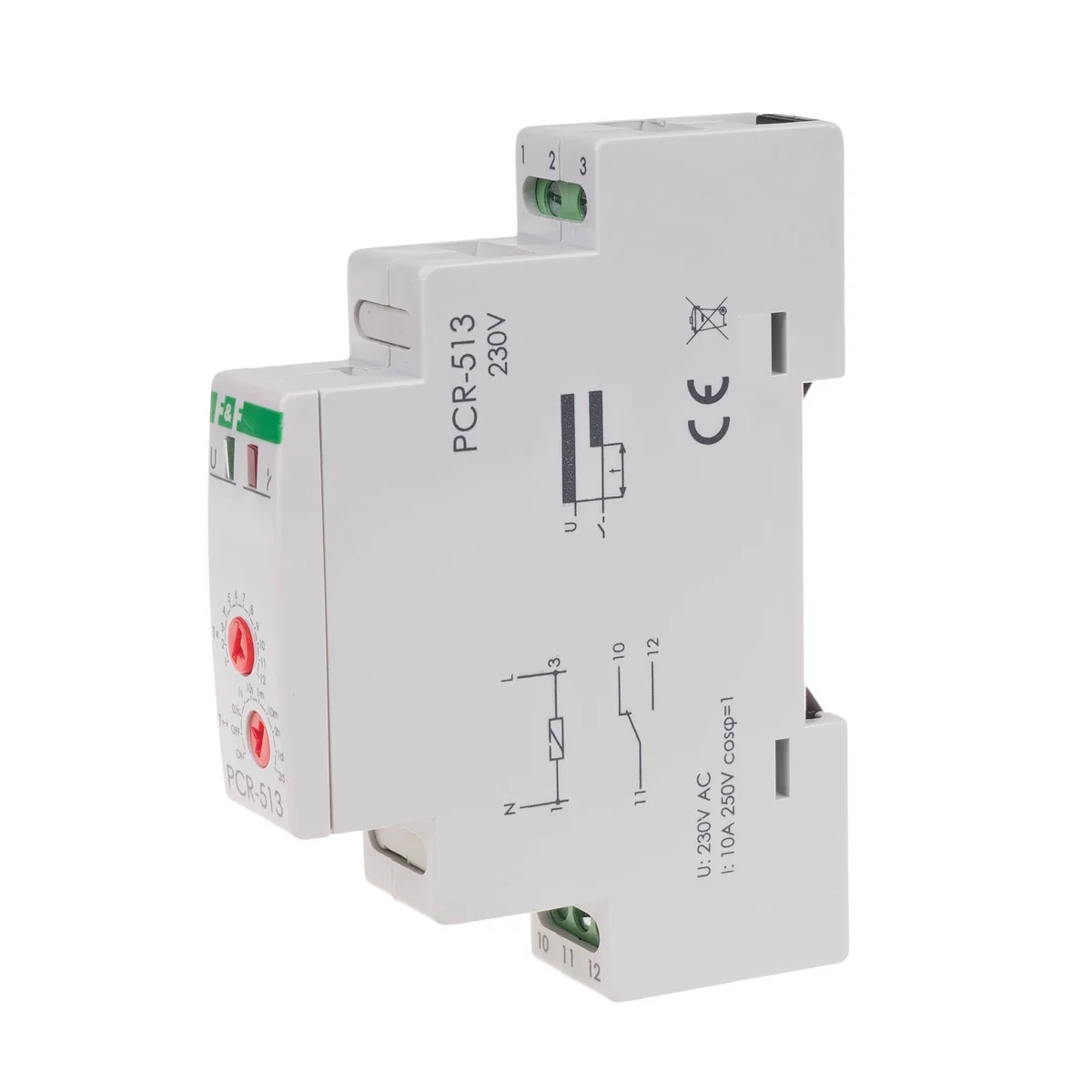

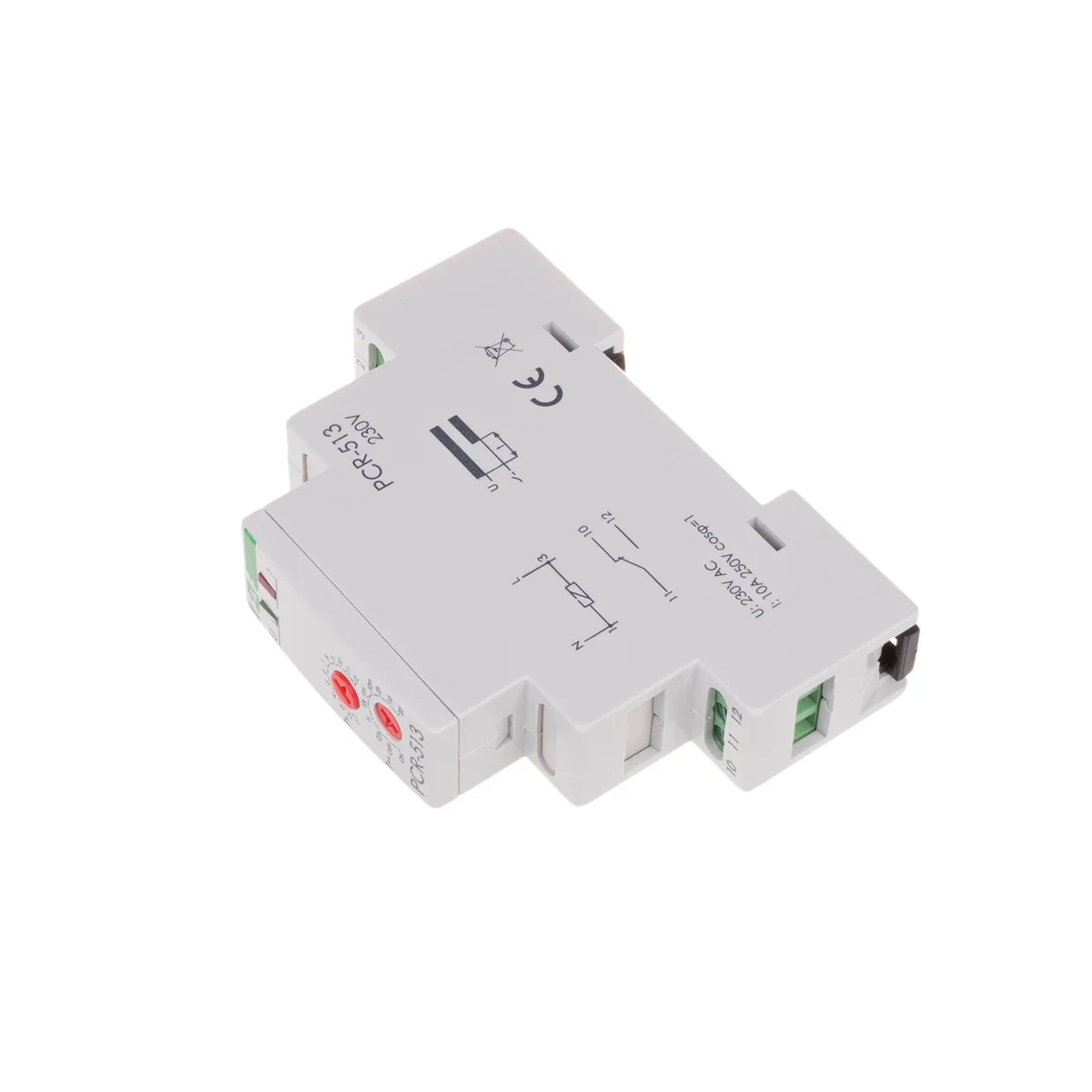

Time relay PCR-513 230V PCR-513

local index:
APC152FIFQ
Catalog No:
PCR-513
EAN code:
5908312595441
Price:
27,80 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 21 pcs.
Delivery:
From 3,71 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Purpose
Relays  temporary   are used for  time control in industrial and home automation systems (e.g. ventilation, heating, lighting, signaling, etc.).
Operation
After applying the supply voltage, the contact remains in position  11-10 and the set working time is measured. After the time has elapsed, the switch  contact in position 11-12. Reactivation of the relay operating mode is possible after disconnecting the supply voltage and switching it on again. Note!
* When the power supply is on, the system does not react to changing the time range settings.
* Operation with the newly set time range takes place after switching off and on again
* When the power is turned on within the set time range, it is possible to smoothly adjust the time within the time setting value.              ;            ON  - when the power supply is on, the contact is permanently switched on  in position 11-12.
 OFF  -  when the power supply is on, the contact is permanently switched on  in position 11-10.

Technical data

  • Number of contacts
    0NO 0NC
  • Installation
    On the TH-35 rail
  • Tripping delay [msec]
    <50
  • connection
    2.5mm screw terminals
  • Power indication
    LED green
  • Dimensions
    1 module (18mm)
  • Power [V]
    230
  • Package height [mm]
    150
  • Package weight [kg]
    0, 1
  • Power [W]
    0.8
  • Rated voltage [V]
    230
  • load current [A]
    <10
  • Contact status indication
    red LED
  • Working temperature [°C]
    -25-50
  • Working time setting range
    0.1sec-576hrs
  • Power supply PCR-513 [V]
    230
  • Package width [mm]
    20
  • Operating time setting range [s]
    0.1sec-576hrs

Other technical data

  • Type of excitation
    Digital with single function
  • 1st interval unit
    Seconds/minutes
  • 2nd interval unit
    Minutes/hours
  • Number of changeover switches
    1
  • Type of control voltage 1
    AC/DC
  • Voltage type (supply voltage)
    AC
  • Switch capacity incandescent lamps
    1500 W
  • Switch capacity fluorescent lamp parallel
    500 VA
  • Function
    Operating delay
  • 1st interval
    0.1 ... 1
  • Mounting method
    DIN rail
  • Control voltage 1
    230 ... 230 V
  • Type of control voltage 2
    AC
  • Nominal switching current at 250 V AC
    10 A
  • Switch capacity fluorescent lamp DUO
    650 VA
  • Switch capacity fluorescent lamp inductive
    650 VA

See other products in the category: Time relays
