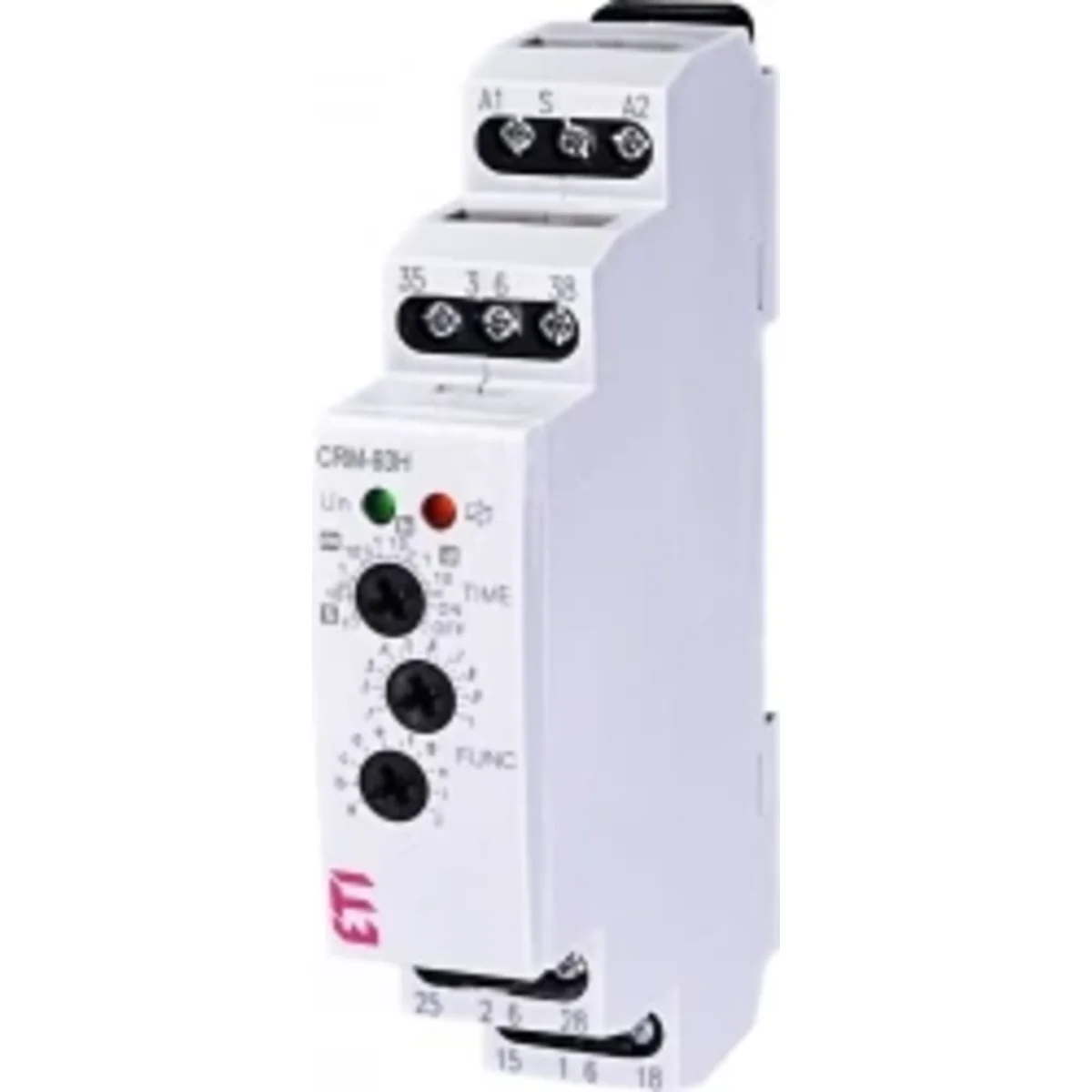

Multifunctional electronic time relay UNI CRM-93H 002470002

local index:
APC170ETIP
Catalog No:
002470002
EAN code:
8594030338308
Manufacturer: ETI POLAM
Number of functions: 10
Rated voltage [V]: 230
Clamps: 2.5mm2
Price:
68,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Application - These devices are used to control electricity receivers according to a selected time function, they allow for the implementation of one of ten functions (CRM-91, CRM-93).

Advantages:
→ width 1 module,
→ solid construction,
→ reliability,
→ retaining clamps,
→ quiet operation,
→ universal power supply 12-240V AC/DC or 230 AC
→ a wide range of implemented functions,
→ changeover contact.

Technical data

  • Number of functions
    10
  • Clamps
    2.5mm2
  • Power
    Terminals A1 - A2
  • PKWIU
    27.12.24.0
  • Rated voltage [V]
    230
  • Time ranges
    0.1s - 10 days
  • Compliance with standards
    EN 61812-1, EN 5008, EN 61000

Other technical data

  • Type of excitation
    Digital with multi function
  • 1st interval unit
    Seconds/hours
  • Mounting method
    DIN rail
  • Built-in height
    65 mm
  • Supply voltage
    12 ... 240 V
  • Nominal switching current at 250 V AC
    8 A
  • Function
    Multi function
  • 1st interval
    0.1 ... 240
  • Width in number of modular spacings
    1
  • Number of changeover switches
    3
  • Voltage type (supply voltage)
    AC/DC
