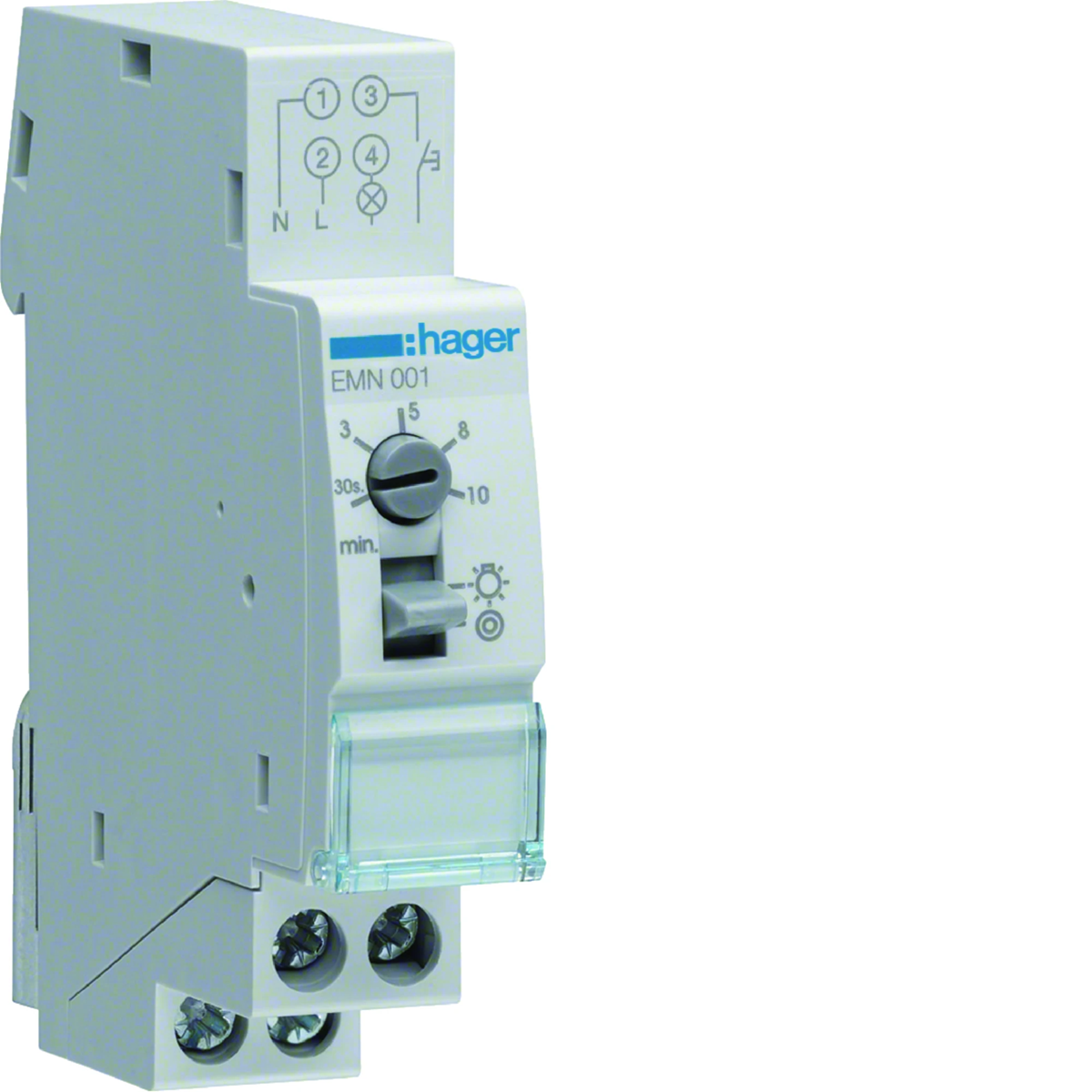

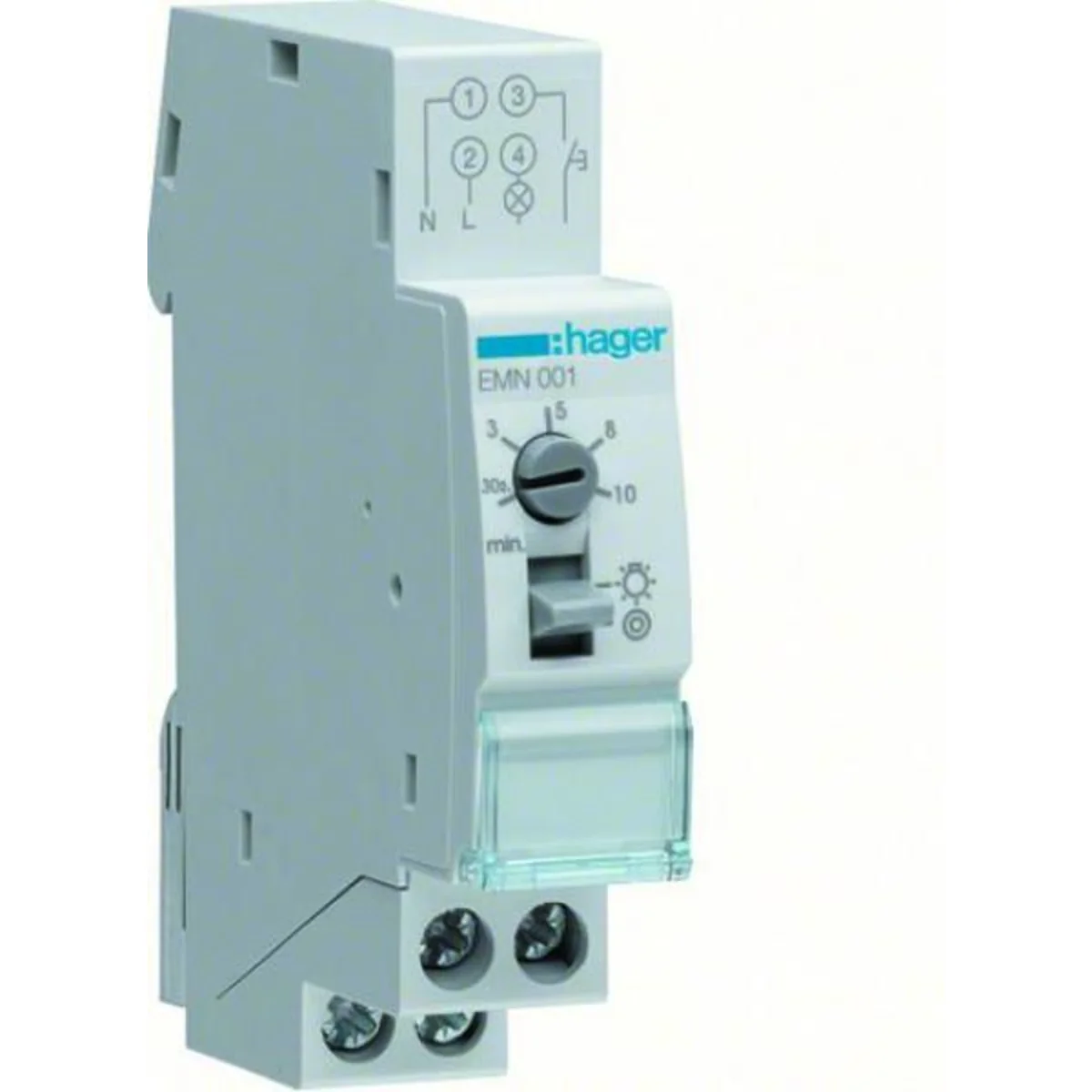

Stair switch 30s-10min EMN001
local index:
APC041HAGE
Catalog No:
EMN001
EAN code:
3250612339969
Price:
77,35 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Staircase time switch • for time-limited lighting of staircases, corridors, underground garages, etc.,
• automatic operation or permanent on function (switch),
• shutdown delay time
• automatic operation or permanent on function (switch),
• shutdown delay time
Technical data
-
Number of modules1
-
AC control voltage [V]230
-
Level of securityIP20
-
Number of modules1
-
Maximum power [W]2300
-
Rated voltage [V]230
-
Breaking capacity16A 250V AC1
-
PKWIU26.52.24.0
Other technical data
-
FunctionElectronic
-
Width in number of modular spacings1
-
Number of contacts as normally open contact1
-
Number of contacts as change-over contact0
-
Type of control voltage 1AC
-
Control voltage 2230 ... 230 V
-
Frequency control voltage 250 ... 60 Hz
-
Max. switching current (cos phi = 0.6)16 A
-
Push button glow-lamp current100 mA
-
Pre-warning of switching-offNone
-
RepetitiveRepetitive
-
Voltage type (supply voltage)AC
-
Max. load fluorescent lamp3600 VA
-
Max. load fluorescent lamp (parallel compensated)1000 VA
-
Mounting methodDIN rail
-
Built-in depth64 mm
-
Number of contacts as normally closed contact0
-
Control voltage 1230 ... 230 V
-
Frequency control voltage 150 ... 60 Hz
-
Type of control voltage 2AC
-
Rated switch current16 A
-
Release-delay0.5 ... 10 min
-
Wiring system3 and 4 wire configuration
-
Current surge function selectableNo
-
Supply voltage230 ... 230 V
-
Max. incandescent lamp load2300 W
-
Max. load fluorescent lamp (Duo circuit)1000 VA
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
Tax identification number6460015532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta |
| Quantity | 6 pcs. | 144 pcs. | 3456 pcs. |
| Weight (kg) | 0,465 | 11,535 | 299,840 |
| Width (m) | 0,095 | 0,320 | 0,800 |
| Length (m) | 0,080 | 0,245 | 1,050 |
| Depth (m) | 0,115 | 0,360 | 1,200 |
