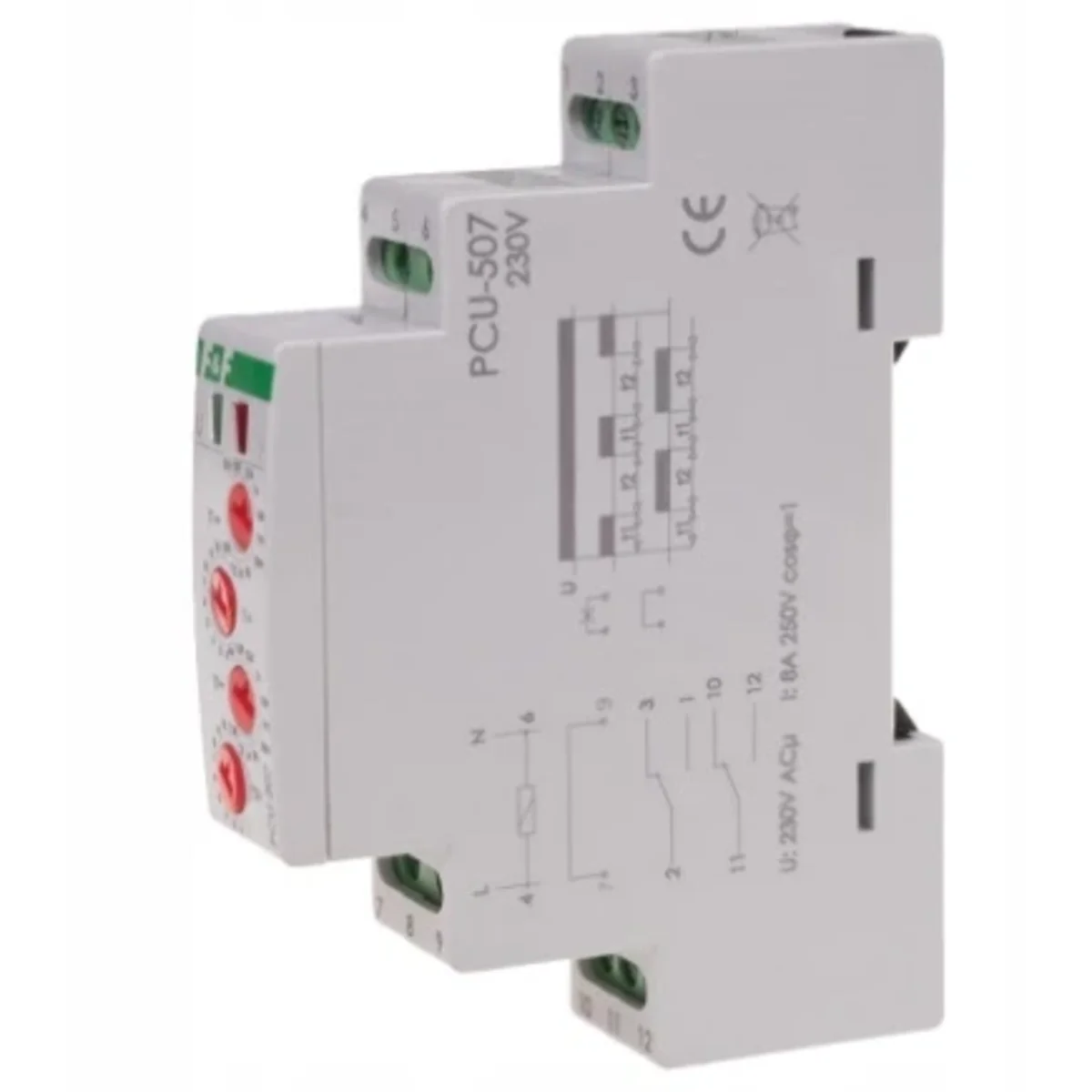

2-function time relay (setting 2 times T1 T2 PCU-507 230V PCU-507

local index:
APC001FIFQ
Catalog No:
PCU-507
EAN code:
5908312594413
Manufacturer: F&F
Number of contacts: 0NO 0NC
Power [W]: 0.8
Installation: On the TH-35 rail
Price:
39,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 20 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description


Intended use

Time relays are used for time control in industrial and home automation systems (e.g. ventilation, heating, lighting, signaling, e.t.c). Operation

Functions:

*DELAYED OFF - CYCLICAL

Contacts remain in position 2-3 and 11-10 until the relay is switched on. After supplying the supply voltage, the contacts are switched into position 2-1 and 11-12 for time t1. After the time t1 has elapsed, the contacts return to positions 2-3 and 11-10 for the time t2. The sequence of these switchings is carried out cyclically.

*DELAYED ON - CYCLICAL

After applying the supply voltage, the contacts remain in position 2-3 and 11-10 for the time t1. After the t1 time has elapsed, the contacts are switched to position 2-1 and 11-12 for the t2 time. After time t2, the relay contacts return to positions 2-3 and 11-10. The sequence of these switchings is carried out cyclically. Note!

* When the power supply is on, the system does not react to changing the time range settings.

* Operation with the newly set time range takes place after turning the power off and on again.

* When the power supply is turned on in the set time range, it is possible to smoothly adjust the time within the time setting value.



 ON  - when the power supply is turned on, the contact is permanently closed in the 11-12.

 OFF  - when the power is on, the contact is permanently closed in position 11-10

Technical data

  • Number of contacts
    0NO 0NC
  • Installation
    On the TH-35 rail
  • Tripping delay [msec]
    <50
  • connection
    2.5mm screw terminals
  • Power indication
    LED green
  • Dimensions
    1 module (35mm)
  • Power [V]
    230
  • Package height [mm]
    150
  • Package weight [kg]
    0.1
  • PKWIU
    26.52.24.0
  • Power [W]
    0.8
  • Rated voltage [V]
    230
  • load current [A]
    2x8
  • Contact status indication
    red LED
  • Working temperature [°C]
    -25-50
  • Working time setting range
    0.1sec-576hrs
  • Power supply PCU-507 [V]
    230
  • Package width [mm]
    40
  • Operating time setting range [s]
    0.1sec-576hrs

Other technical data

  • Type of excitation
    Analogue with multi function
  • 1st interval unit
    Seconds/minutes
  • Number of changeover switches
    2
  • Voltage type (supply voltage)
    AC/DC
  • Switch capacity incandescent lamps
    1100 W
  • Switch capacity fluorescent lamp parallel
    300 VA
  • Function
    Multi function
  • Mounting method
    DIN rail
  • Type of control voltage 1
    AC/DC
  • Nominal switching current at 250 V AC
    8 A
  • Switch capacity fluorescent lamp DUO
    550 VA
  • Switch capacity fluorescent lamp inductive
    550 VA

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,078
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
