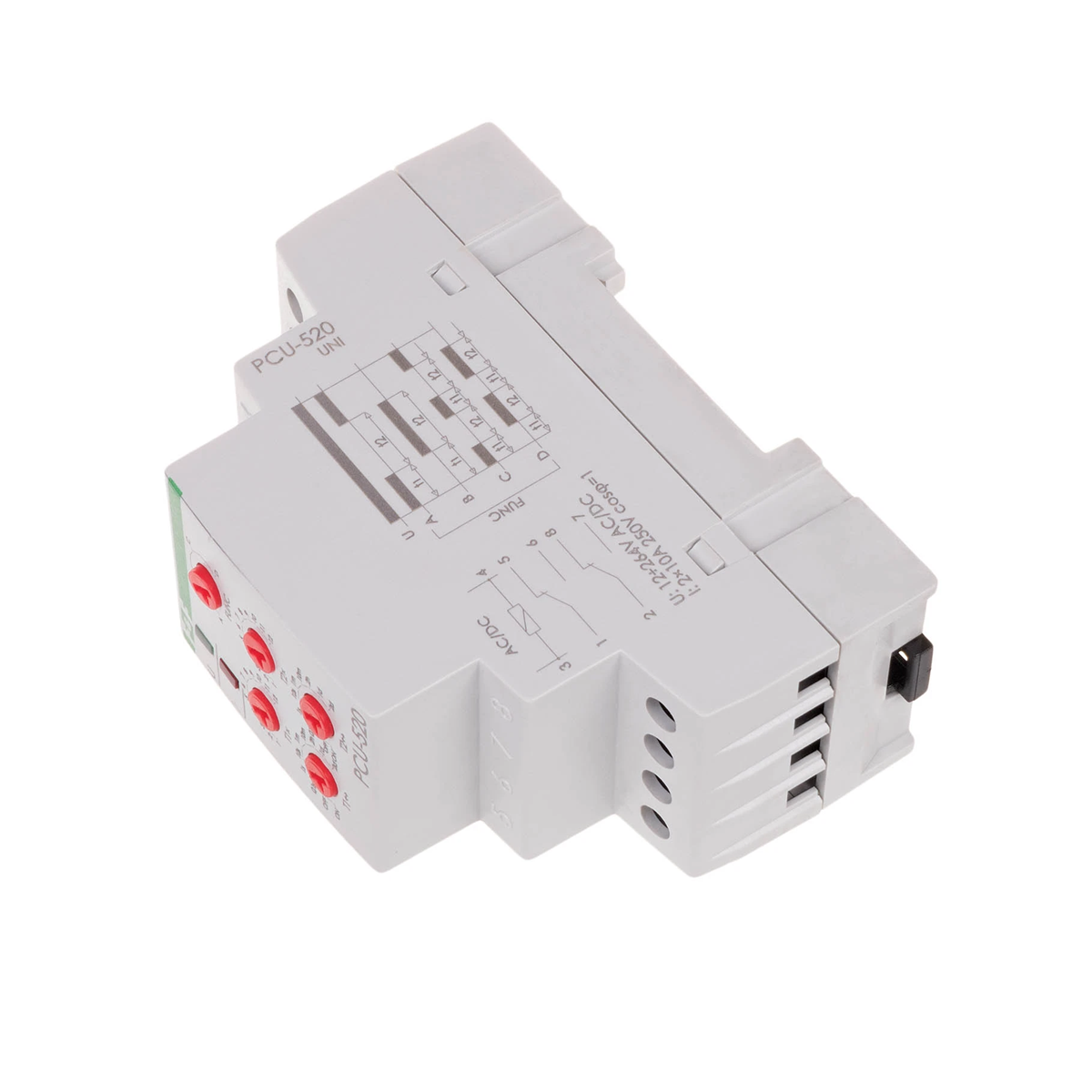

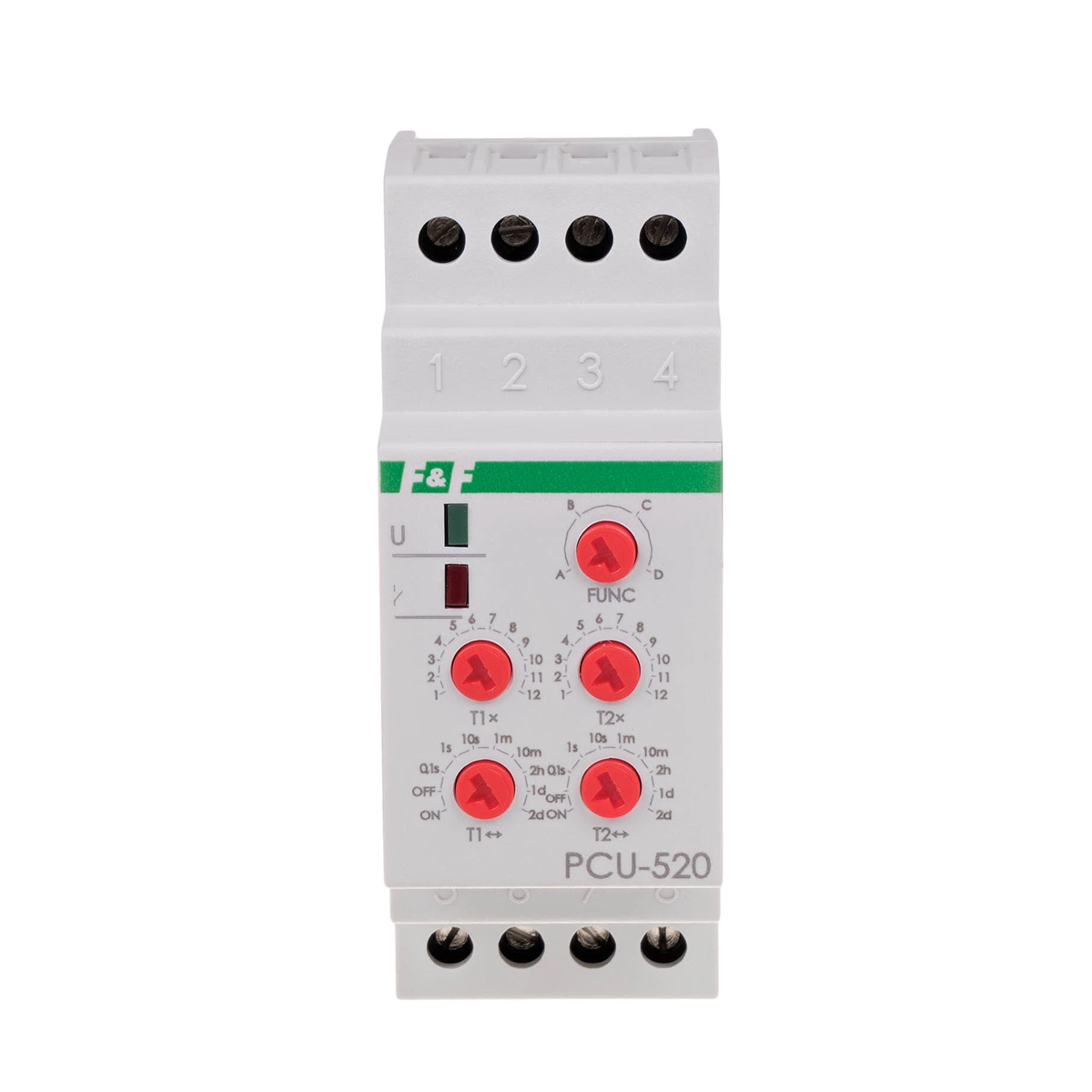

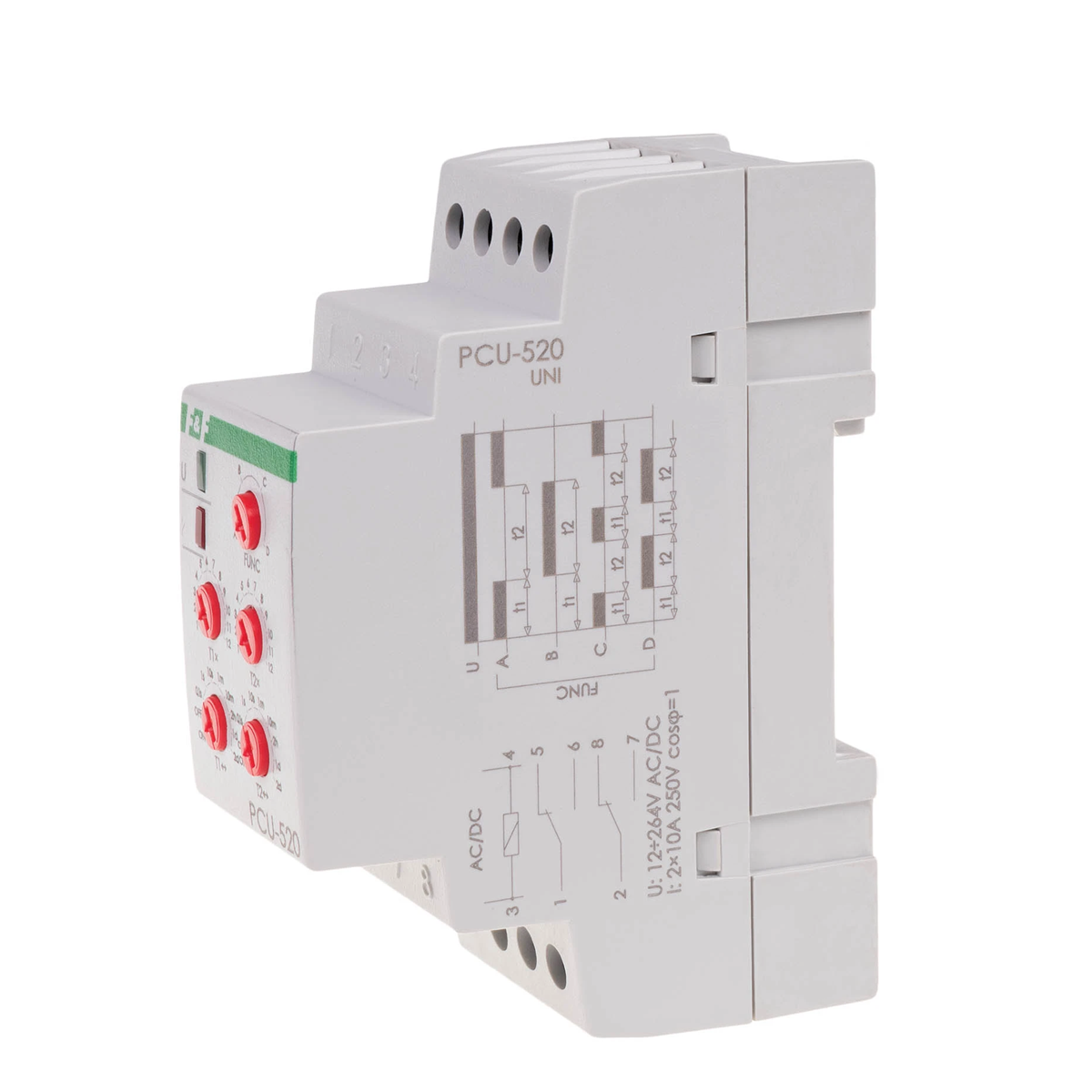

Universal time relay PCU-520UNI

local index:
APC005FIFQ
Catalog No:
PCU-520UNI
EAN code:
5908312597735
Manufacturer: F&F
Number of contacts: 0NO 0NC
Power [W]: 1.2
load current [A]: 2x <8
Price:
48,73 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Time relays are used for time control in industrial and home automation systems (e.g. ventilation, heating, lighting, signaling, etc.).

Technical data

  • Number of contacts
    0NO 0NC
  • load current [A]
    2x <8
  • Working temperature [°C]
    -25/50
  • Working time setting range
    0.1s-576h
  • Package height [mm]
    150
  • Package weight [kg]
    0.2
  • Operating time setting range [s]
    0.1s-576h
  • Power [W]
    1.2
  • Signaling
    LED green/red
  • Dimensions
    2 modules (35mm)
  • Power [V]
    12/264
  • Package width [mm]
    40
  • Tripping delay [ms]
    <50
  • PKWIU
    26.52.24.0

Other technical data

  • Type of excitation
    Digital with single function
  • 1st interval unit
    Seconds/hours
  • 2nd interval unit
    Minutes/hours
  • Mounting method
    DIN rail
  • Number of changeover switches
    2
  • Type of control voltage 1
    AC/DC
  • Nominal switching current at 250 V AC
    10 A
  • Switch capacity fluorescent lamp DUO
    650 VA
  • Switch capacity fluorescent lamp inductive
    650 VA
  • Function
    Other
  • 1st interval
    0.1 ... 1
  • 2nd interval
    1 ... 576
  • Width in number of modular spacings
    2
  • Control voltage 1
    12 ... 264 V
  • Voltage type (supply voltage)
    AC/DC
  • Switch capacity incandescent lamps
    1500 W
  • Switch capacity fluorescent lamp parallel
    500 VA

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,114
Width (m) 0,041
Length (m) 0,095
Depth (m) 0,070
