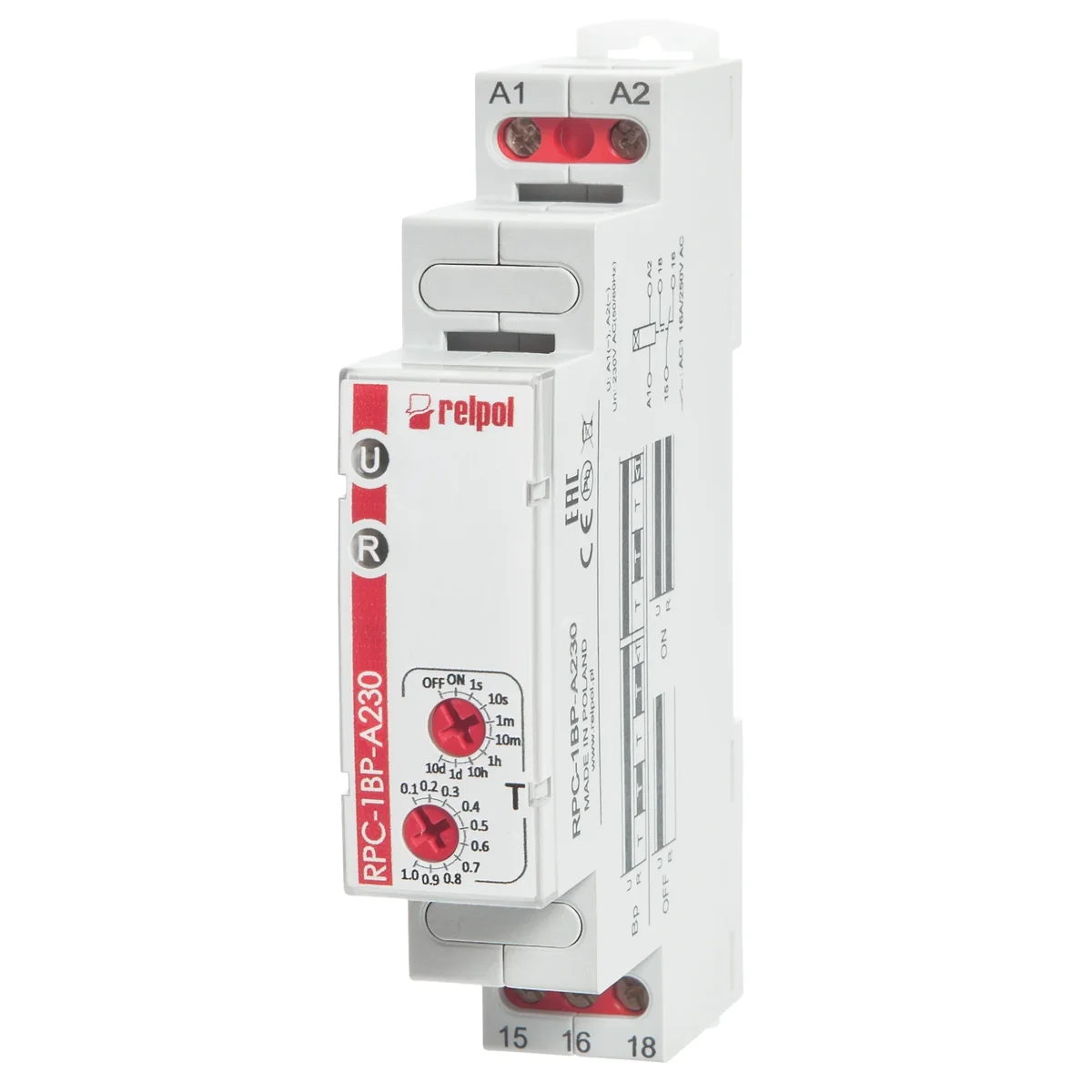

Time Relay 230V AC 1P AgSnO2 16A / 250V AC 863211
local index:
APC066RELP
Catalog No:
863211
EAN code:
5900005231117
Price:
30,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Time relay - single-function, Wu function - switching on for the set time, ON/OFF - permanent switching on/off;
Technical data
-
ColorGray
-
Width [mm]17.5
-
Terminal typescrew terminals
-
InstallationOn the TH-35 rail
-
Height [mm]90
Other technical data
-
Type of electric connectionScrew connection
-
Function delay on de-energizationYes
-
Function floating contact on de-energizationNo
-
Function pulse shapingNo
-
Function flashing, starting with pulse, fixed timeNo
-
Clock function, starting with pulse, variableNo
-
Remote operation possibleNo
-
Pluggable on auxiliary contact blockNo
-
Rated control supply voltage AC 60 Hz230 ... 230 V
-
Voltage type for actuatingAC
-
Time range0.1 ... 864000 s
-
Number of outputs, delayed, change-over contact1
-
With semiconductor outputNo
-
Width17.5 mm
-
Depth64.5 mm
-
Function delay-on energizationNo
-
Function floating contact on energizationNo
-
Function star-deltaNo
-
Function flashing, starting with pause, fixed timeNo
-
Clock function, starting with pause, variableNo
-
Z gniazdem wtykowymNo
-
Suitable as remote controlNo
-
Rated control supply voltage AC 50 Hz230 ... 230 V
-
Rated control supply voltage DC0 ... 0 V
-
Nominal current16 A
-
Number of outputs, undelayed, change-over contact1
-
Outputs, reversible delayed/undelayedNo
-
Suitable for DIN rail (top hat rail) mountingYes
-
Height90 mm
