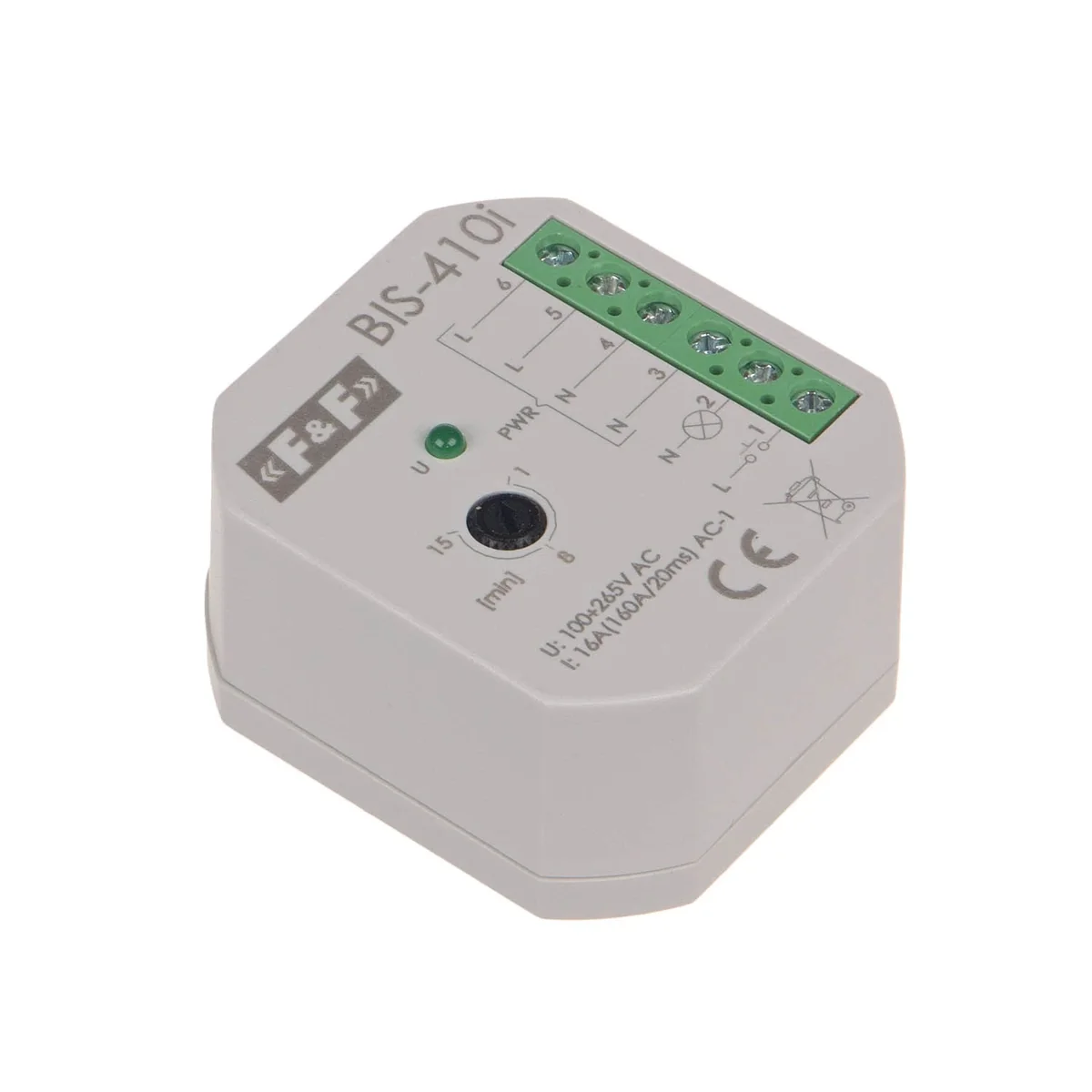

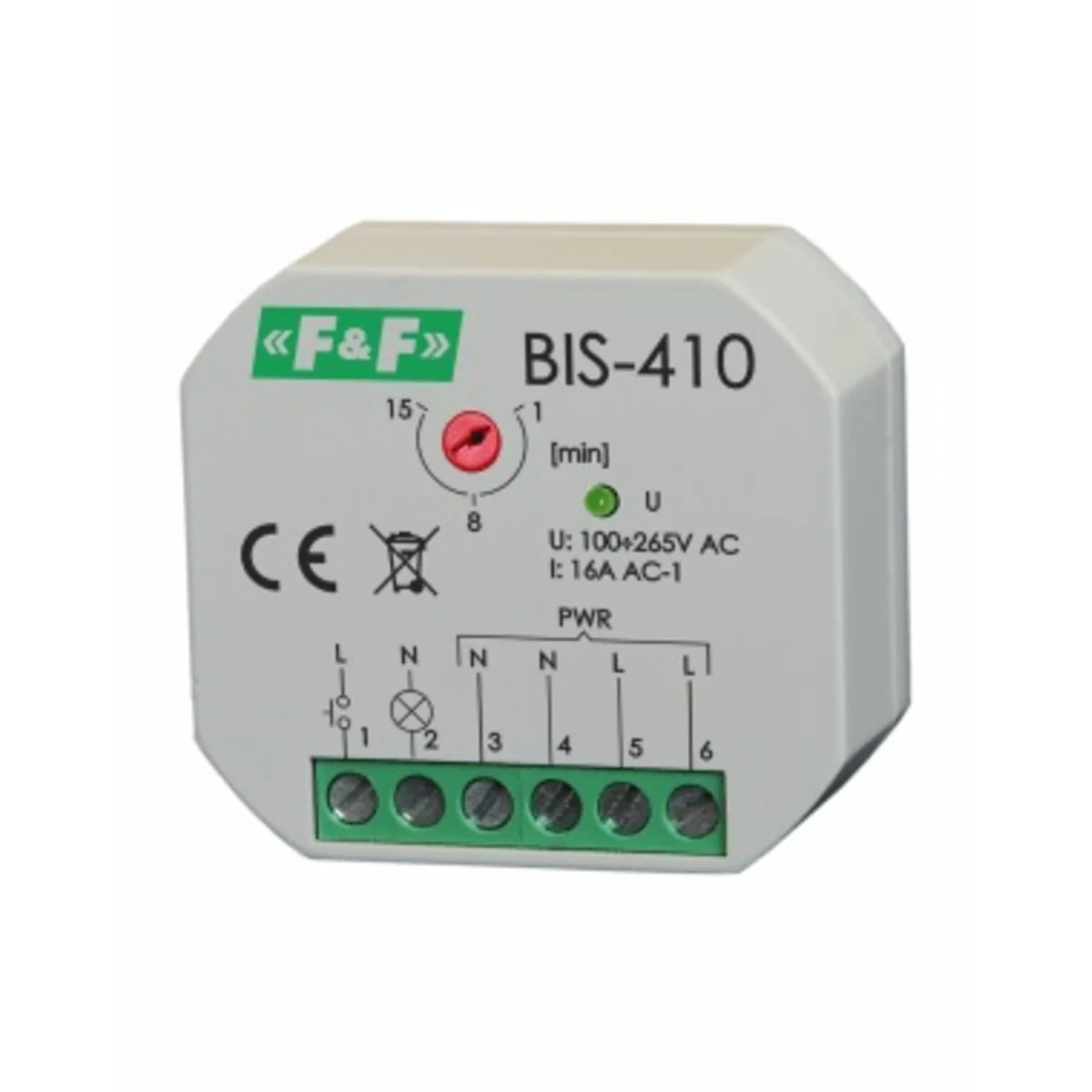

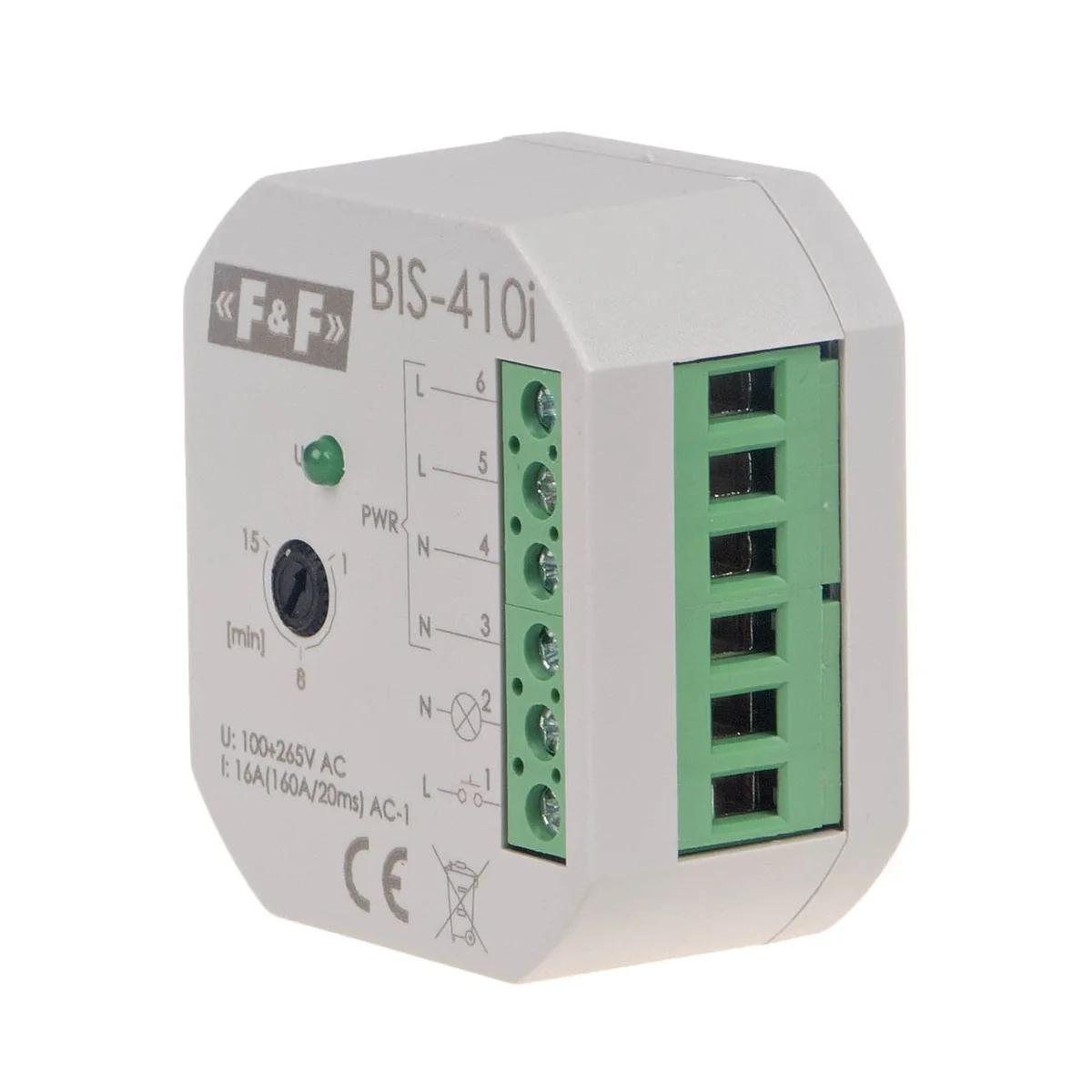

Bistable relay with time switch BIS-410-LED
local index:
APC013FIFQ
Catalog No:
BIS-410-LED
EAN code:
5908312598312
Price:
25,95 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electronic bistable impulse relay, allows you to switch on lighting or other device from several different points by means of control buttons connected in parallel.
Technical data
-
Number of contacts1NO 0NC
-
Level of securityIP20
-
Working temperature [°C]-25-50
-
Package height [mm]20
-
Package weight [kg]0.2
-
Power consumption in the on state [W]0.6
-
Off time adjustable [min]1/15
-
Tripping delay [s]0.1/0.2
-
Power indicationLED green
-
Power [V]100/265
-
Package width [mm]54
-
Control pulse current [A]<5
-
Standby power consumption [W]0.15
-
PKWIU27.12.23.0
Other technical data
-
FunctionElectronic switch
-
Width in number of modular spacings1
-
Control voltage 1100 ... 230 V
-
Frequency control voltage 150 ... 50 Hz
-
Supply voltage165 ... 265 V
-
Max. incandescent lamp load3000 W
-
Max. load fluorescent lamp (Duo circuit)1500 VA
-
Max. switching current (cos phi = 0.6)8 A
-
Mounting methodFlush-mounted
-
Built-in depth20 mm
-
Type of control voltage 1AC
-
Rated switch current8 A
-
Voltage type (supply voltage)AC
-
Max. load fluorescent lamp1500 VA
-
Max. load fluorescent lamp (parallel compensated)1500 VA
-
Suitable for manual operationNo
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,057 |
| Width (m) | 0,031 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
